Power Window Relay Test

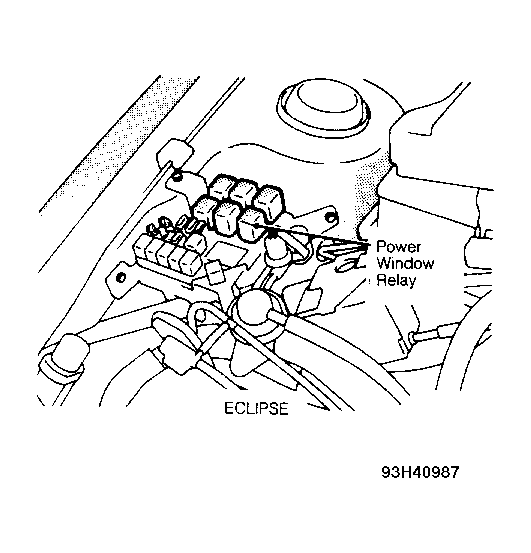

- Remove power window relay from fuse/relay block located on right side of engine compartment inner fender panel, in front of strut tower. See Fig 1
. Check continuity between power window relay terminals No. 2 and No. 4. Continuity should be present.

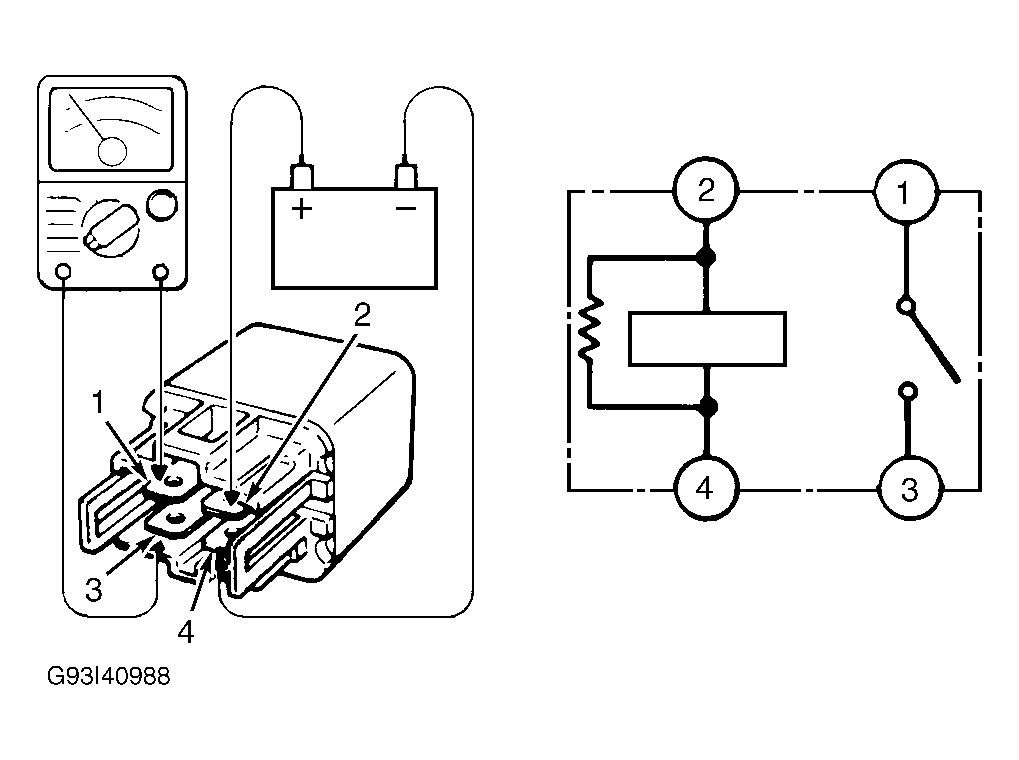

- Connect positive lead of a 12-volt test battery to power window relay terminal No. 2, and negative lead of test battery to terminal No. 4. See Fig 2
. Continuity should be present between terminals No. 1 and No. 3 with voltage applied. Replace power window relay if continuity is not as specified.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
