Power Window Switch Test

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See MASTER WINDOW SWITCH CONTINUITY or PASSENGER SIDE WINDOW SWITCH CONTINUITY and Fig 1 . Replace appropriate switch as necessary if switch continuity is not as specified.

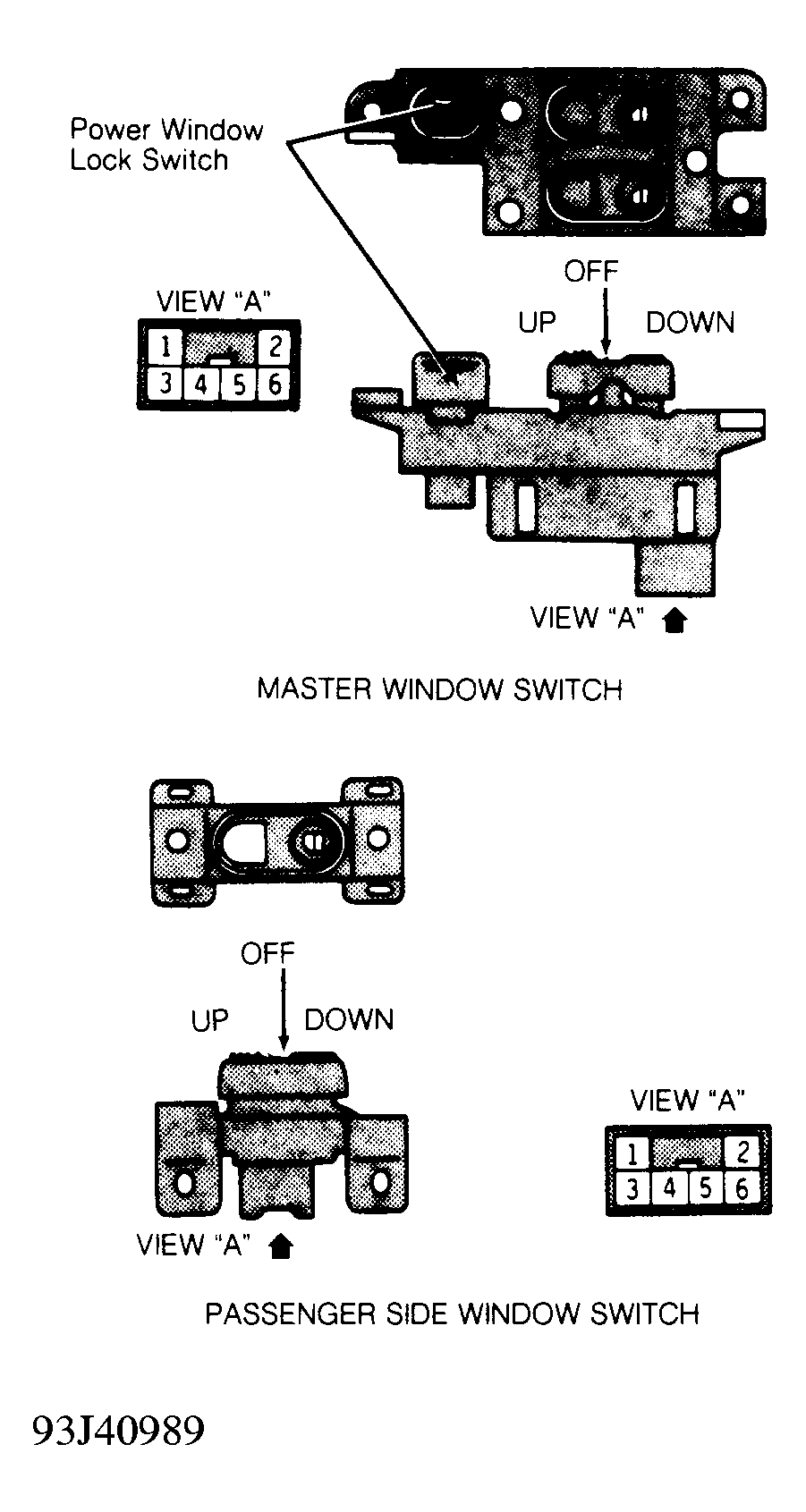

Fig 1: Identifying Power Window Control Switch Pins

G93J40989

Courtesy of CHRYSLER CORP.

MASTER WINDOW SWITCH CONTINUITY

Switch Position		Check Continuity Between
Normal Position
Driver's OFF		Pins 2, 3 & 6
Passenger's OFF		Pins 1, 3 & 4
Driver's UP		Pins 2 & 3; Pins 5 & 6
Passenger's UP		Pins 1 & 3; Pins 4 & 5
Driver's DOWN		Pins 2 & 5; Pins 3 & 6
Passenger's DOWN		Pins 1 & 5; Pins 3 & 4
Lock Position
Driver's OFF		Pins 2, 3 & 6
Passenger's OFF		Pins 1 & 4
Driver's UP		Pins 2 & 3; Pins 5 & 6
Passenger's UP		Pins 4 & 5
Driver's DOWN		Pins 2 & 5; Pins 3 & 6
Passenger's DOWN		Pins 1 & 5

PASSENGER SIDE WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between
OFF	Pins 2 & 4; Pins 3 & 5
UP	Pins 2 & 4; Pins 5 & 6
DOWN	Pins 3 & 5; Pins 4 & 6
