Ignition System: Distributor: Installation
- If reference mark was not made as described in removal procedure, go to next step. If reference mark was made, install distributor by reversing removal procedure, then go to step 4).

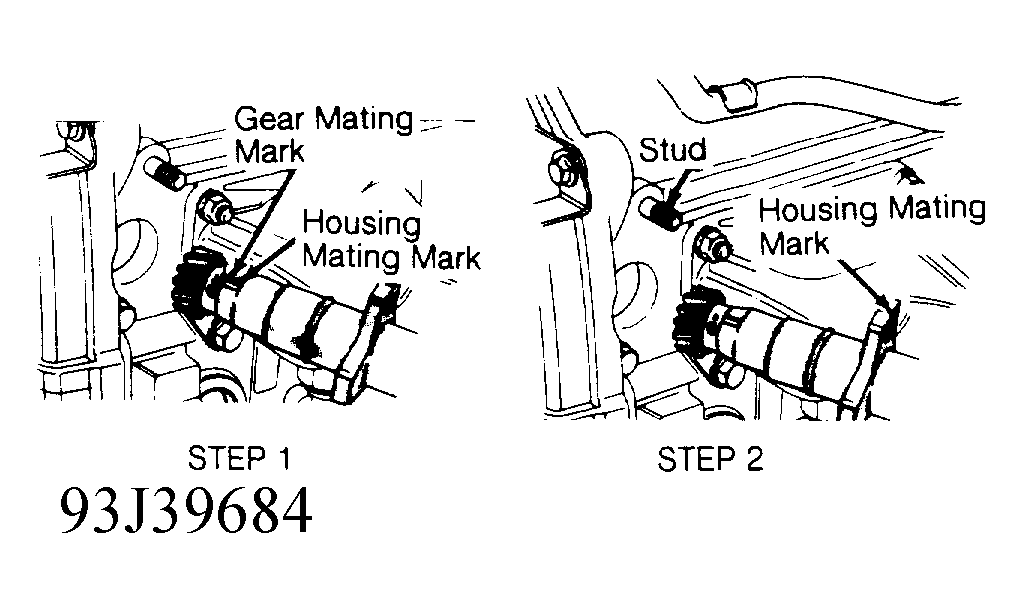

- Rotate crankshaft clockwise until piston No. 1 is at TDC of compression stroke. Align distributor housing and gear mating marks. Perform STEP 1. See Fig 1
.
- Install distributor to engine while aligning housing mating mark with center of distributor installation stud. Perform STEP 2. See Fig 1
.
- Adjust ignition timing. See appropriate ADJUSTMENTS
article in the ENGINE PERFORMANCE section. Tighten distributor bolt to specification. See TORQUE SPECIFICATIONS.
Courtesy of CHRYSLER CORP.
