Connector Identification

CONNECTOR IDENTIFICATION

Connector See Figure
Airflow Sensor Fig 1
Coolant Temperature Sensor Fig 2
Distributor 6-Pin Fig 3
Electronic Control Unit
10-Pin Fig 4
18-Pin Fig 5
24-Pin Fig 6
Fuel Injector Fig 7
Fuel Injector Control Relay Fig 8
Fuel Pump Fig 9
Idle Speed Control Motor Fig 10
Ignition Coil Fig 11
Inhibitor Switch Fig 12
Throttle Position Sensor Fig 13

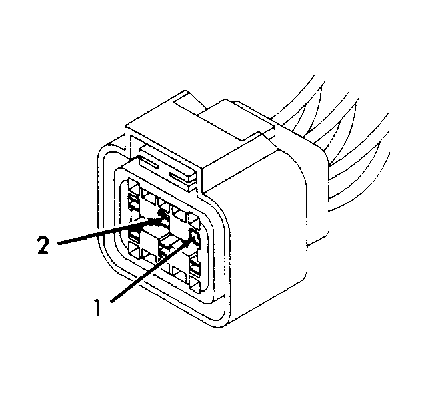

Fig 1: Airflow Sensor Connector Terminal ID
G92I05134Courtesy of CHRYSLER CORP.

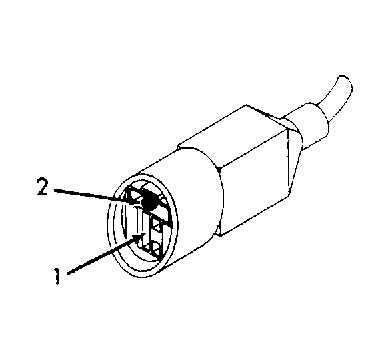

Fig 2: Coolant Temperature Sensor Connector Terminal ID
G92B05135Courtesy of CHRYSLER CORP.

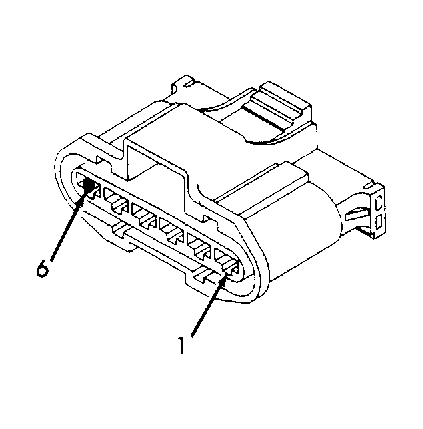

Fig 3: Distributor 6-Pin Connector Terminal ID
G92D05136Courtesy of CHRYSLER CORP.
ECU 10-PIN CONNECTOR

Terminal Wire Color Function
101 Black Ground
102 Red Power
103 Red/Black Battery Back-Up
104 Black/Yellow Park/Neutral Sense (A/T)
" Black Ground (M/T)
105 Black/Dark Green Oxygen (O2) Sensor Heater
106 Black Ground
107 Red Power Source
108 Black/Yellow Inhibitor Switch (A/T)
" " Starter Relay (M/T)
109 White Tachometer
110 Not Used Not Used

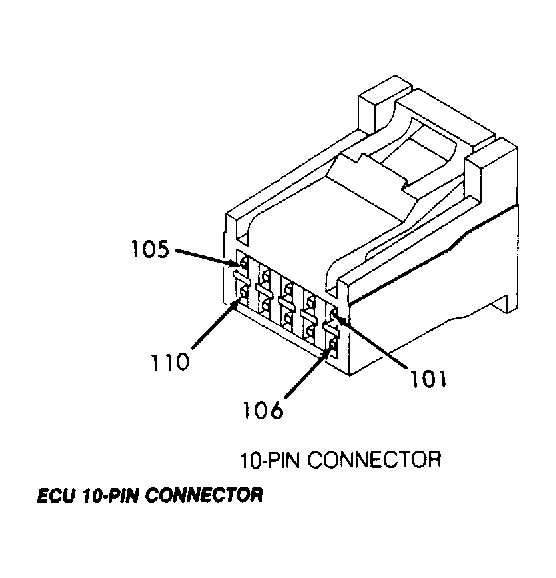

Fig 4: Electronic Control Unit 10-Pin Connector Terminal ID
G92J05144Courtesy of CHRYSLER CORP.
ECU 18-PIN CONNECTOR

Terminal Wire Color Function
51 Yellow/Dark Blue Injector No. 1 Cntrl
52 Yellow/Black Injector No. 2 Control
53 Brown/White EGR Solenoid Control (Calif.)
54 Yellow Power Transistor Control
55 Yellow/Red Power Transistor Control
56 White/Red MPI Control Relay Fuel Control
57 White Fuel Pressure Control Solenoid
58 Dark Blue Idle Speed Control
59 Yellow Idle Speed Control
60 Light Green Injector No. 3 Control
61 Light Green/White Injector No. 4 Control
62 Black/White Purge Solenoid Control
63 Black/Dark Blue MPI Control Relay Power Control
64 Red/Dark Green Malfunction Indicator Light (MIL)
65 Red/Black A/C Clutch Relay Control
66 Black/Dark Blue MPI Control Relay Power Control
67 White Idle Speed Control
68 Black Idle Speed Control

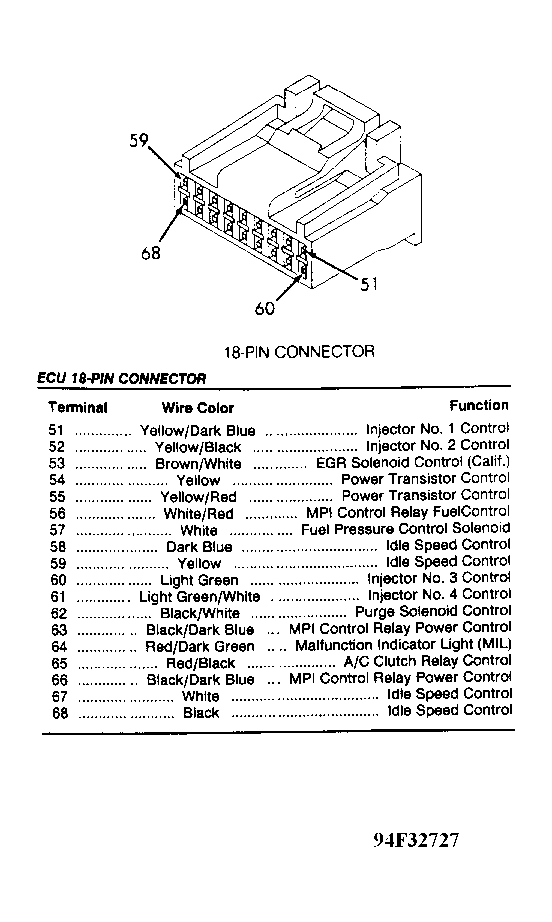

Fig 5: Electronic Control Unit 18-Pin Connector Terminal ID
G94F32727Courtesy of CHRYSLER CORP.
ECU 24-PIN CONNECTOR

Terminal Wire Color Function
1 Yellow Diagnostic Connector
2 White Diagnostic Connector
3 Black/Red Pressure Meter
4 White Oxygen Sensor
5 Yellow/Black Power Steering Pressure Switch
6 Dark Green Idle Switch
7 Black/Dark Green A/C Control
8 Dark Green/Orange Intake Air Temp. Sensor
9 Not Used Not Used
10 Dark Green/Dark Blue Airflow Sensor
11 Not Used Not Used
12 Yellow/Black Ignition Timing Adjustment
13 Dark Green/Red Sensor 5-Volt Power
14 Dark Green Sensor Ground
15 Dark Blue/Yellow EGR Temp. Sensor (Calif.)
16 Dark Green/Yellow Barometric Pressure Sensor
17 Brown Idle Speed Motor Position Sensor
18 Yellow/White Distance Sensor
19 Dark Green/White Throttle Position Sensor
20 Yellow/Dark Green Coolant Temp. Sensor
21 Black Crank Angle Sensor
22 White Top Dead Center Sensor
23 Dark Green/Red Sensor 5-Volt Power
24 Dark Green/Black Sensor Ground

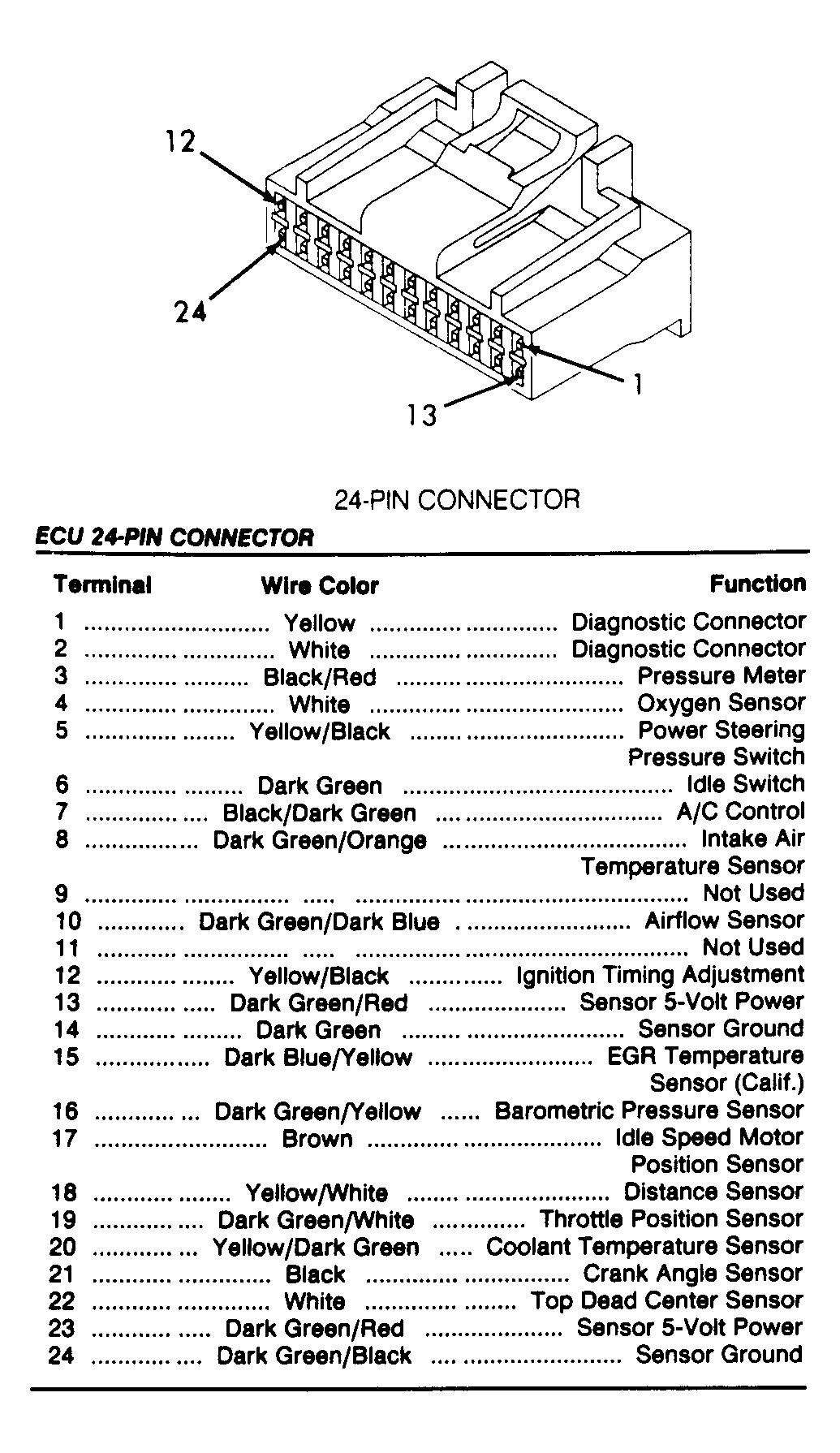

Fig 6: Electronic Control Unit 24-Pin Connector Terminal ID
G92D06254Courtesy of CHRYSLER CORP.

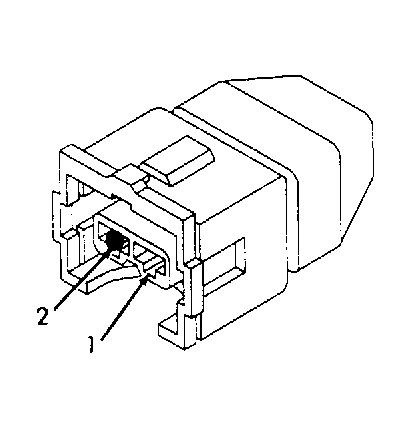

Fig 7: Fuel Injector Connector Terminal ID
G92F05137Courtesy of CHRYSLER CORP.

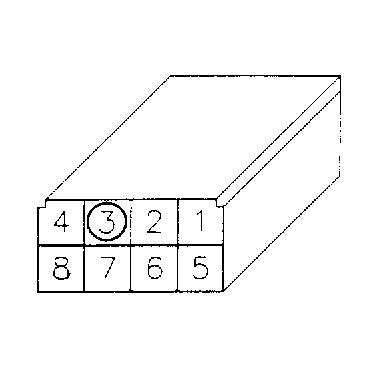

Fig 8: Fuel Injector Control Relay Connector Terminal ID
G92H05138Courtesy of CHRYSLER CORP.

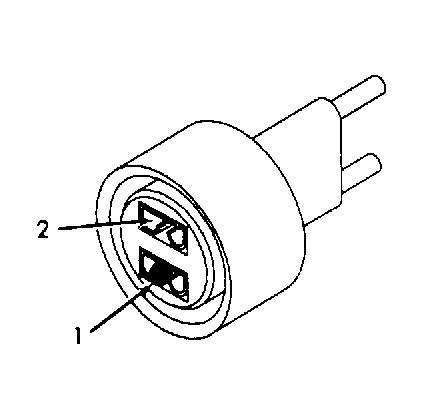

Fig 9: Fuel Pump Connector Terminal ID
G92J05139Courtesy of CHRYSLER CORP.

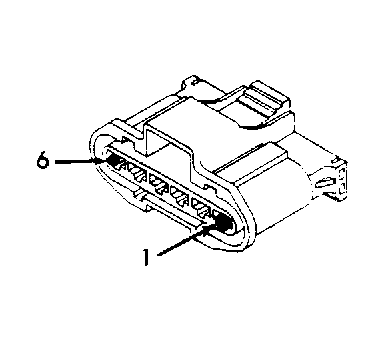

Fig 10: Idle Speed Control Motor Connector Terminal ID
G92B05140Courtesy of CHRYSLER CORP.

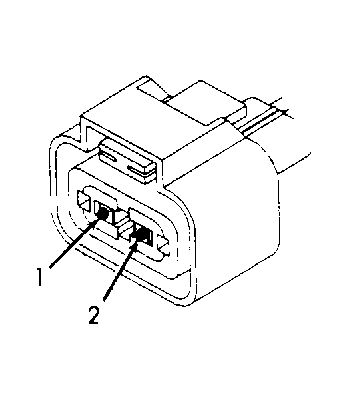

Fig 11: Ignition Coil Connector Terminal ID
G92D05141Courtesy of CHRYSLER CORP.

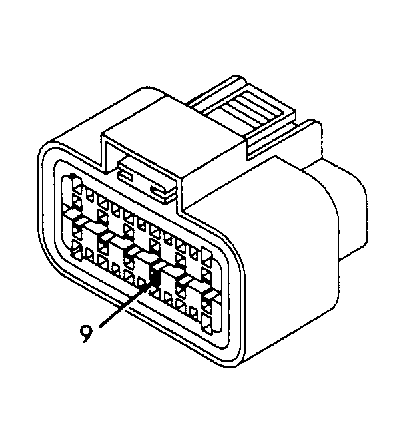

Fig 12: Inhibitor Switch Connector Terminal ID
G92F05142Courtesy of CHRYSLER CORP.

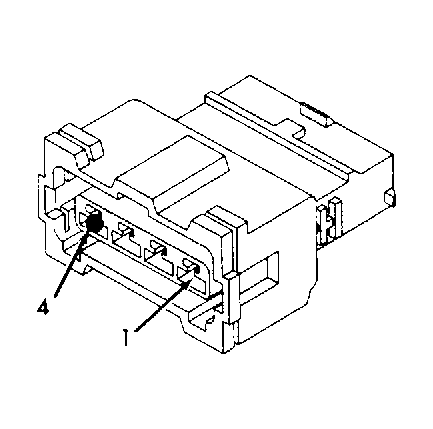

Fig 13: Throttle Position Sensor Connector Terminal ID
G92H05143Courtesy of CHRYSLER CORP.
