Control Assembly: Locations

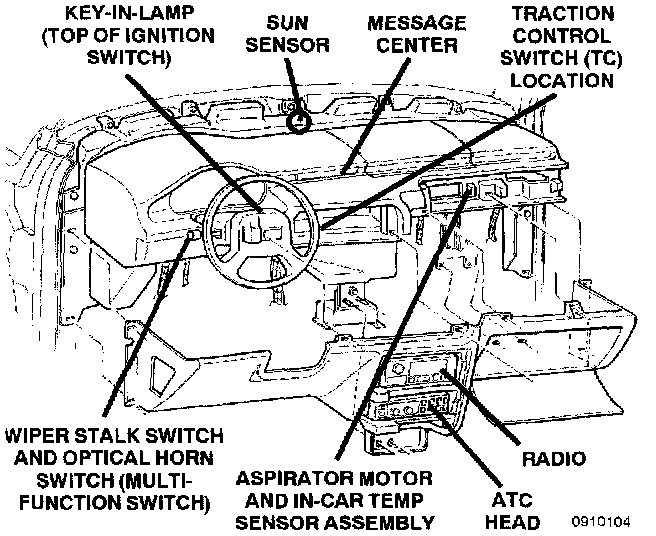

Automatic Temperature Control (ATC) System Component Locations:

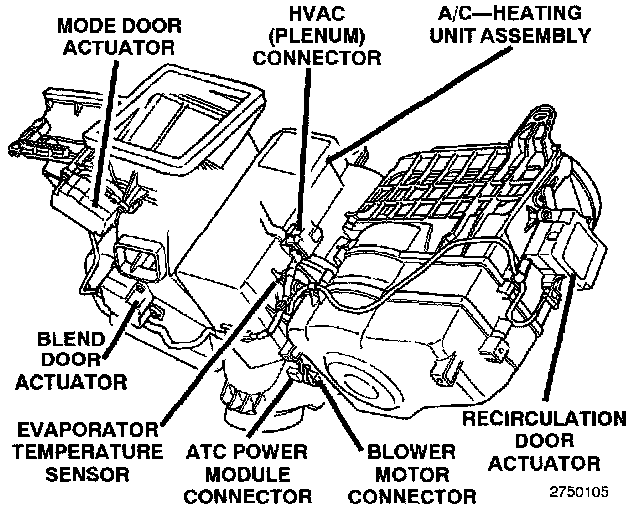

Automatic Temperature Control (ATC) System Component Locations:
