Splice Locations Index

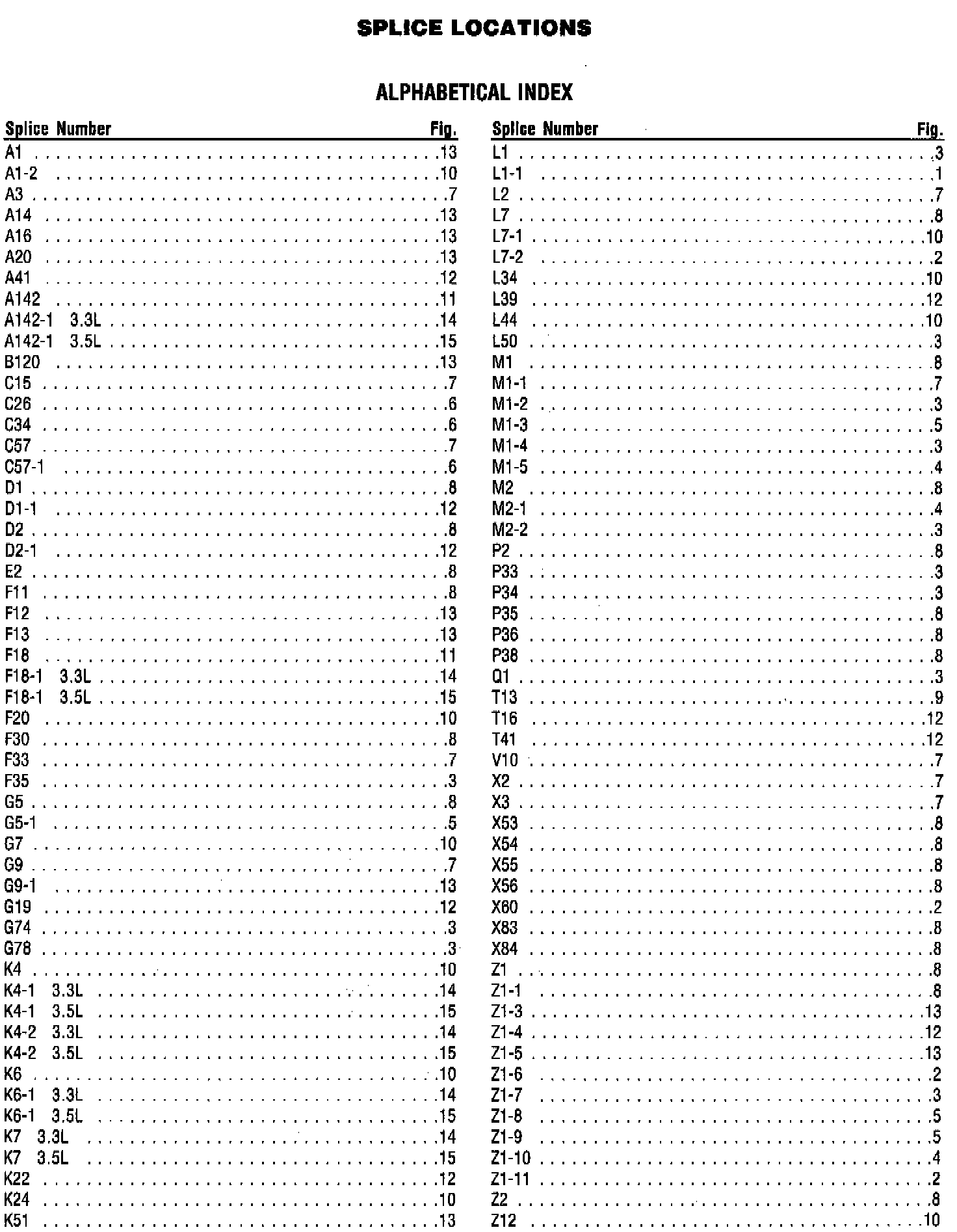

Index To Splice Locations A - Q And T - Z:

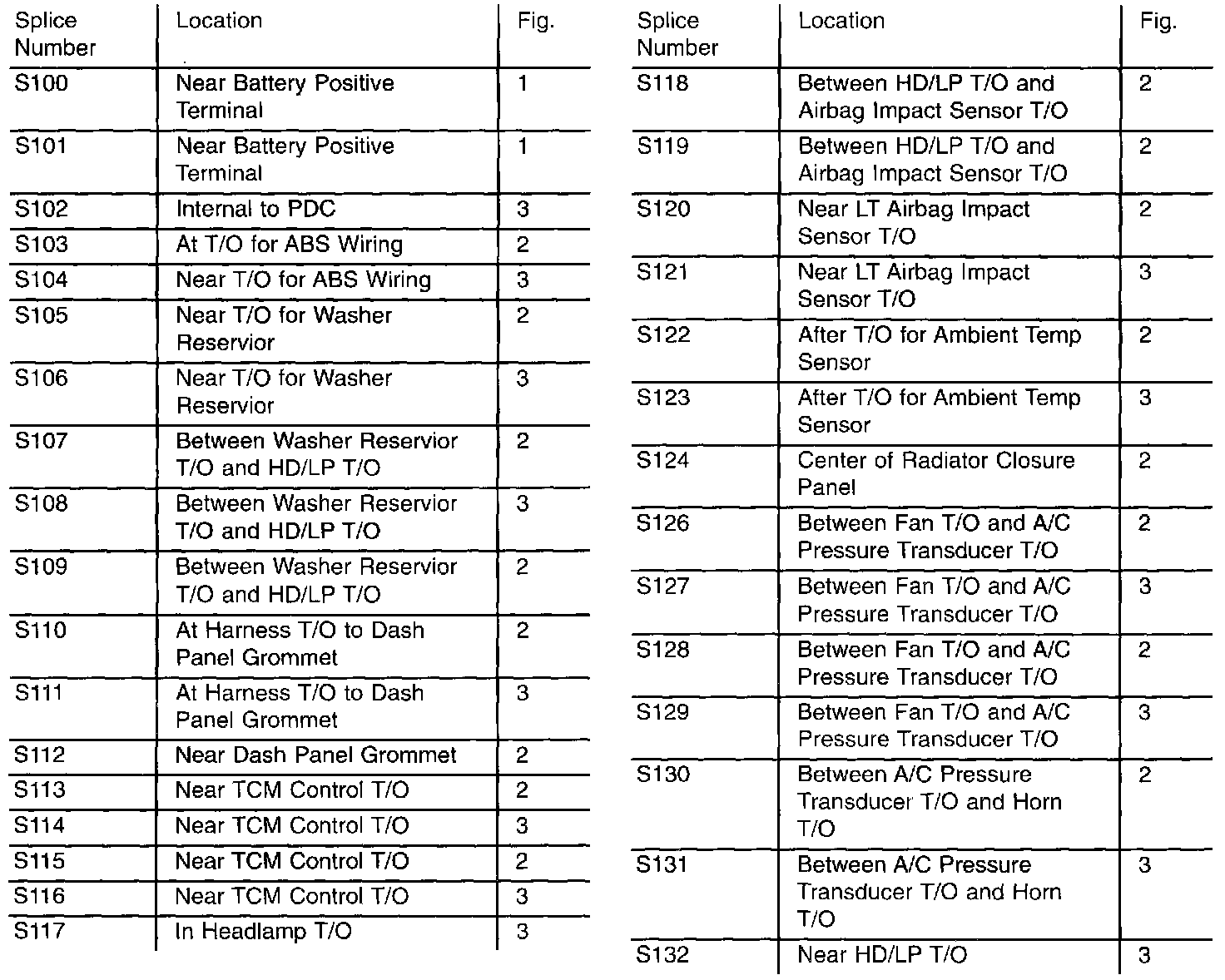

S100 - S132:

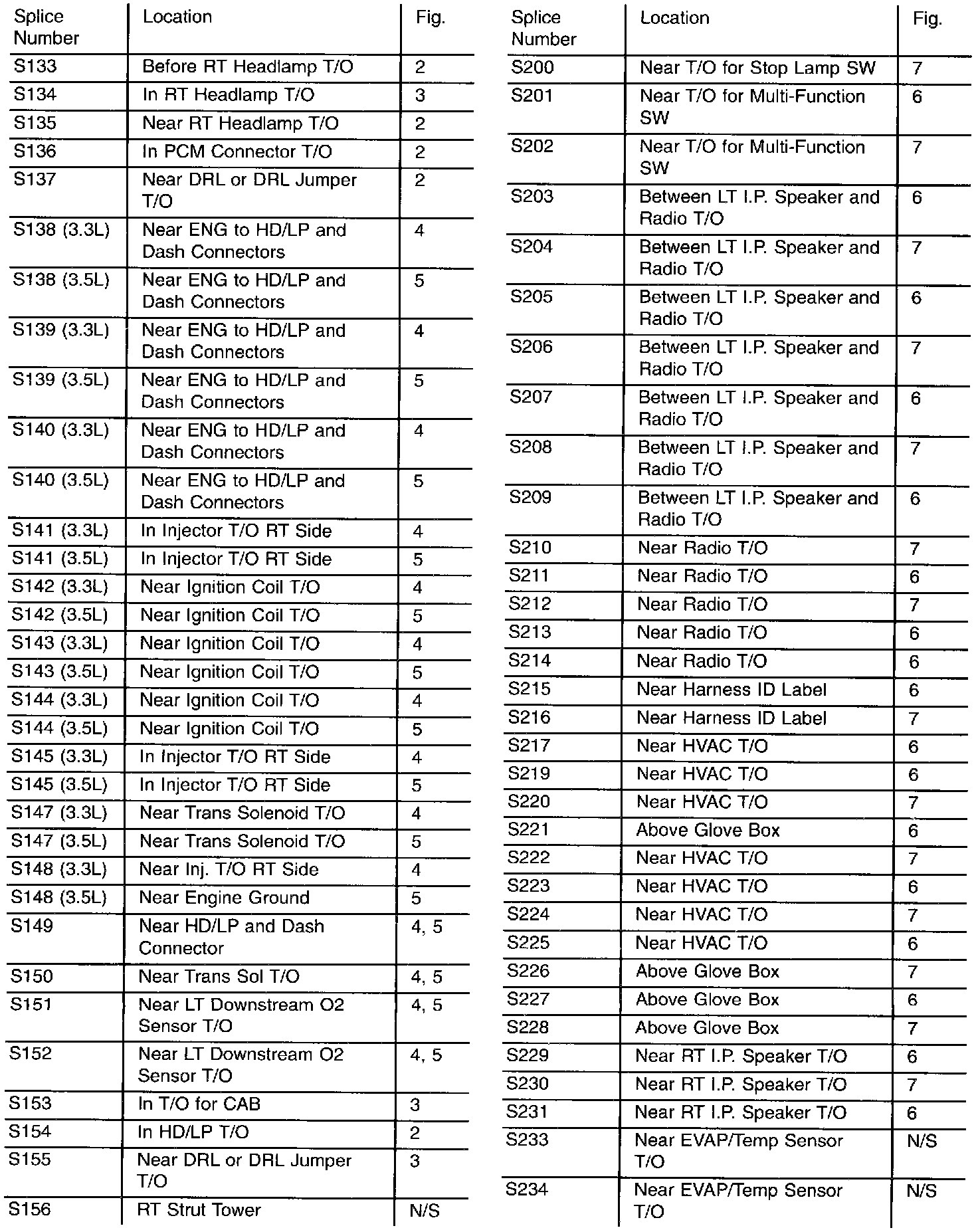

S133 - S234:

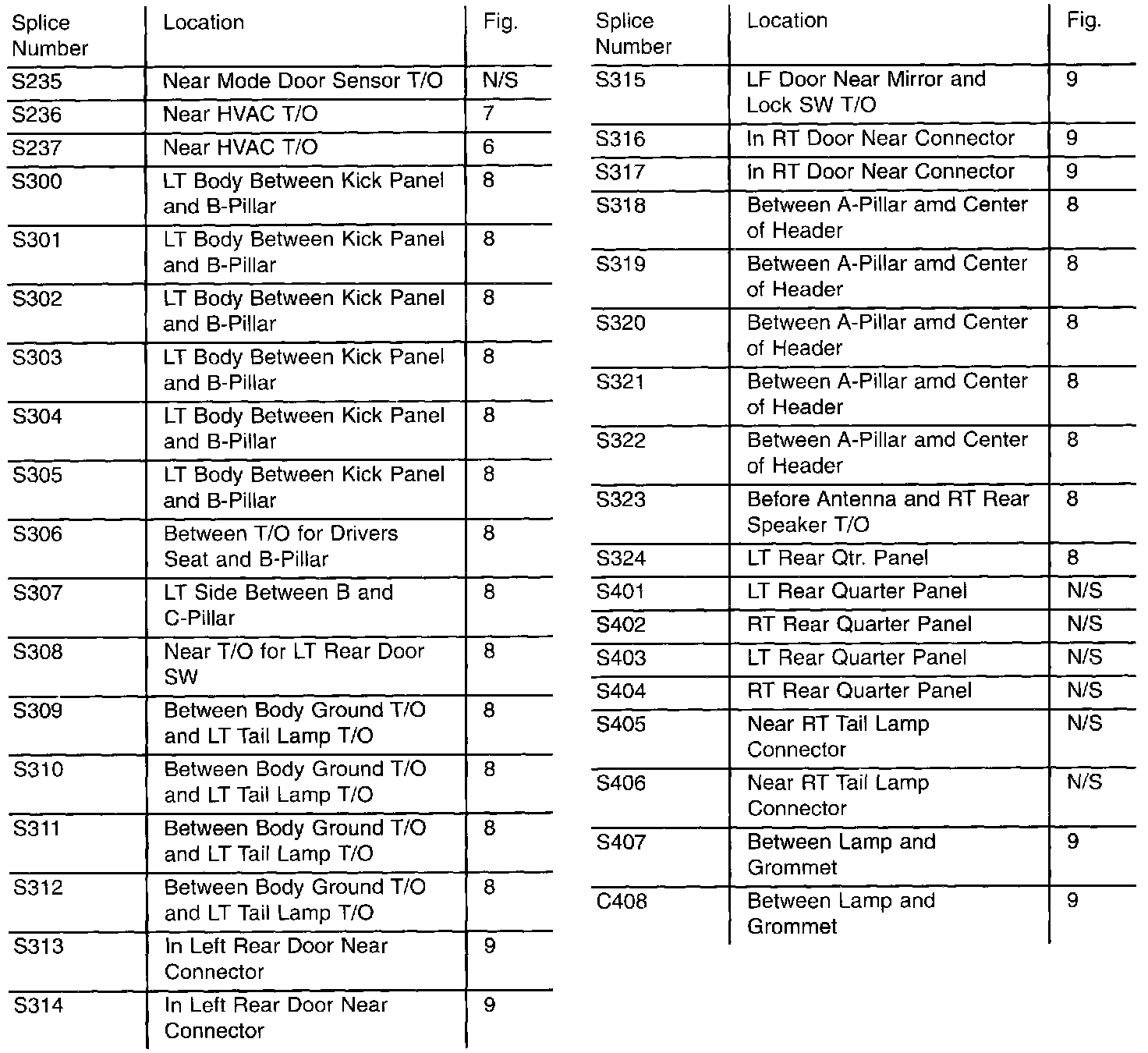

S235 - S408:
