Power Circuits

Turn ignition on. Check for battery voltage on PCM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of MFI relay. See RELAYS under MOTORS, RELAYS & SOLENOIDS.

NOTE: California and Federal applies to installed emissions equipment, which may be verified by underhood Emission Control label. California emissions may be available in other states.

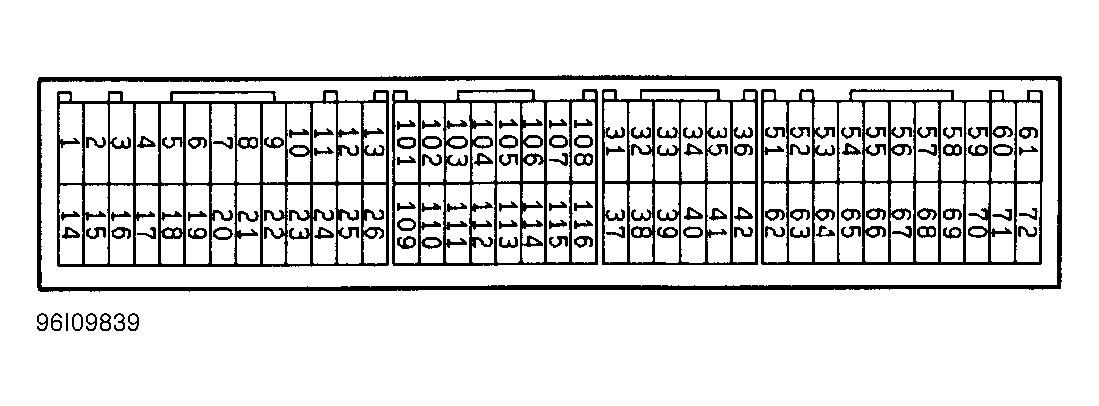

Fig 1: Identifying PCM Connectors (Except Calif. - Expo, Pickup & Summit Wagon)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

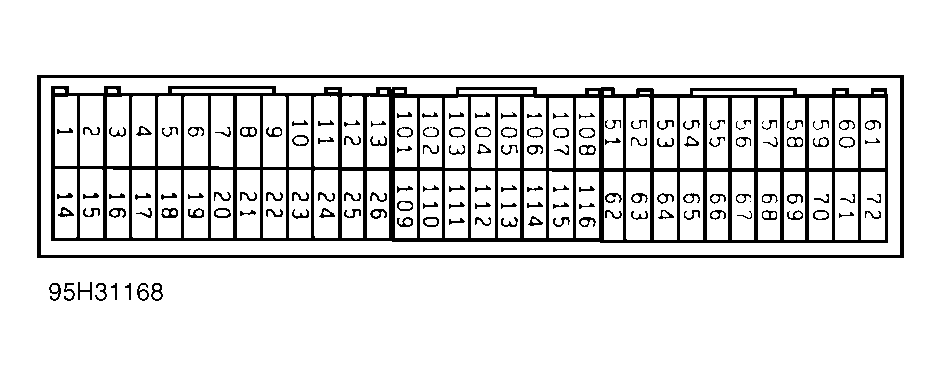

Fig 2: Identifying PCM Connectors (Calif - Expo, Pickup & Summit Wagon)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

GROUND TERMINAL IDENTIFICATION

Application	PCM Terminals No.
2.4L	13 & 26

POWER TERMINAL IDENTIFICATION

Application	PCM Terminals No.
2.4L	12 & 25

POWERTRAIN CONTROL MODULE (PCM) LOCATION

Application	Location
Galant	Behind Center Console
All Others	Behind Right Side Of Instrument Panel (Glove Box)
