Engine Code Location

ENGINE CODE LOCATION

Application Location
Avenger & Sebring
2.0L 4 Cyl. Side Of Cylinder Block, Behind Starter. See Fig 1
2.5L V6 Front Side Of Cylinder Block, Below Front Exhaust Manifold, Near Transaxle Housing. See Fig 2
Cirrus & Stratus
2.0L 4 Cyl. Side Of Cylinder Block, Behind Starter. See Fig 4
2.4L 4 Cyl. Rear Of Cylinder Block, Below Cylinder Head Surface, Just Above Flywheel. See Fig 5
2.5L V6 Front Side Of Cylinder Block, Below Front Exhaust Manifold, Near Transaxle Housing. See Fig 3
New Yorker, LHS, Concorde, Intrepid & Vision
3.3L V6 & 3.5L V6 Rear Of Cylinder Block, Below Driver's Side Cylinder Head Surface, Just Above Flywheel. See Fig 6
Neon
2.0L 4 Cyl. SOHC Side Of Cylinder Block, Behind Starter. See Fig 4
Talon
2.0L 4 Cyl. Non-Turbo Side Of Cylinder Block, Behind Starter. SeeFig 1
Turbo Front Of Cylinder Block, Just Below Exhaust Manifold. See Fig 7
Viper
8.0L V10 Front Right Hand Side Of Cylinder Block, Near The Oil Filter. See Fig 8

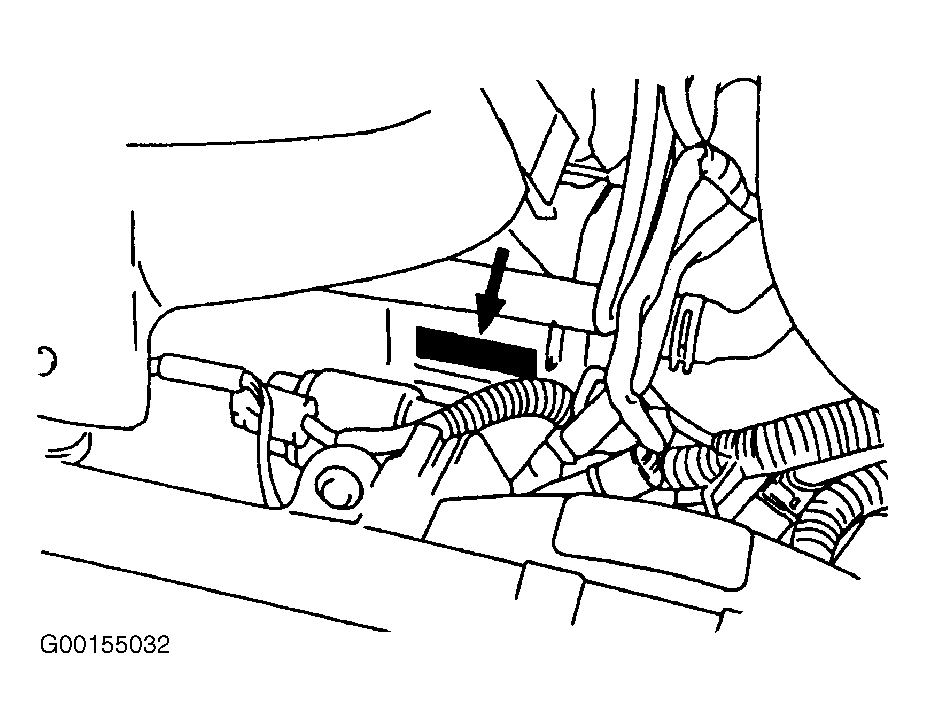

Fig 1: Locating Engine Identification Code (2.0L 4 Cyl. -- Avenger, Sebring & Talon)
G00155032Courtesy of CHRYSLER CORP.

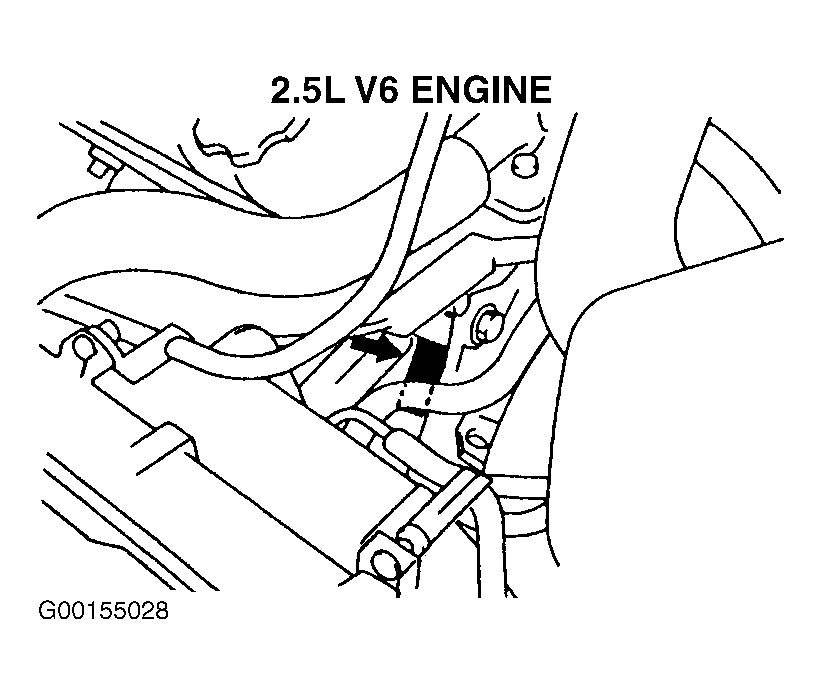

Fig 2: Locating Engine Identification Code (2.5L V6 - Avenger & Sebring)
G00155028Courtesy of CHRYSLER CORP.

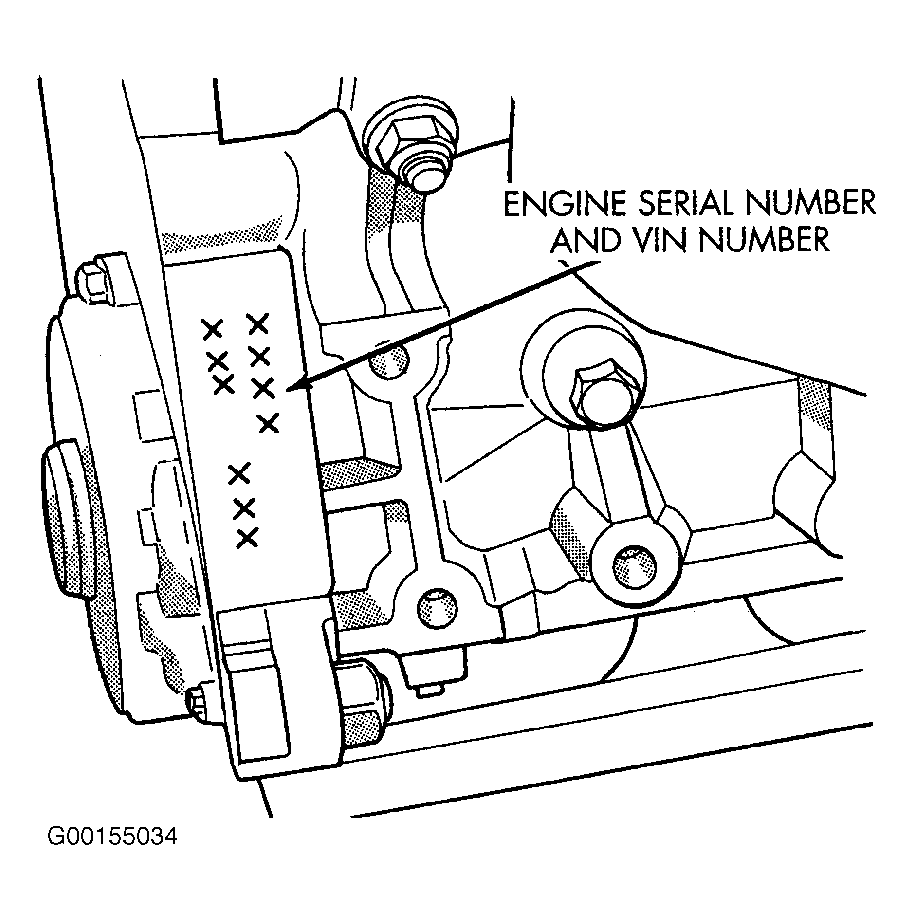

Fig 3: Locating Engine Identification Code (2.5L V6 - Cirrus & Stratus)
G00155034Courtesy of CHRYSLER CORP.

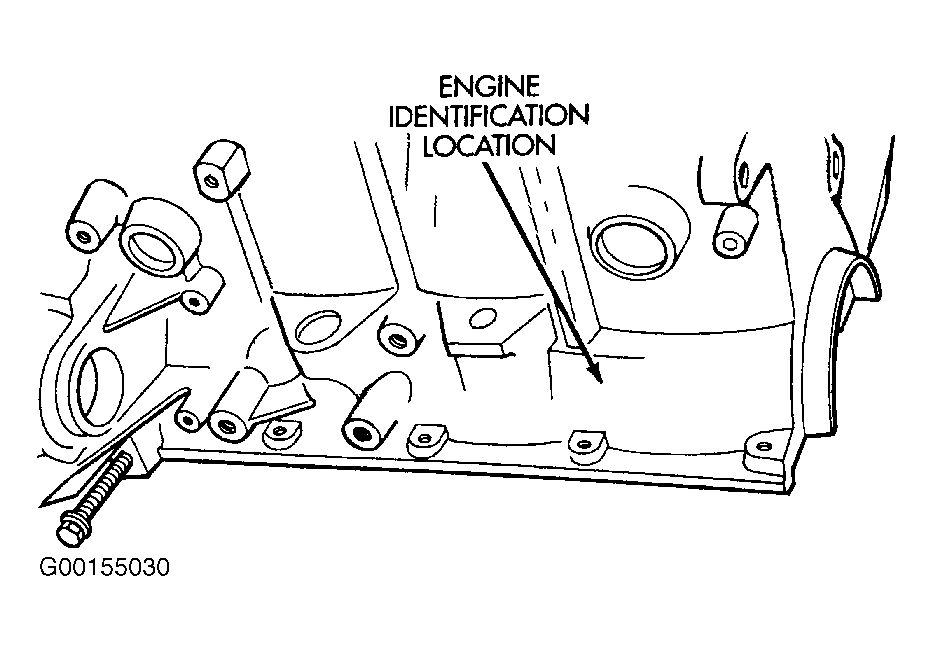

Fig 4: Locating Engine Identification Code (2.0L 4 Cyl. - Cirrus & Stratus)
G00155030Courtesy of CHRYSLER CORP.

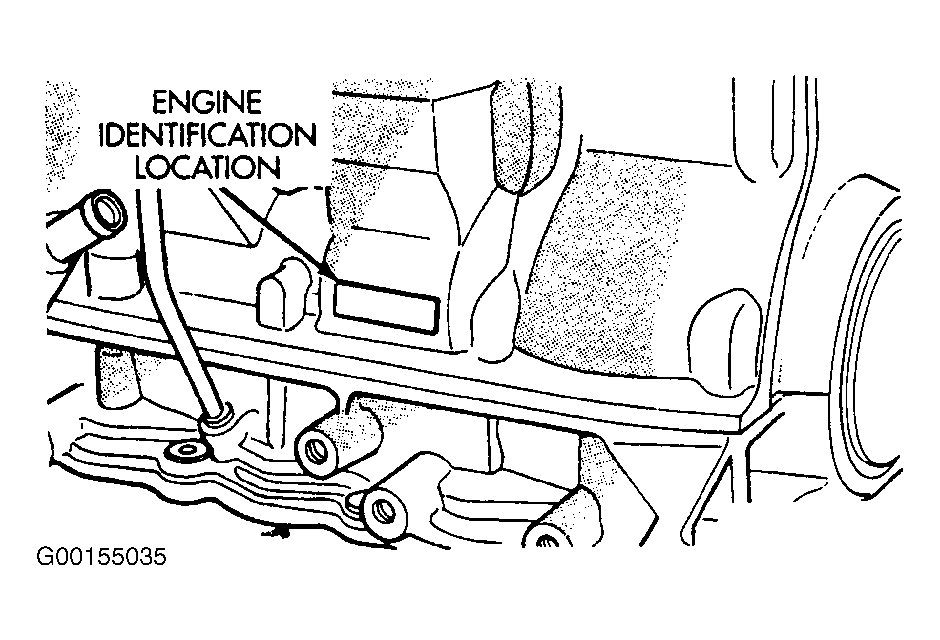

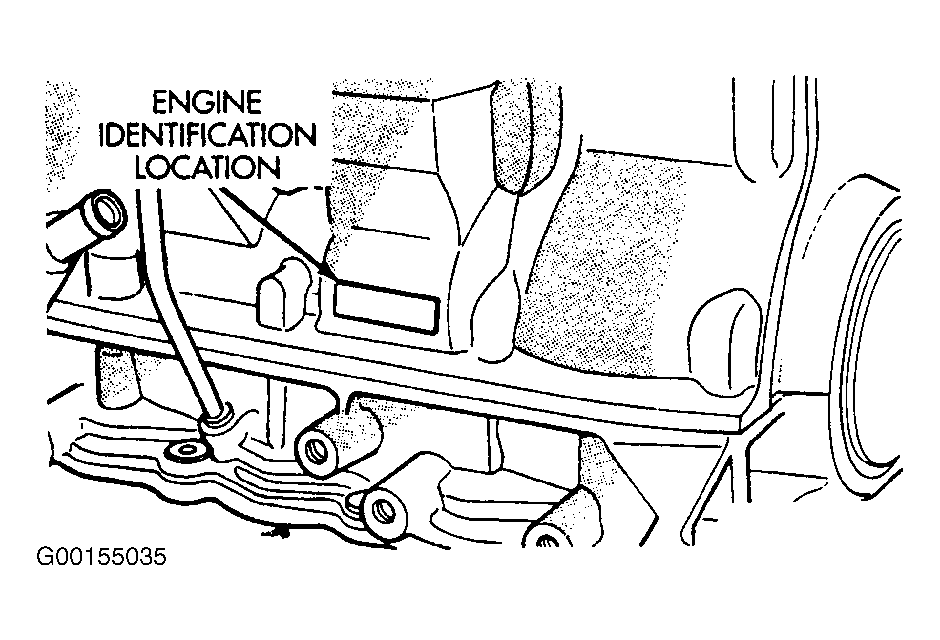

Fig 5: Locating Engine Identification Code (2.4L 4 Cyl. - Cirrus & Stratus)
G00155035Courtesy of CHRYSLER CORP.

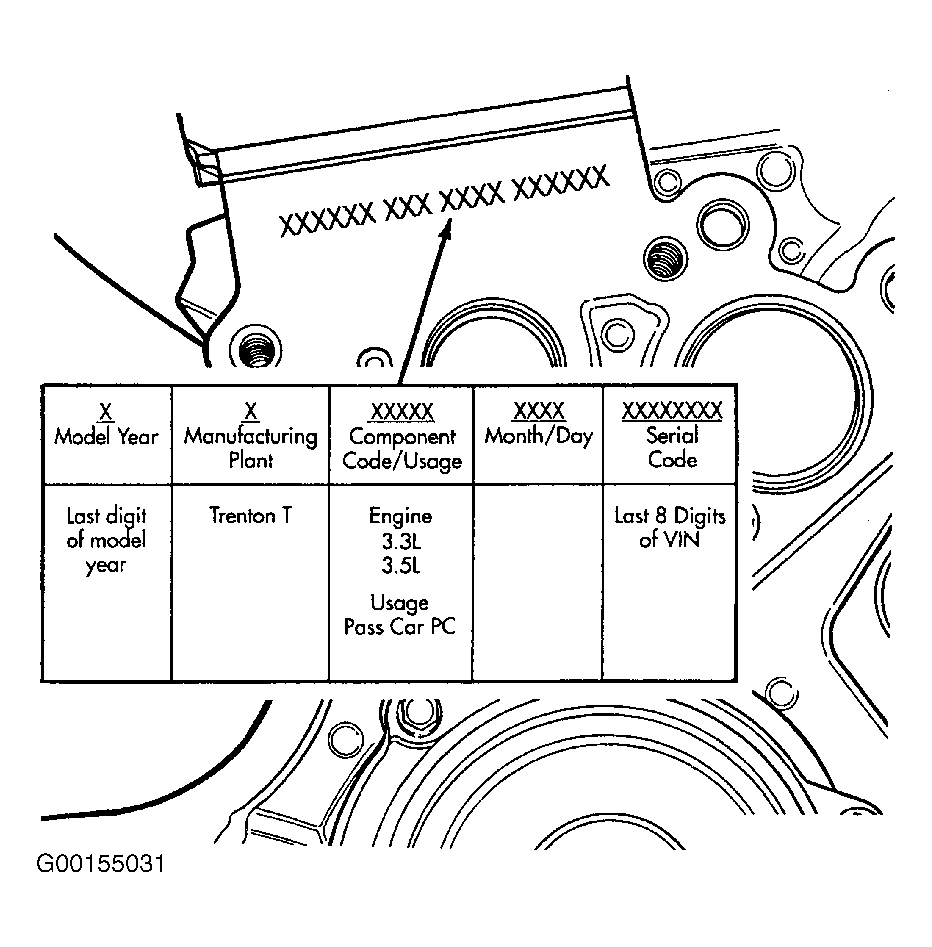

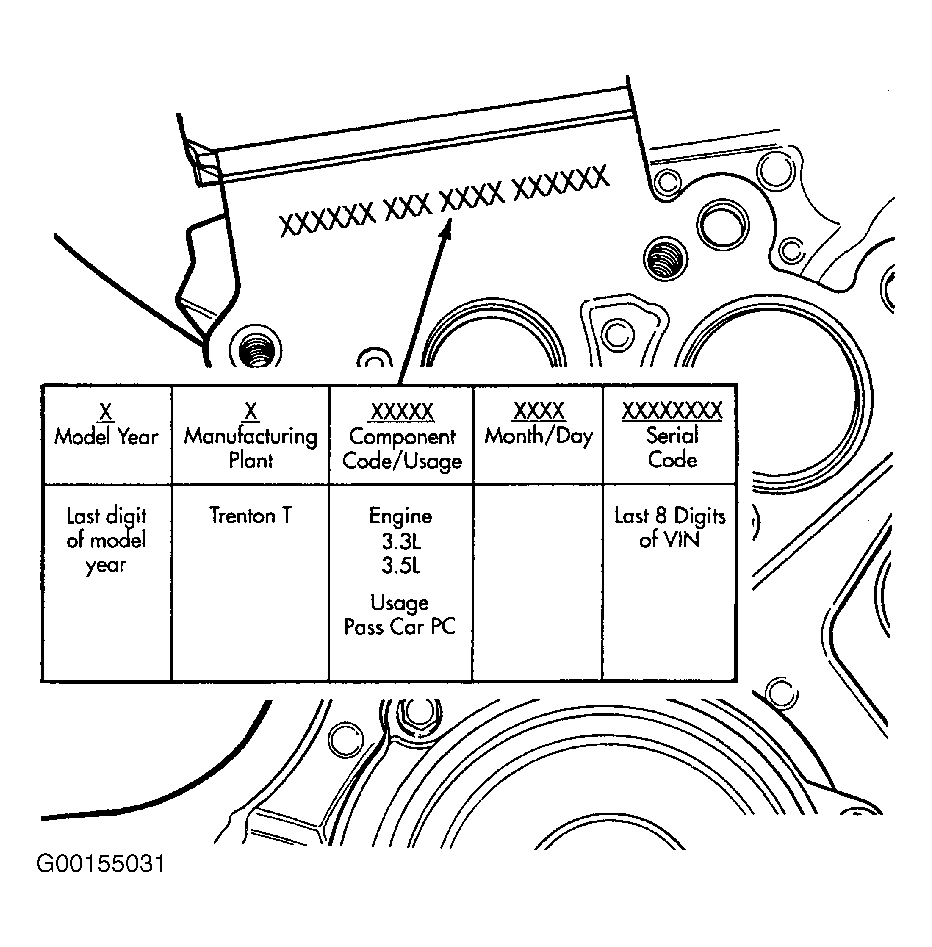

Fig 6: Locating Engine Identification Code (3.3L & 3.5L V6 - New Yorker, LHS, Concorde, Intrepid & Vision)
G00155031Courtesy of CHRYSLER CORP.

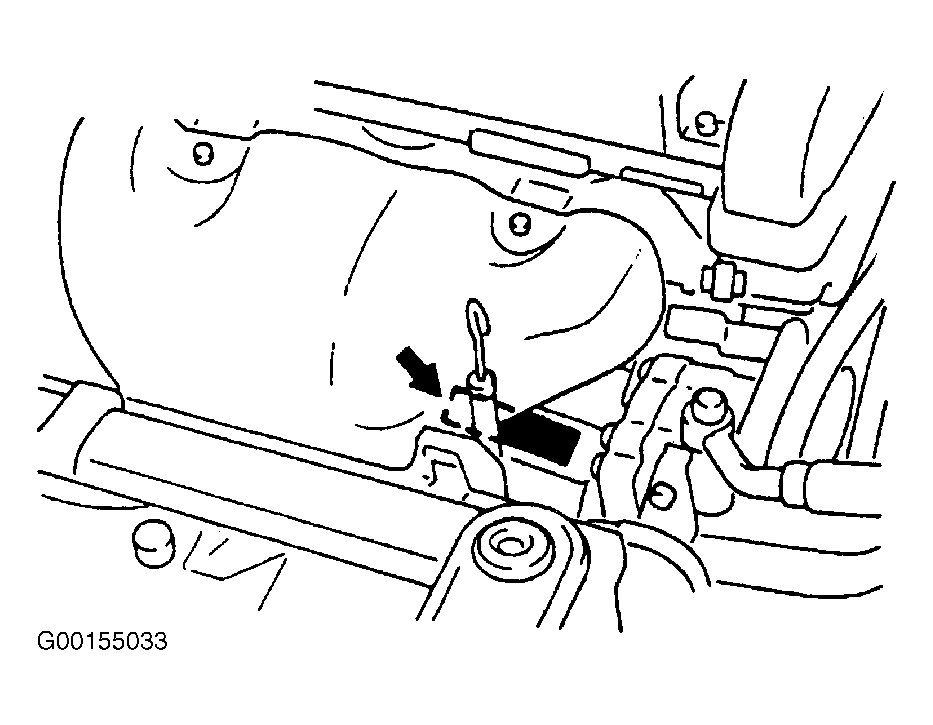

Fig 7: Locating Engine Identification Code (2.0L 4 Cyl. - Talon)
G00155033Courtesy of CHRYSLER CORP.

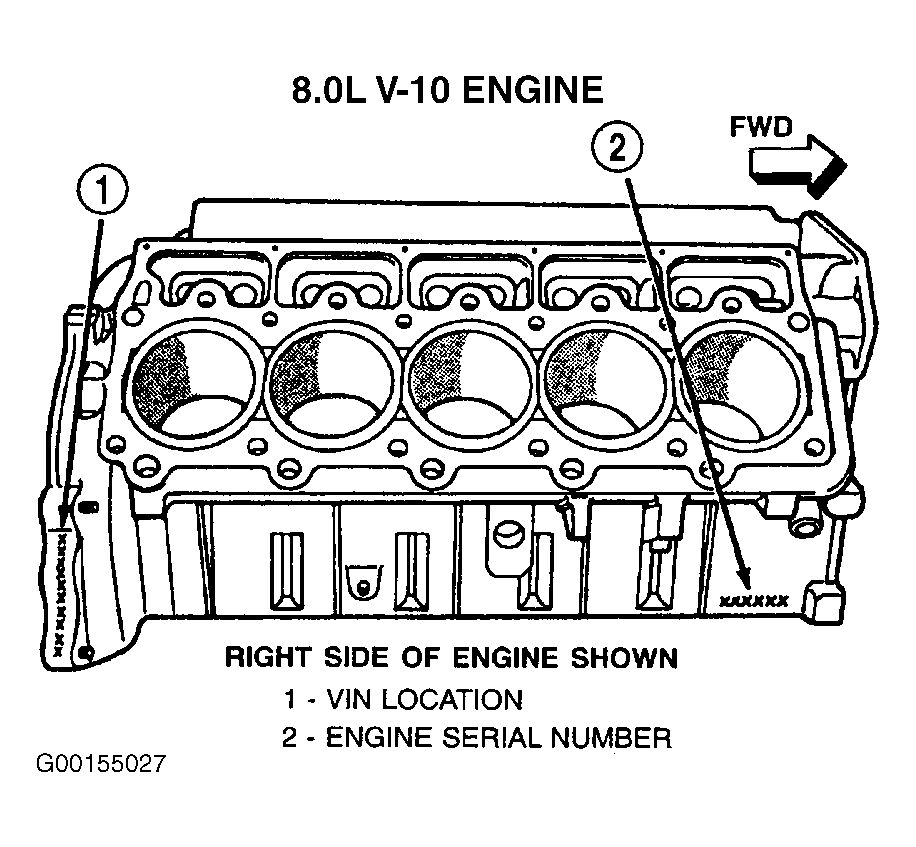

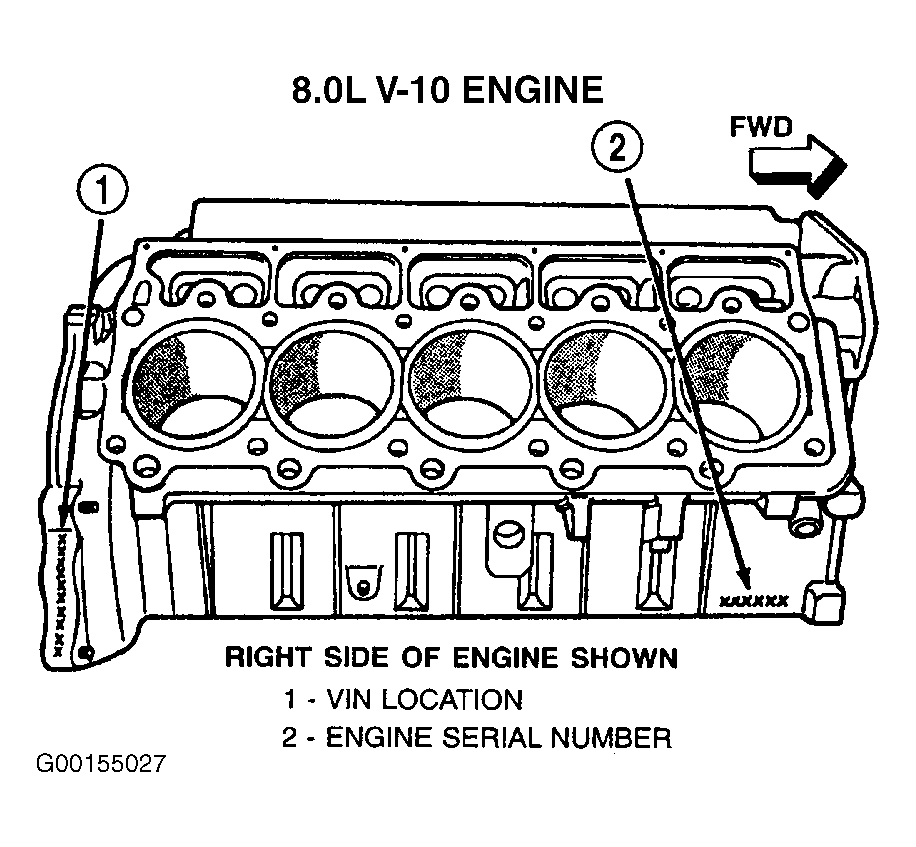

Fig 8: Locating Engine Identification Code (8.0L V10 - Viper)
G00155027Courtesy of CHRYSLER CORP.
