Body Control System Connectors

NOTE: For terminal identification of body control system connectors, see Fig 1 -7. Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see appropriate article in ENGINE PERFORMANCE:

WIRING DIAGRAMS - 3.3L
WIRING DIAGRAMS - 3.5L

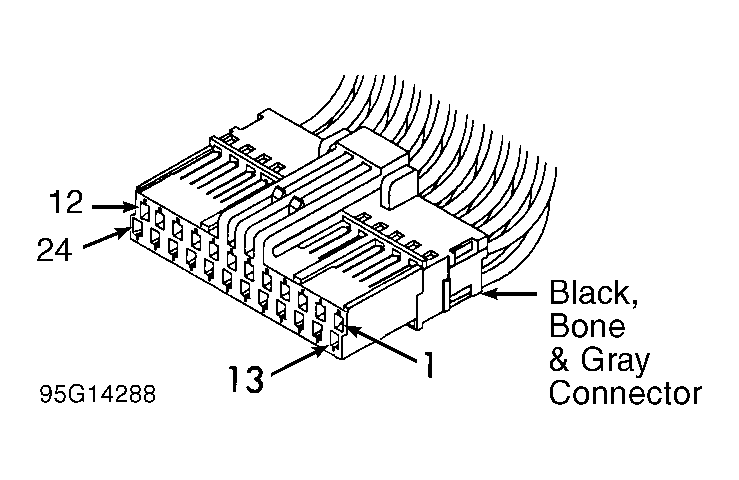

Fig 1: Identifying Body Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Data Link Connector (DLC) Terminals

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Message Center Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Powertrain Control Module & Transmission Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

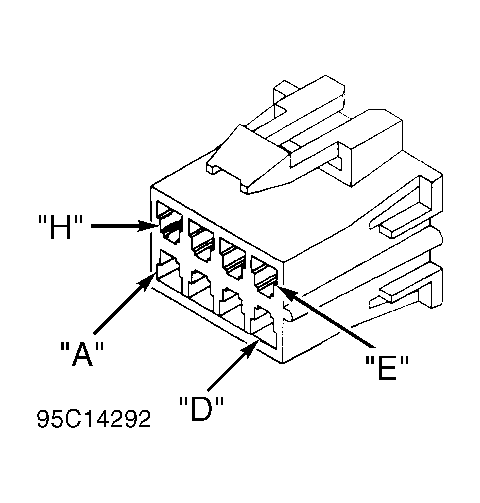

Fig 5: Identifying Relay Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Remote Keyless Entry (RKE) Module Connector Terminals

Courtesy of CHRYSLER CORP.
