RKE Module Replacement

REMOTE KEYLESS ENTRY MODULE REPLACEMENT

Remote Keyless Entry (RKE) Module:

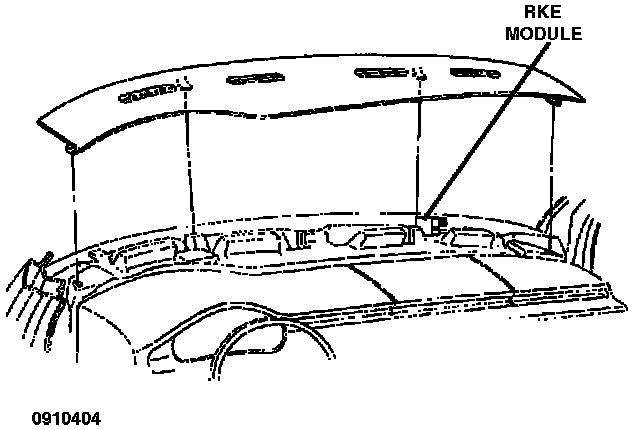

(1) Remove instrument panel top cover. The remote keyless entry module will be mounted to the structural duct on the passenger side.

(2) Remove the two screws attaching the receiver to the instrument panel structural duct.

(3) Disconnect the two wiring connectors.

(4) Replace module.

(5) For installation, reverse the above procedures.
