Control Module, A/T

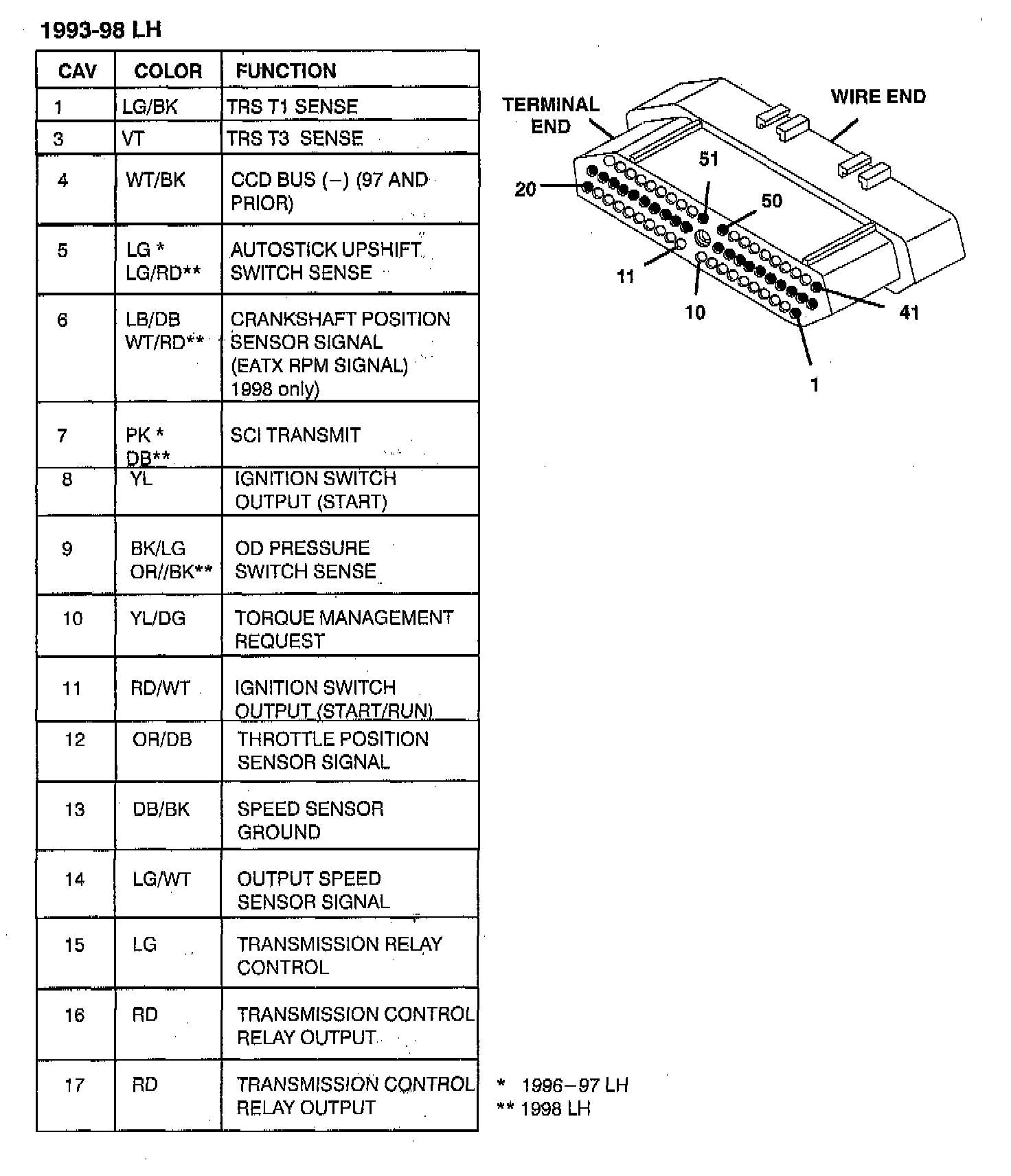

Part 1 Of 2:

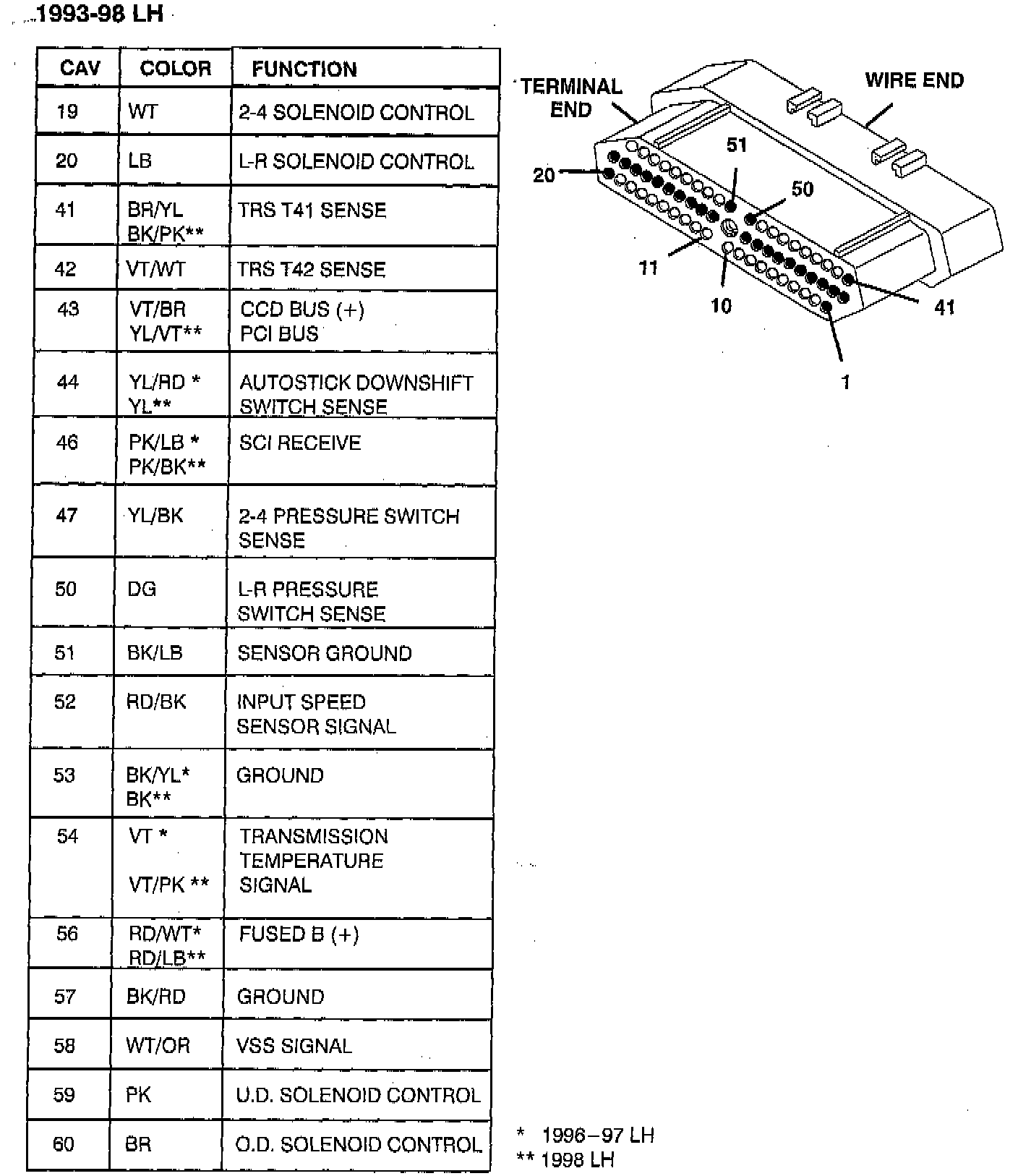

Part 2 Of 2:

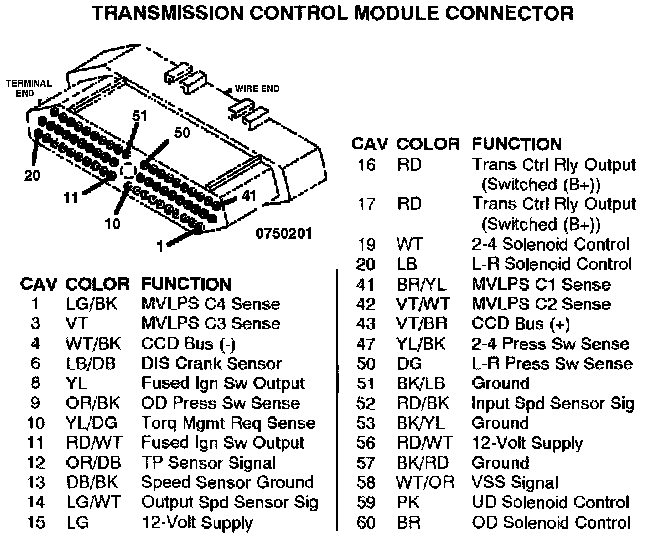

Transmission Control Module Connector:



Driver Front Corner Of Engine Compartment:
