Traction Control Switch

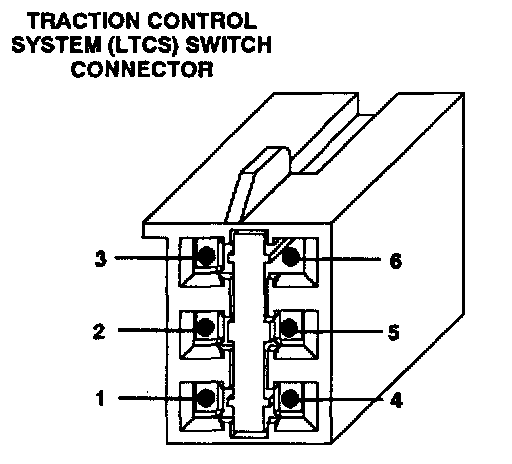

Traction Control Switch Connector:

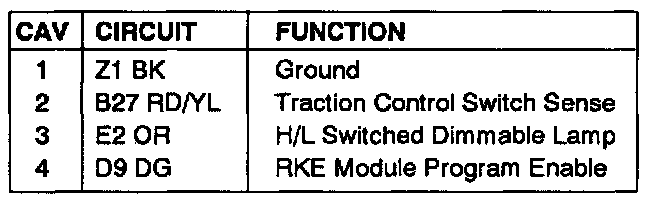

Traction Control Switch Connector Pin Out:
