Control Module HVAC: Service and Repair

Blower Motor Resistor and Power Module Replacement

REMOVAL
1. Remove lower right under panel access cover silencer duct.
2. Disconnect wiring connector on blower motor module.
3. Remove blower motor module retaining screws.

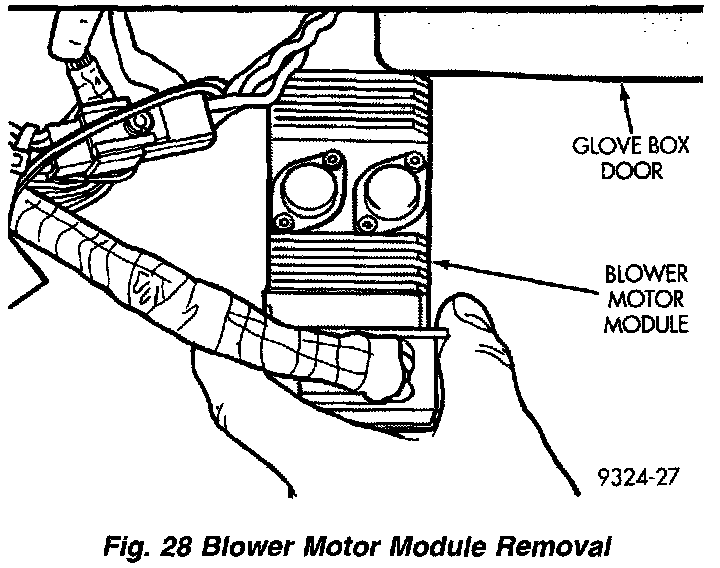

Blower Motor Module:

4. Pull blower motor module out of heater housing.

INSTALLATION
For installation reverse the above procedures.
