Main Relay (Computer/Fuel System): Locations

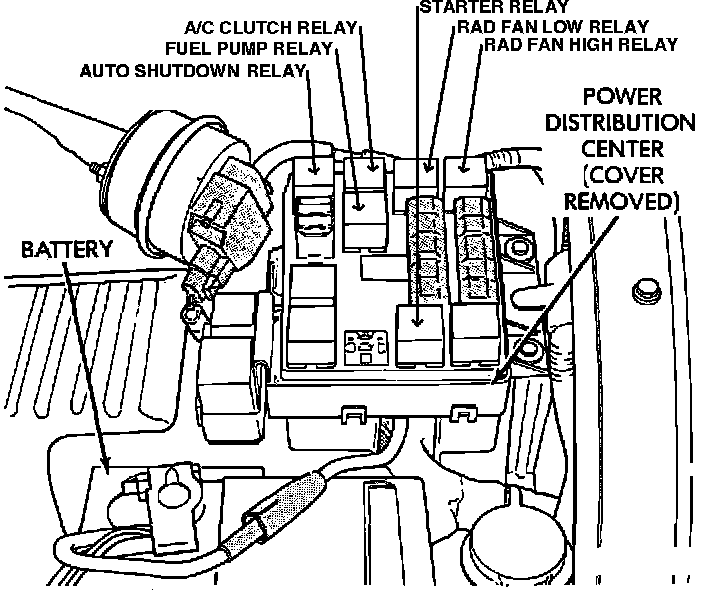

Power Distribution Center Location:

The Auto Shutdown (ASD) relay is located inside the power distribution center. The power distribution center is located next to the battery.
