Keyless Entry Control Unit

NOTE: If after all testing procedures are completed, system is not functioning properly, replace keyless entry control unit with known good unit and retest.

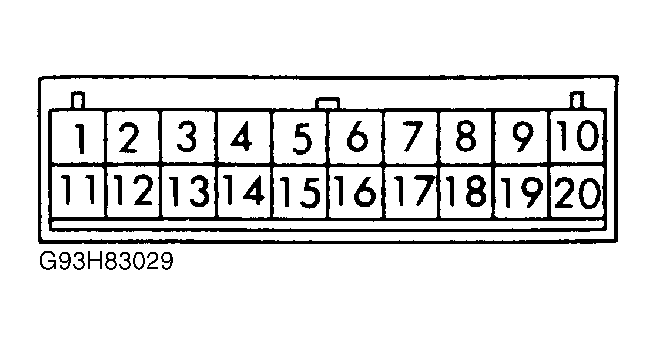

Fig 1: Identifying Control Unit Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
