Power Window Switch Test

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY TABLE. See Fig 1 or Fig 2 . Replace appropriate switch as necessary if switch continuity is not as specified.

MAIN WINDOW SWITCH CONTINUITY

Switch Position ⁽¹⁾

Check Continuity Between Pins No.

Normal Position

Left Front OFF

2, 3 & 10

Left Rear OFF

1, 3 & 7

Left Front UP

2 & 4; 3 & 10

Left Rear UP

1 & 3; 4 & 7

Left Front DOWN

2 & 3; 4 & 10

Left Rear DOWN

1 & 4; 3 & 7

Right Front OFF

3, 5 & 11

Right Rear OFF

3, 6 & 14

Right Front UP

3 & 5; 4 & 11

Right Rear UP

3 & 14; 4 & 6

Right Front DOWN

3 & 11; 4 & 5

Right Rear DOWN

3 & 6; 4 & 14

Lock Position

Left Front OFF

2, 3 & 10

Left Rear OFF

1 & 7

Left Front UP

2 & 4; 3 & 10

Left Rear UP

4 & 7

Left Front DOWN

2 & 3; 4 & 10

Left Rear DOWN

1 & 4

Right Front OFF

5 & 11

Right Rear OFF

6 & 14

Right Front UP

4 & 11

Right Rear UP

4 & 6

Right Front DOWN

4 & 5

Right Rear DOWN

4 & 14

⁽¹⁾	Left side of vehicle refers to driver's side.

Fig 1: Main Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PASSENGER SIDE (SUB) WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between Pins No.
OFF	1 & 2; 3 & 6
UP	2 & 4; 3 & 6
DOWN	1 & 2; 3 & 4

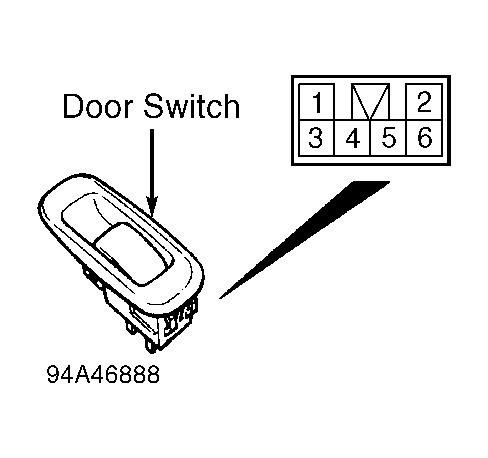

Fig 2: Sub Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
