Abs Power Relay

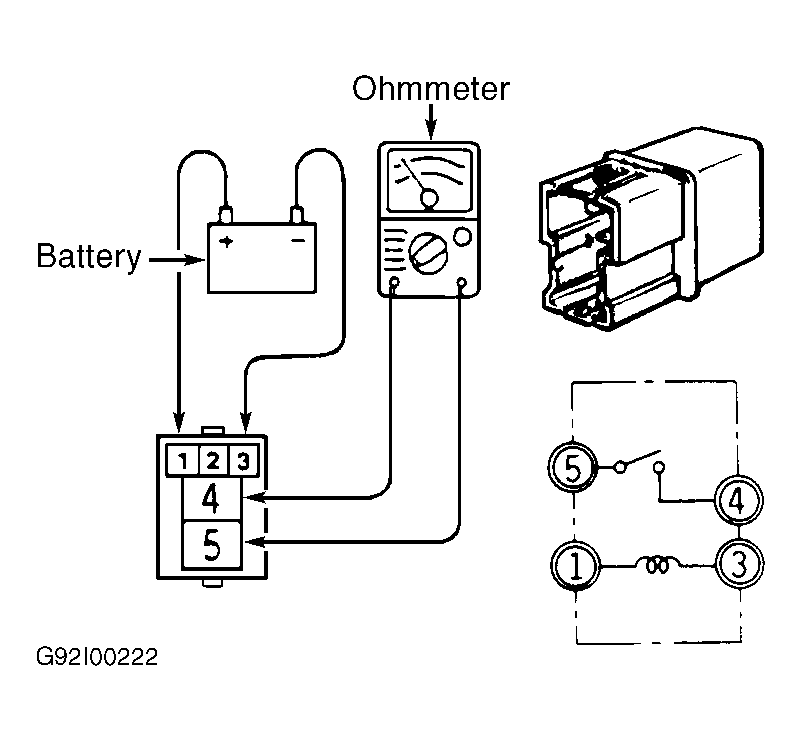

- Remove ABS power relay from relay box in engine compartment. See ABS POWER RELAY R & I under REMOVAL & INSTALLATION. Using a DVOM, check for continuity between relay terminals No. 1 and 3. See Fig 1. If continuity exists, replace relay.
- If no continuity exists, check for continuity between relay terminals No. 4 and 5. If no continuity exists, go to next step. If continuity exists, replace relay.
- Apply battery voltage to relay terminal No. 1, and ground relay terminal No. 3. Check for continuity between terminals No. 4 and 5. If continuity exists, relay is okay. If continuity does not exist, replace relay.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
