Mode 6 - CHRYSLER: 1999

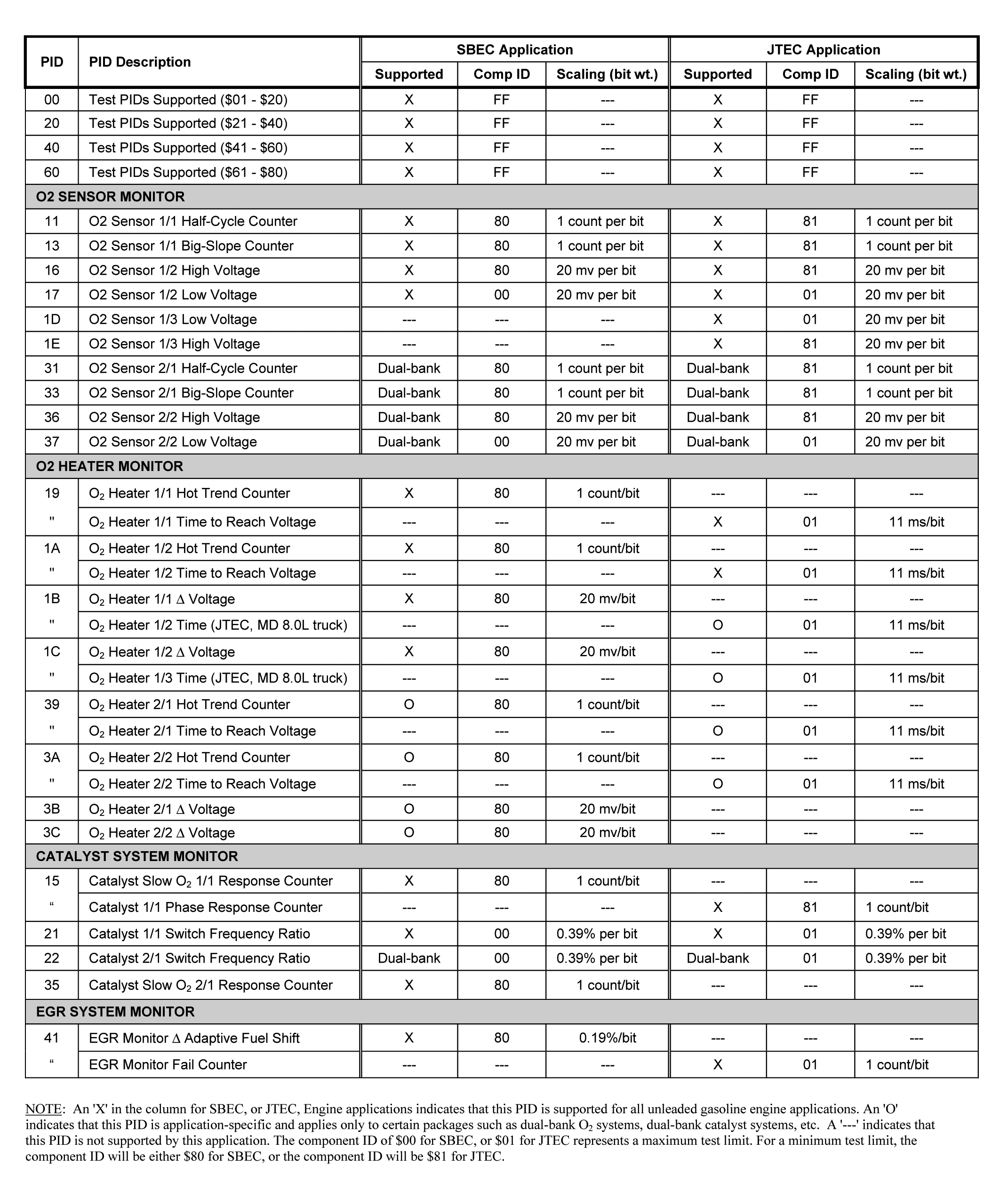

Fig 1: Mode $06 Data For SBEC & JTEC Engine Controllers (1 Of 2)
G00414405Courtesy of CHRYSLER CORP.

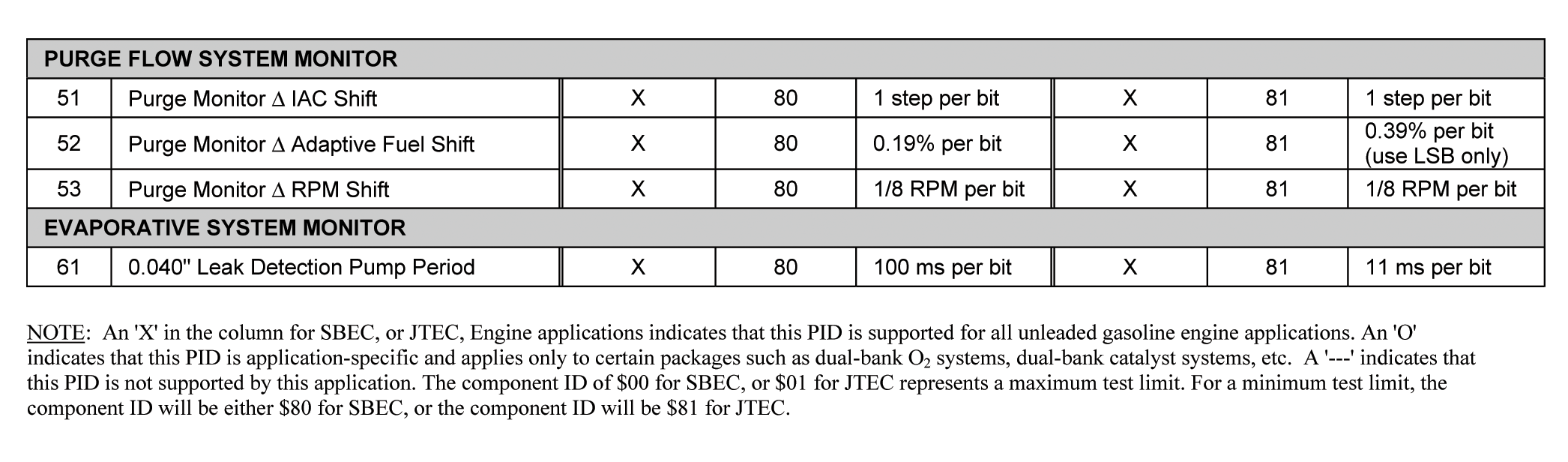

Fig 2: Mode $06 Data For SBEC & JTEC Engine Controllers (2 Of 2)
G00414406Courtesy of CHRYSLER CORP.
