Lift Point Locations

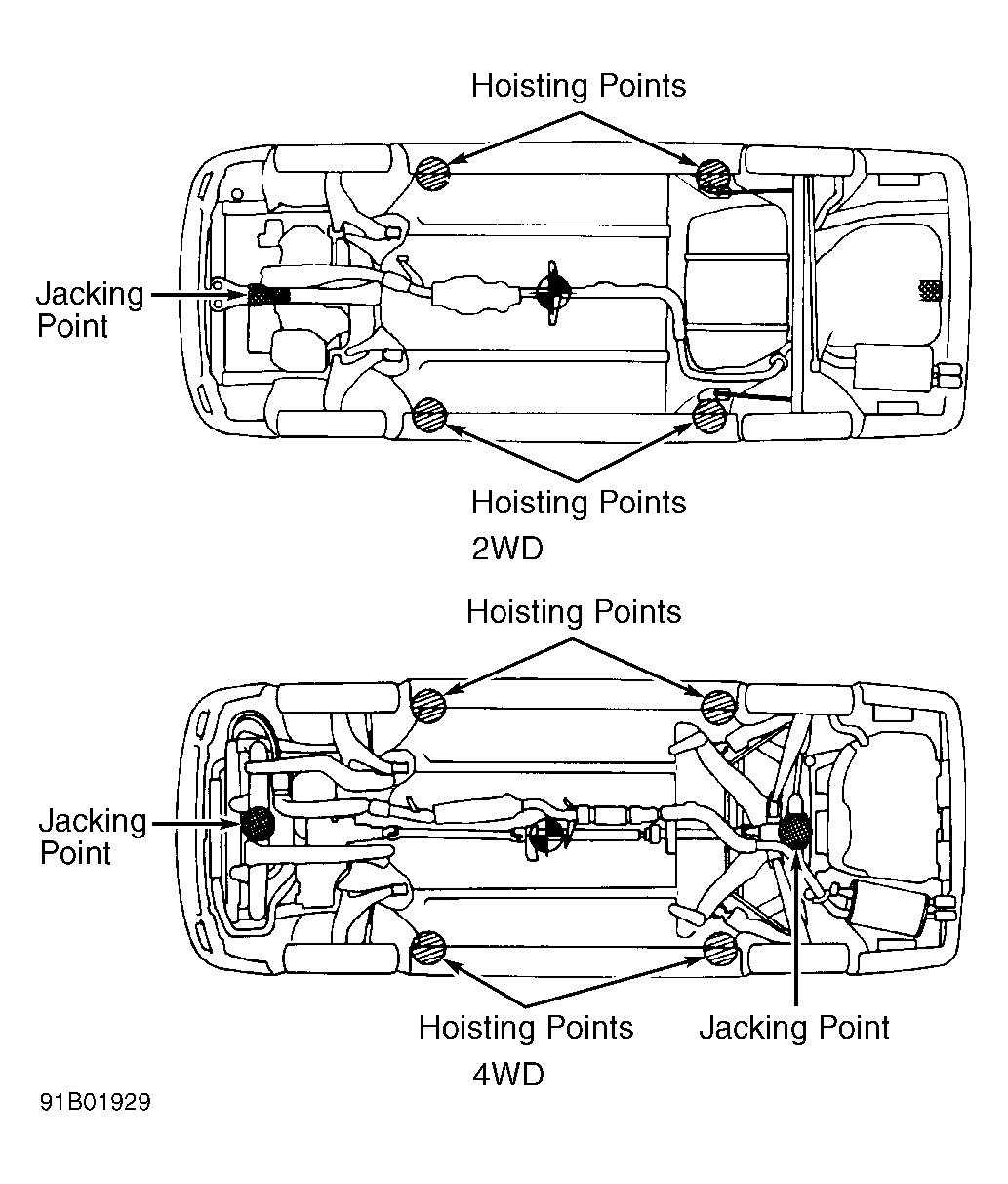

Fig 1: Lift Point Locations

Courtesy of MITSUBISHI MOTOR CO.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT Section.
