Pinion Rotating Force
NOTE:
Pinion rotating force procedure is performed with rack and pinion assembly off vehicle and supported in soft-jawed vise.

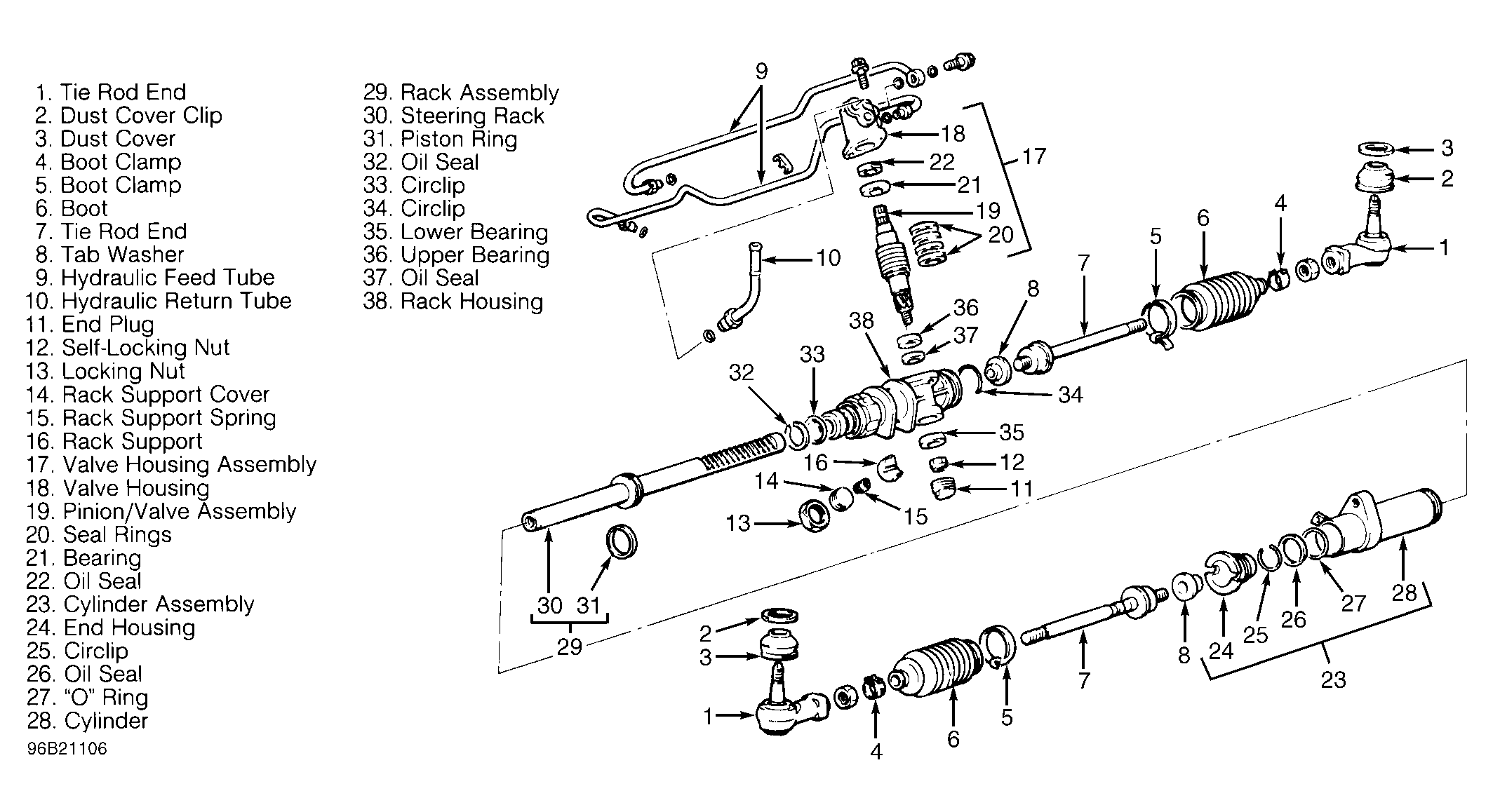

Using Adapter (MB991006) and torque wrench, measure rotating force while turning pinion gear through one complete rotation within 4-6 seconds. See PINION ROTATING FORCE SPECIFICATIONS table. If rotating force is not within specification, adjust end plug (rack support cover), and recheck rotating force. See Figure . Tighten locking nut to 36-51 ft. lbs. (49-69 N.m).
PINION ROTATING FORCE SPECIFICATIONS
| Application | INCH Lbs. (N.m) |
|---|---|
| Summit Wagon | 5-11 (.6-1.3) |
