Coil Test

  1. Turn ignition off. Disconnect ignition coil electrical connections. Using a DVOM, measure resistance of primary and secondary coil circuits. Measure primary circuit resistance between battery terminal and terminal for cylinders being checked. See Fig 1 .
  2. Measure secondary circuit resistance across coil towers. See Fig 2 . See IGNITION COIL RESISTANCE table. If resistance is within specification, ignition coil is okay. If resistance is not within specification, replace ignition coil.
IGNITION COIL RESISTANCE - Ohms @ 70-80°F (21-27°C)

Application Primary Secondary
4-Cyl. .51-.61 11,500-13,500

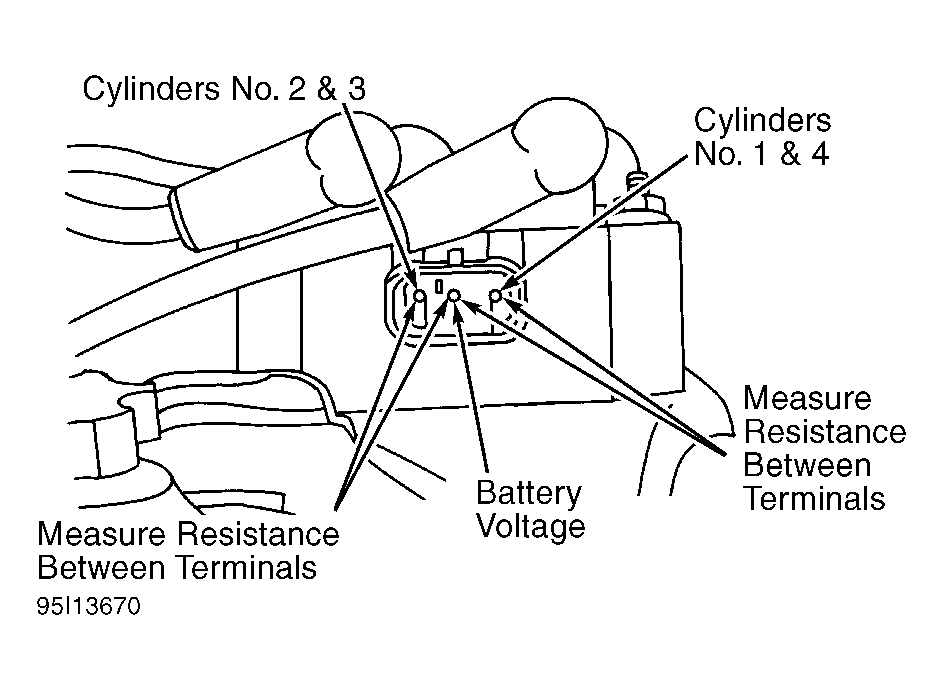

Fig 1: Identifying Ignition Coil Primary Circuits
G95I13670Courtesy of CHRYSLER CORP.

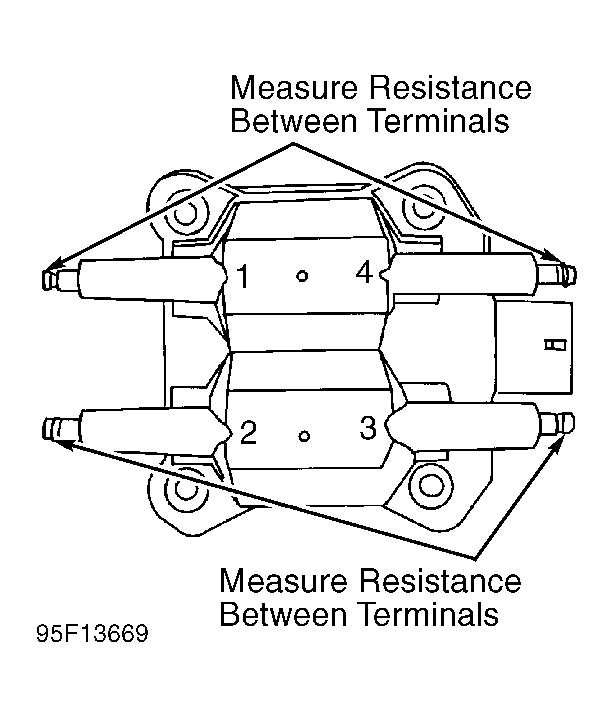

Fig 2: Identifying Ignition Coil Secondary Circuits
G95F13669Courtesy of CHRYSLER CORP.
