Fuel Injector Resistor

  1. Ensure ignition is off. Disconnect connector at fuel injector resistor. Fuel injector resistor is located near throttle body and contains a 6-pin Black connector. See Fig 1 .
  2. Using ohmmeter, check resistance between terminals No. 1 and 3, 3 and 4, 3 and 5, and 3 and 6 on connector for fuel injector resistor connector. See Fig 2 .
  3. Resistance should be 5.5-6.5 ohms at 68°F (20°C). Replace fuel injector resistor if resistance is not within specification.

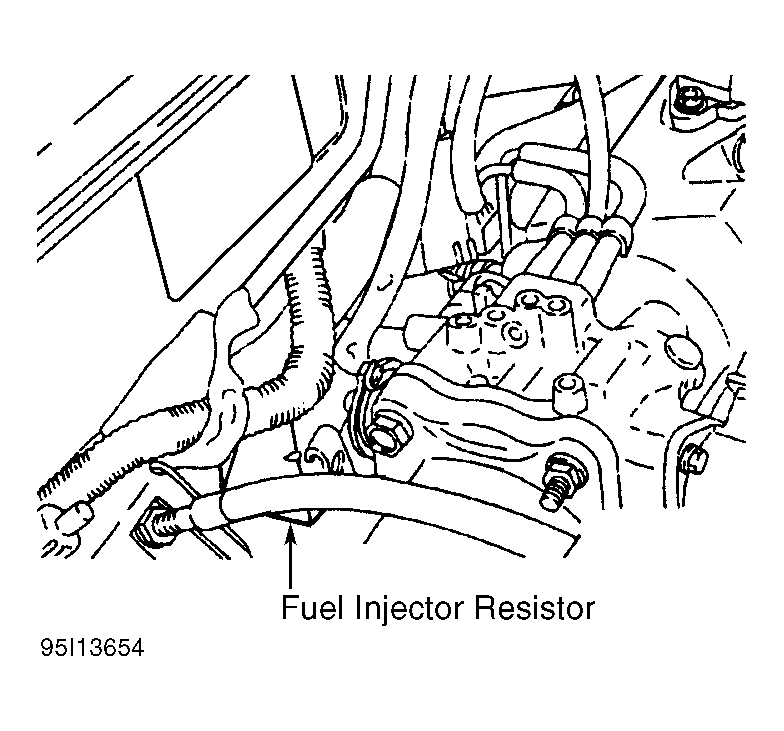

Fig 1: Identifying Fuel Injector Resistor
G95I13654Courtesy of CHRYSLER CORP.

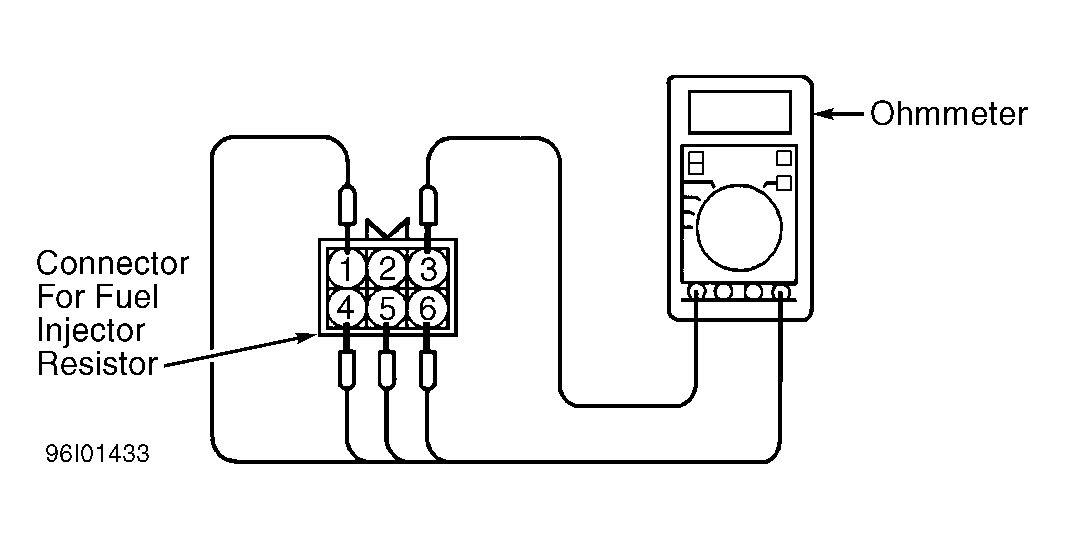

Fig 2: Checking Fuel Injector Resistor
G96I01433Courtesy of CHRYSLER CORP.
