Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

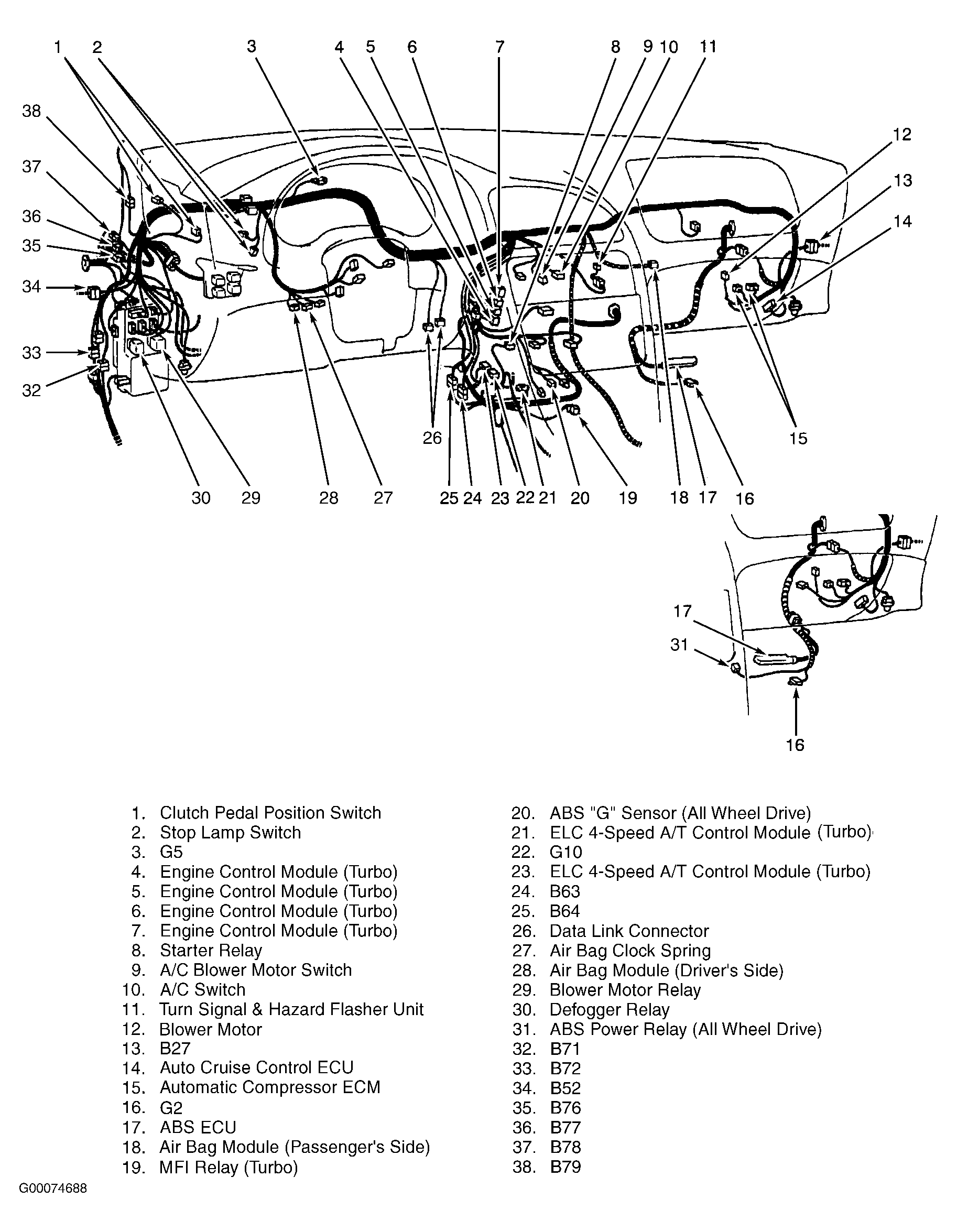

| ABS ECU | Under right side of dash. See Figure . |
| Air Bag Module (Driver's Side) | Center of steering wheel. See Figure . |
| Air Bag Module (Passenger's Side) | Above glove compartment. See Figure . |
| Auto Cruise Control ECU | Behind right side kick panel. See Figure . |
| Automatic Compressor ECM | Behind glove compartment, passenger's side. See Figure . |
| Daytime Running Lamps ECU | At left headlamp assembly. |
| EATX-ECM (Non-Turbo) | Under center console. |
| ELC 4-Speed A/T Control Module (Turbo) | Under center console. See Figure . |
| Engine Control Module (Turbo) | Under center console. See Figure . |
| ETACS ECU | On junction block, under left side of dash. |
| Powertrain Control Module (Non-Turbo) | Left side engine compartment, behind relay block. |
| Receiver | In left quarterpanel, in front of wheel housing. |

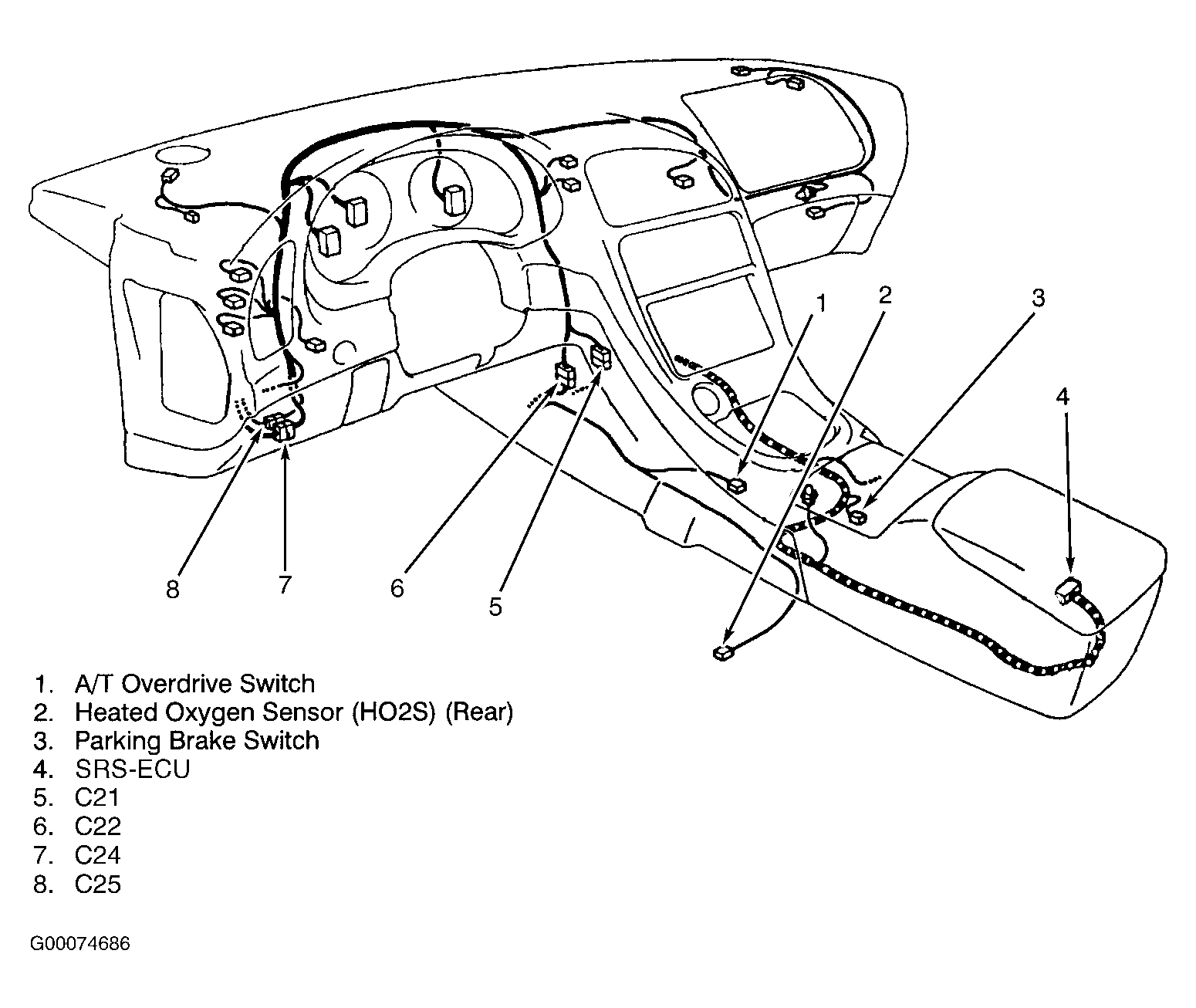

| SRS-ECU | Under floor console, behind transmission selector. See Figure . |
| Sun Roof ECU | Above headliner, front part of roof. |
