A/C Switch

  1. Remove A/C switch from instrument panel. Note terminal identification on A/C switch. See Fig 1 .
  2. Using ohmmeter, check that continuity exists between specified terminals in relation to A/C switch position. See A/C SWITCH CONTINUITY table. Replace A/C switch if continuity is not as specified.
A/C SWITCH CONTINUITY

A/C Switch Position Terminals No.
OFF 1 & 5; 3 & 6
ON 1, 4 & 5; 3 & 6

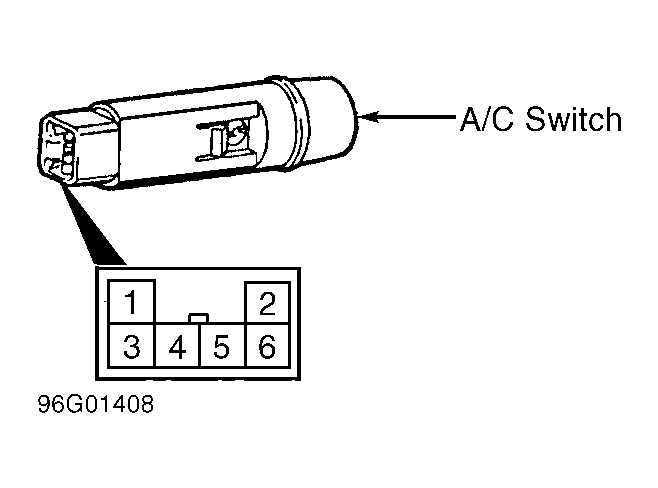

Fig 1: Identifying A/C Switch Terminals
G96G01408Courtesy of CHRYSLER CORP.
