Using Scan Tool

  1. Ensure battery is fully charged. Turn ignition off. Connect scan tool to Data Link Connector (DLC). Two connections required. One at 12-pin DLC, and another at 16-pin DLC. See DATA LINK CONNECTOR (DLC) table for connector location. See 1.
    DATA LINK CONNECTOR (DLC) LOCATION

    Application DLC Location
    Talon Non-Turbo Base Of Steering Column

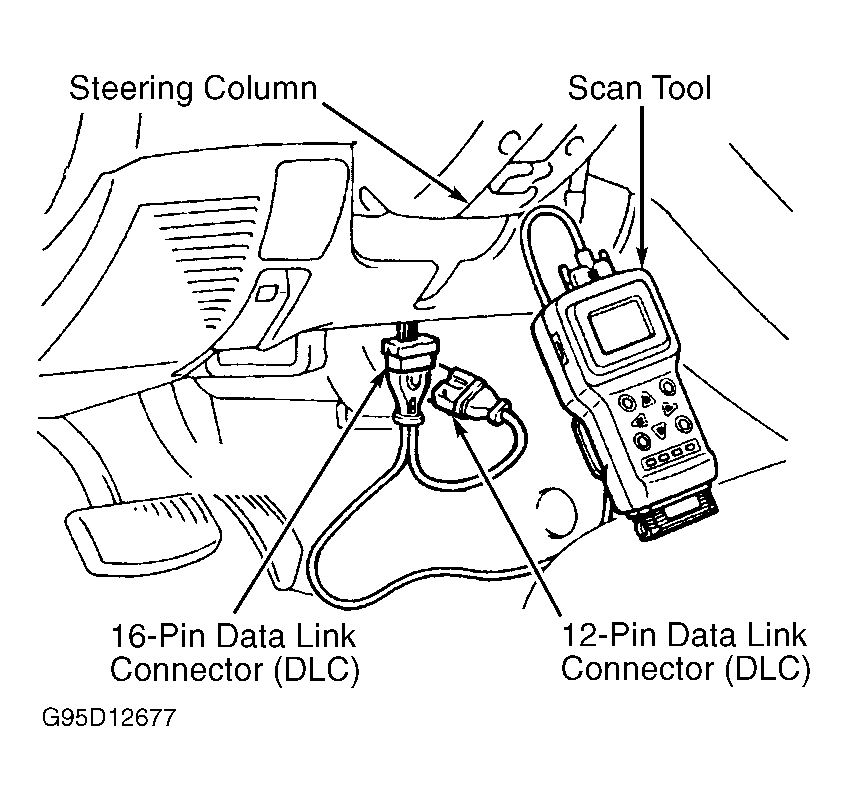

    Fig 1: Data Link Connectors (DLCs) Location
    G95D12677Courtesy of CHRYSLER CORP.
  2. Turn ignition on. Using scan tool manufacturer's instructions, record all DTCs displayed on scan tool. Using all DTCs obtained, proceed to SELF-DIAGNOSTIC TESTS . Once all repairs are made, ensure DTCs are cleared from PCM. See CLEARING DIAGNOSTIC TROUBLE CODES.
