Connector Identification

NOTE: For ECM connector terminal identification, See Fig 1.

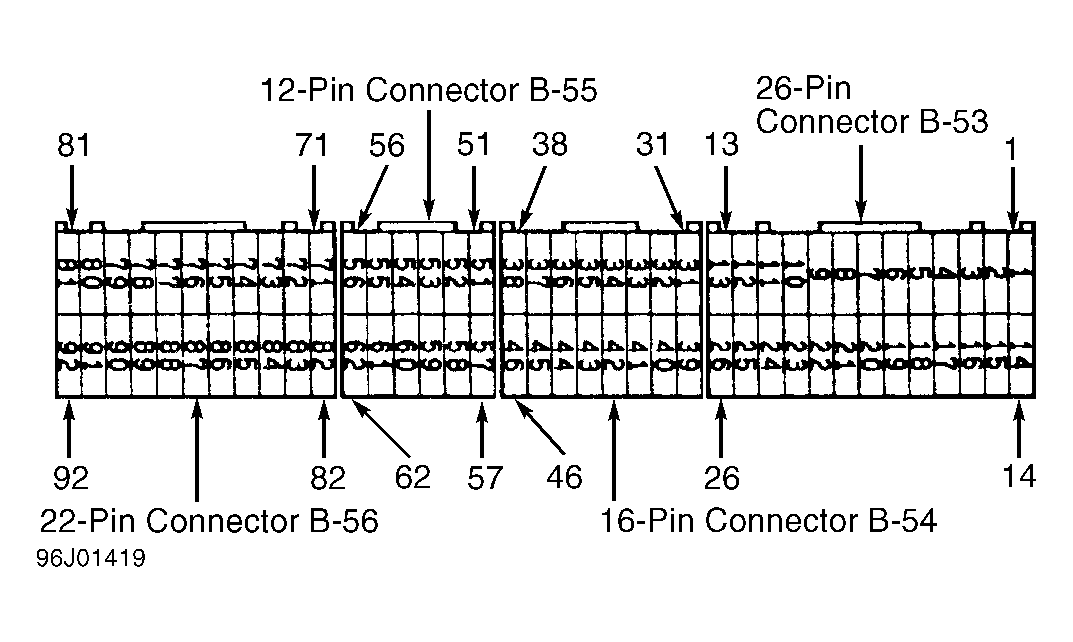

Fig 1: Identifying ECM Connector Terminals
G96J01419Courtesy of CHRYSLER CORP.
