Service Point Locations

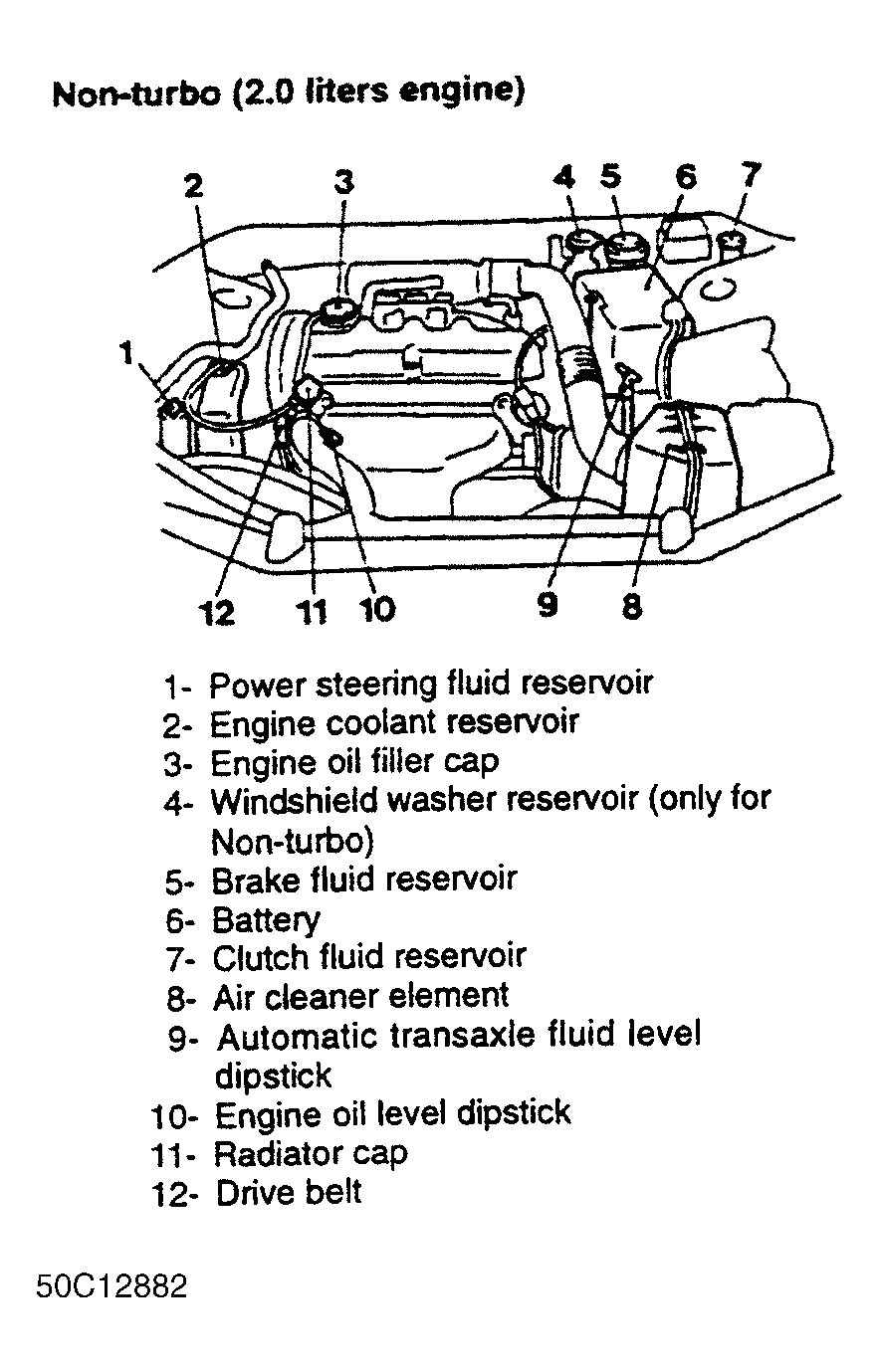

Fig 1: Service Point Locations (2.0L Non-Turbo)
G50C12882Courtesy of MITSUBISHI MOTORS.

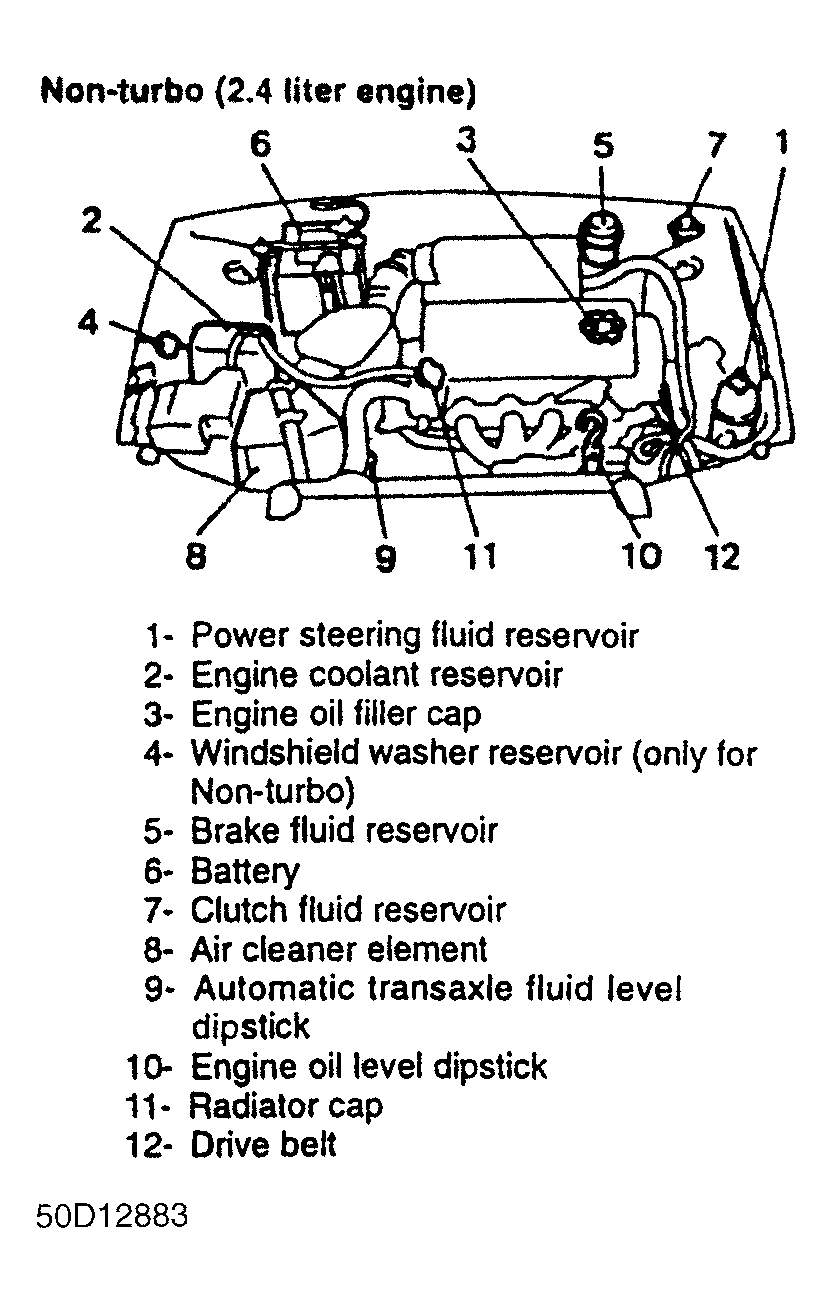

Fig 2: Service Point Locations (2.4L Non-Turbo)
G50D12883Courtesy of MITSUBISHI MOTORS.

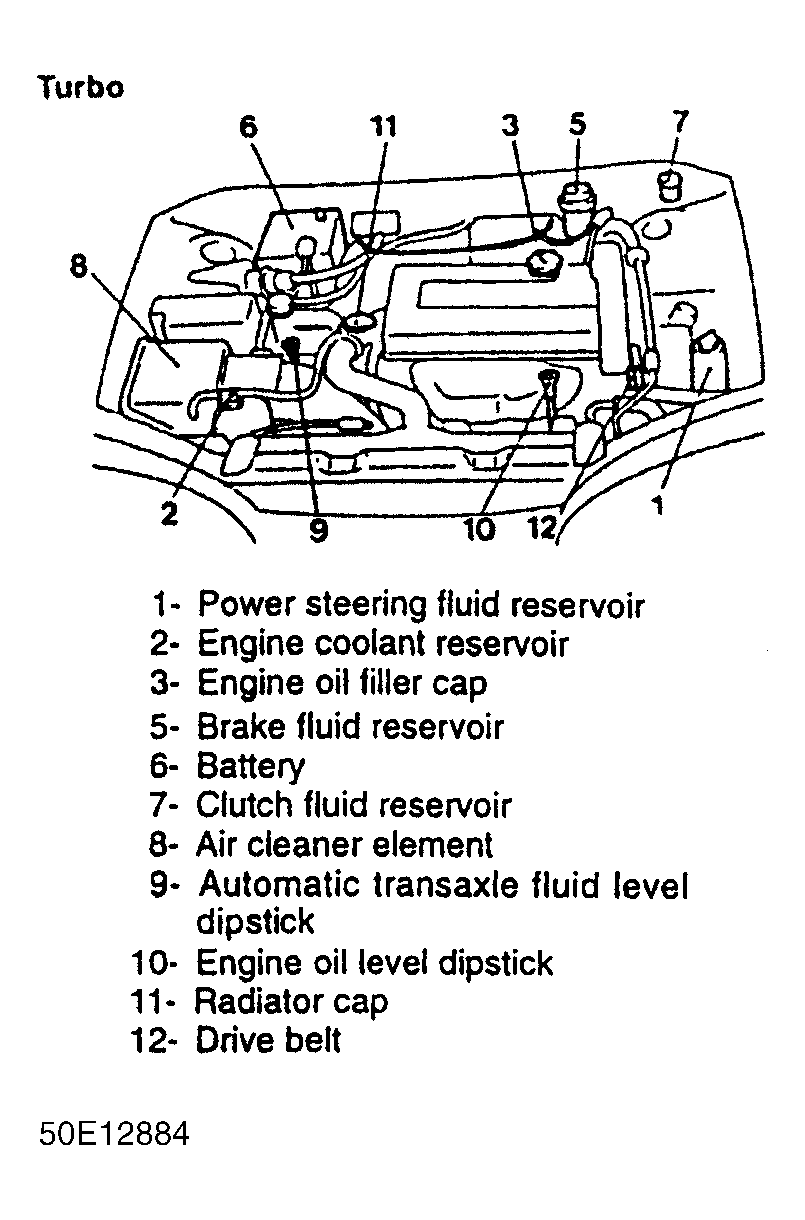

Fig 3: Service Point Locations (Turbo)
G50E12884Courtesy of MITSUBISHI MOTORS.
