Front Window
- Remove door trim panel. See DOOR TRIM PANEL & WATERSHIELD
under REMOVAL & INSTALLATION. Loosen fasteners for following components:
- Delta sash.
- Equalizer arm bracket.
- Window guide front track.
- Window guide rear track.
- Up stop.
- Inner stabilizer.

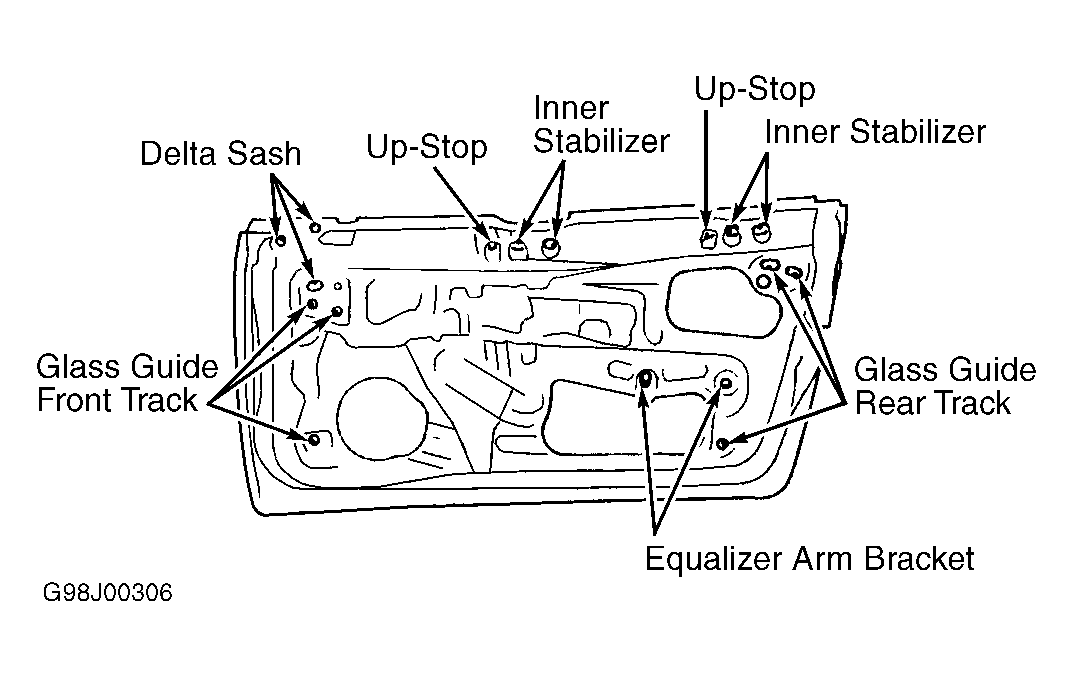

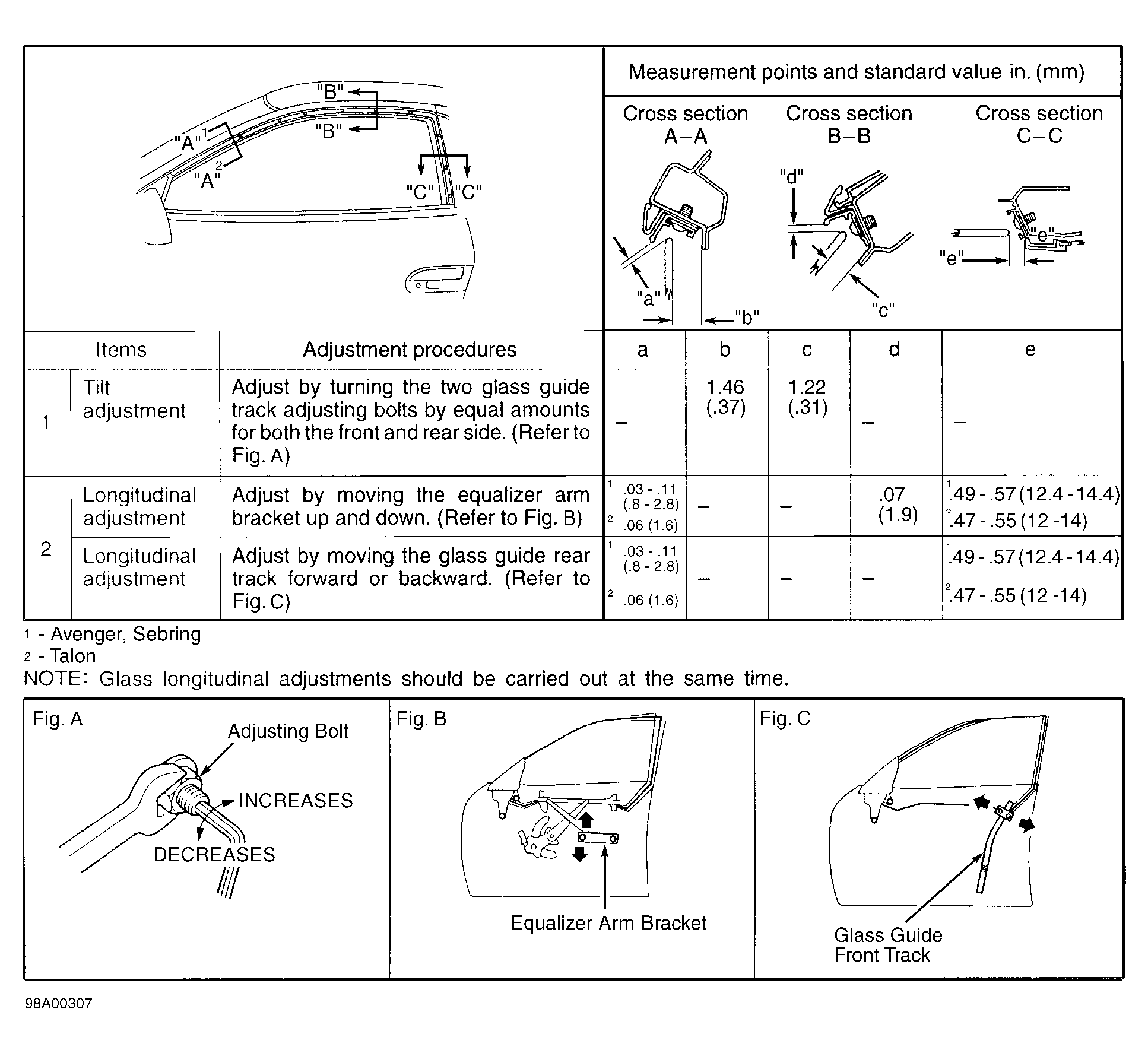

- Lower the window before loosening the delta sash bolts. Refer to Fig 1 . Raise the window and adjust to specifications. Refer to Fig 2 . Remove weatherstripping from area to be measured (one area at a time). Push up stops against lift arm bracket of regulator. Tighten bolts. Ensure dimensions "a" and "d" are held while tightening front and rear guide tracks. Tighten equalizer arm bracket bolts. Align delta sash to front edge of window and tighten bolts.
- Open and close door. Raise and lower window. Ensure window operates smoothly. Check window gaps. See GLASS CATCH GAP
. Adjust as necessary.
NOTE: If clearance is too small, window will ride over glass catch. If clearance is too large, wind noise may occur at high vehicle speeds.GLASS CATCH GAP

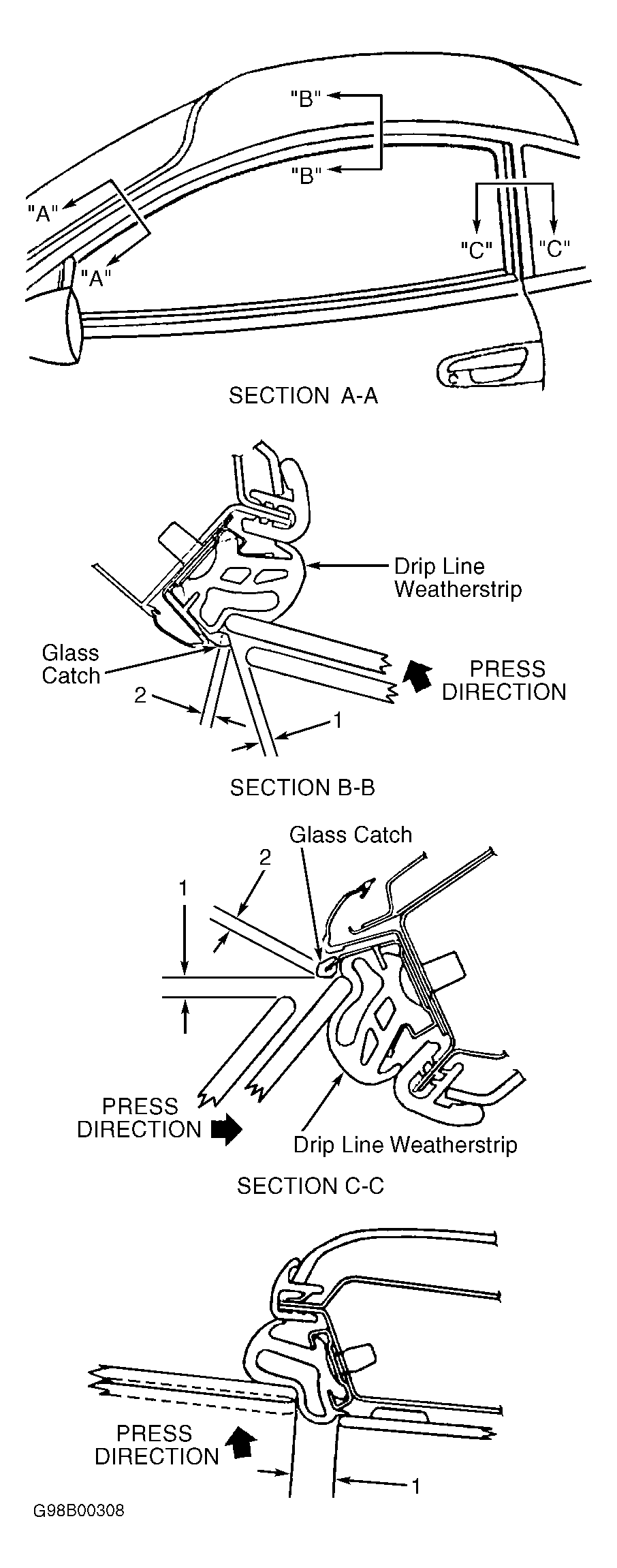

Location Dimension In. (mm) Section A-A "A" .07 (1.9) "B" .15-.23 (3.8-5.8) Section B-B "C" .21-.29 (5.3-7.3) "D" .07 (1.9) Section C-C "E" .47-.55 (5.3-7.3) NOTE: In following step, if clearance is too small, window will be damaged. If clearance is too large, rattling will occur. - Close door and raise window fully. Check window gaps. See Fig 3
. See GLASS CATCH GAP
. Adjust as necessary. Raise window fully and close door. Recheck gaps. Glass catch and weatherstrip should be parallel and both upstops should touch at same time when window is fully raised.NOTE: In following step, if tilt is too small, window will ride over glass catch. If tilt is too large, door will be hard to close and window will not fully seat.
- Raise window fully. Close door until top of window touches weatherstrip at top of center pillar. Measure gap between top of door edge and top of quarter panel. Gap should be .59-.79 in. (15-20 mm). Adjust as necessary. When all adjustments are completed, install door trim panel.
