Power Window Switch Test

Remove power window switch from trim panel. See POWER WINDOW SWITCH . Using ohmmeter, check window switch continuity. See Fig 1 or Fig 2 . Refer to DRIVER'S WINDOW SWITCH CONTINUITY or refer to PASSENGER'S WINDOW SWITCH CONTINUITY . Replace window switch as necessary.

DRIVER'S WINDOW SWITCH CONTINUITY

Switch Position

Continuity Between Terminals No.

Driver's Side Switch

Off

2, 6 & 9

2 & 6; 8 & 9

Down Or Auto Down

6 & 8; 2 & 9

Passenger's Side Switch

Off

3 & 7

3 & 8

Down

7 & 8

Window Lock Switch

Normal

2 & 3; 2 & 7

Lock

⁽¹⁾

⁽¹⁾	Continuity should not exist between terminal No. 2 and terminals No. 3 and 7.

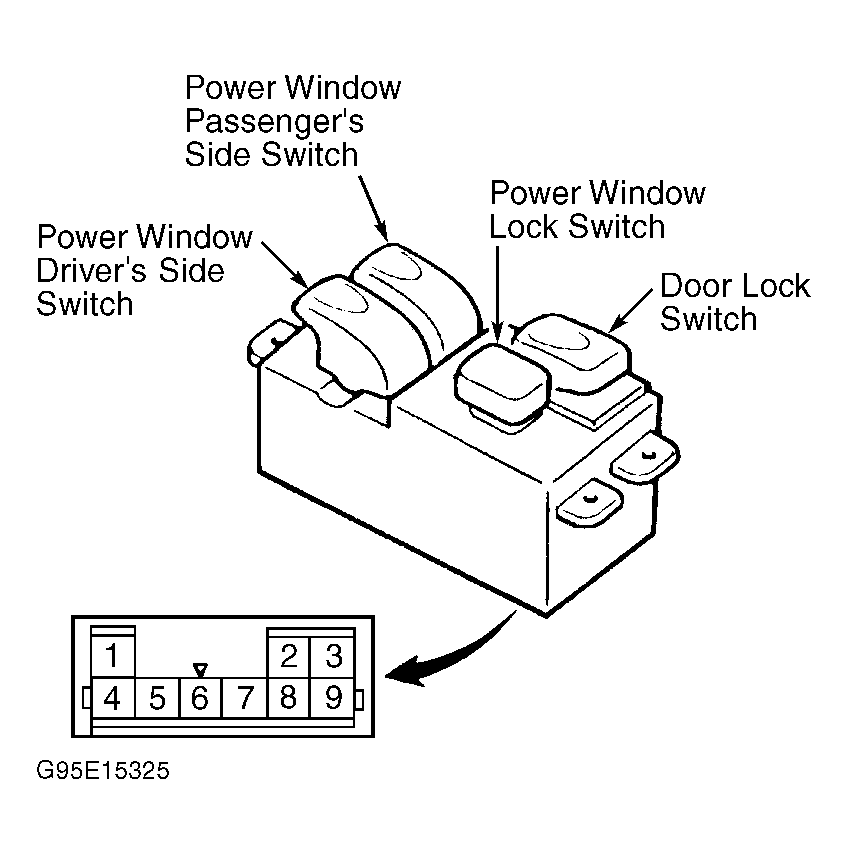

Fig 1: Identifying Driver's Power Window (Main) Switch Terminals

Courtesy of CHRYSLER CORP.

PASSENGER'S WINDOW SWITCH CONTINUITY

Switch Position	Continuity Between Terminals No.
Off	1 & 4; 2 & 3
Up	1 & 4; 3 & 6
Down	1 & 6; 2 & 3

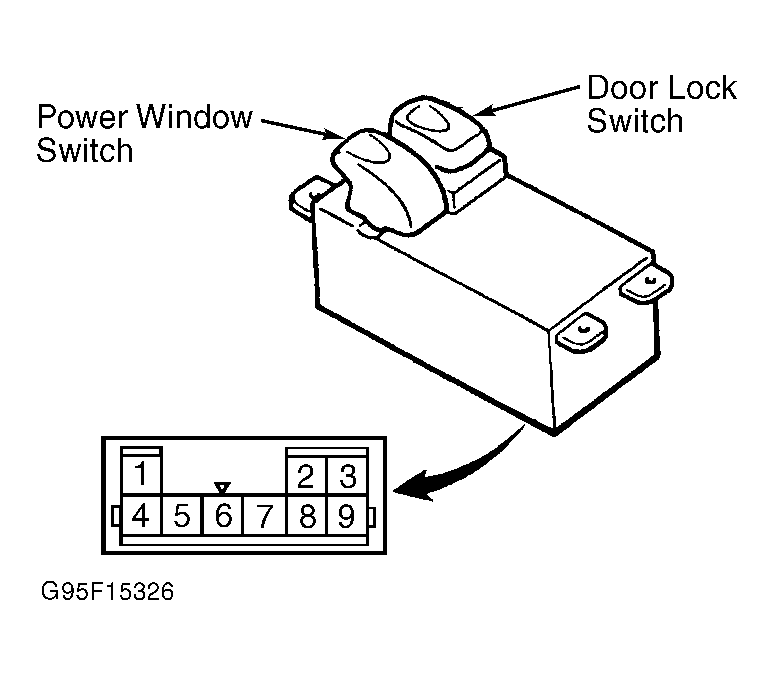

Fig 2: Identifying Passenger's Power Window Switch Terminals

Courtesy of CHRYSLER CORP.
