Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

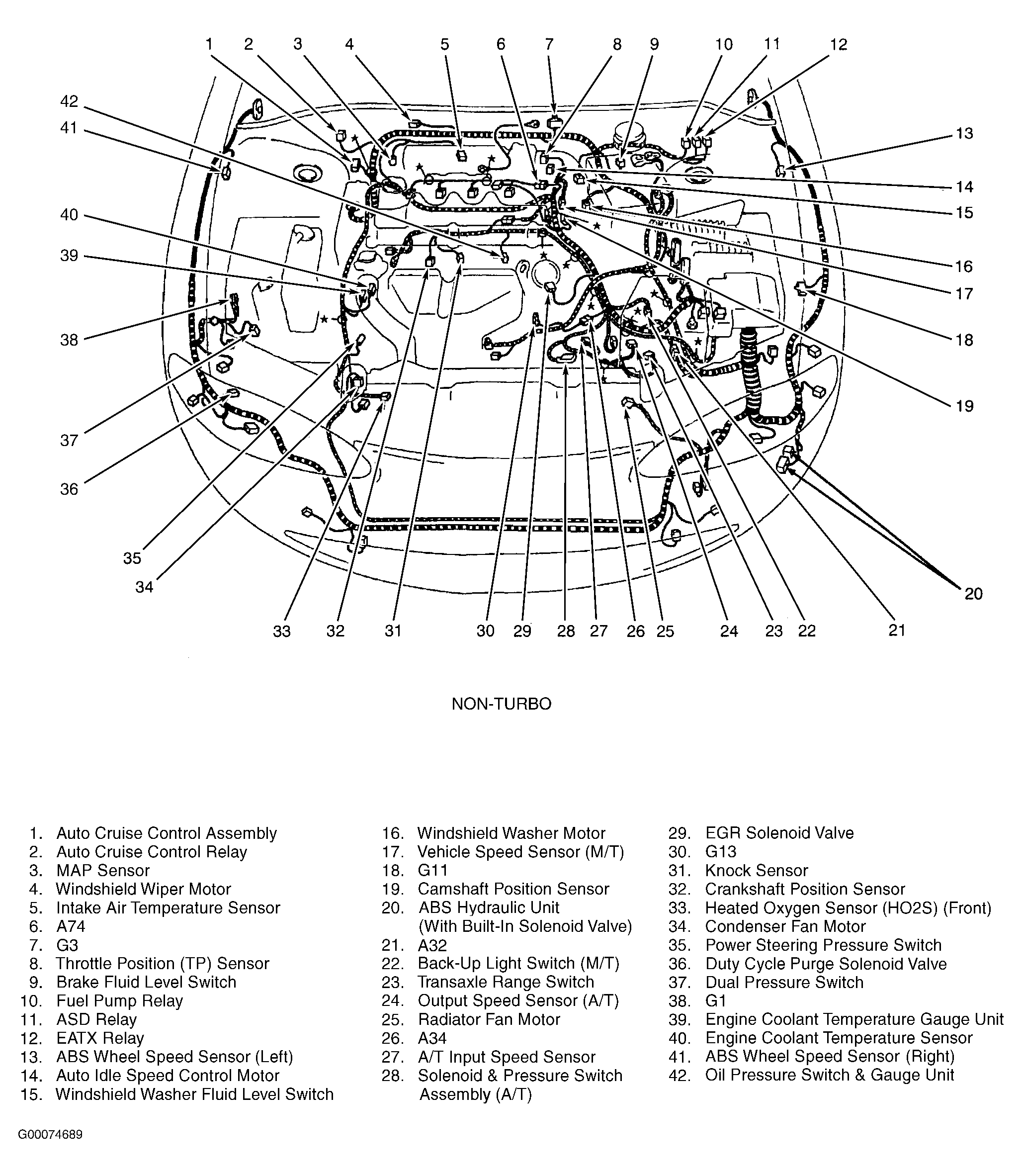

Fig 1: Engine Compartment (Non-Turbo)

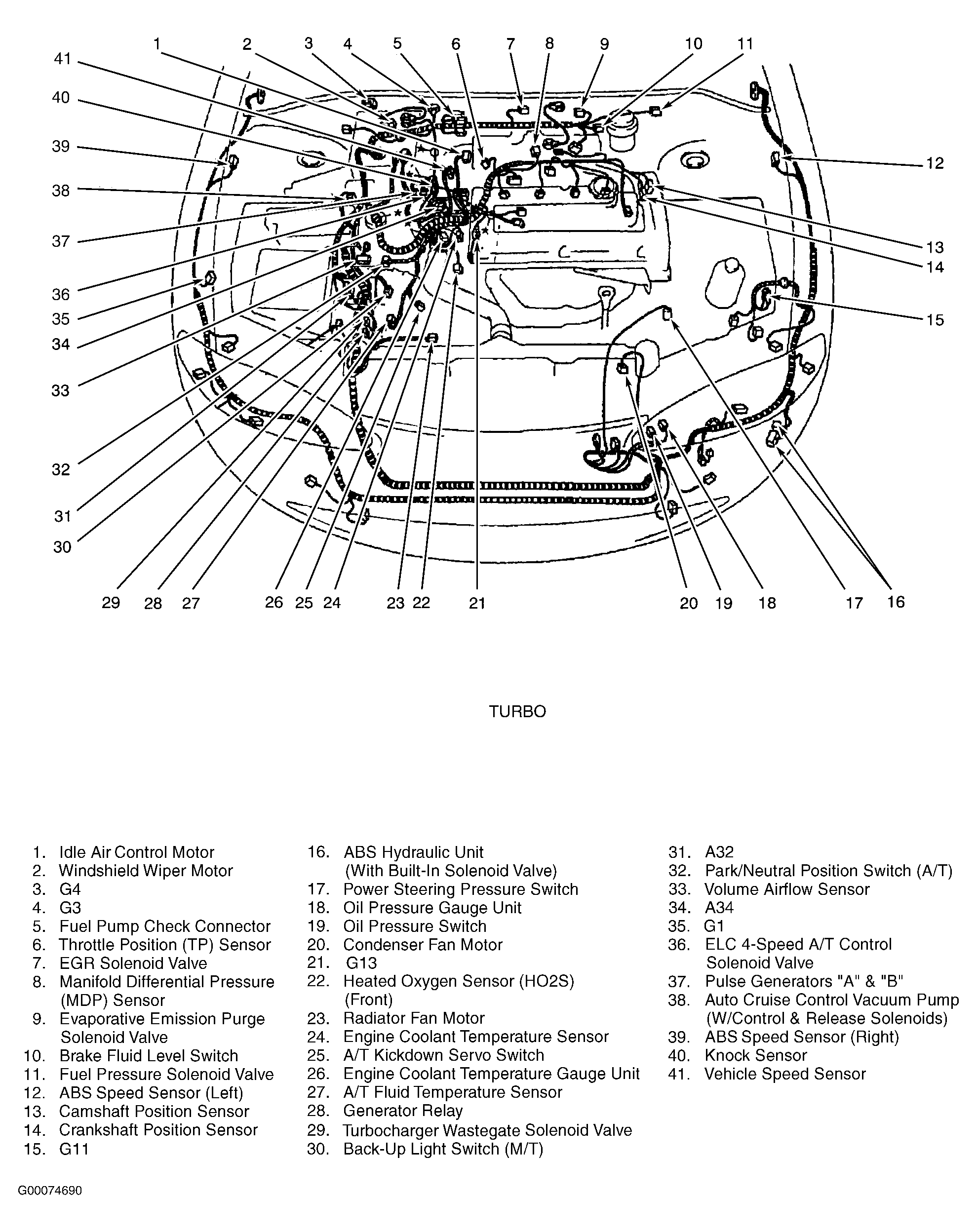

Fig 2: Engine Compartment (Turbo)

Fig 3: Dash

Fig 4: Dash & Center Console

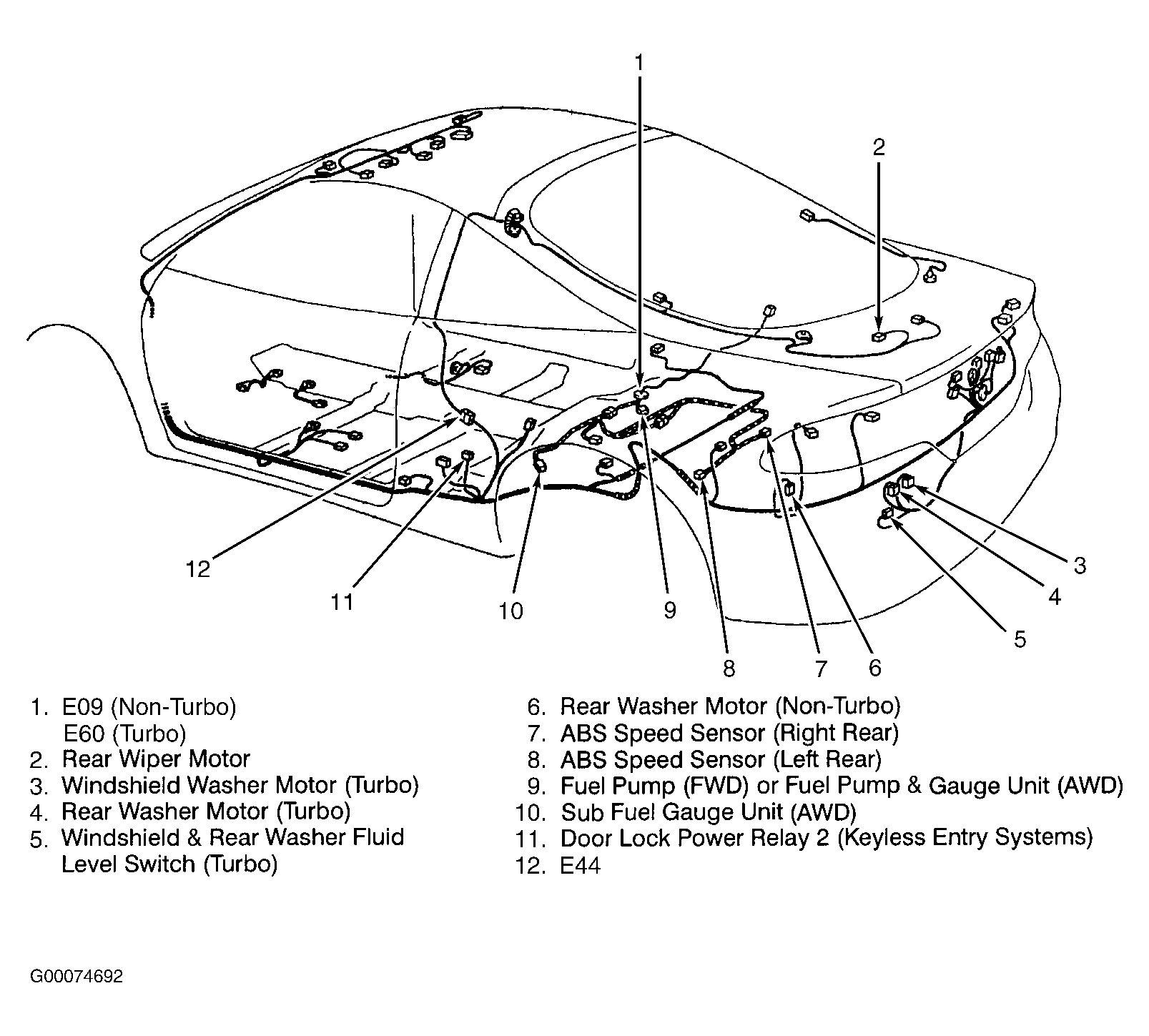

Fig 5: Vehicle Overview
