Component Locations

NOTE: For general location of engine control system components, see Fig 1 .

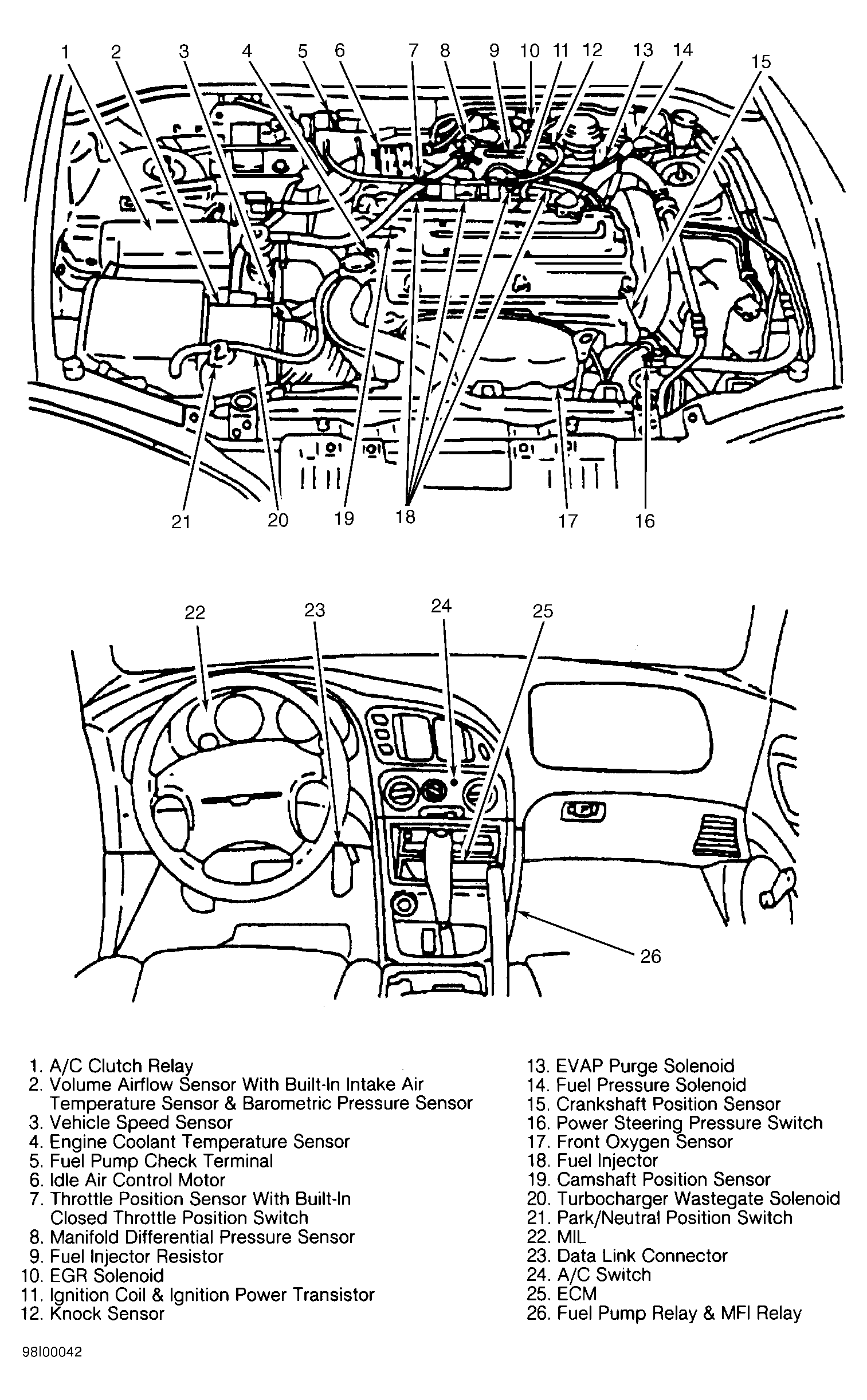

Fig 1: Locating Engine Control System Components
G98I00042Courtesy of CHRYSLER CORP.
