Connector Identification

NOTE: Circuit location may vary on some connectors.

CONNECTOR IDENTIFICATION DIRECTORY

Connector		See
A/C Compressor Relay Connector
Avenger, Breeze, Cirrus, Sebring Conv., Sebring Coupe, Stratus & Talon		Fig 1
A/C Compressor Relay Connector
Neon		Fig 2
Automatic Shutdown (ASD) Connector
Avenger, Sebring Coupe & Talon		Fig 3
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 4
Neon		Fig 5
Battery Temperature Sensor Connector
Breeze, Cirrus, Neon, Sebring Conv. & Stratus		Fig 6
Brakelight Switch Connector
Avenger, Sebring Coupe & Talon		Fig 7
Breeze, Cirrus, Neon, Sebring Conv. & Stratus		Fig 8
Camshaft Position Sensor Connector
Avenger (2.0L), Breeze (2.0L & 2.4L), Cirrus, Neon, Sebring Conv. (2.4L), Sebring Coupe (2.0L), Stratus (2.0L & 2.4L) & Talon		Fig 9
Clockspring 2-Pin Speed Control Connector
Neon & Sebring Conv.		Fig 10
Crankshaft Position Sensor Connector
Avenger, Sebring Coupe & Talon (2.0L)		Fig 11
Crankshaft Position Sensor Connector
Breeze, Cirrus, Sebring Conv. & Stratus (2.5L)		Fig 12
Crankshaft Position Sensor Connector
Breeze, Cirrus, Neon, Sebring Conv. & Stratus (2.0L & 2.4L)		Fig 13
Distributor 6-Pin Connector
Avenger & Sebring Coupe (2.5L)		Fig 14
Breeze, Cirrus, Sebring Conv. & Stratus (2.5L)		Fig 15
Engine Coolant Temperature (ECT) Sensor Connector
Avenger, Breeze, Cirrus, Sebring Coupe, Sebring Conv., Stratus & Talon		Fig 16
Neon		Fig 17
EVAP Solenoid Connector
Neon		Fig 18
Exhaust Gas Recirculation (EGR) Solenoid Connector
Avenger, Neon, Sebring Coupe & Talon		Fig 19
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 20
Fuel Pump Motor Connector
Talon		Fig 21
Fuel Pump Motor Connector
Avenger & Sebring Coupe		Fig 22
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 23
Neon		Fig 24
Fuel Pump Relay Connector
Avenger, Sebring Coupe & Talon		Fig 25
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 26
Neon		Fig 27
Generator Field Connector
Avenger, Sebring Coupe & Talon		Fig 28
Breeze, Cirrus, Sebring Conv. & Stratus (2.0L & 2.4L)		Fig 29
Neon		Fig 30
High Speed Condenser Fan Relay Connector
Avenger, Sebring Coupe & Talon		Fig 31
High Speed Radiator Fan Relay Connector
Avenger, Sebring Coupe & Talon		Fig 32
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 33

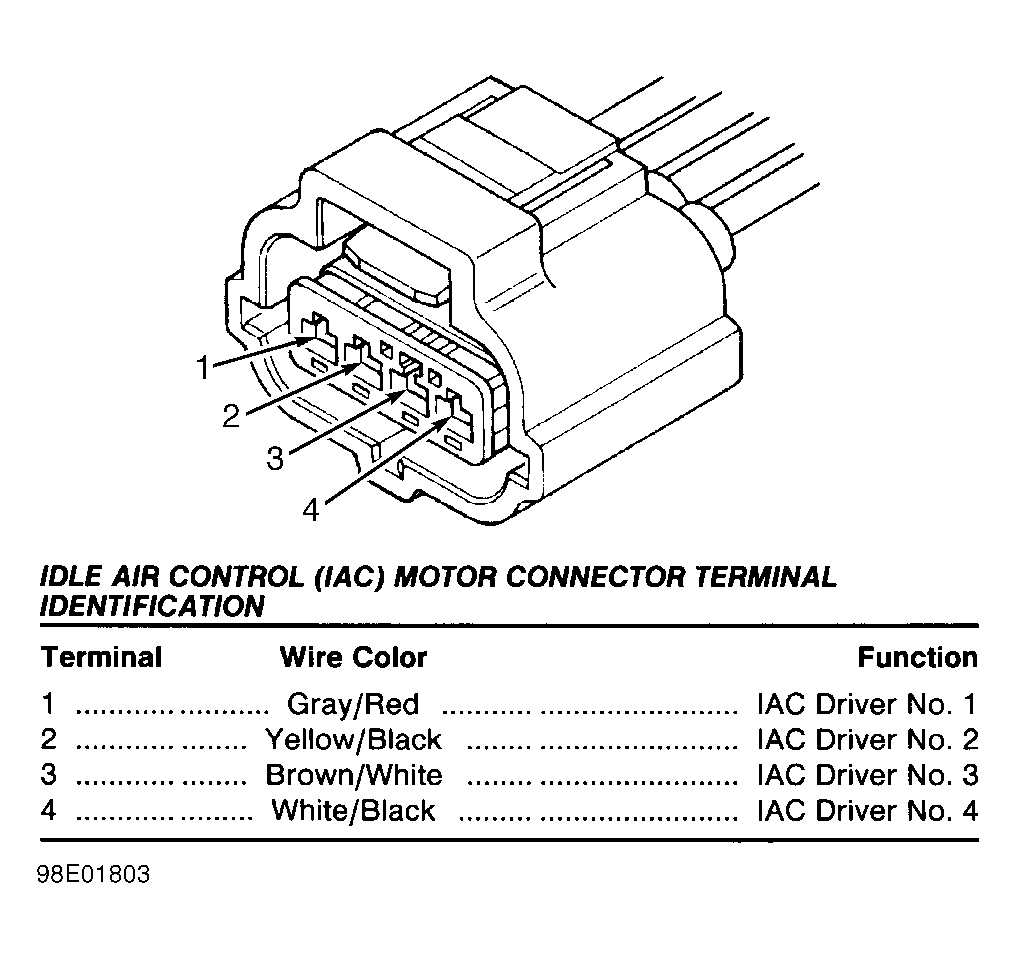

Idle Air Control (IAC) Motor Connector
Avenger, Sebring Coupe & Talon		Fig 34
Breeze, Sebring Conv. & Stratus (2.4L & 2.5L)		Fig 35
Breeze & Stratus (2.0L) & Neon		Fig 36
Ignition Coil Connector
Avenger, Sebring Coupe & Talon (2.0L)		Fig 37
Breeze, Cirrus, Neon, Sebring Conv. & Stratus (2.0L & 2.4L)		Fig 38
Injector Connectors
Avenger, Sebring Coupe & Talon		Fig 39
Breeze, Cirrus, Neon, Sebring Conv. & Stratus		Fig 40
Injector 4-Pin Connector (PCM Side)
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 41
Injector 10-Pin Connector (PCM Side)
Avenger, Sebring Coupe & Talon		Fig 42
Intake Air Temperature Sensor Connector
Avenger, Sebring Coupe & Talon		Fig 43
Intake Air Temperature Sensor Connector
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 44
Intake Air Temperature/Manifold Absolute Pressure (IAT/MAP) Sensor Connector
Breeze, Cirrus, Neon & Stratus		Fig 45
Leak Detection Pump Connector
Avenger, Breeze, Cirrus, Neon, Sebring Conv., Sebring Coupe, Stratus & Talon		Fig 46
Low Speed Condenser Fan Relay Connector
Avenger, Sebring Coupe & Talon		Fig 47
Low Speed Radiator Fan Relay Connector
Avenger, Sebring Coupe & Talon		Fig 48
Low Speed Radiator Fan Relay Connector
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 49
Manifold Absolute Pressure (MAP) Sensor Connector
Avenger, Sebring Coupe & Talon		Fig 50
Breeze, Cirrus, Sebring Conv. & Stratus		Fig 51
O2S 1/1 Connector (Harness Side)
Avenger, Breeze, Cirrus, Neon, Sebring Coupe, Sebring Conv., Stratus & Talon		Fig 52
O2S 1/2 Connector (Harness Side)
Avenger, Sebring Coupe & Talon (2.0L)		Fig 53
Breeze, Cirrus, Neon, Sebring Conv. & Stratus		Fig 54
Avenger & Sebring Coupe (2.5L)		Fig 55
O2S 2/1 Connector (Harness Side)
Avenger & Sebring Coupe (2.5L)		Fig 56
O2S 2/2 Connector (Harness Side)
Avenger & Sebring Coupe (2.5L)		Fig 57
Park/Neutral Position Switch Connector
Neon		Fig 58
Powertrain Control Module (PCM) Connector		Fig 59
Proportional Purge Solenoid Connector
Avenger, Sebring Coupe & Talon		Fig 60
Breeze, Sebring Conv. & Stratus 2.0L & 2.4L		Fig 61
Cirrus & Stratus (2.5L)		Fig 62

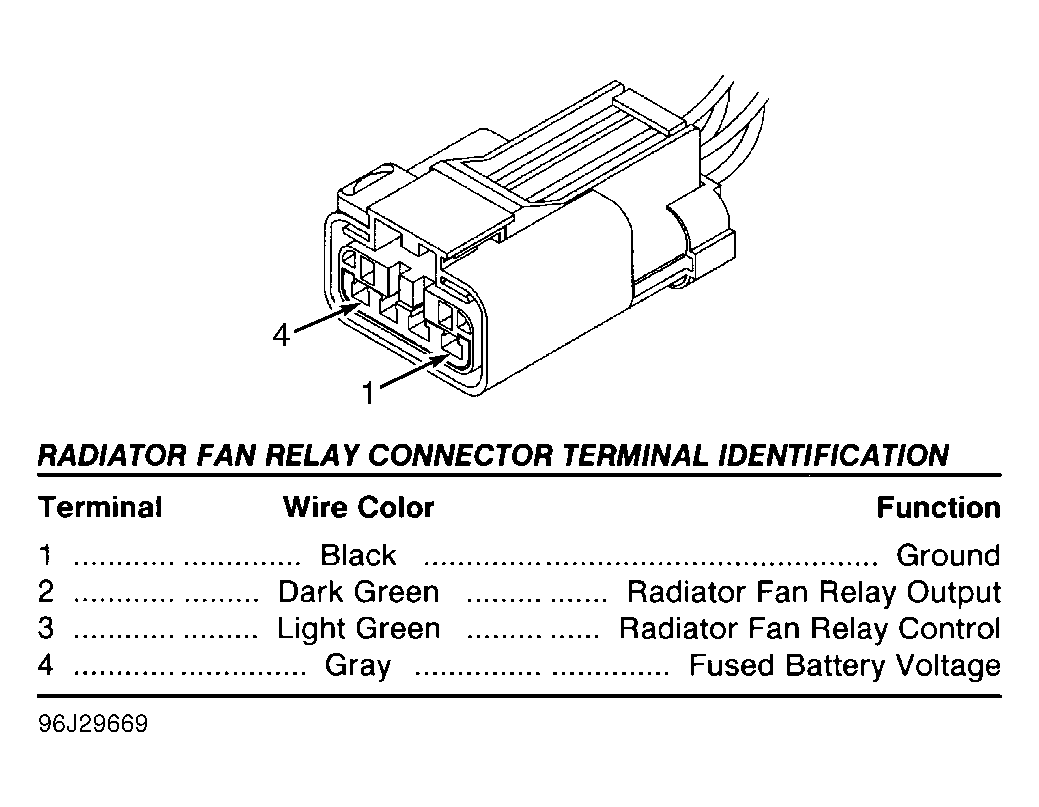

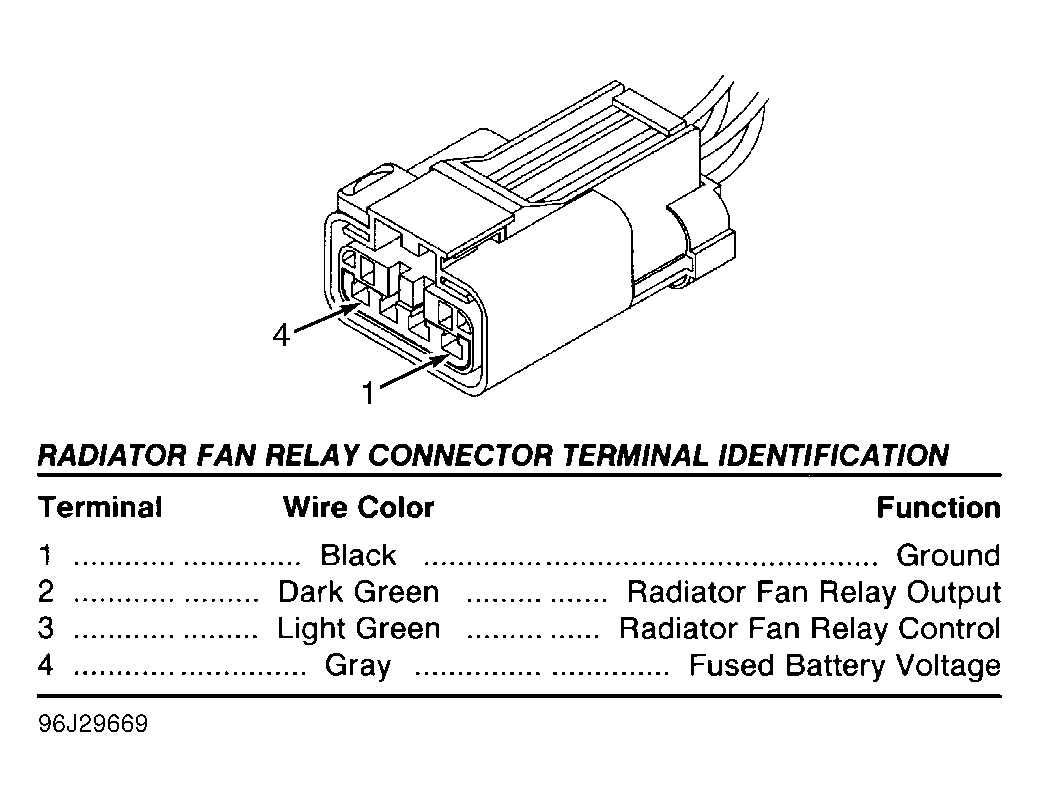

Radiator Fan Relay
Neon		Fig 63

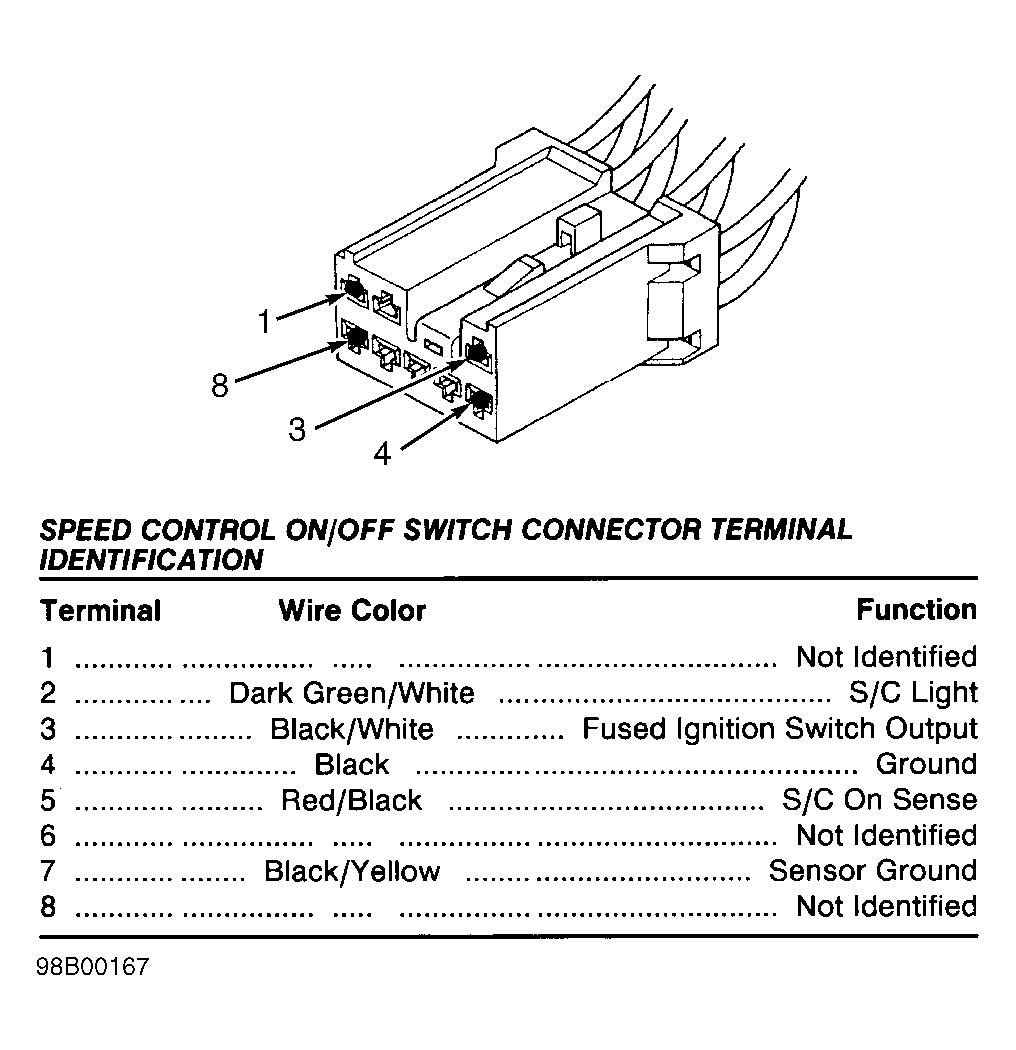

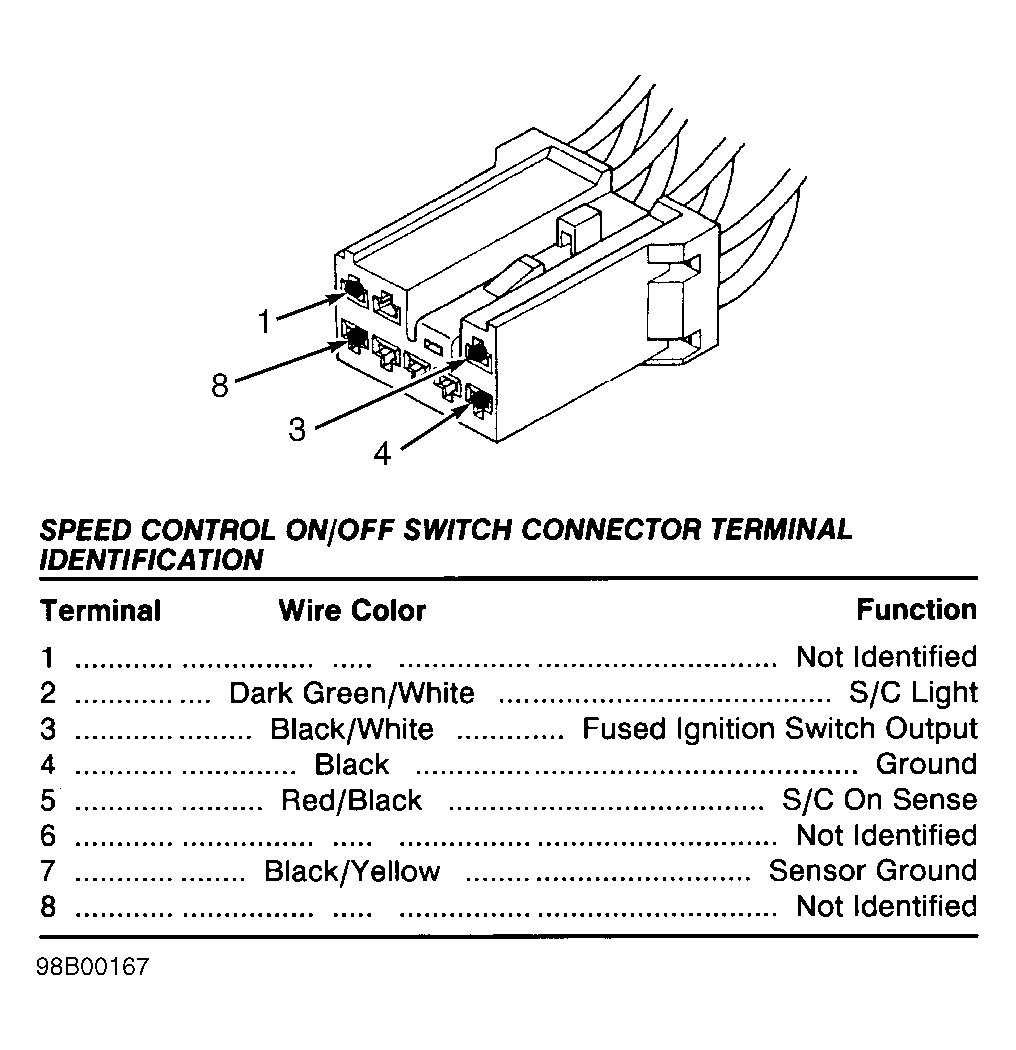

Speed Control On/Off Switch Connector
Avenger, Sebring Coupe & Talon		Fig 64

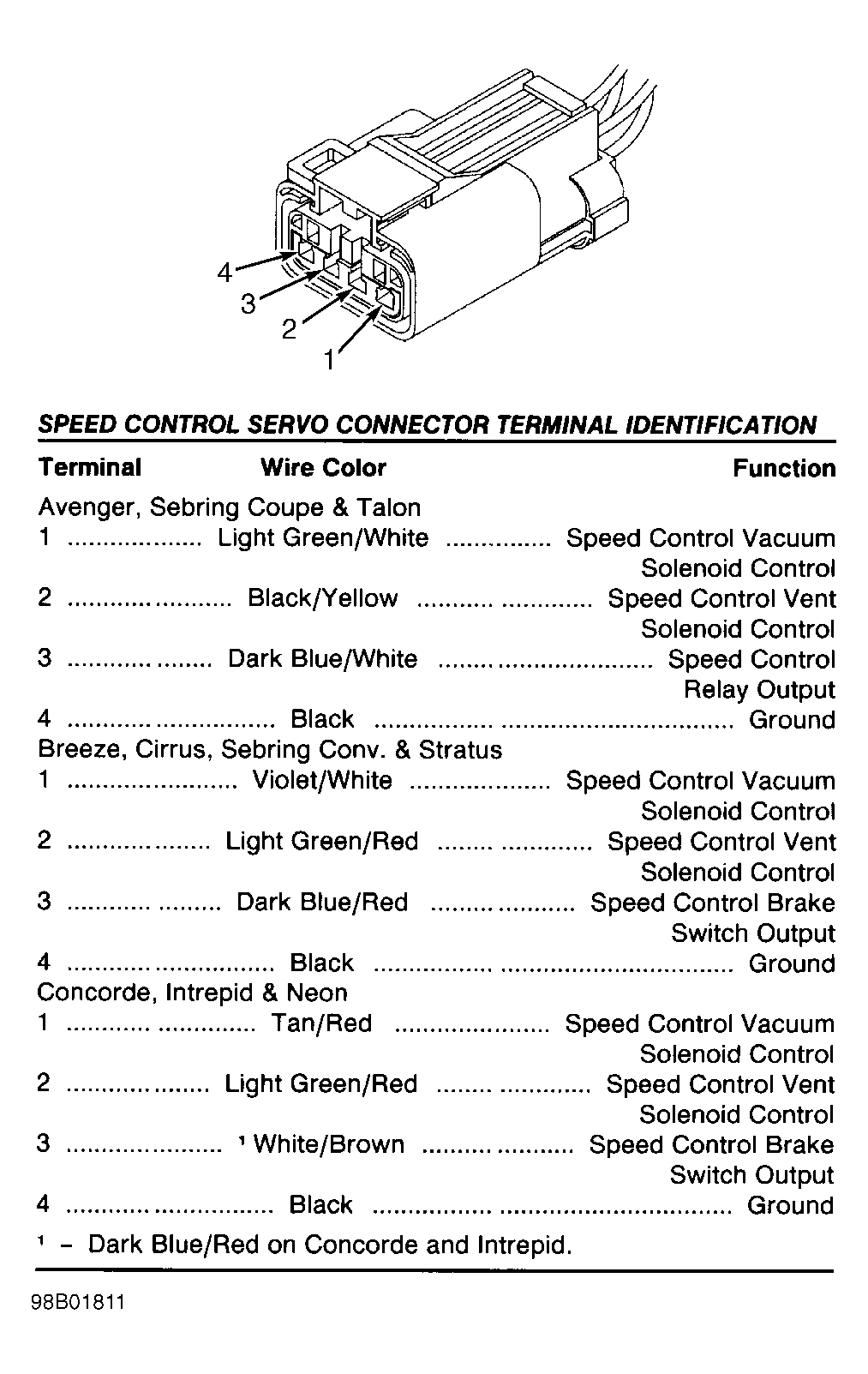

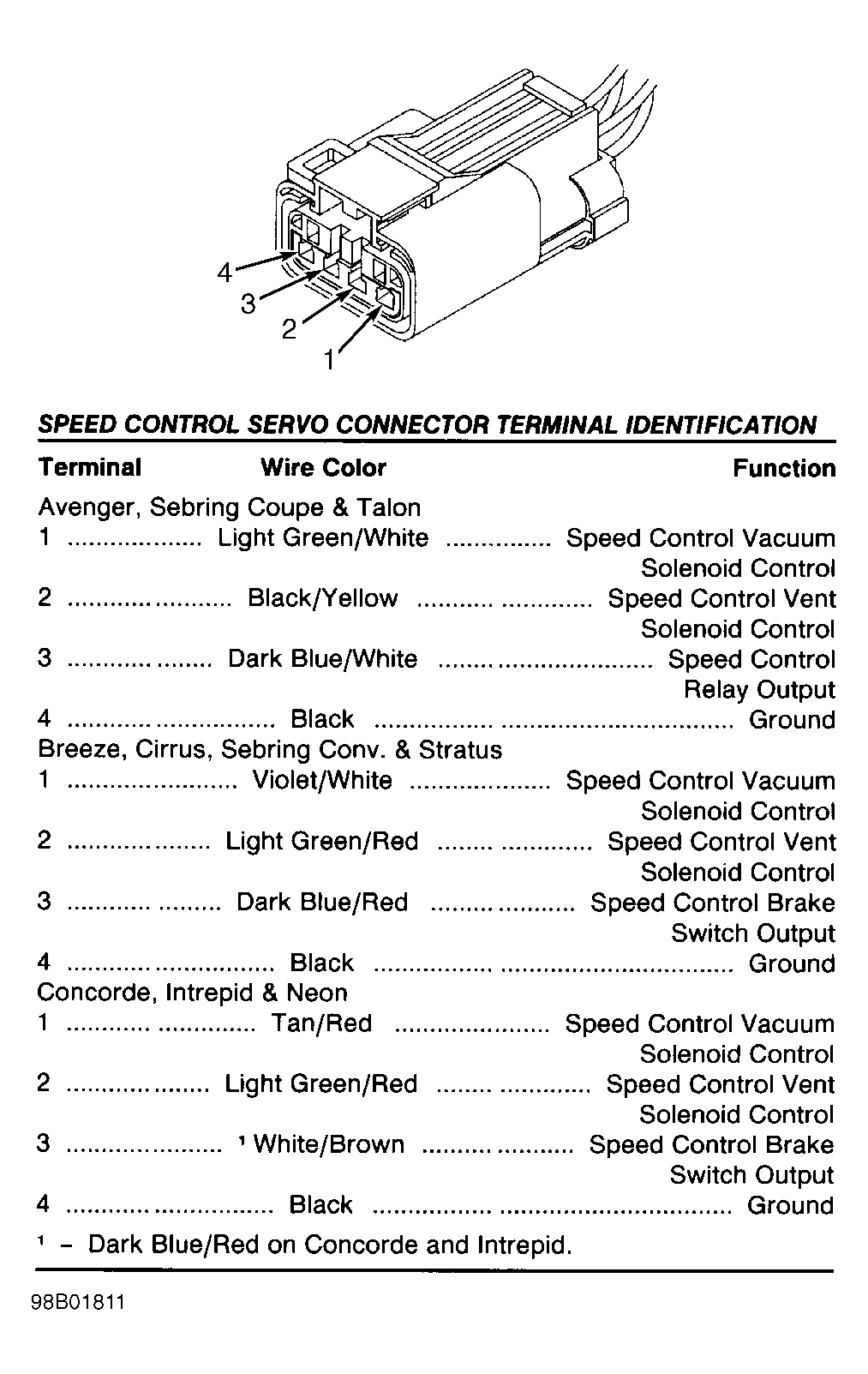

Speed Control Servo Connector
Avenger, Breeze, Cirrus, Neon, Sebring Conv., Sebring Coupe, Stratus & Talon		Fig 65

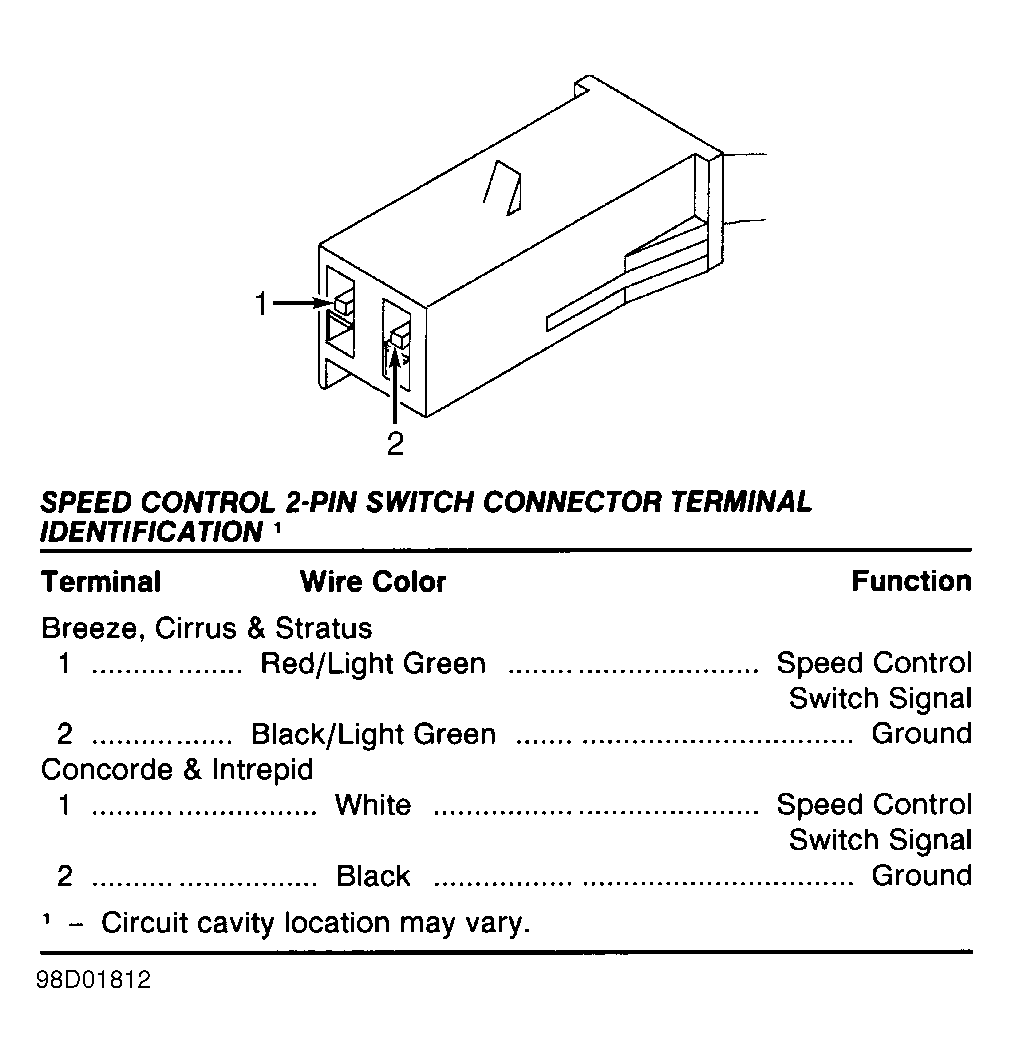

Speed Control 2-Pin Switch Connector

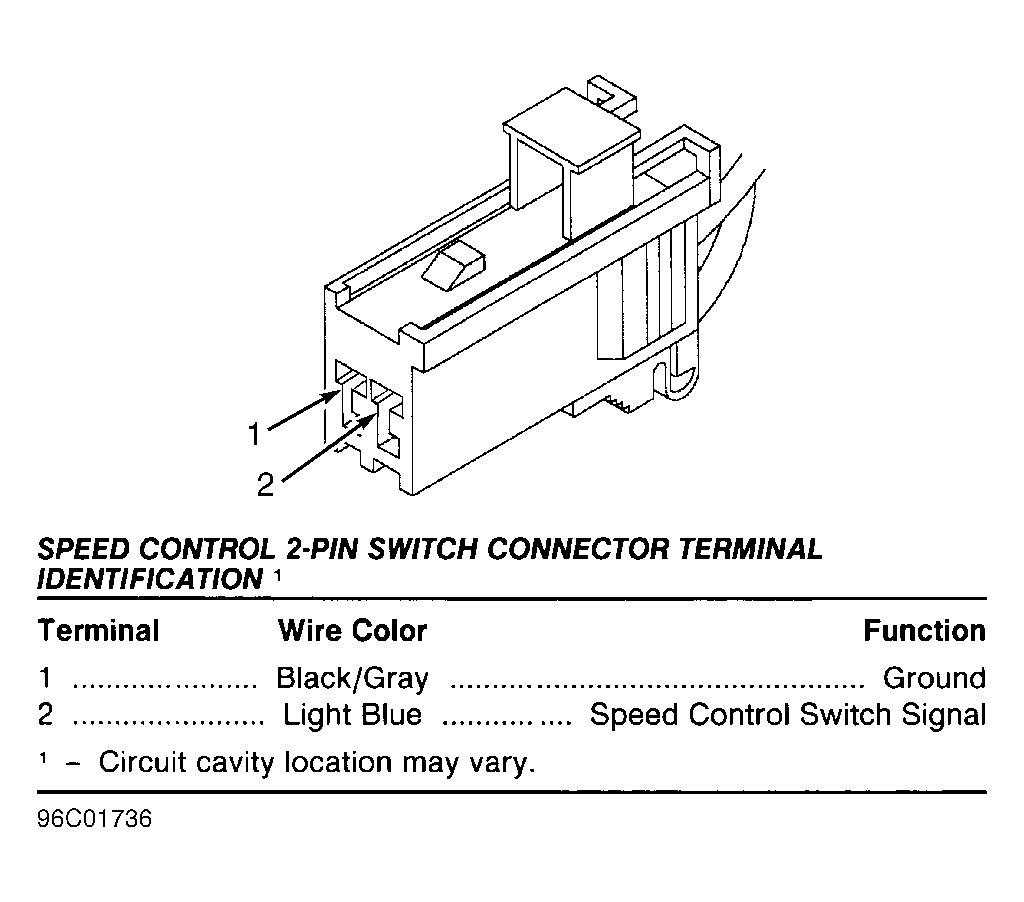

Avenger, Sebring Coupe & Talon		Fig 66

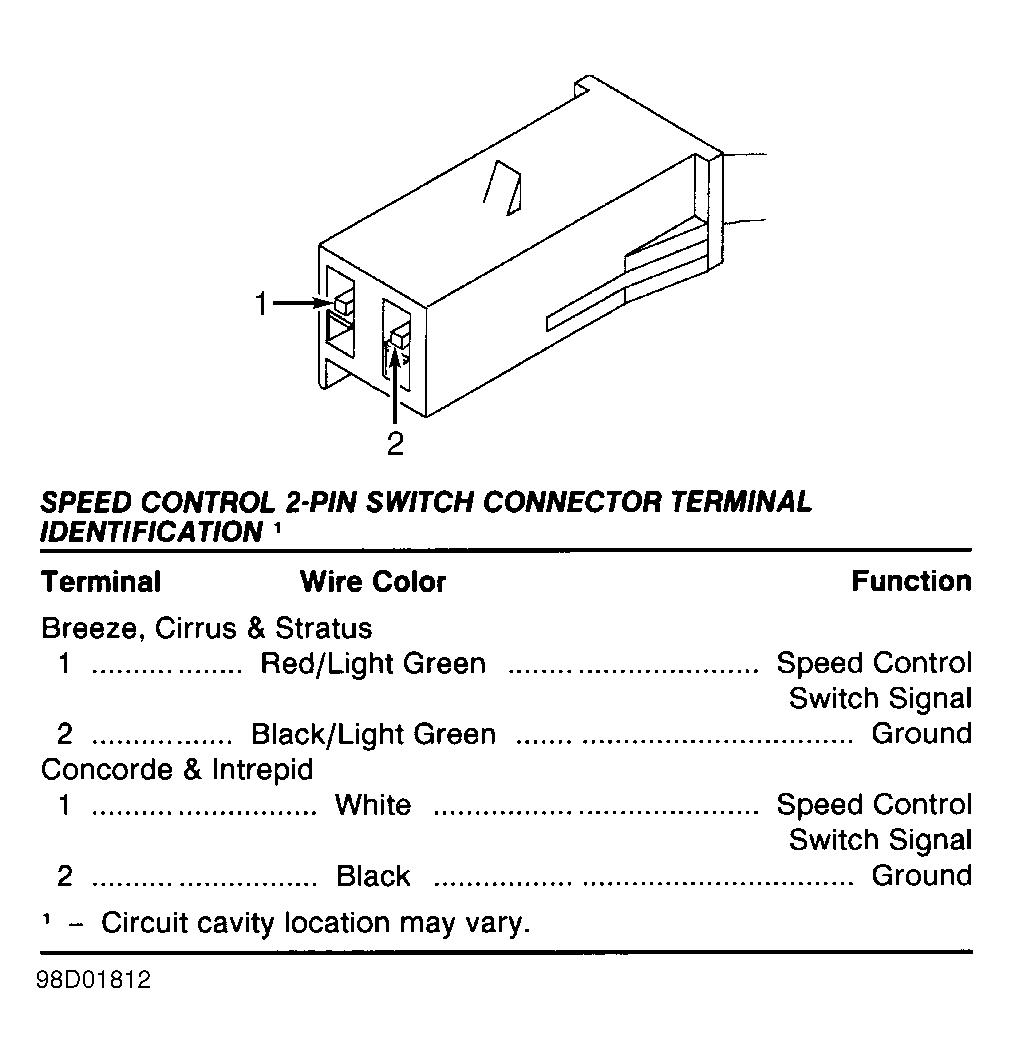

Breeze, Cirrus & Stratus		Fig 67

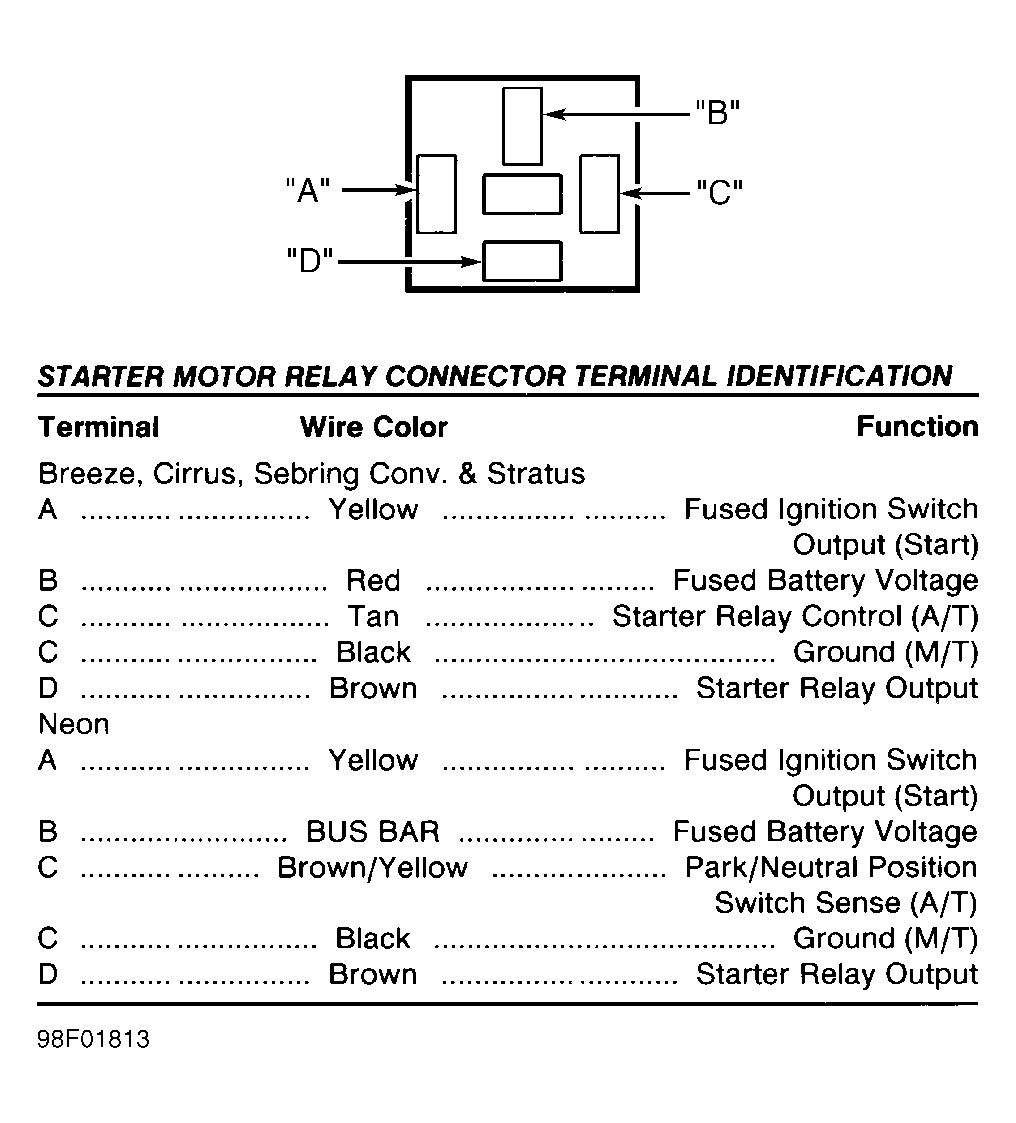

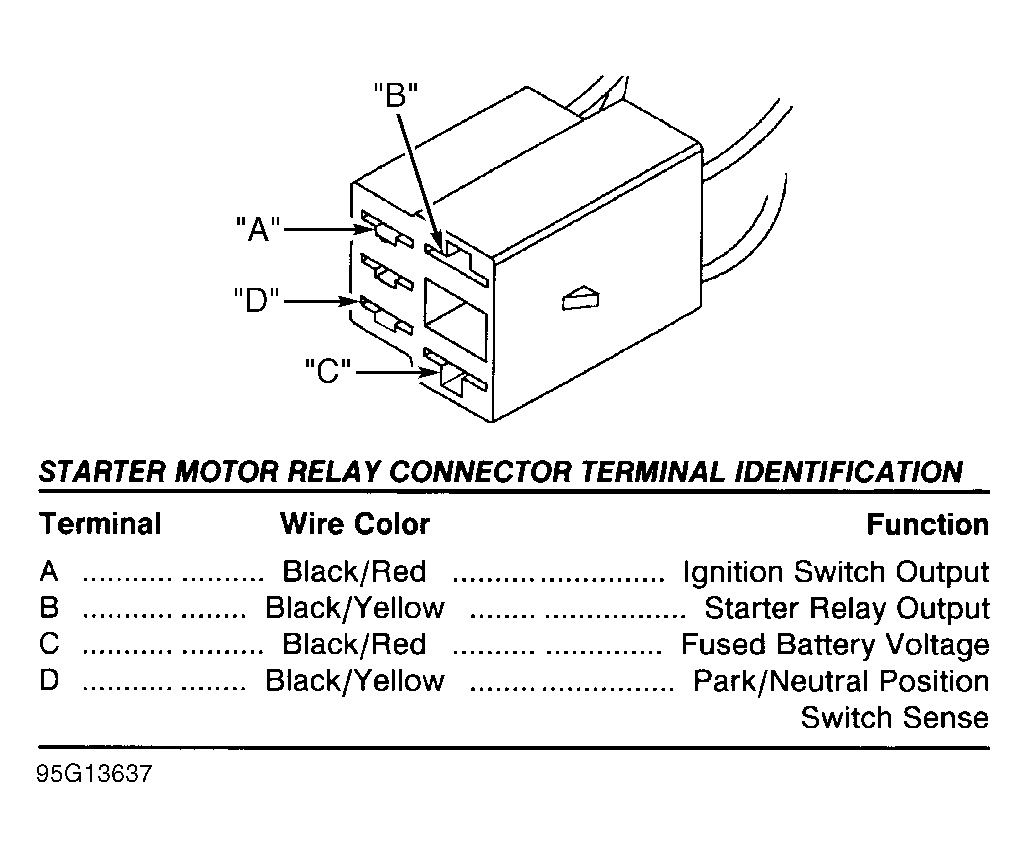

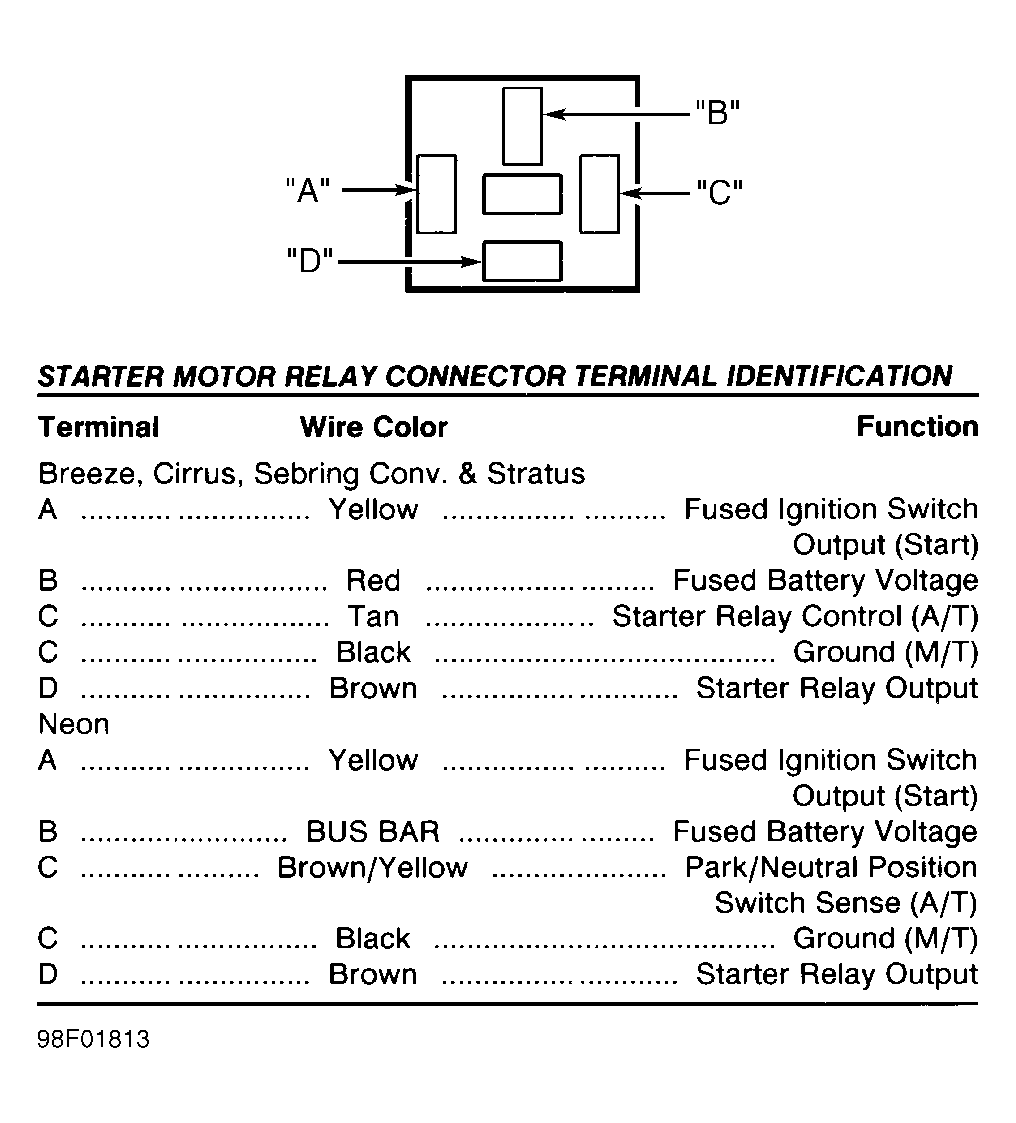

Starter Relay Connector
Avenger, Sebring Coupe & Talon		Fig 68
Breeze, Cirrus, Neon, Sebring Conv. & Stratus		Fig 69

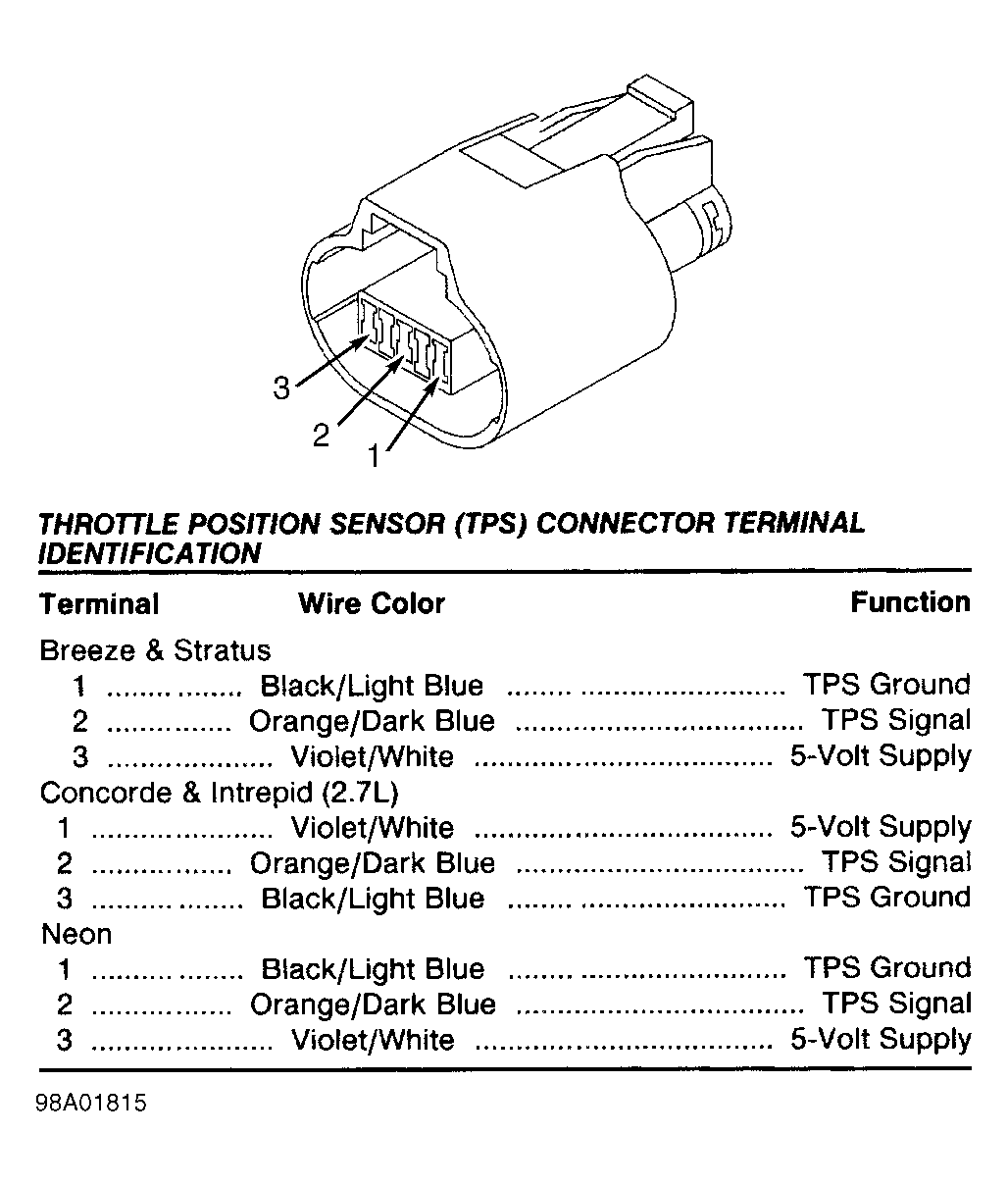

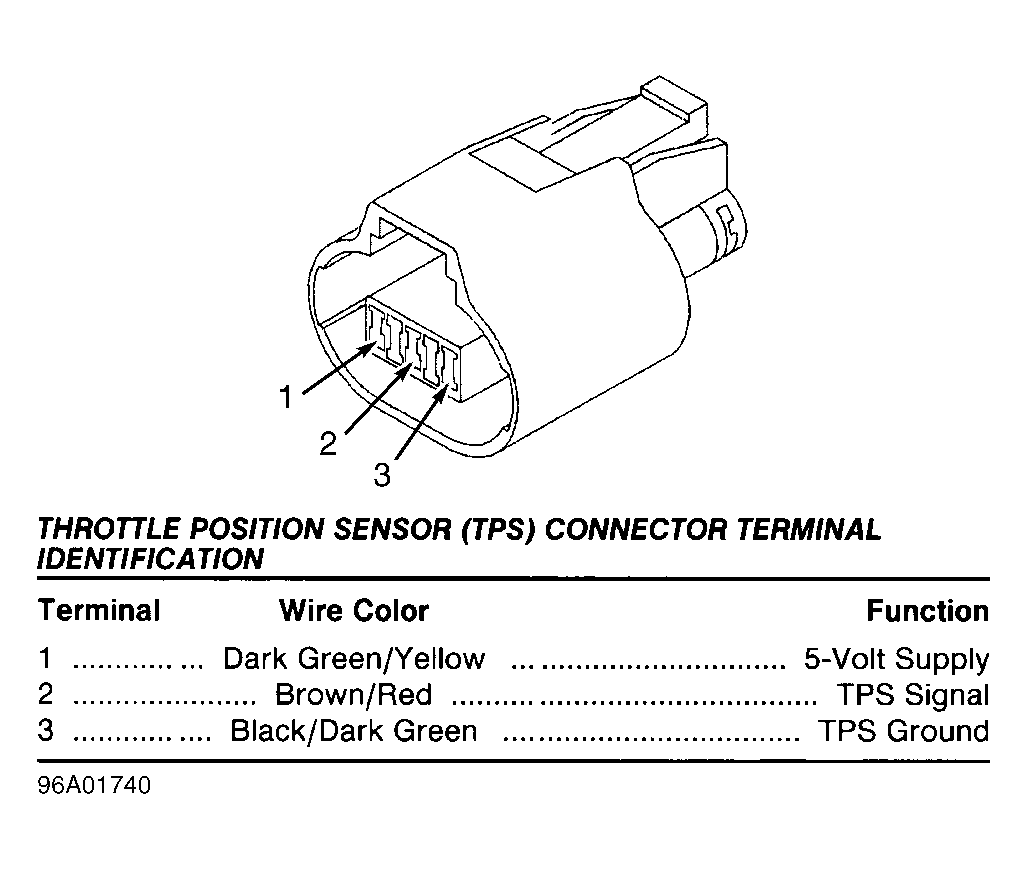

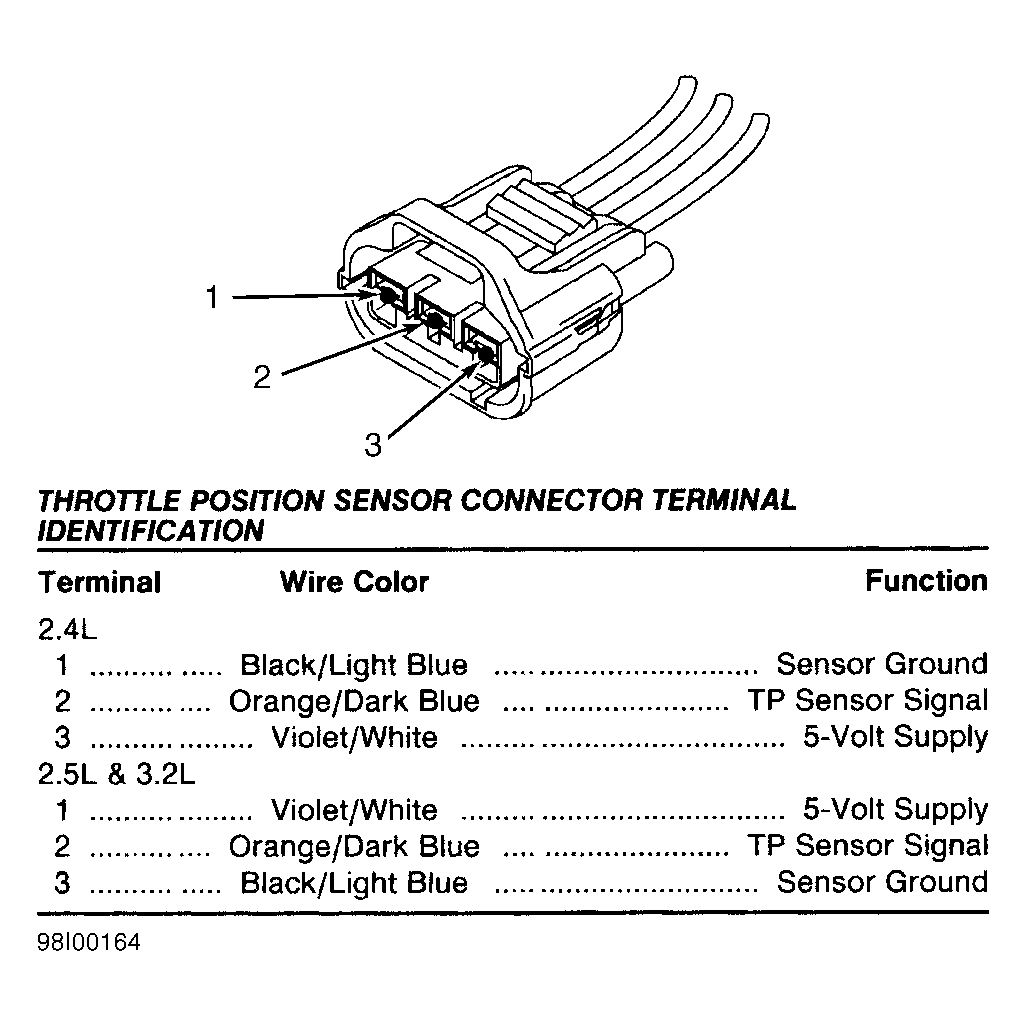

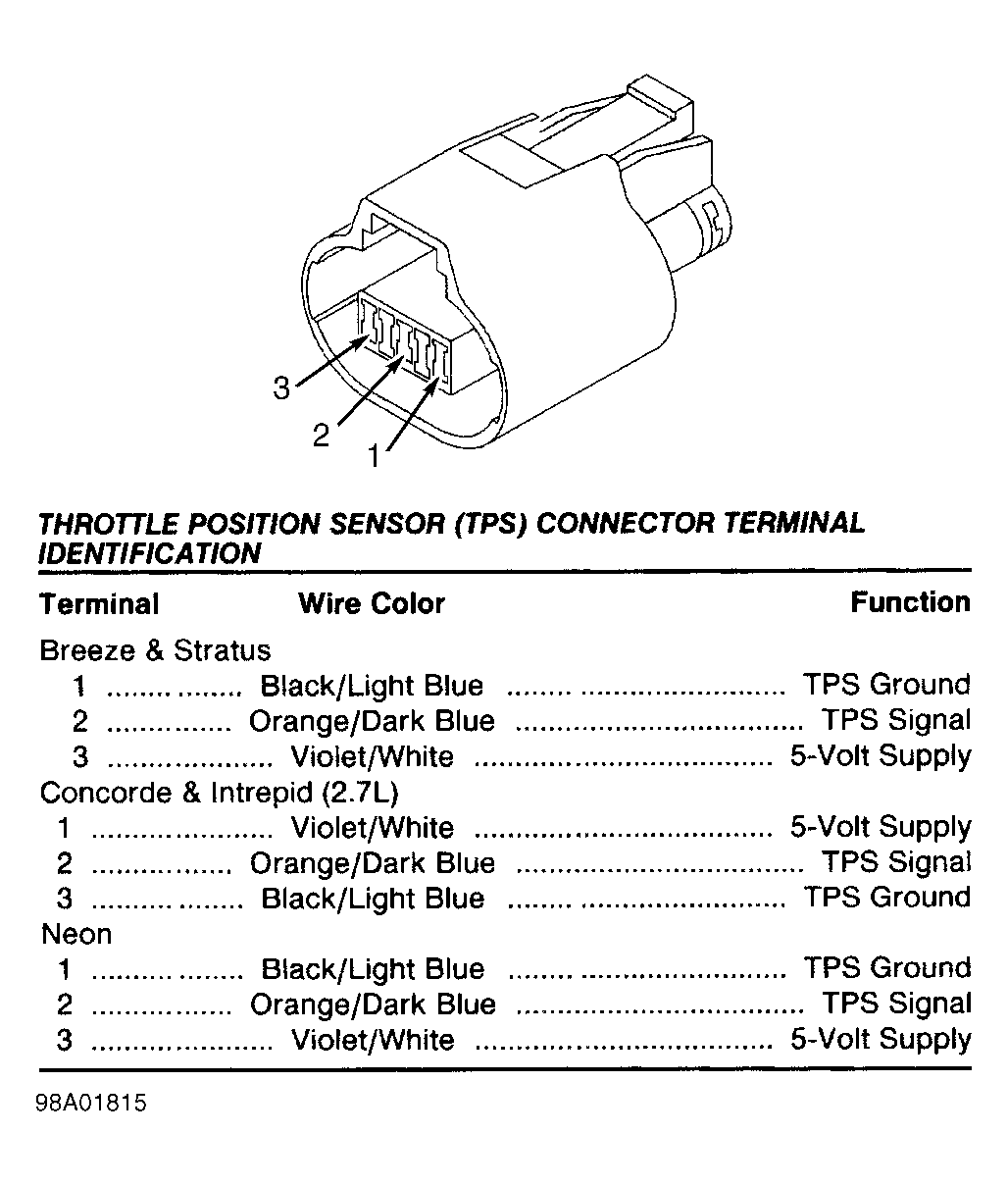

Throttle Position (TP) Sensor Connector
Avenger, Sebring Coupe & Talon		Fig 70
Breeze, Neon & Stratus (2.0L)		Fig 71

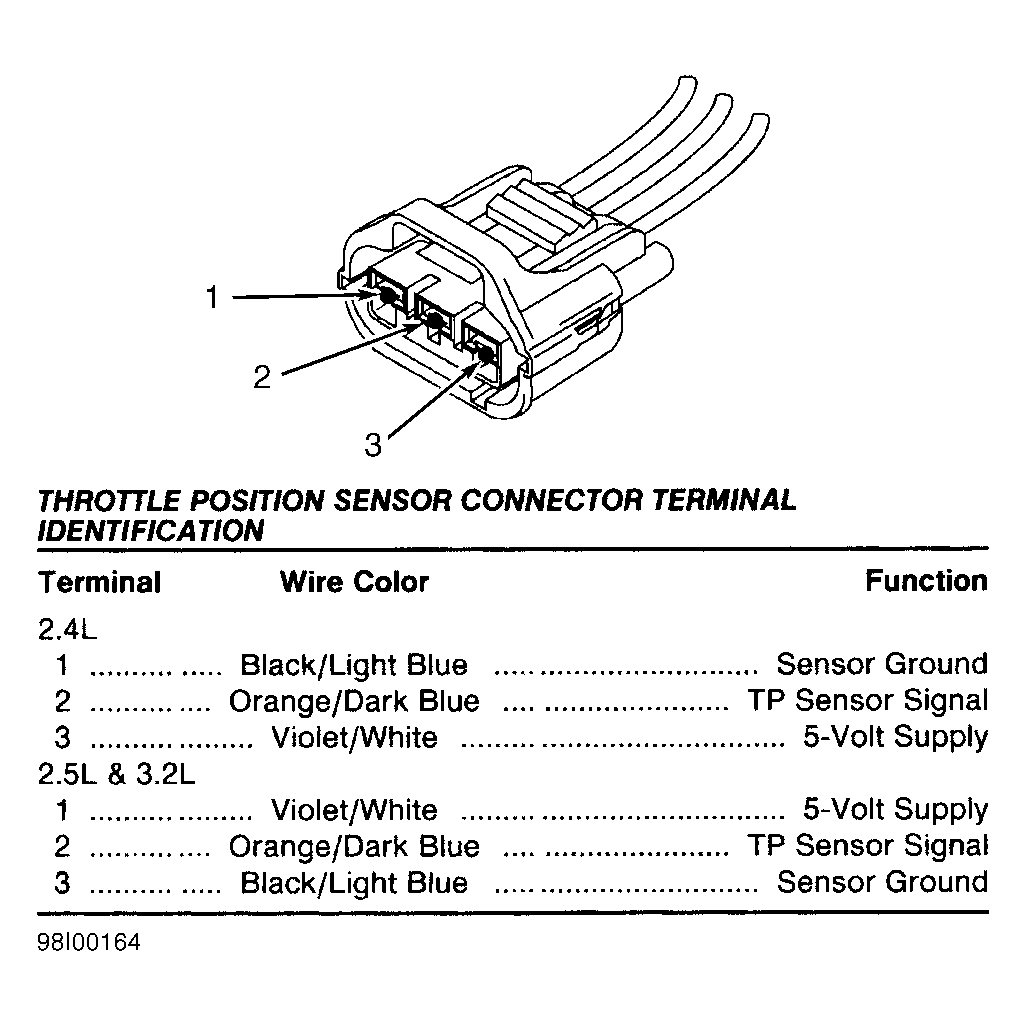

Breeze (2.4L), Cirrus (2.5L), Sebring Conv. & Stratus (2.4L & 2.5L)		Fig 72
Torque Converter Clutch (TCC) Connector
Neon		Fig 73

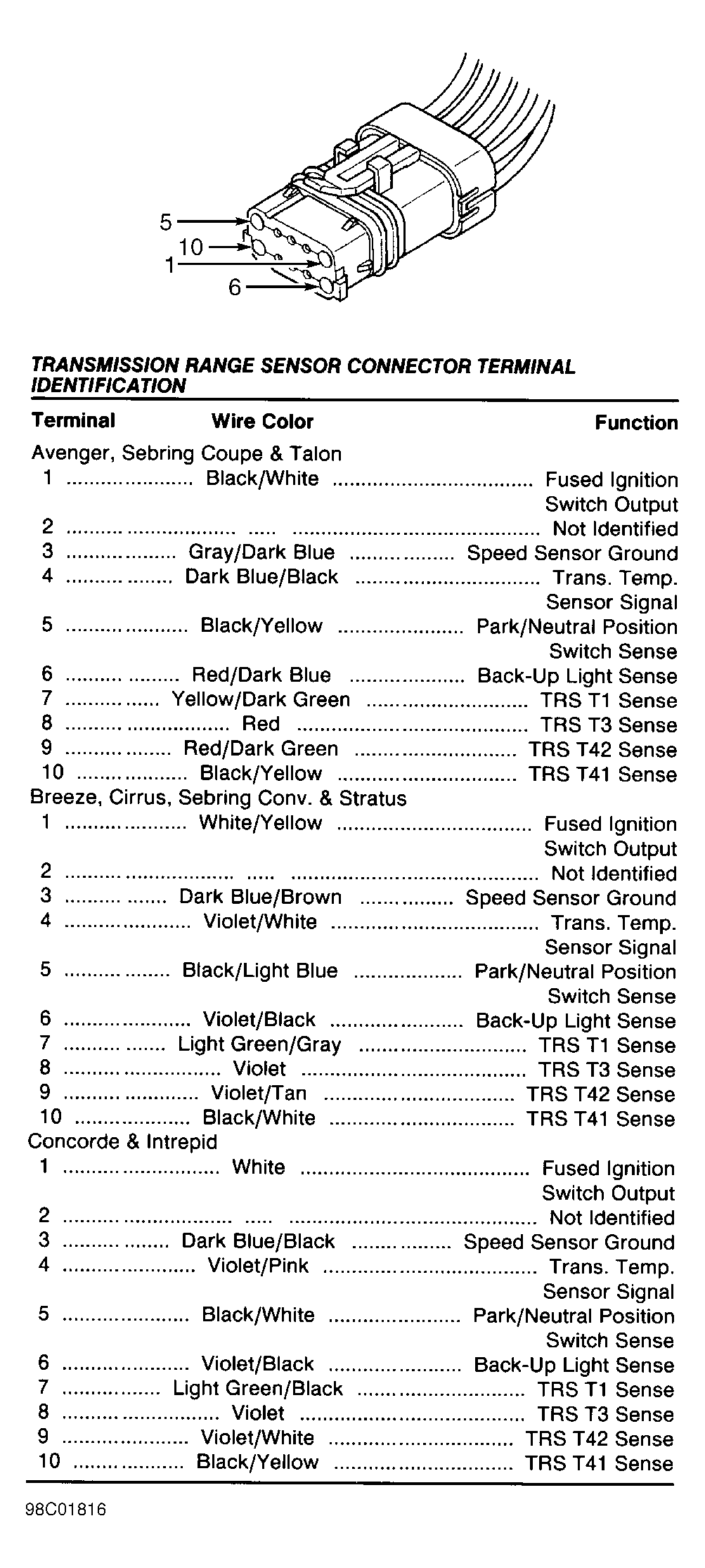

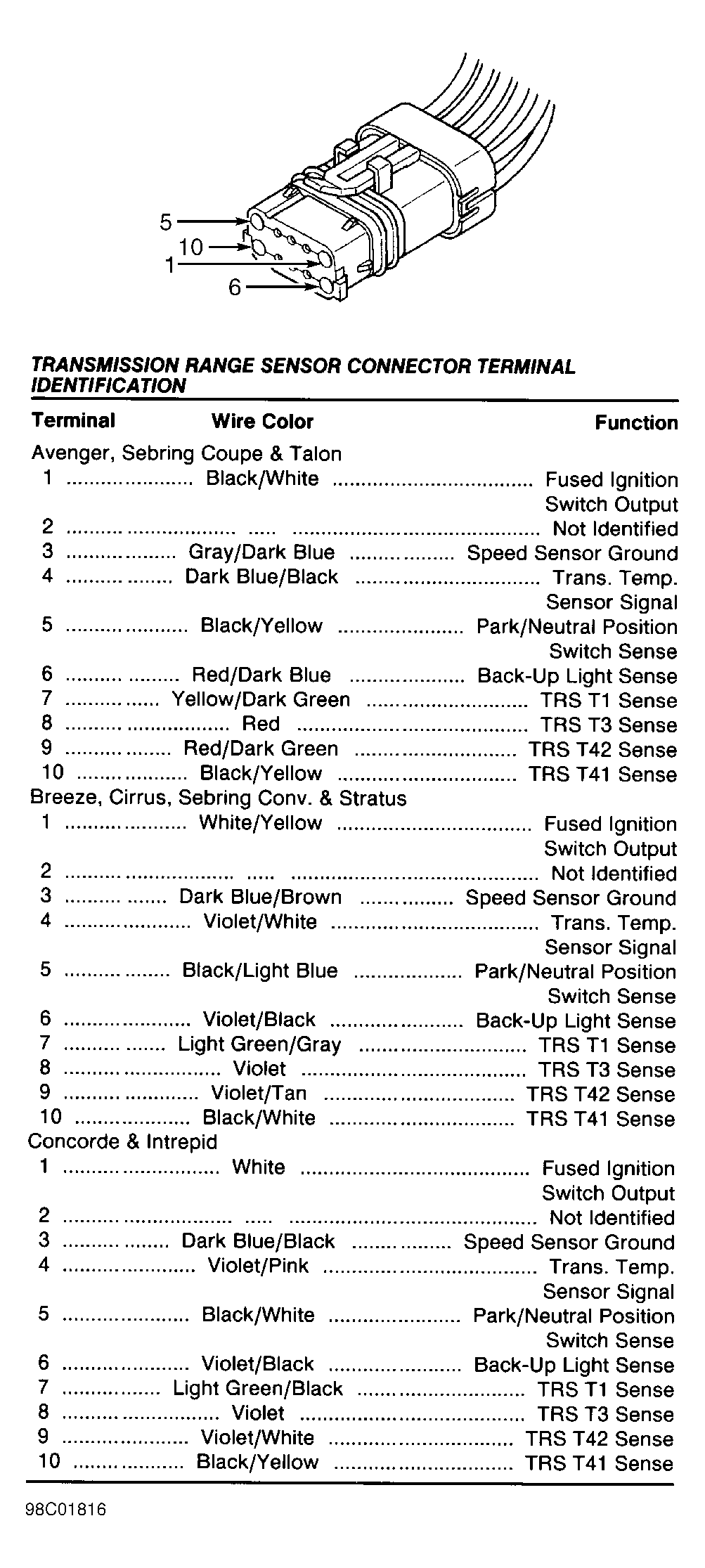

Transmission Range Sensor Connector
Avenger, Breeze, Cirrus, Sebring Conv., Sebring Coupe & Talon		Fig 74

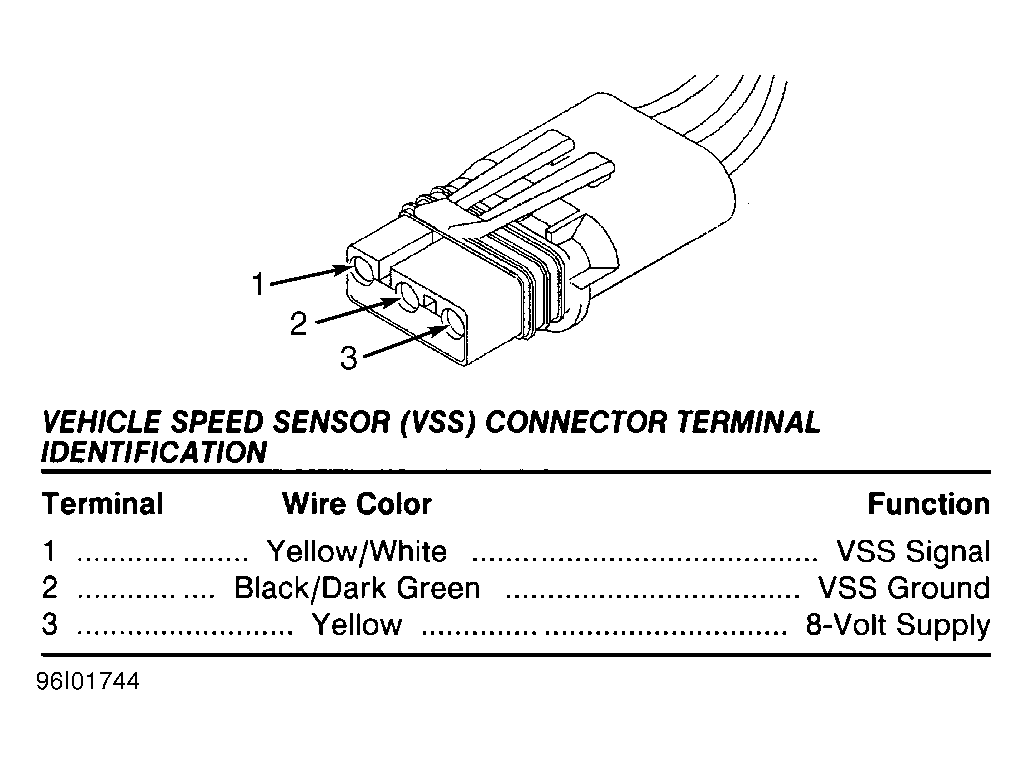

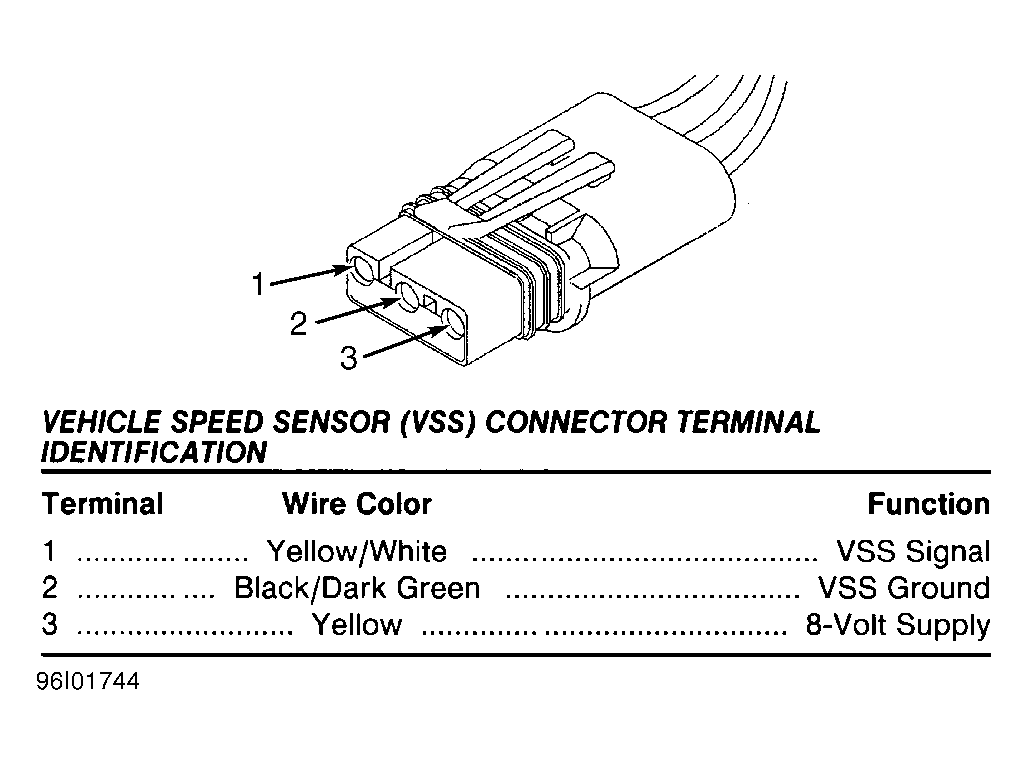

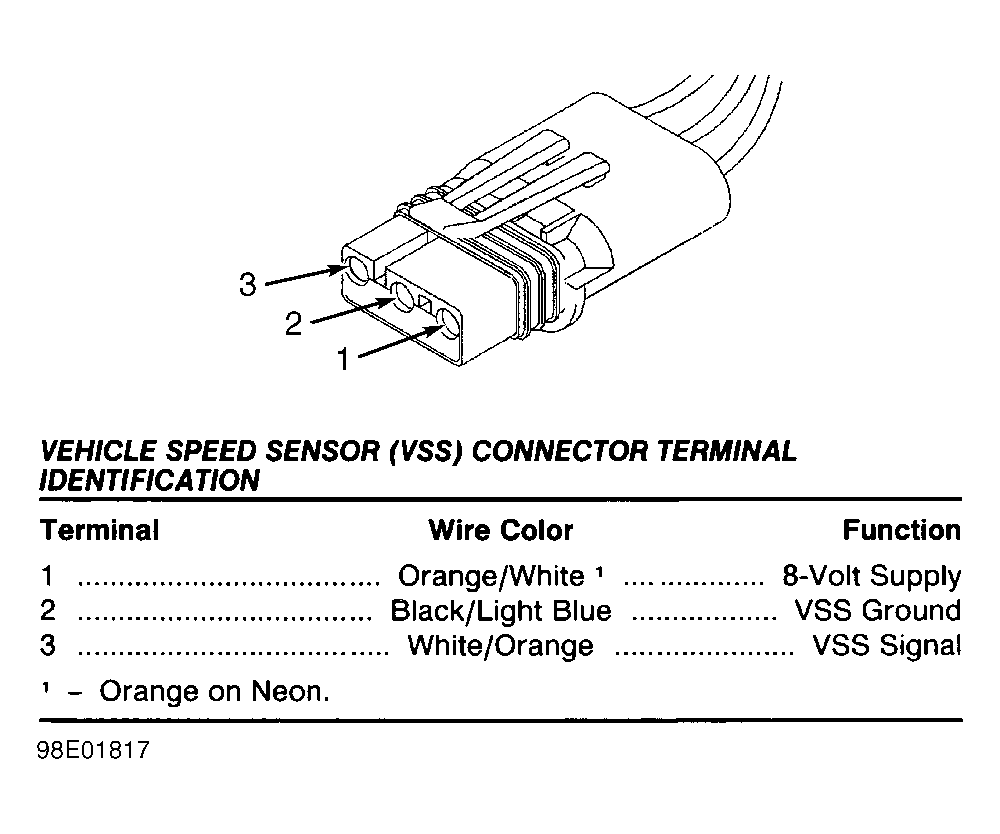

Vehicle Speed Sensor (VSS) Connector
Avenger, Sebring Coupe & Talon		Fig 75
Breeze, Cirrus, Neon, Sebring Conv. & Stratus		Fig 76

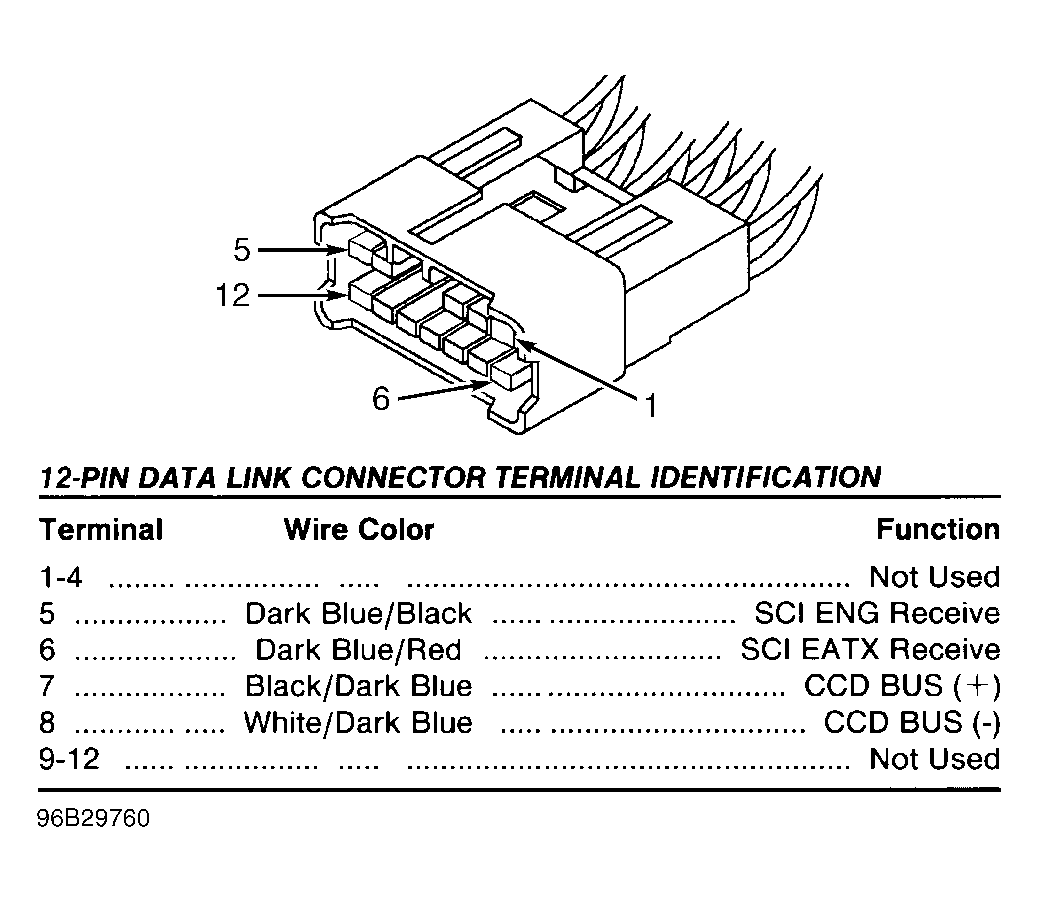

12-Pin Data Link Connector
Avenger, Sebring Coupe & Talon		Fig 77

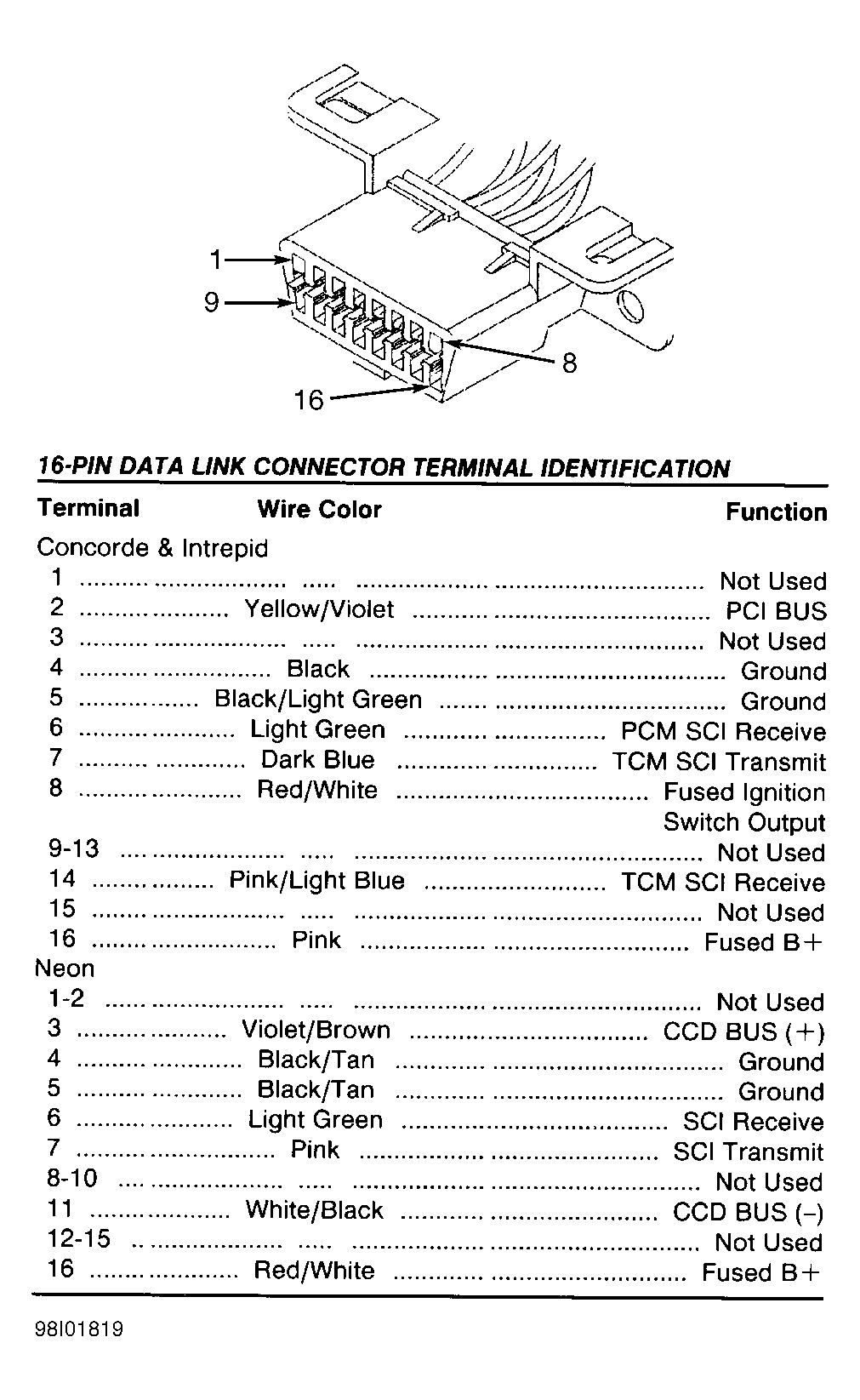

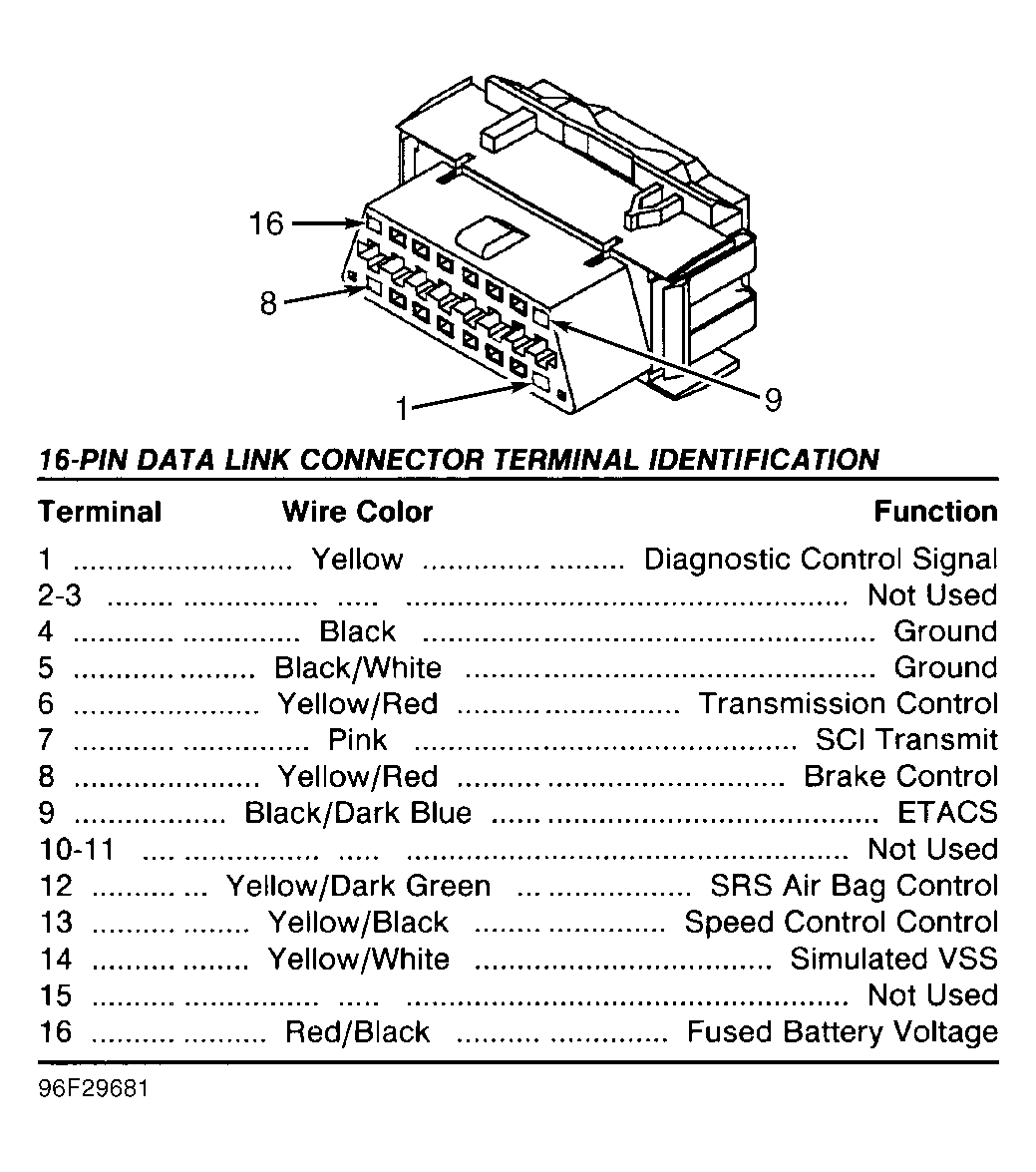

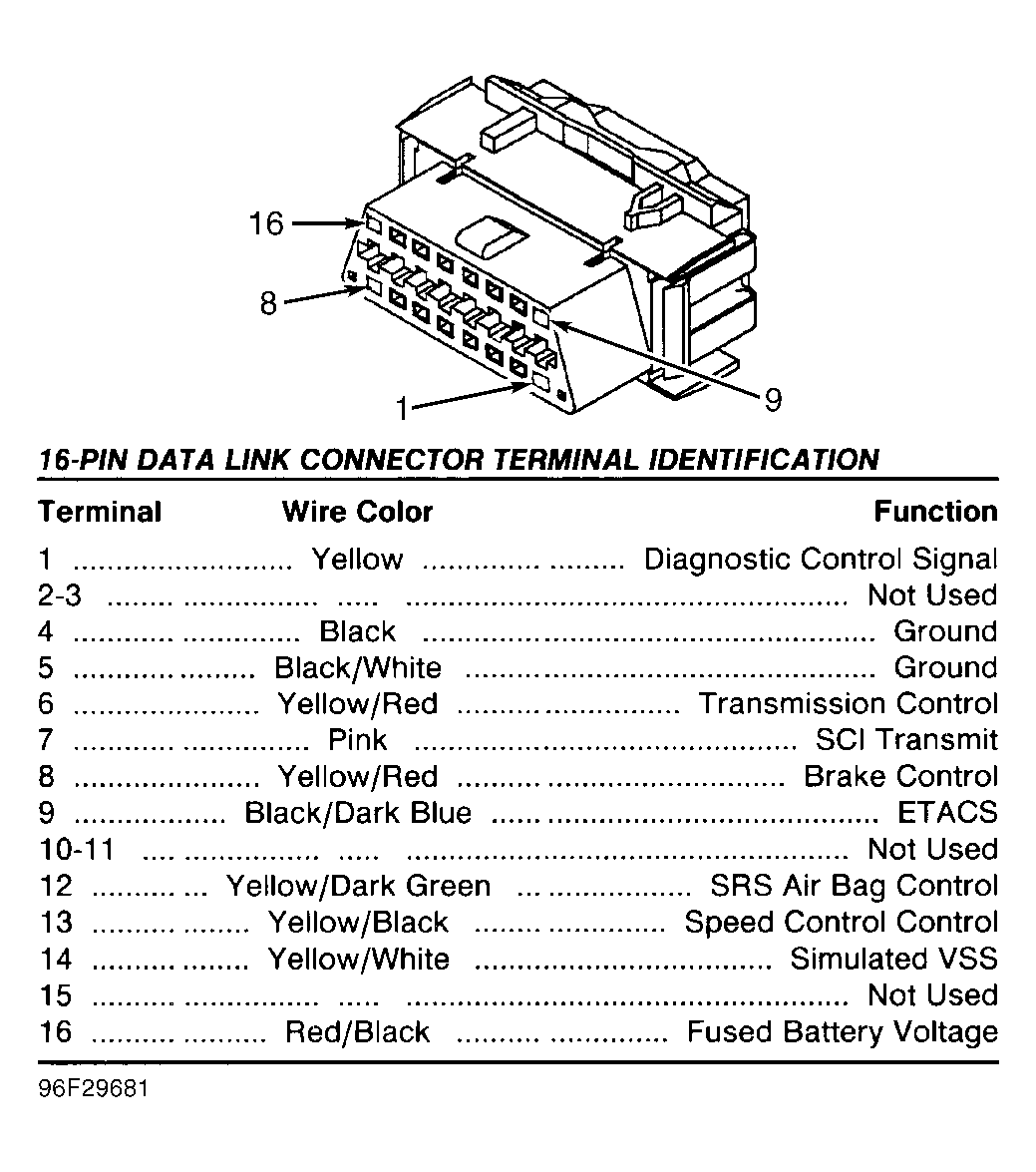

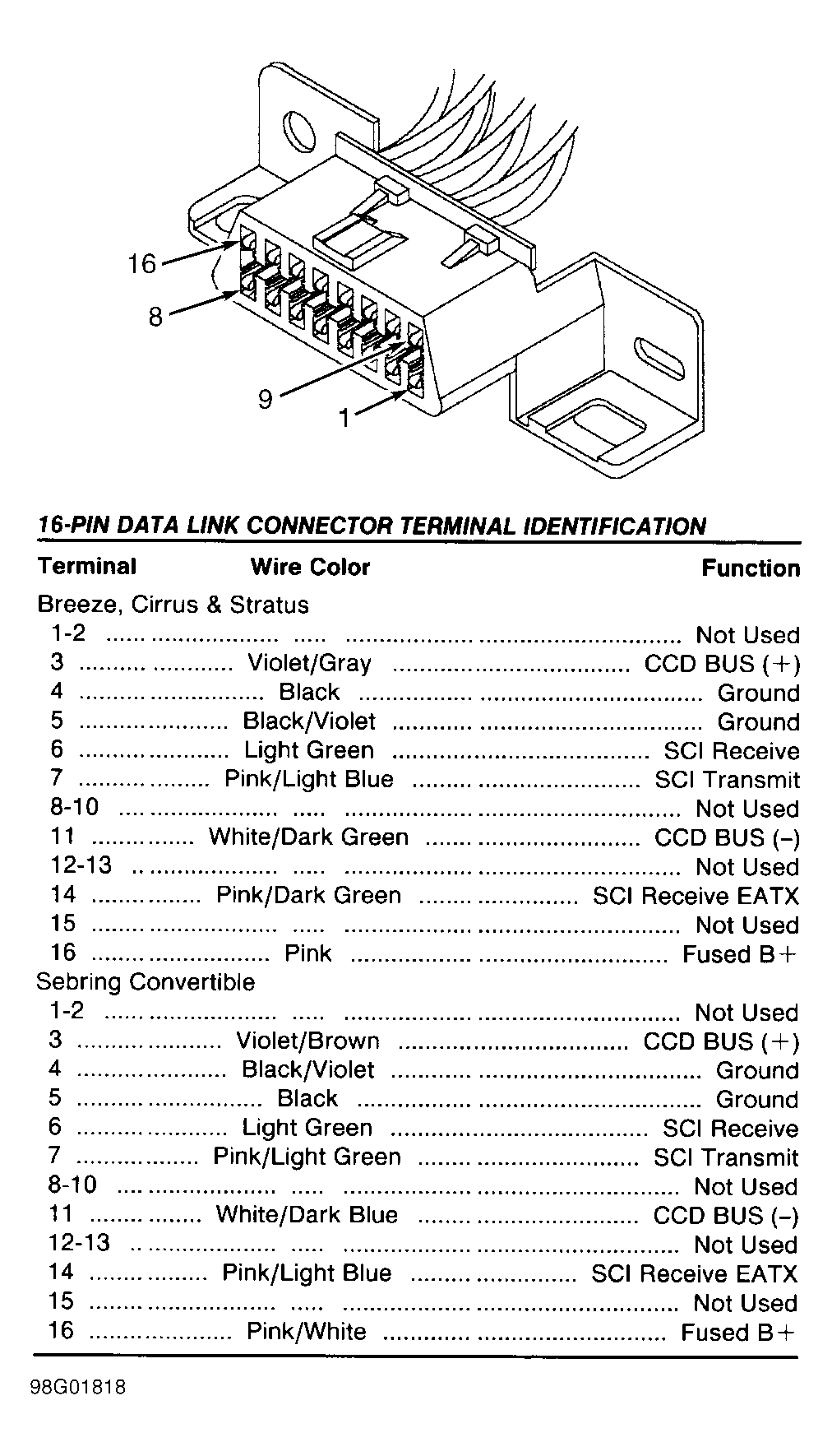

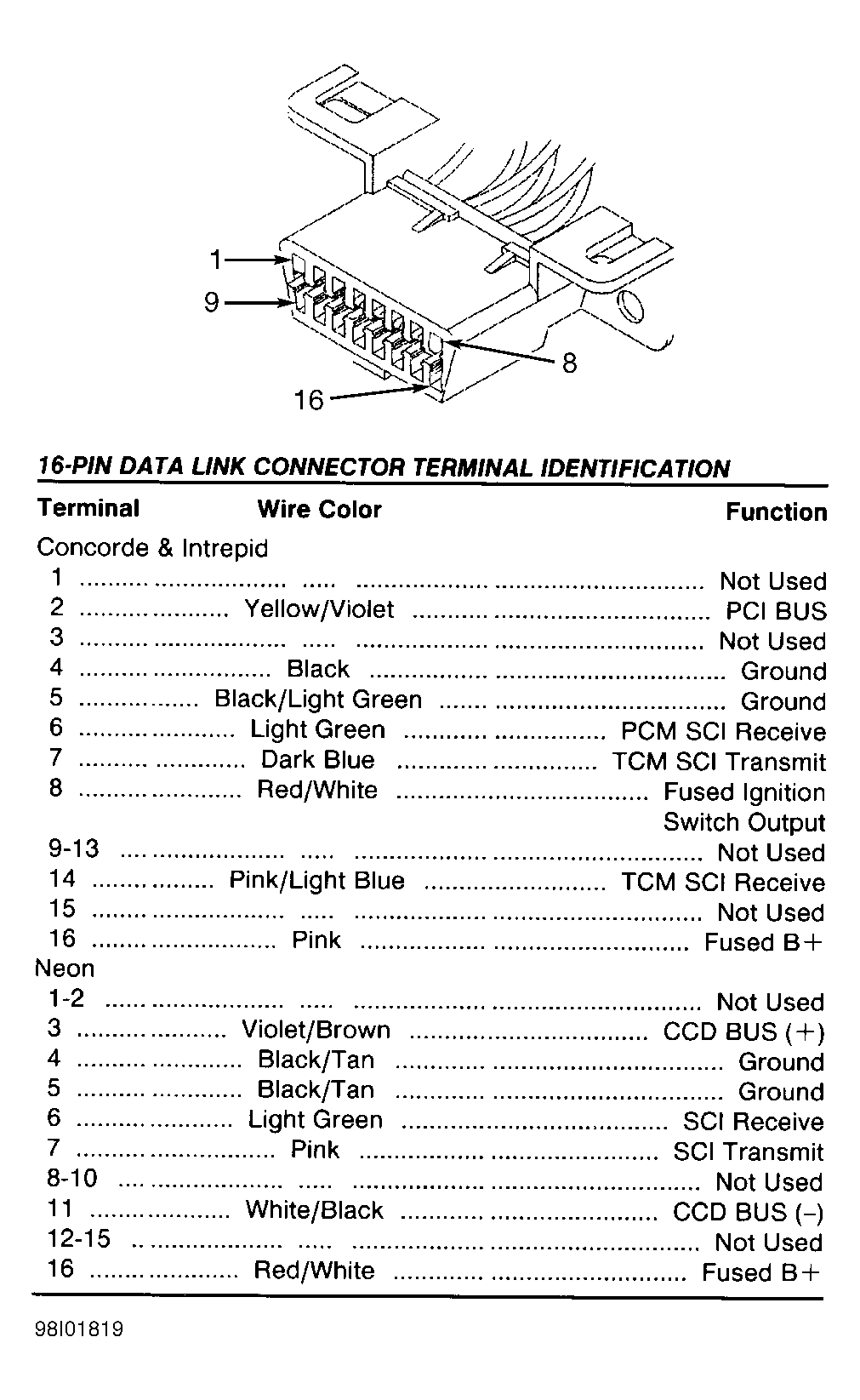

16-Pin Data Link Connector
Avenger, Sebring Coupe & Talon		Fig 78

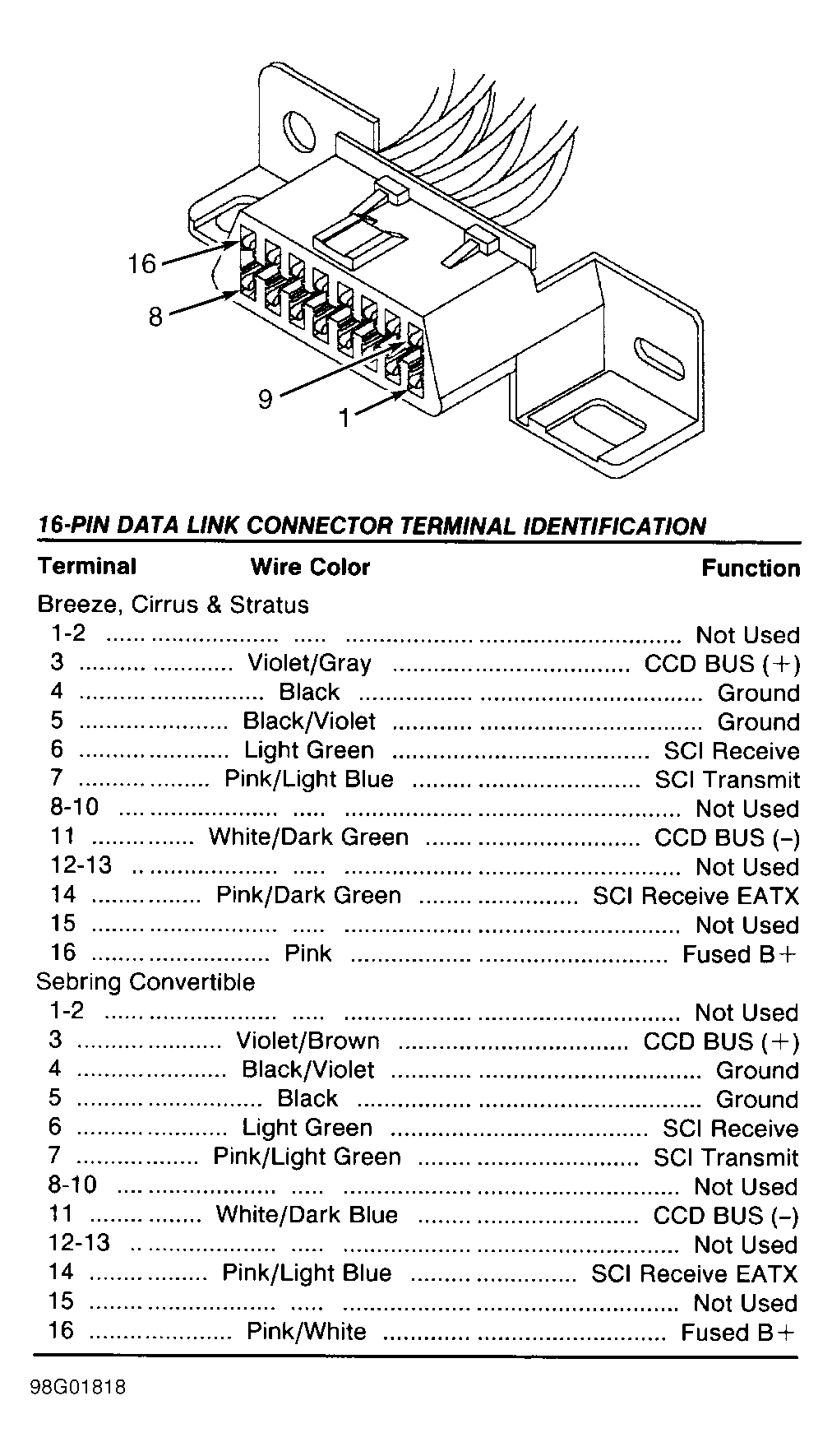

Breeze, Cirrus, Sebring Conv. & Stratus		Fig 79
Neon		Fig 80

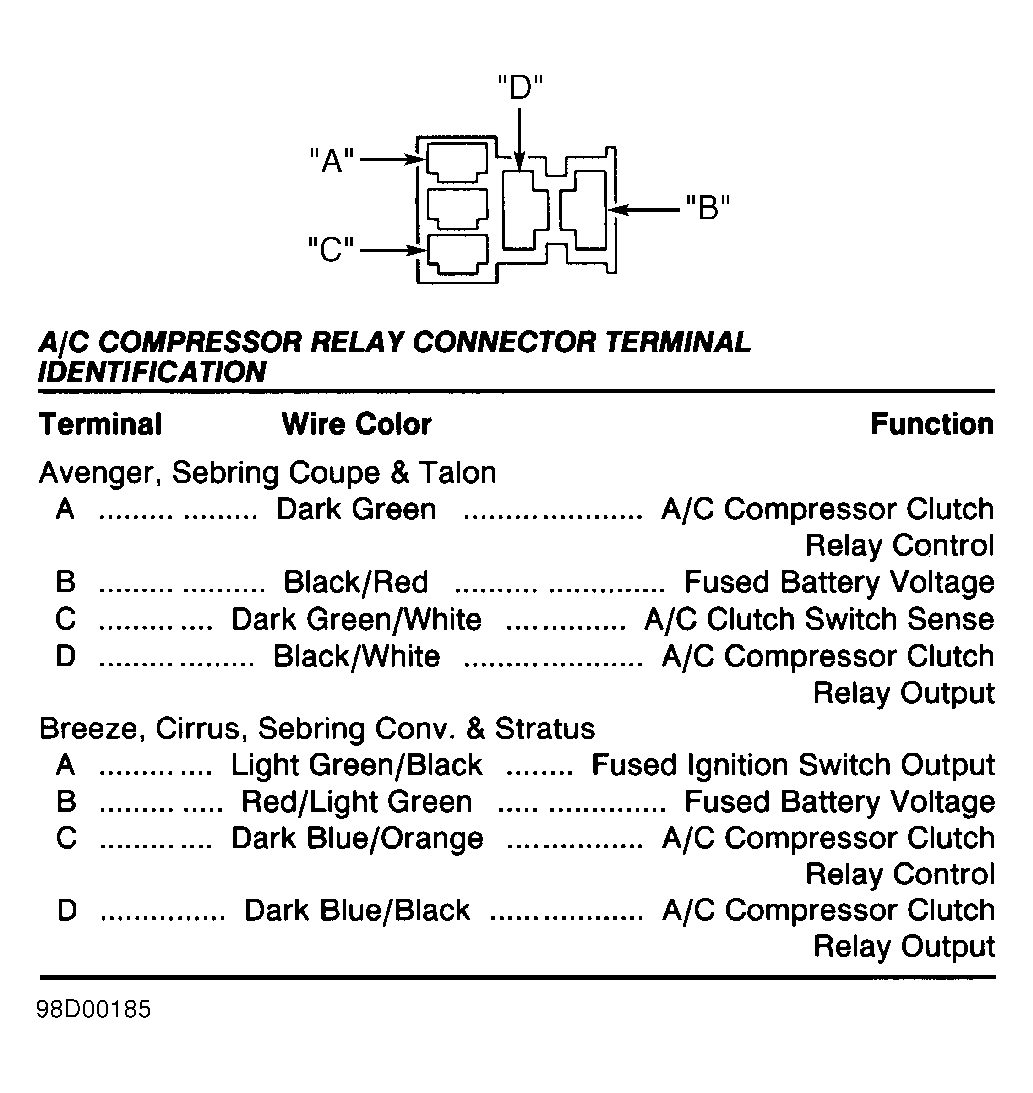

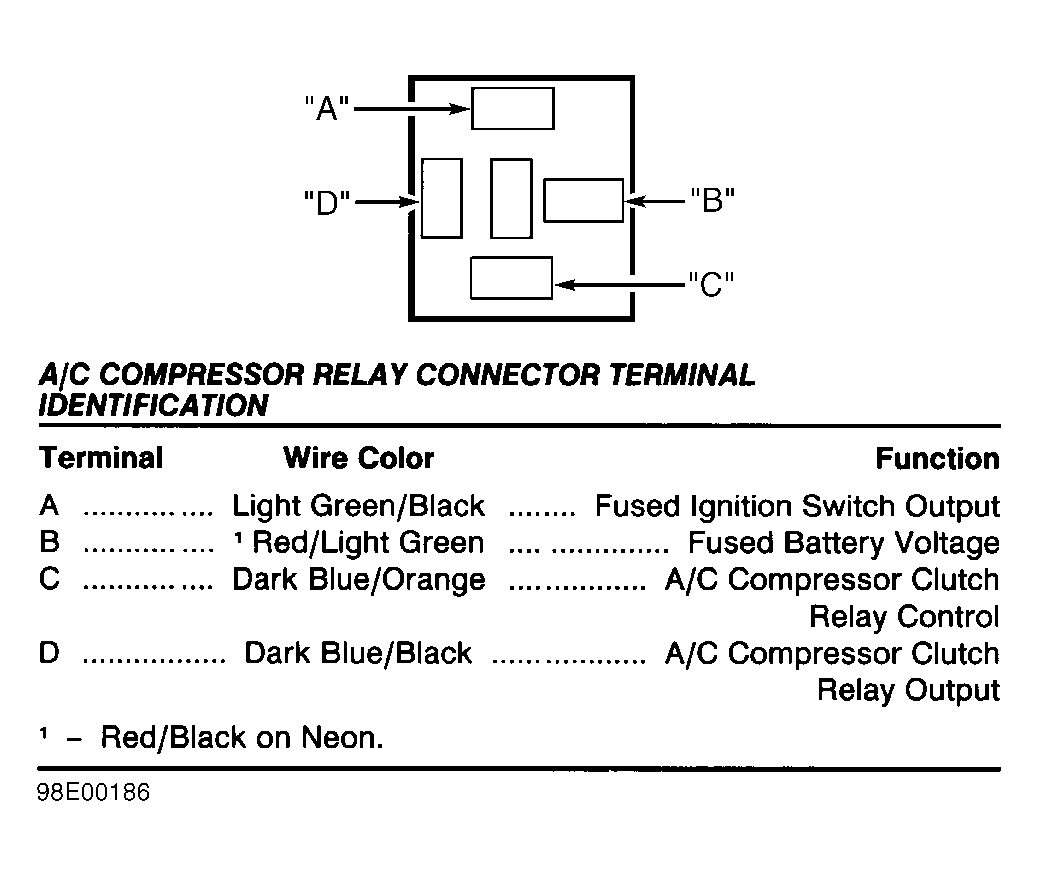

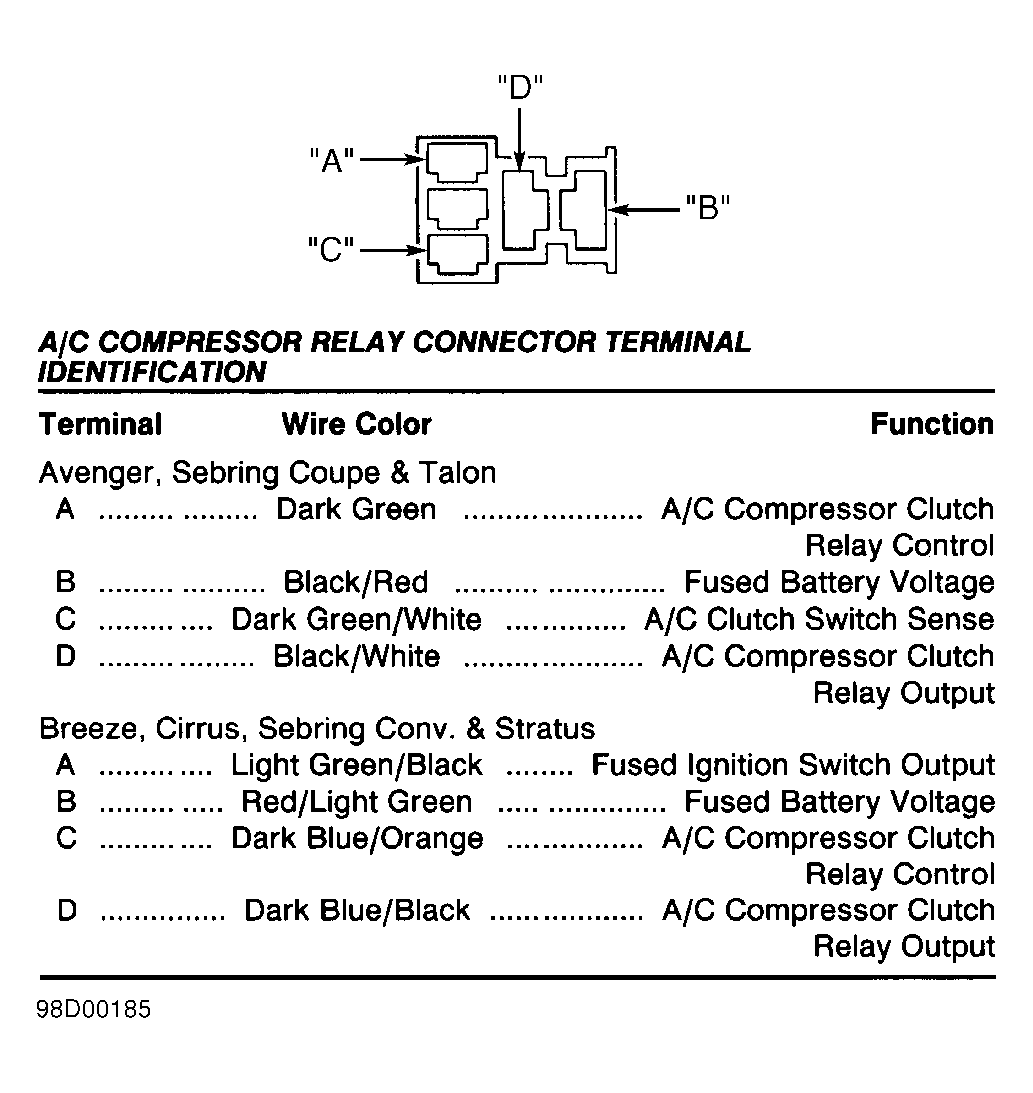

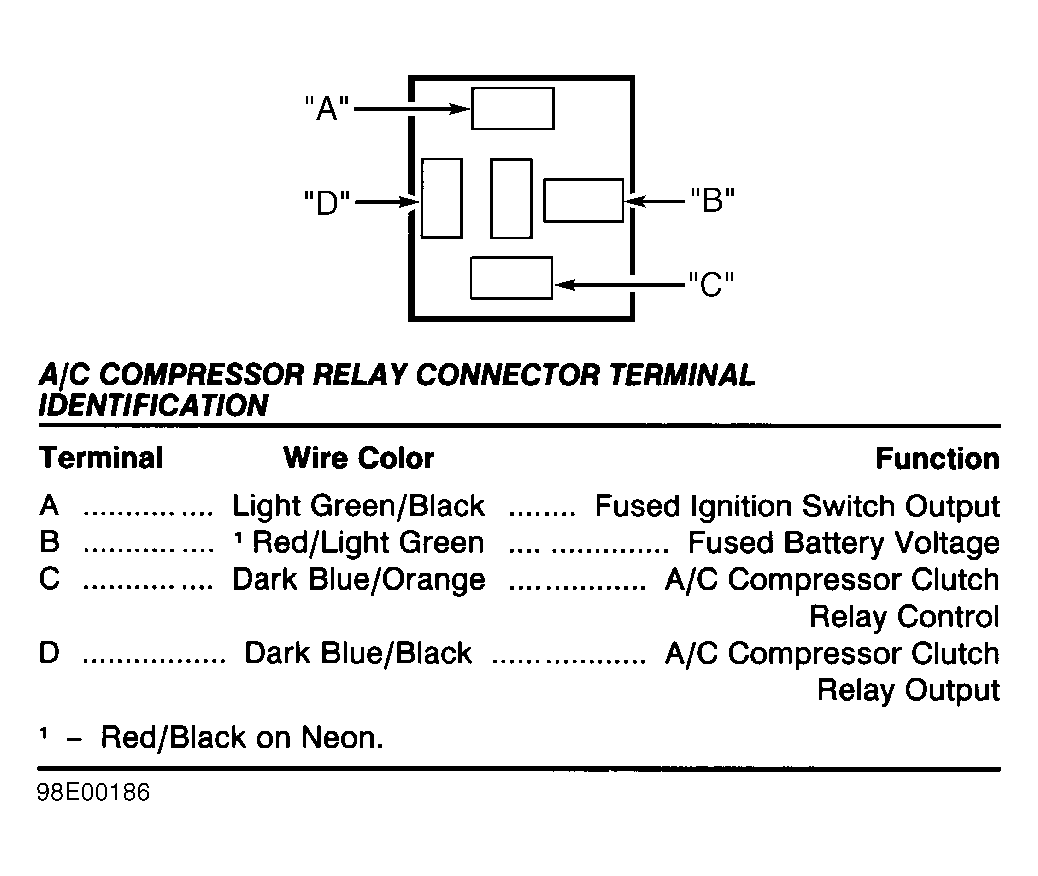

Fig 1: Identifying A/C Compressor Relay Connector (Avenger, Breeze, Cirrus, Sebring Conv., Sebring Coupe, Stratus & Talon)

Courtesy of CHRYSLER CORP.

Fig 2: Identifying A/C Compressor Relay Connector (Neon)

Courtesy of CHRYSLER CORP.

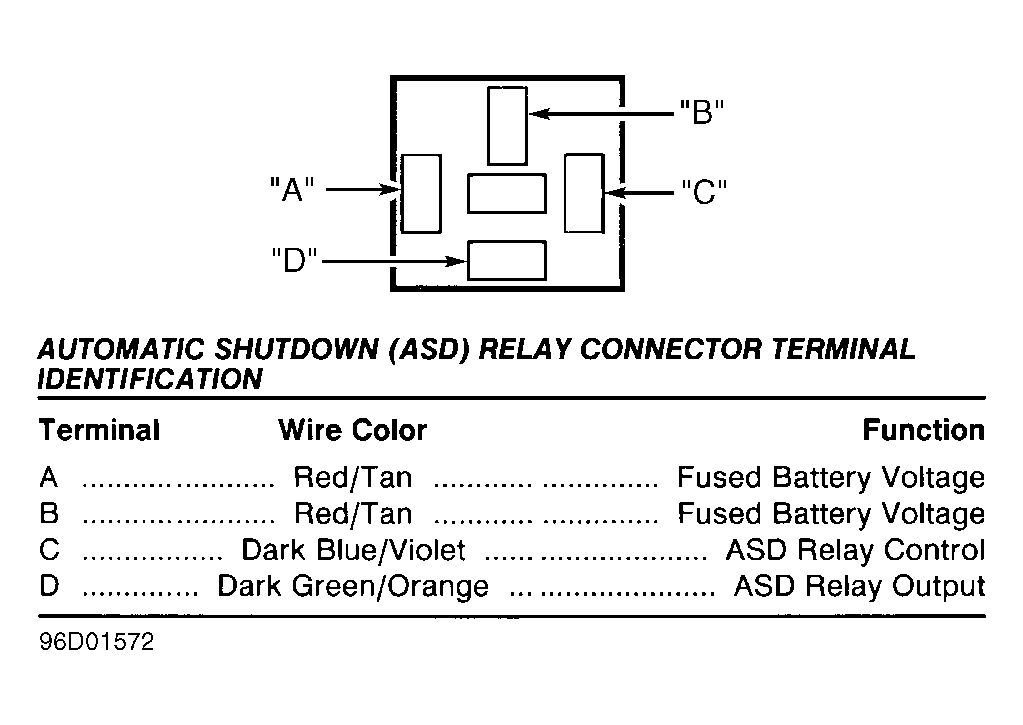

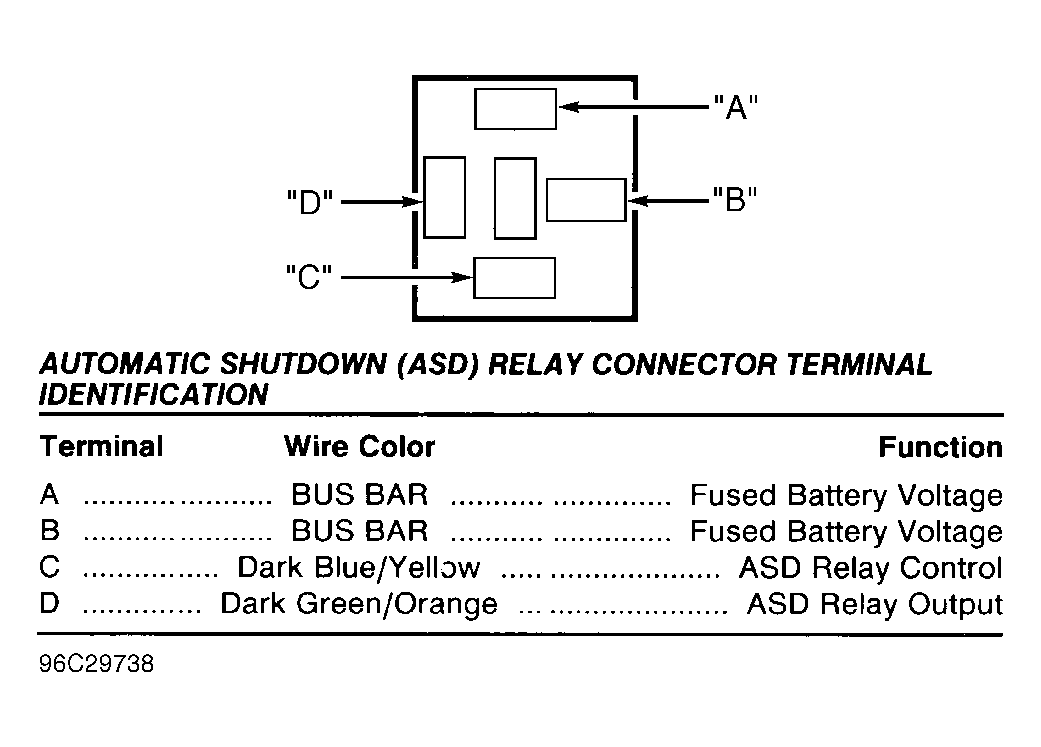

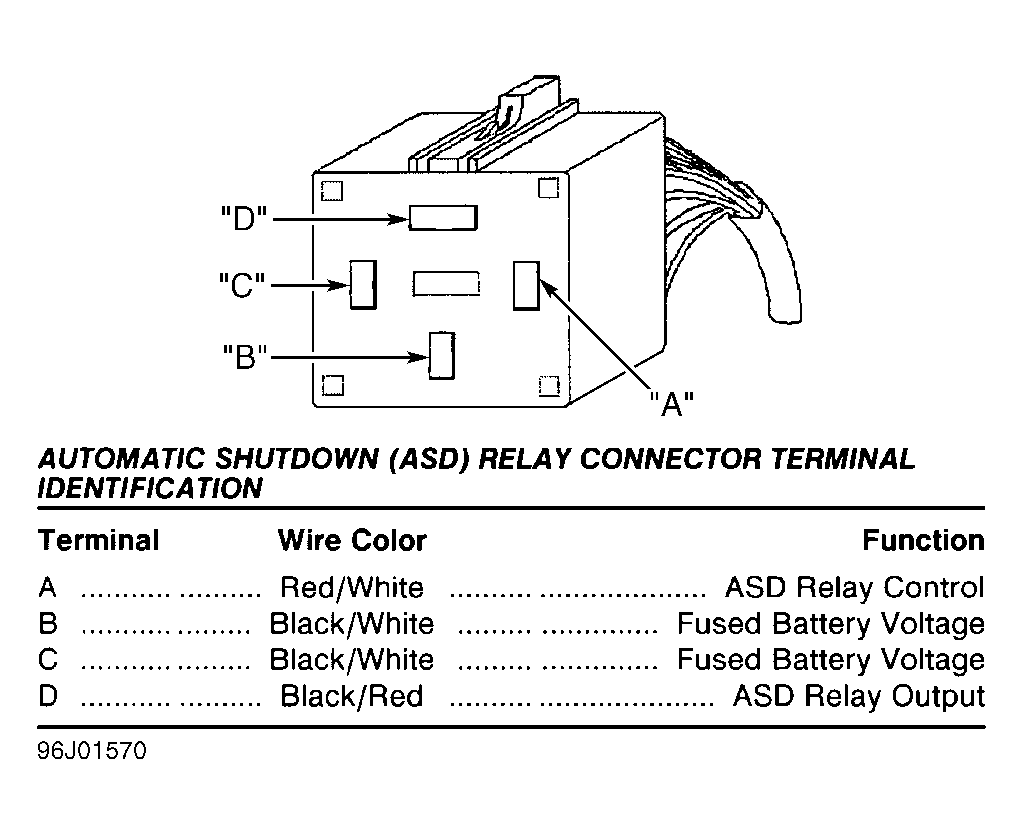

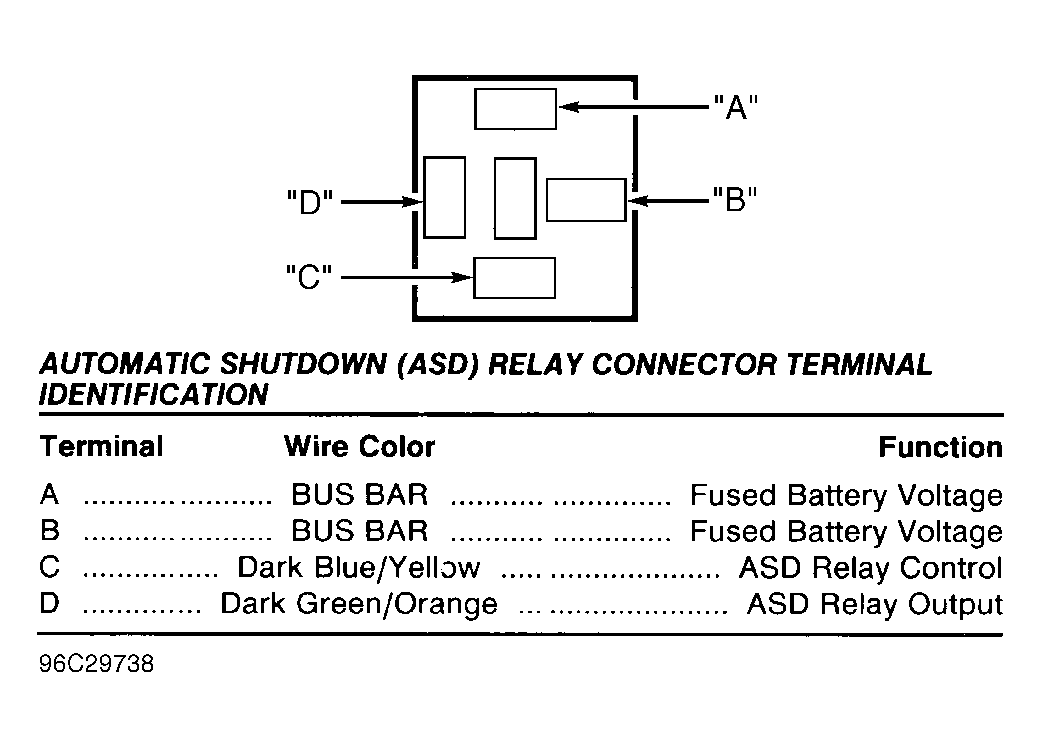

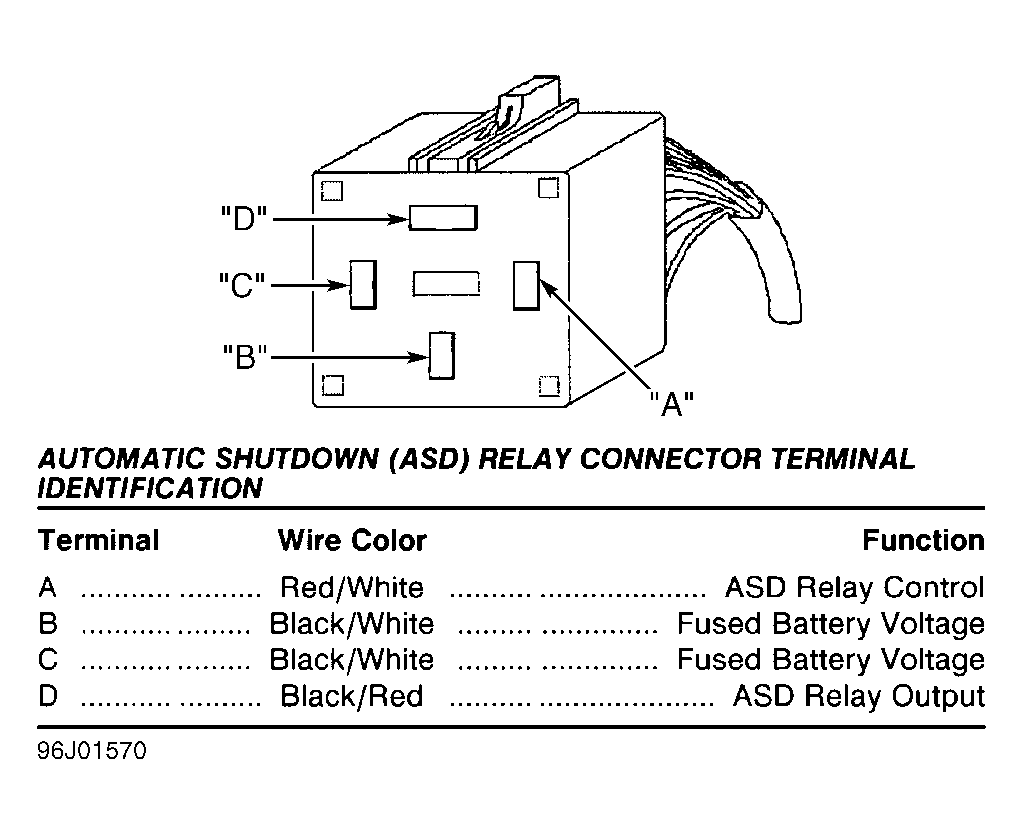

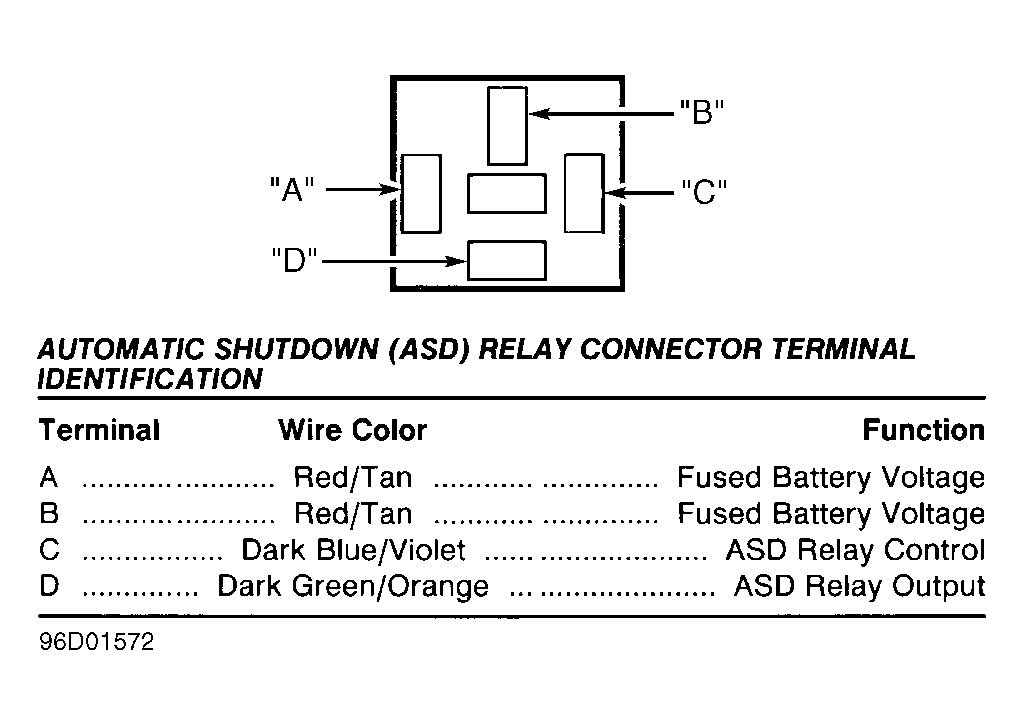

Fig 3: Identifying Automatic Shutdown (ASD) Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Automatic Shutdown (ASD) Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Automatic Shutdown (ASD) Connector (Neon)

Courtesy of CHRYSLER CORP.

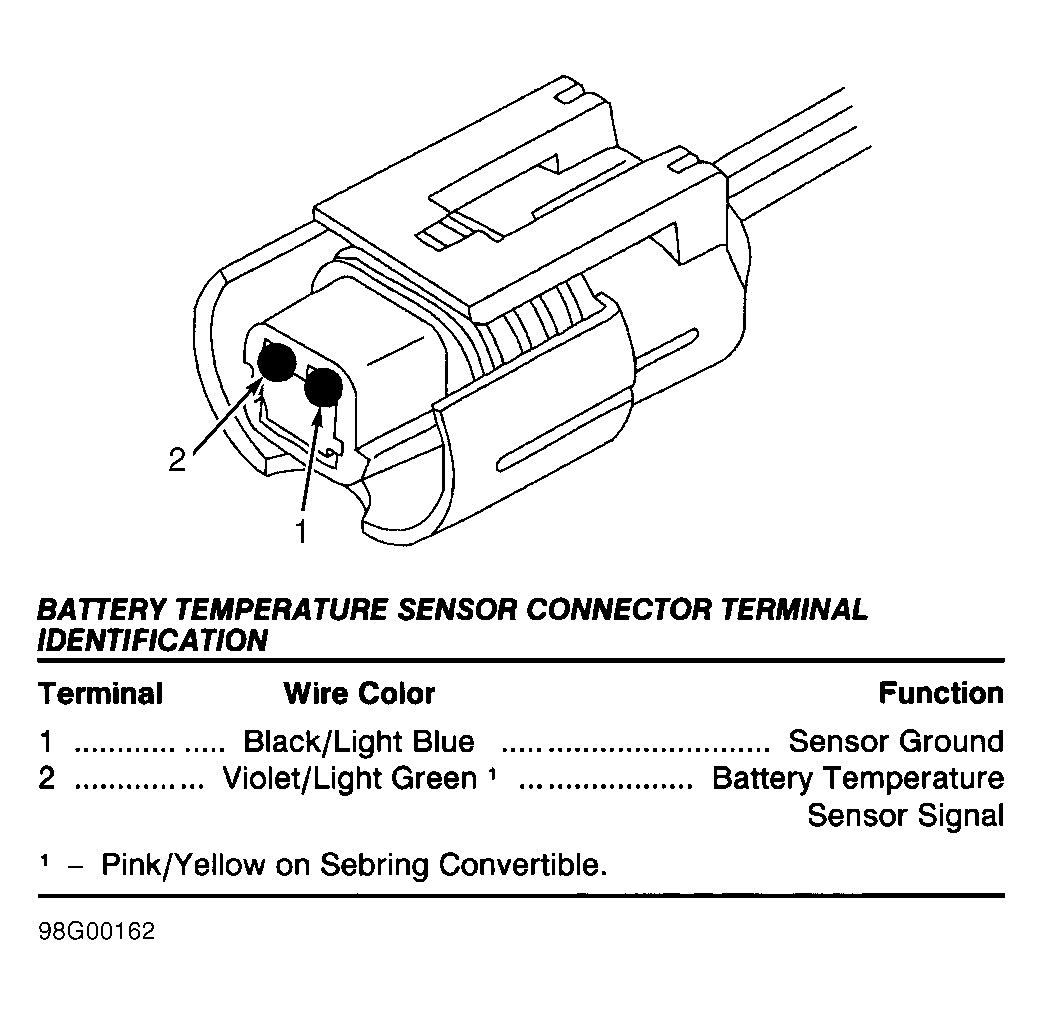

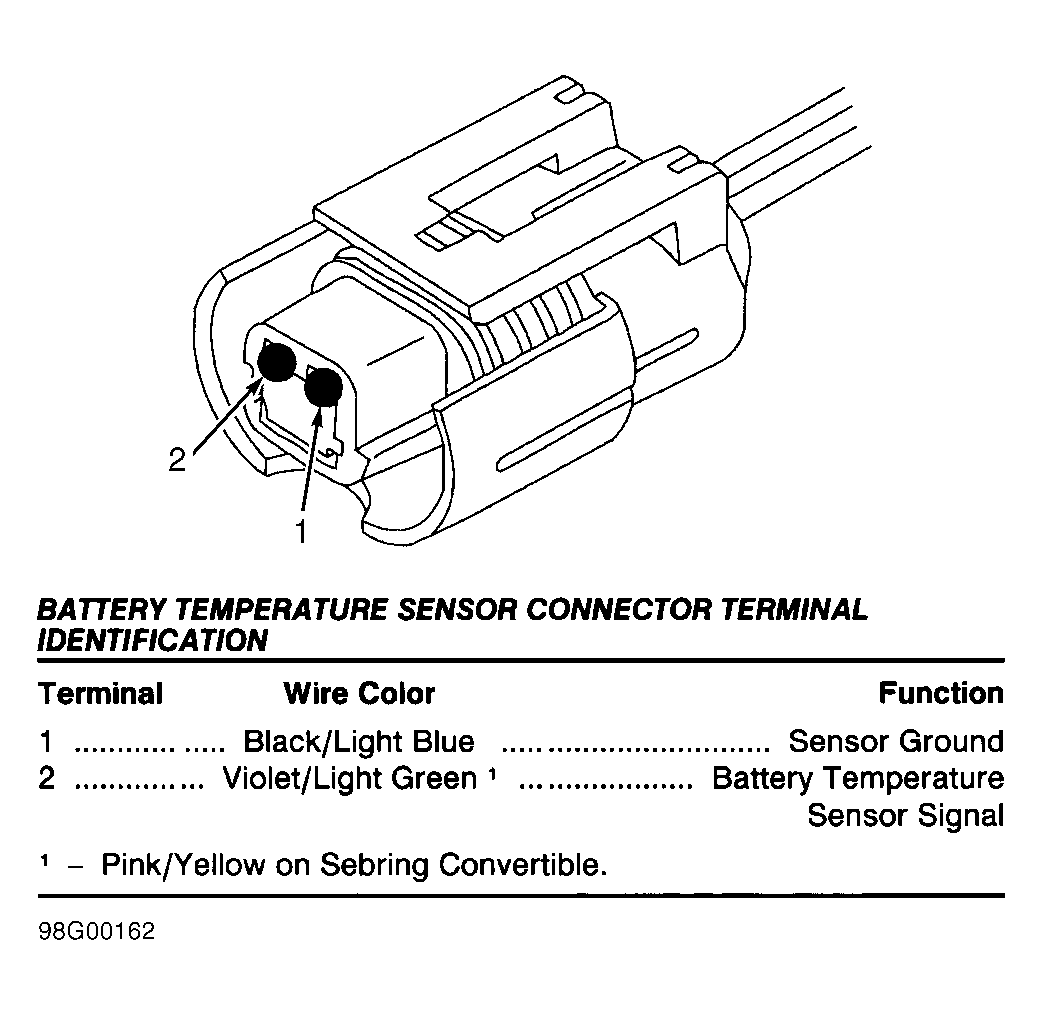

Fig 6: Identifying Battery Temperature Sensor Connector (Breeze, Cirrus, Neon, Sebring Convertible & Stratus)

Courtesy of CHRYSLER CORP.

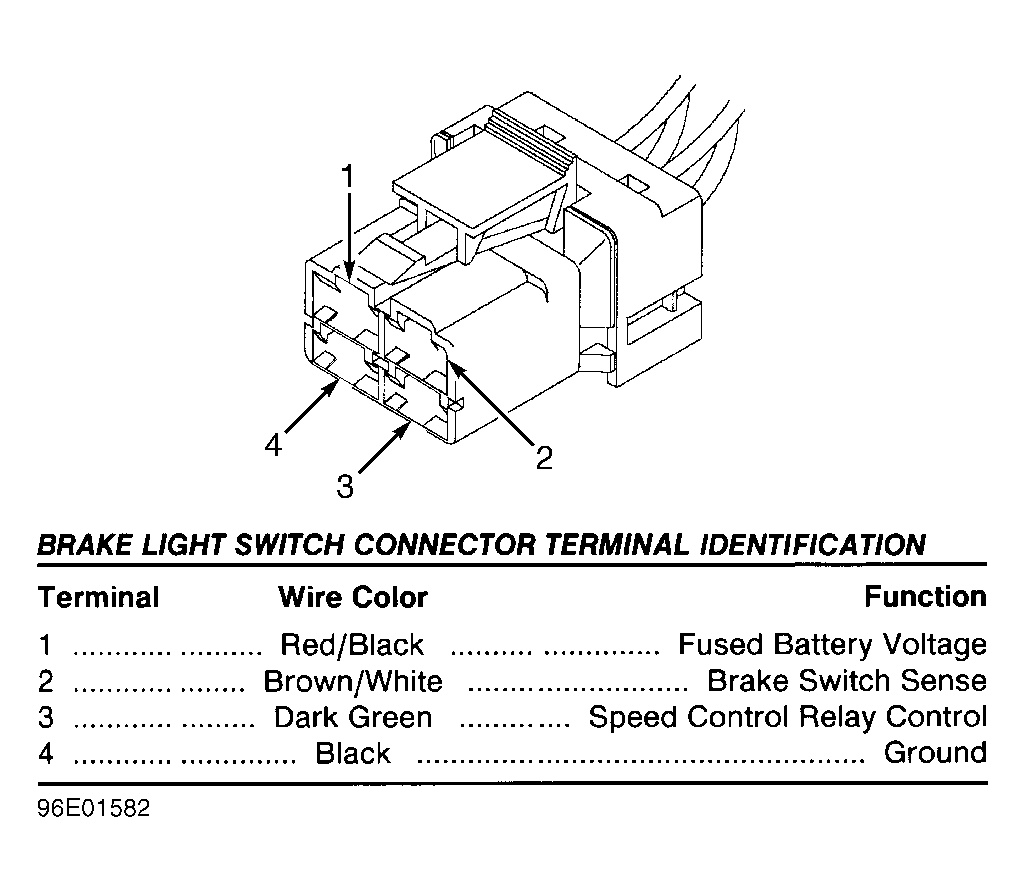

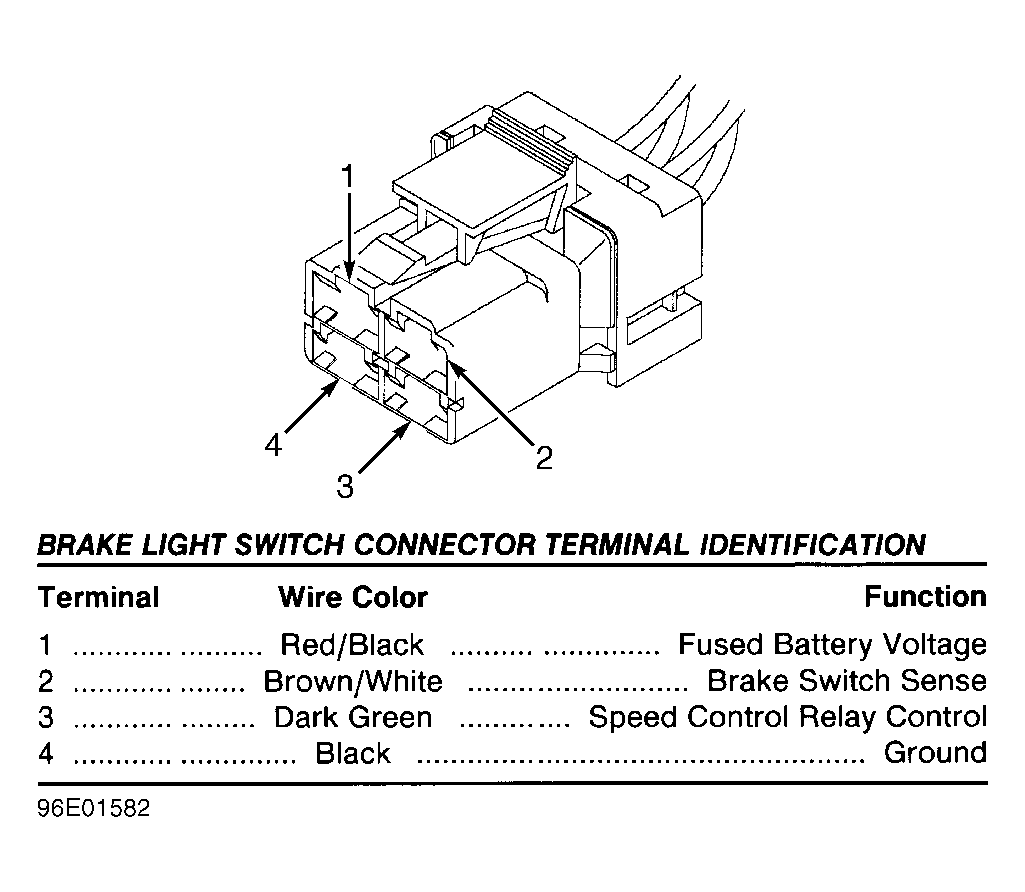

Fig 7: Identifying Brakelight Switch Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

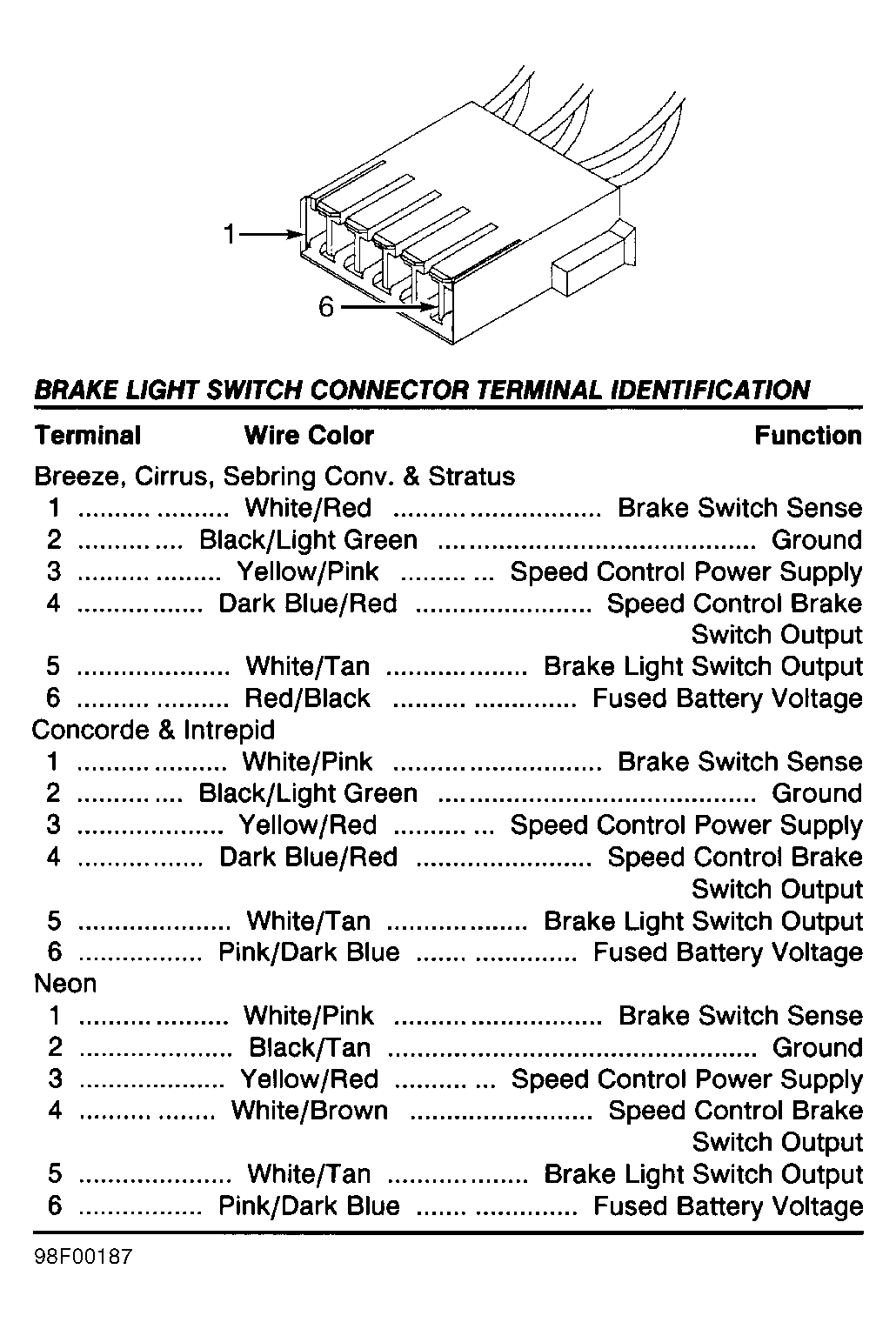

Fig 8: Identifying Brakelight Switch Connector (Breeze, Cirrus, Neon, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

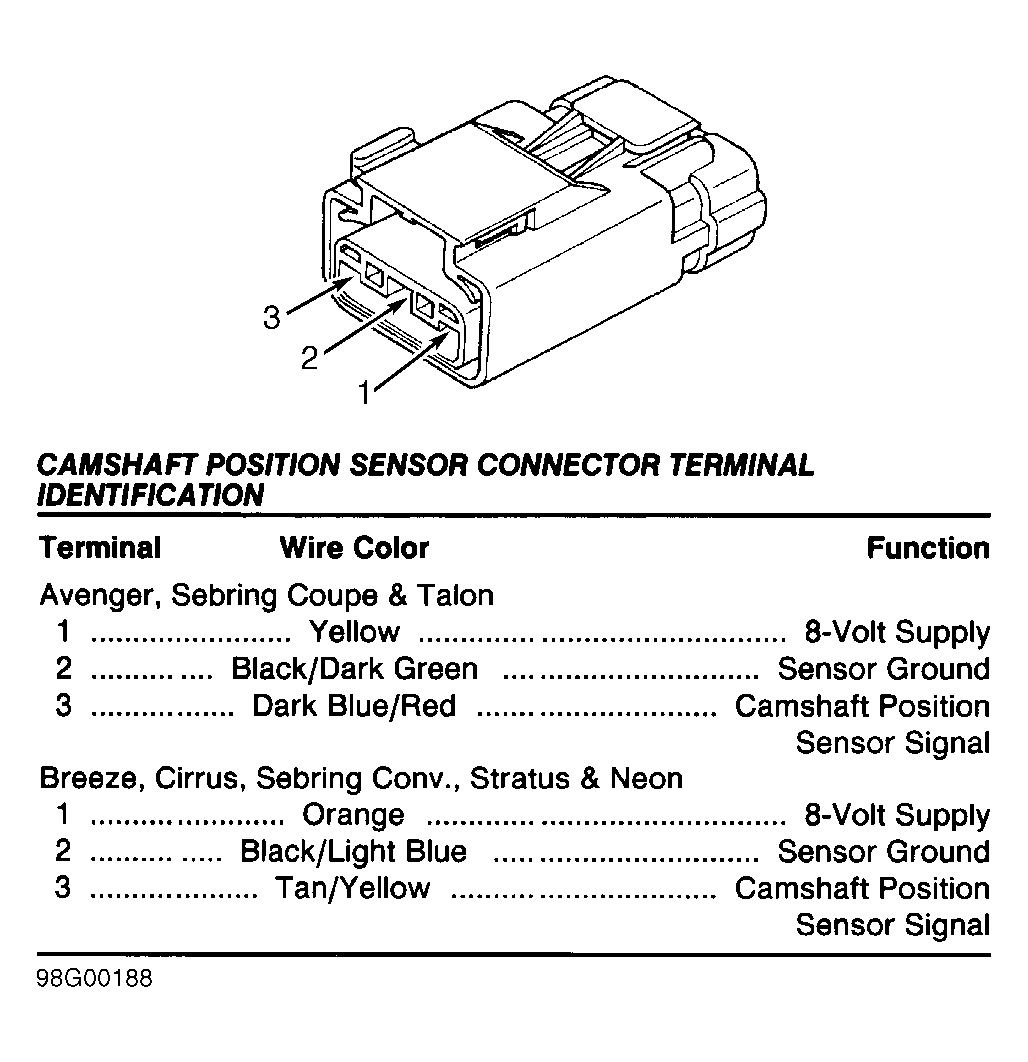

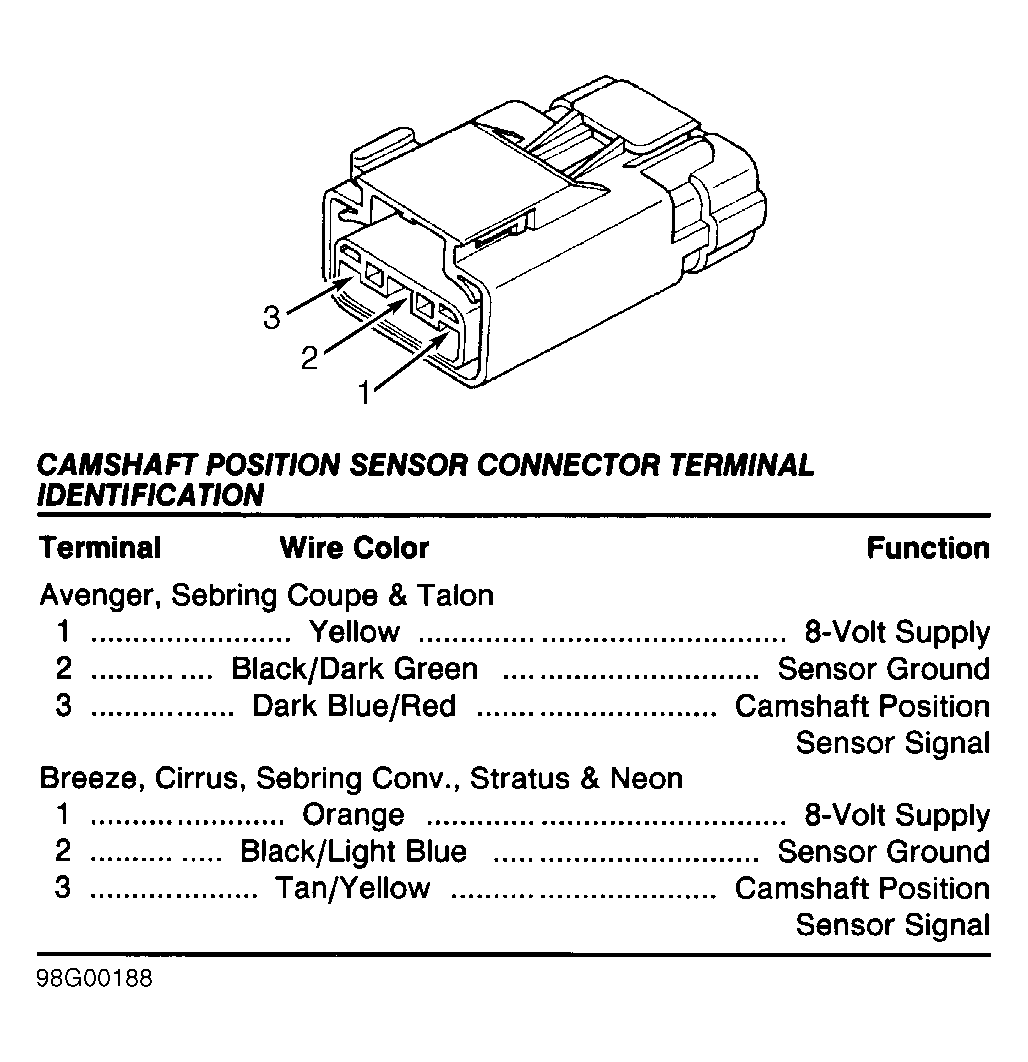

Fig 9: Identifying Camshaft Position Sensor Connector (Avenger (2.0L), Breeze (2.0L & 2.4L), Cirrus, Neon, Sebring Conv. (2.4L), Sebring Coupe (2.0L), Stratus (2.0L & 2.4L), & Talon)

Courtesy of CHRYSLER CORP.

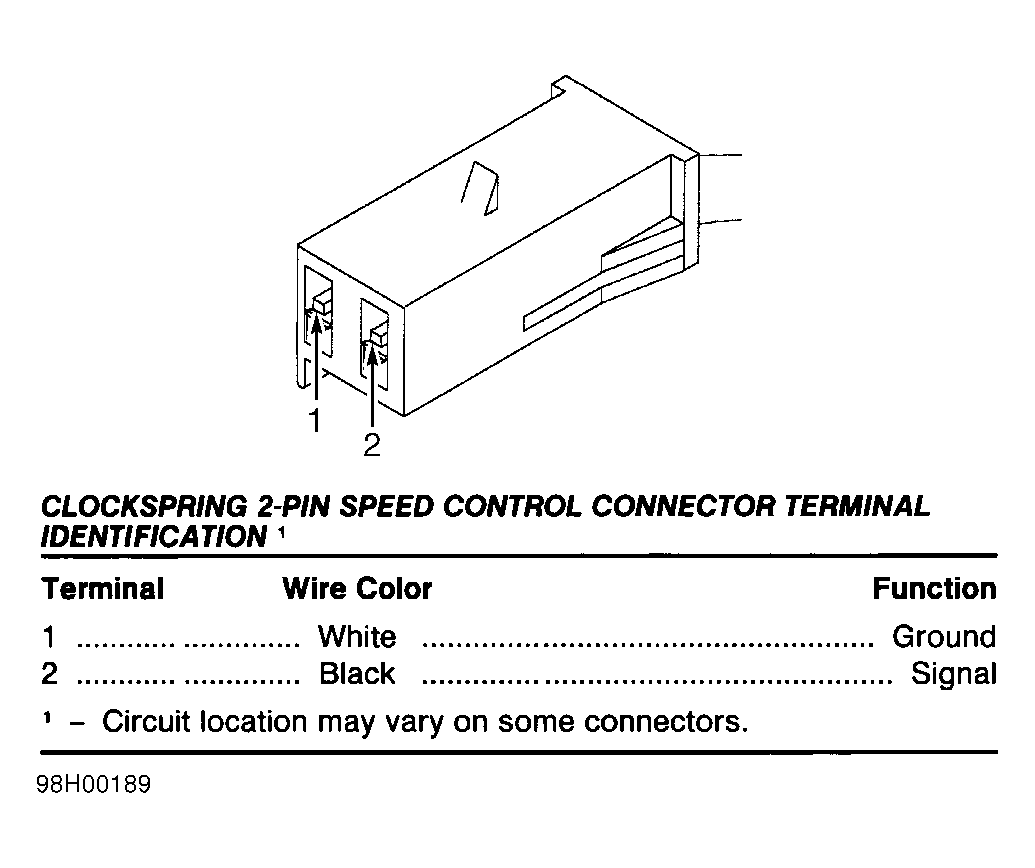

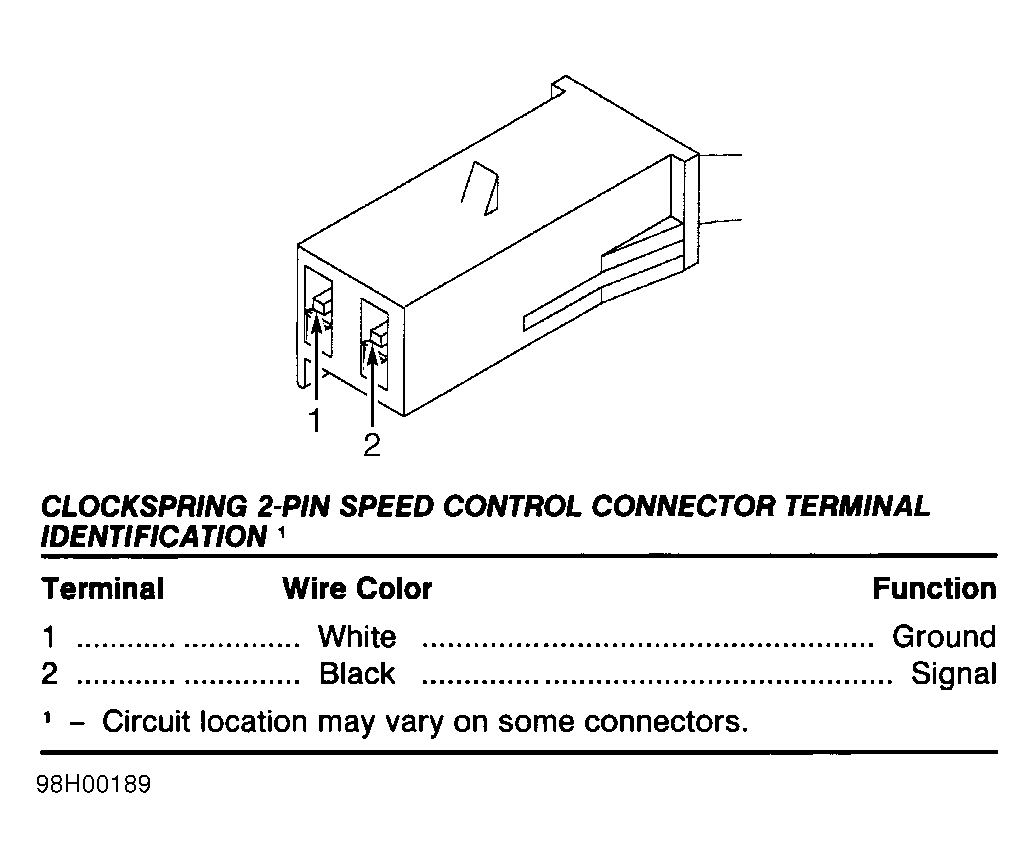

Fig 10: Identifying Clockspring 2-Pin Speed Control Connector (Neon & Sebring Conv.)

Courtesy of CHRYSLER CORP.

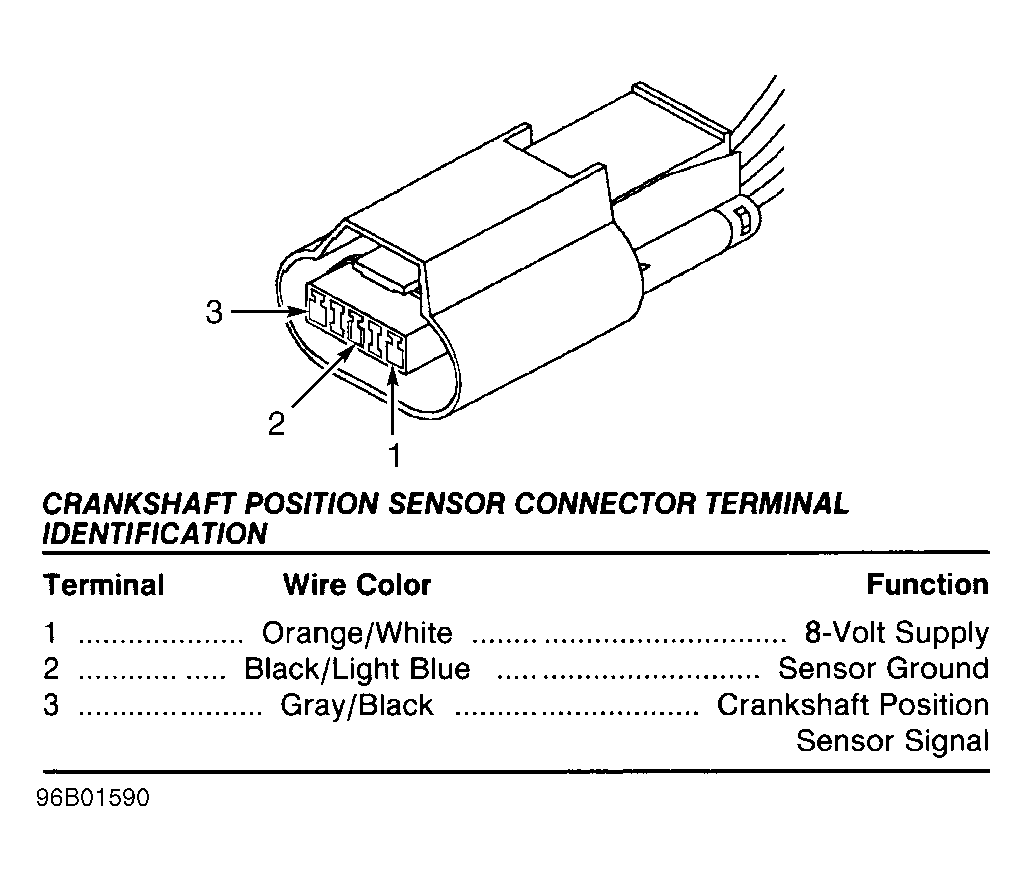

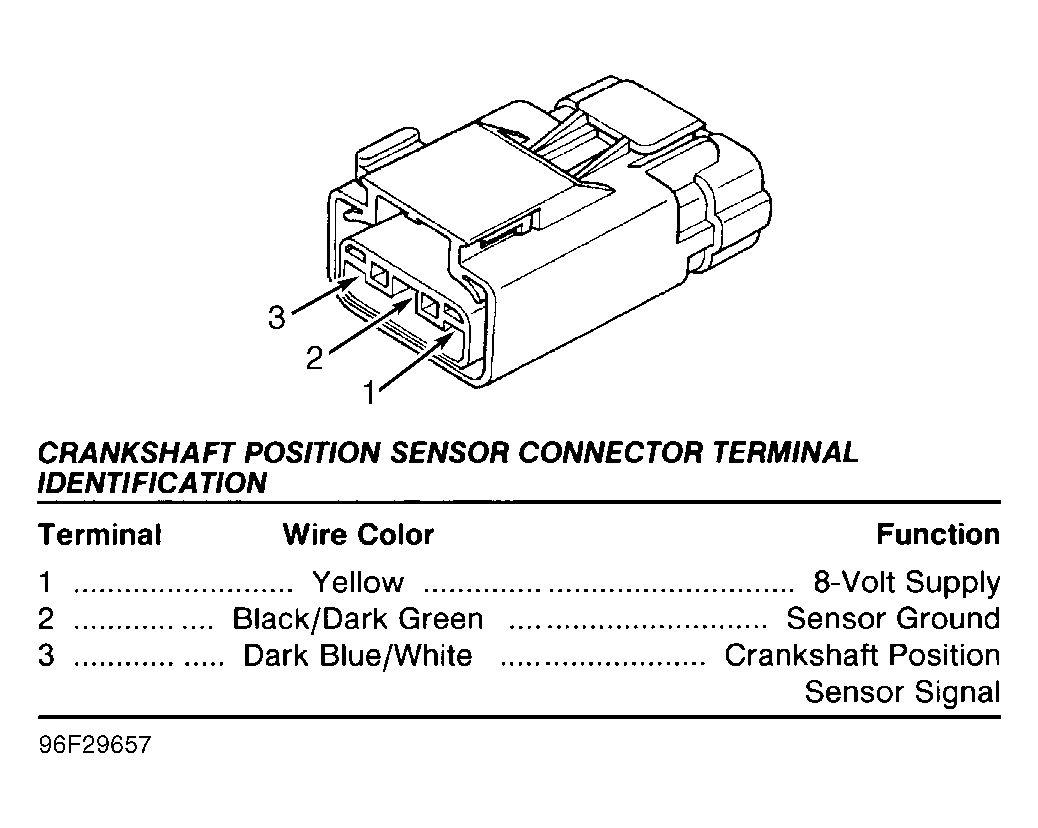

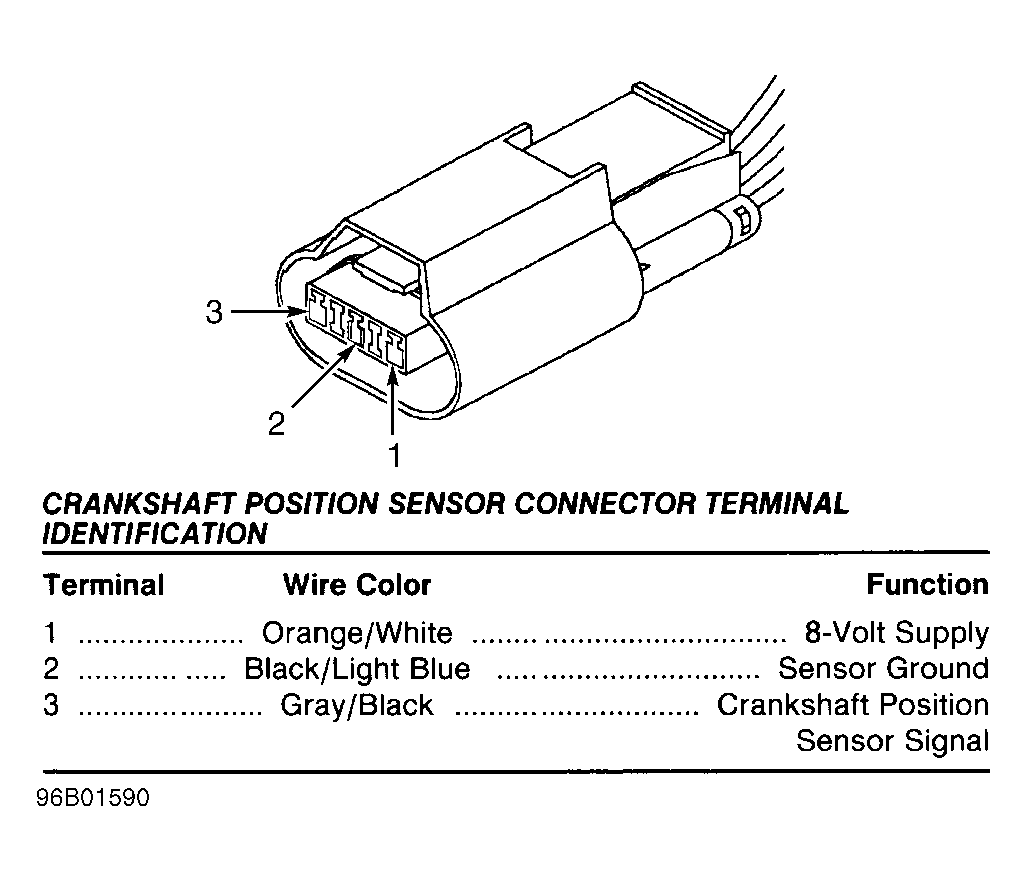

Fig 11: Identifying Crankshaft Position Sensor Connector (Avenger, Sebring Coupe & Talon 2.0L)

Courtesy of CHRYSLER CORP.

Fig 12: Identifying Crankshaft Position Sensor Connector (Breeze, Cirrus, Sebring Conv. & Stratus 2.5L)

Courtesy of CHRYSLER CORP.

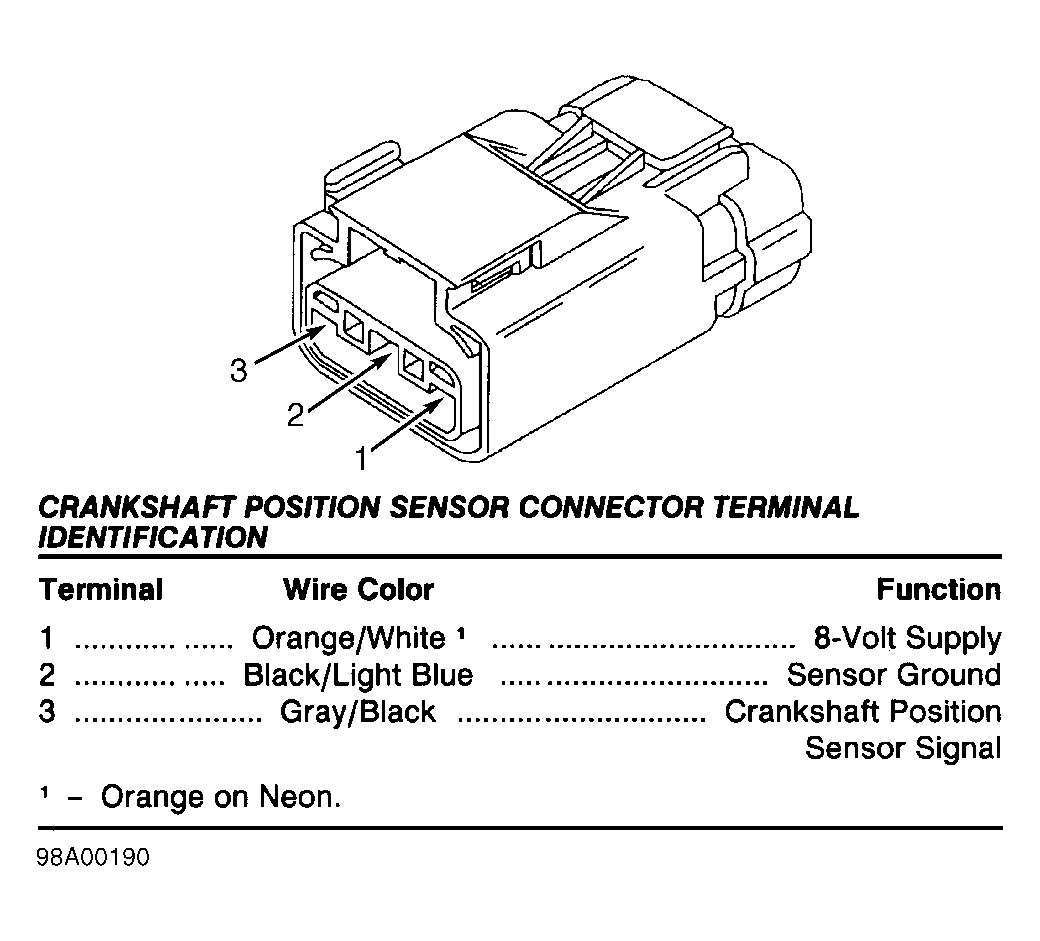

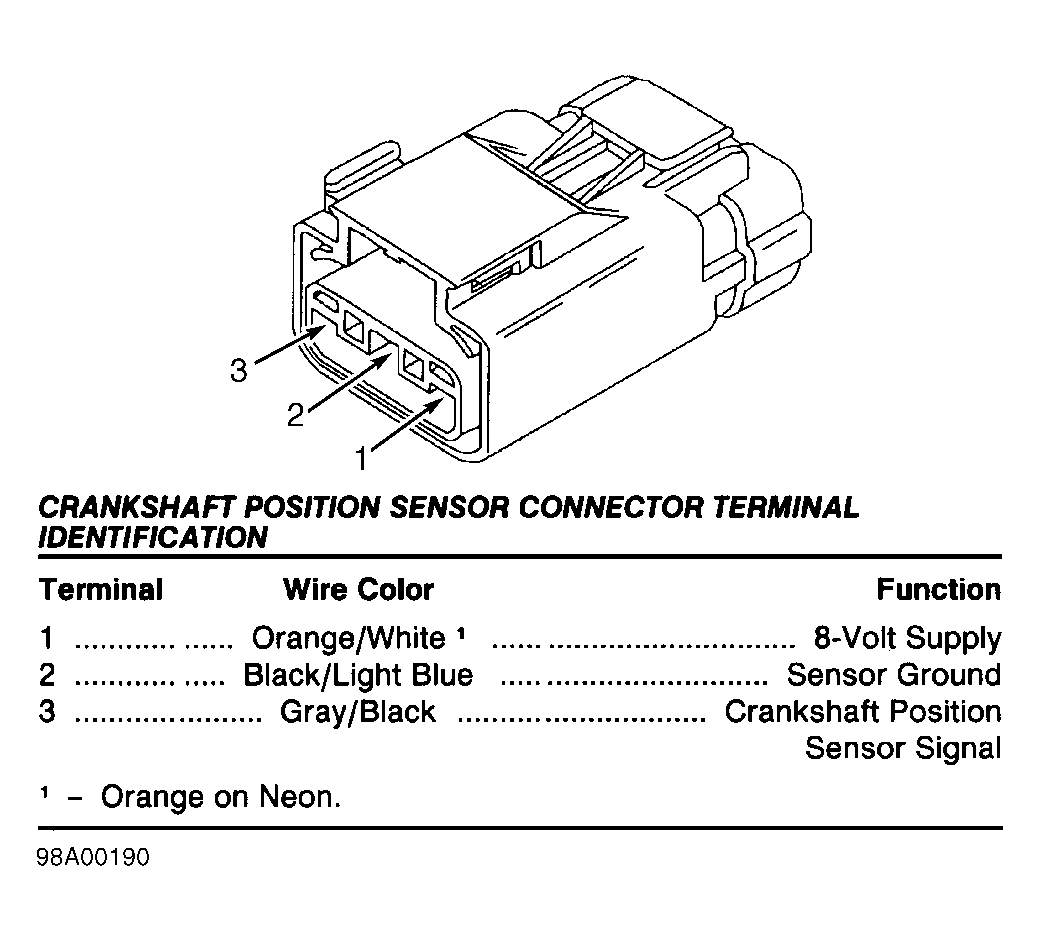

Fig 13: Identifying Crankshaft Position Sensor Connector (Breeze, Cirrus, Neon, Sebring Conv., & Stratus (2.0L & 2.4L)

Courtesy of CHRYSLER CORP.

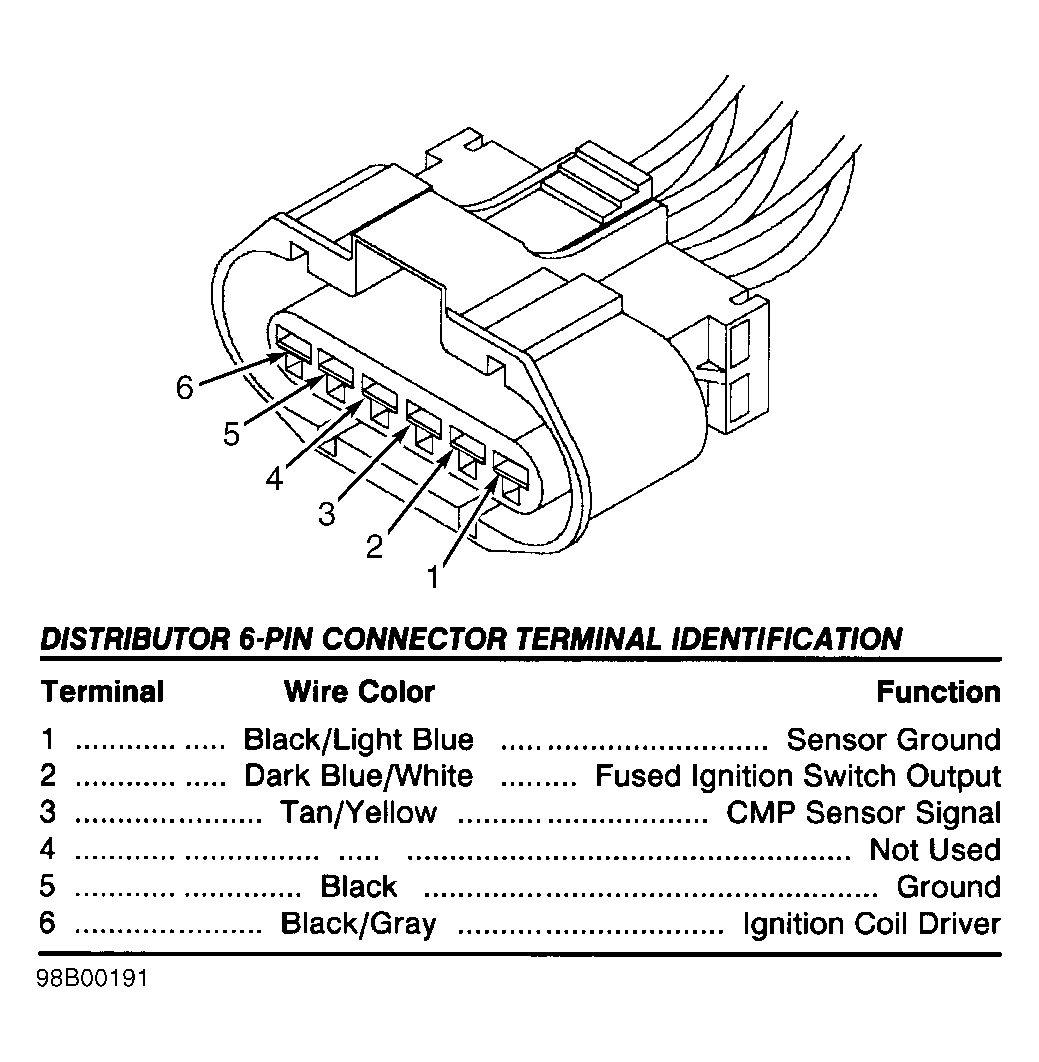

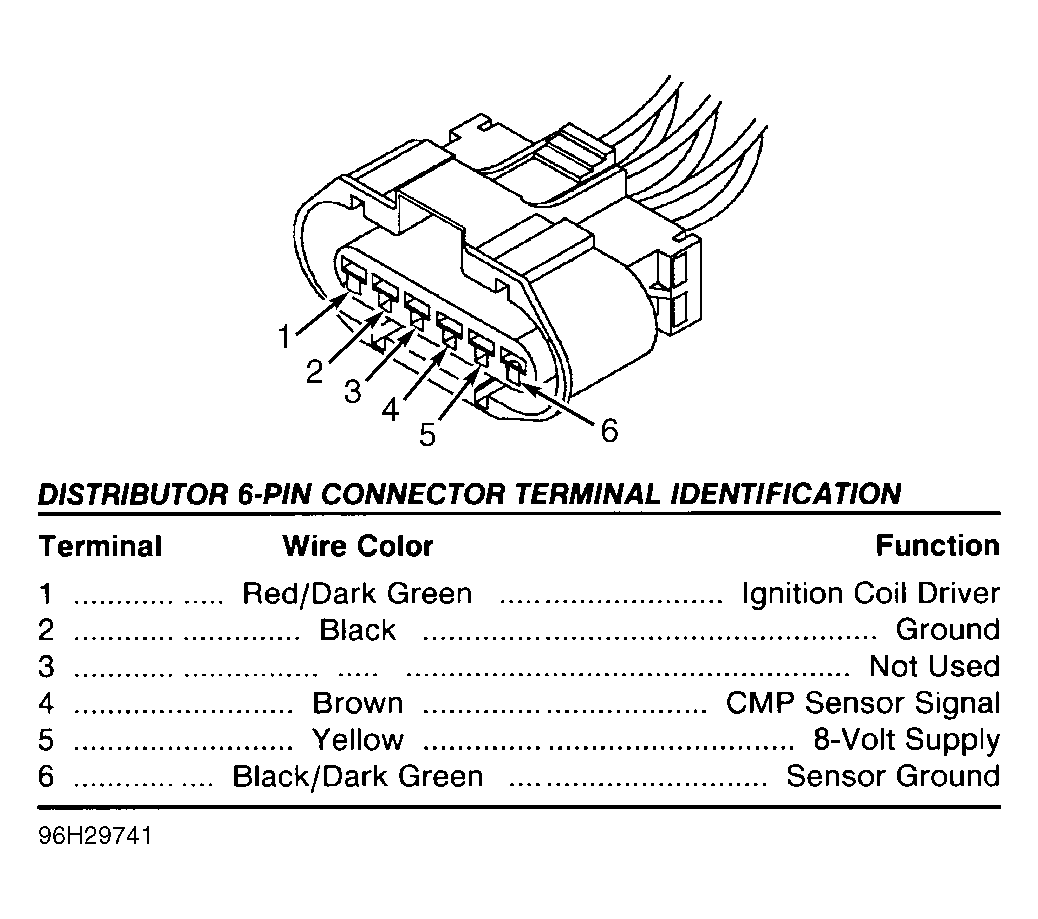

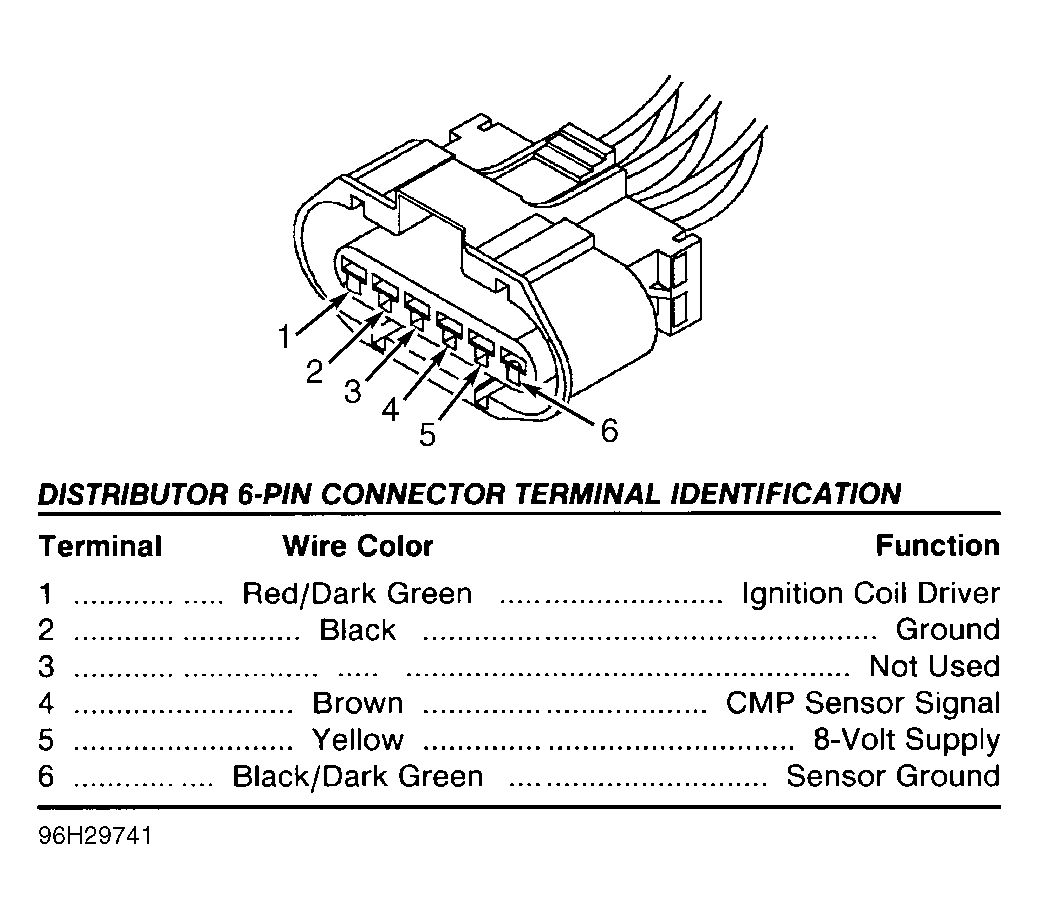

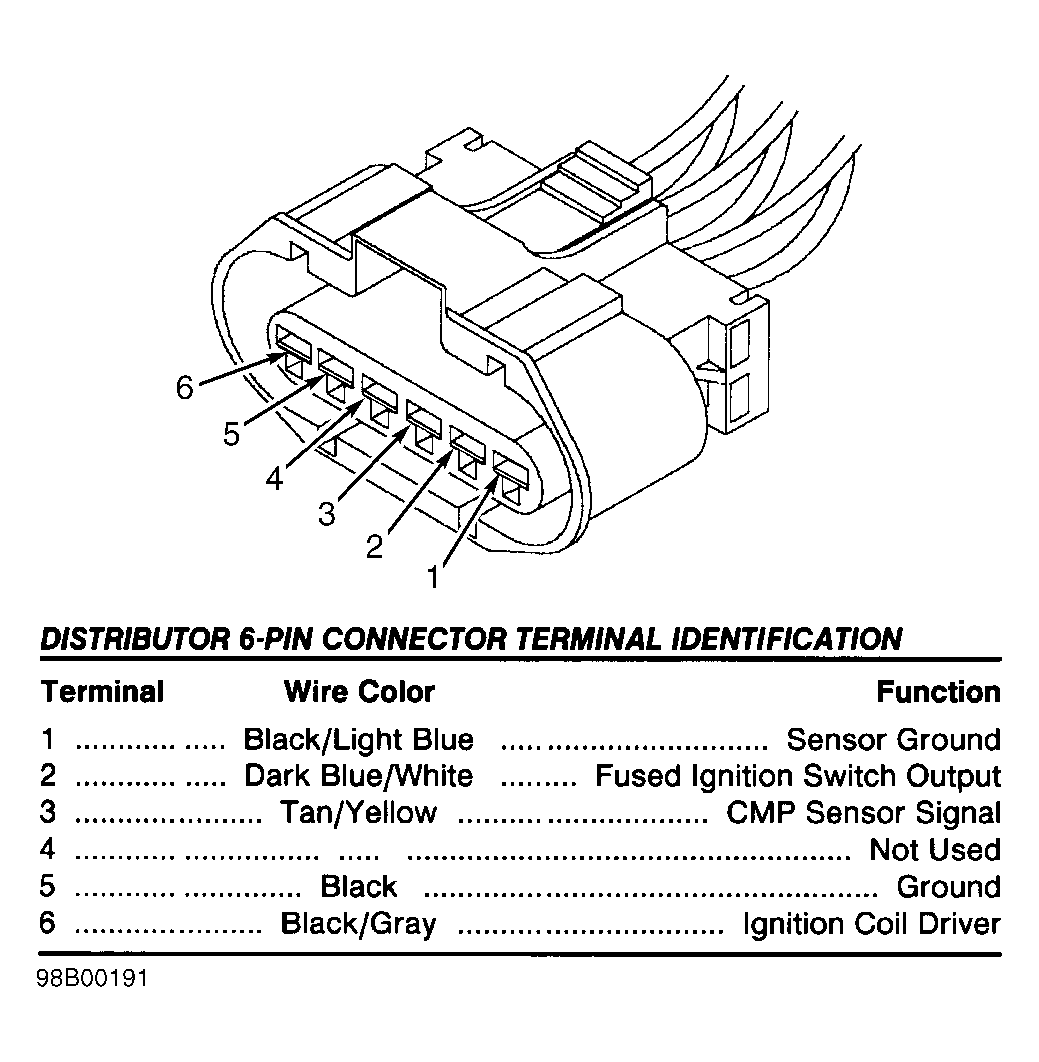

Fig 14: Identifying Distributor 6-Pin Connector (Avenger & Sebring Coupe 2.5L)

Courtesy of CHRYSLER CORP.

Fig 15: Identifying Distributor 6-Pin Connector (Breeze, Cirrus, Sebring Conv. & Stratus 2.5L)

Courtesy of CHRYSLER CORP.

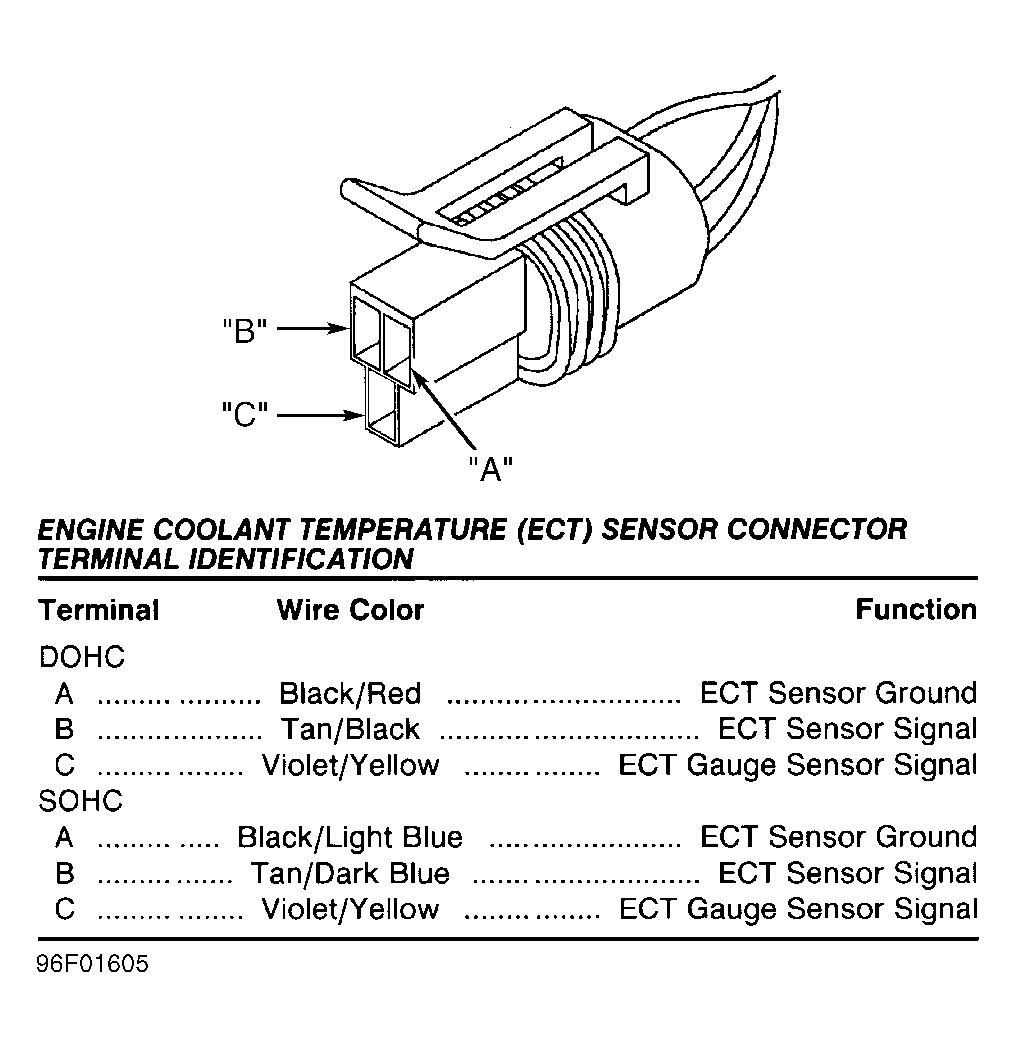

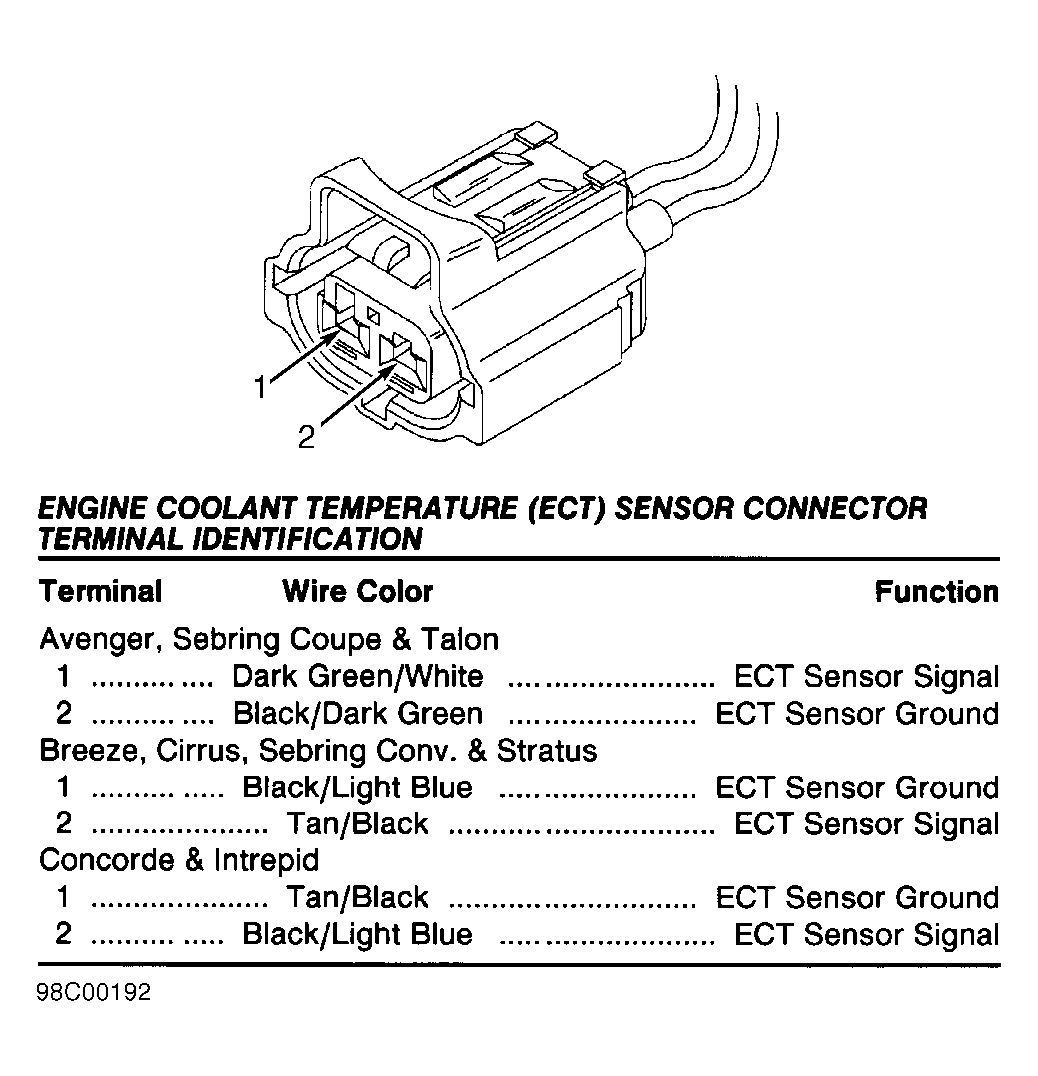

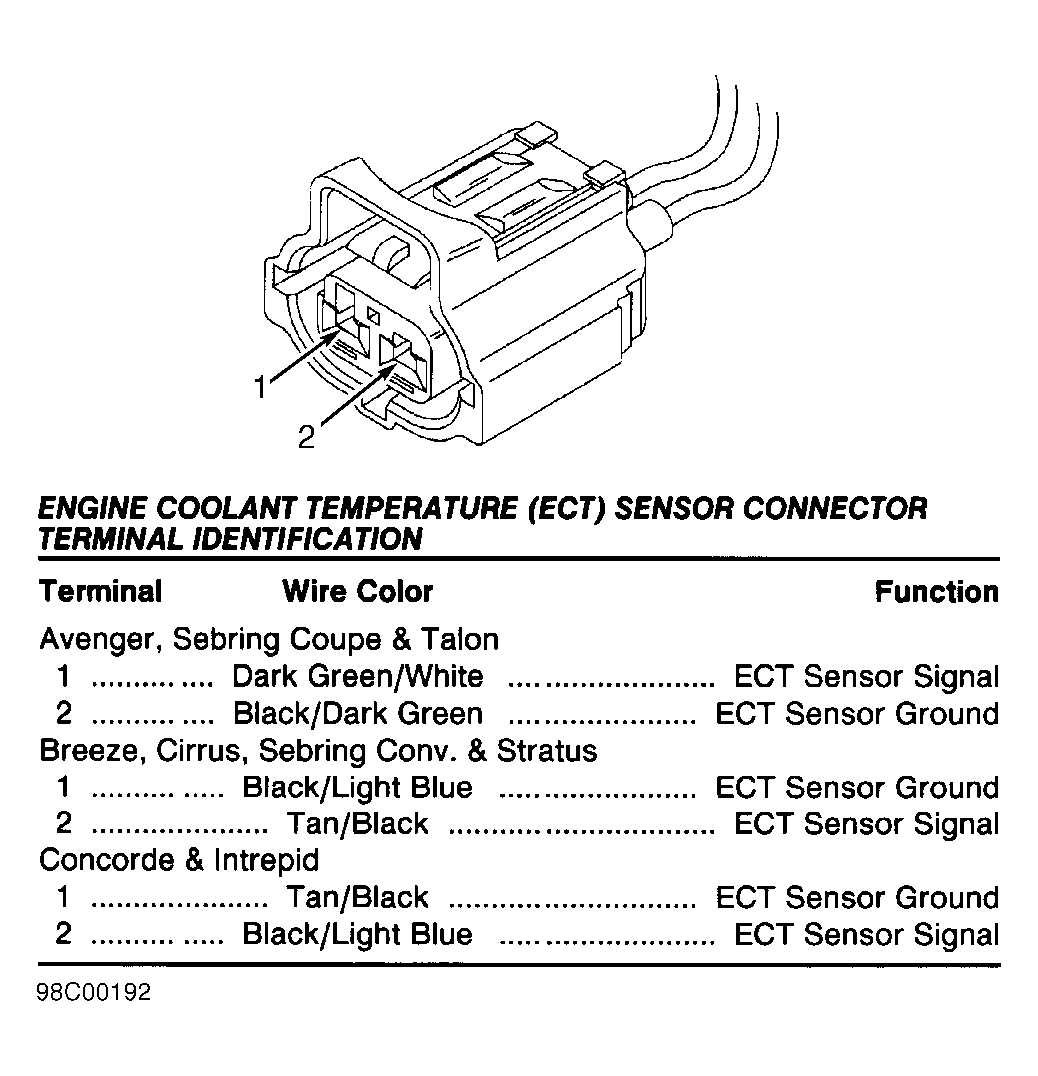

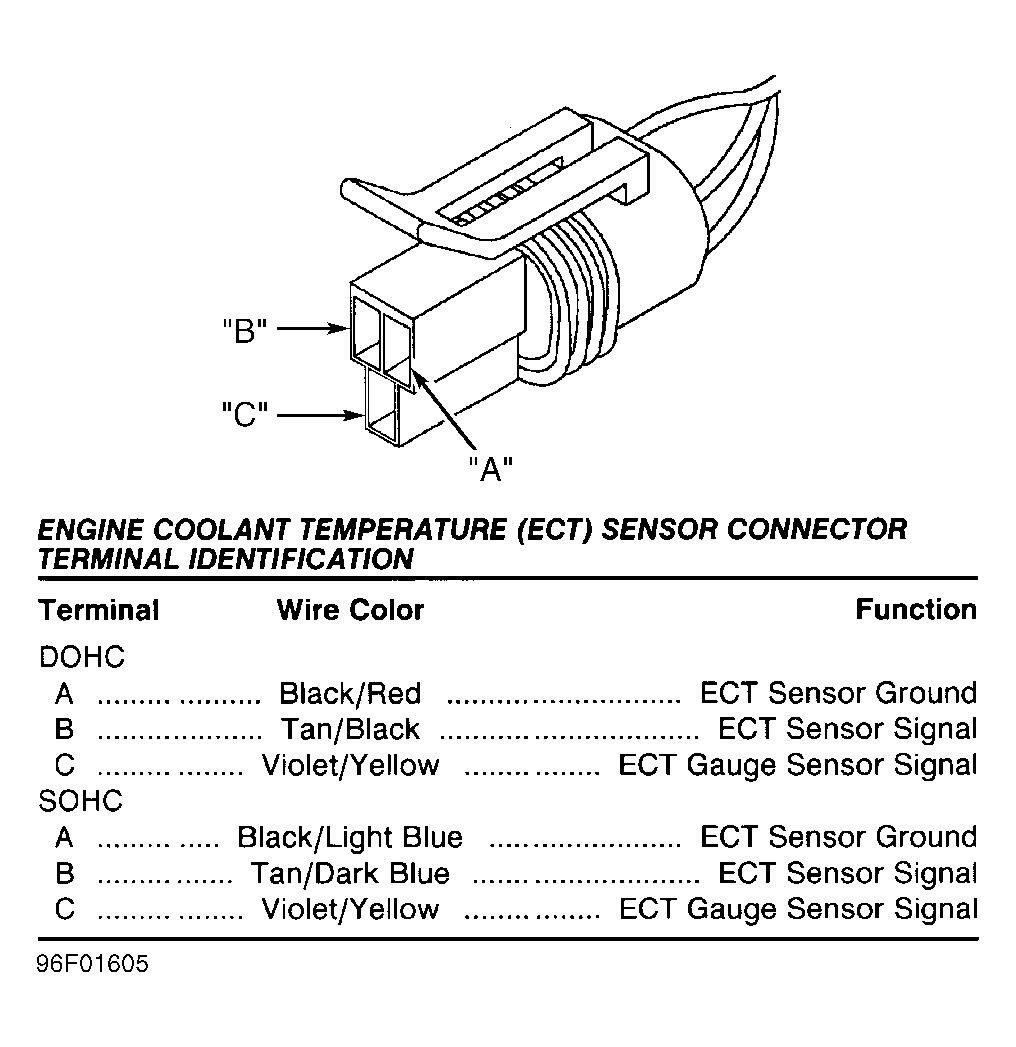

Fig 16: Identifying Engine Coolant Temperature (ECT) Sensor Connector (Avenger, Breeze, Cirrus, Sebring Coupe, Sebring Conv., Stratus & Talon)

Courtesy of CHRYSLER CORP.

Fig 17: Identifying Engine Coolant Temperature (ECT) Sensor Connector (Neon)

Courtesy of CHRYSLER CORP.

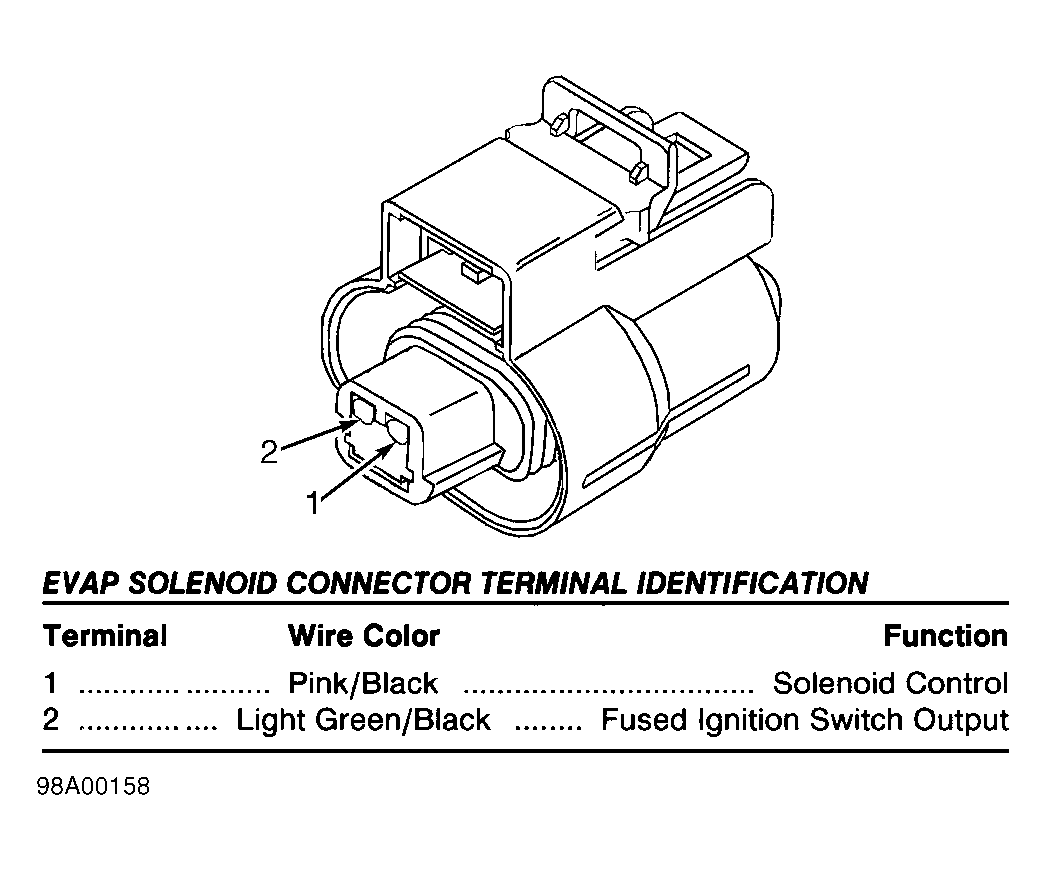

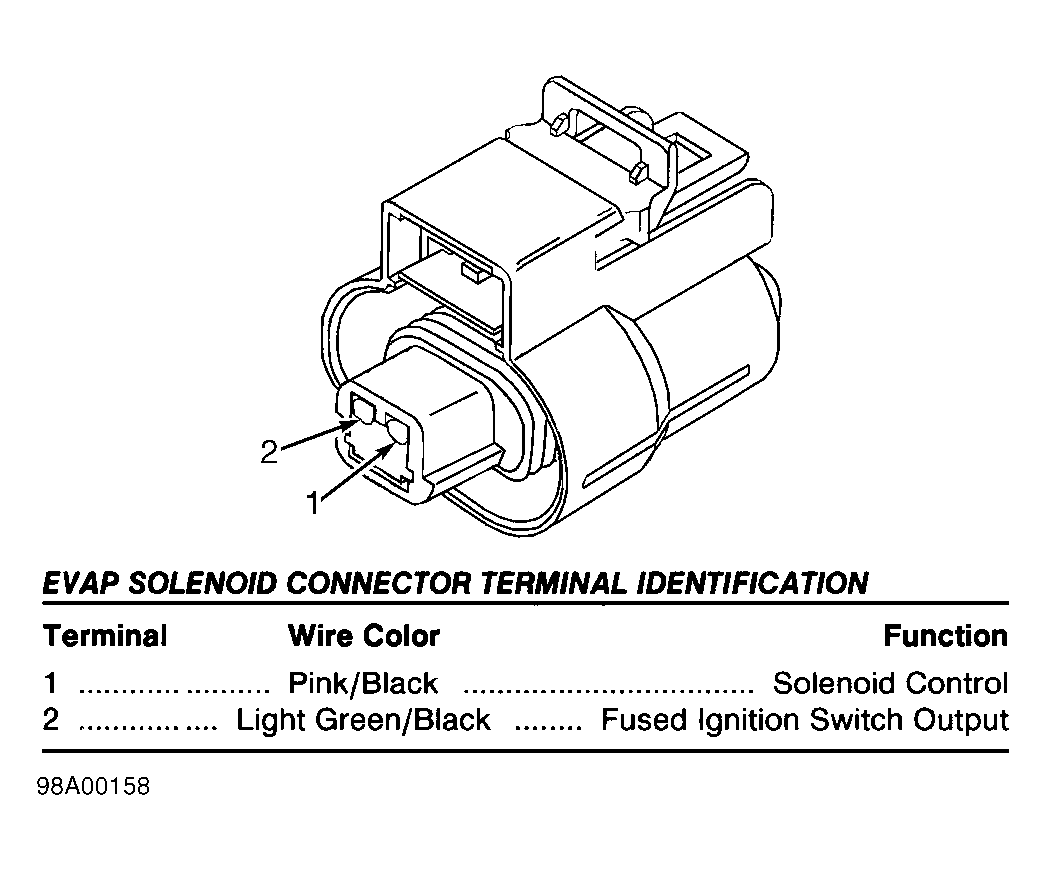

Fig 18: Identifying EVAP Solenoid Connector (Neon)

Courtesy of CHRYSLER CORP.

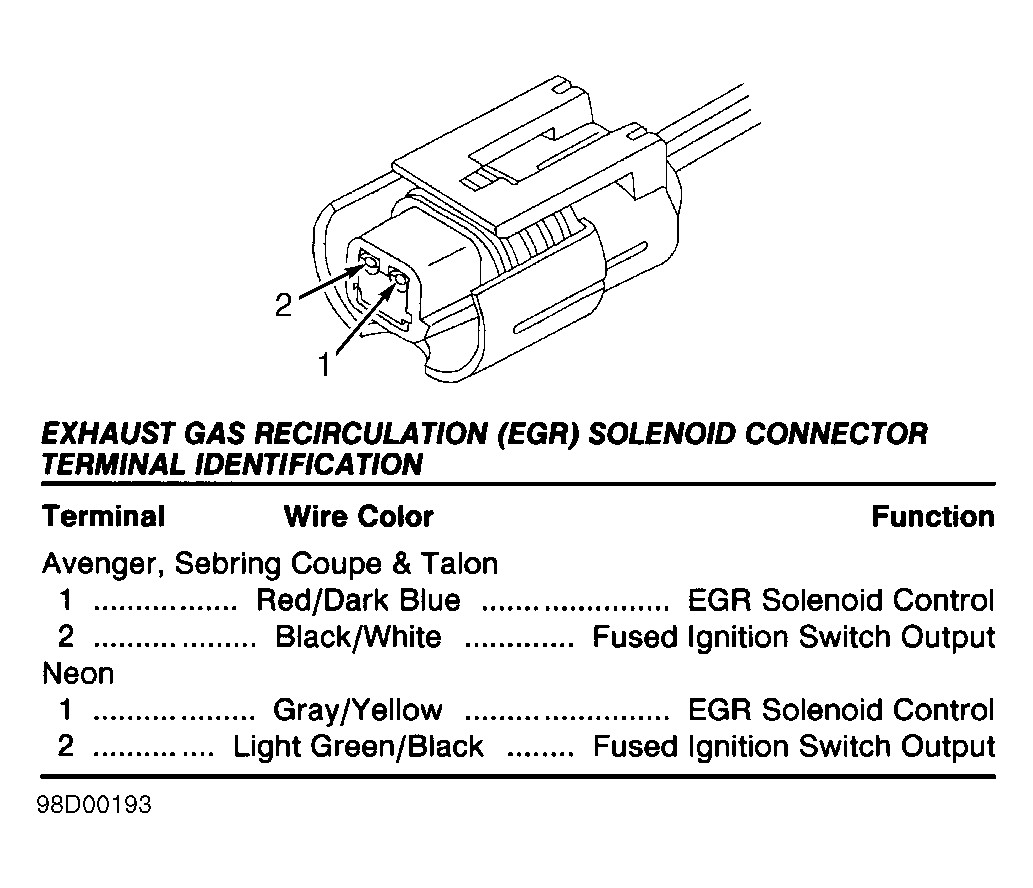

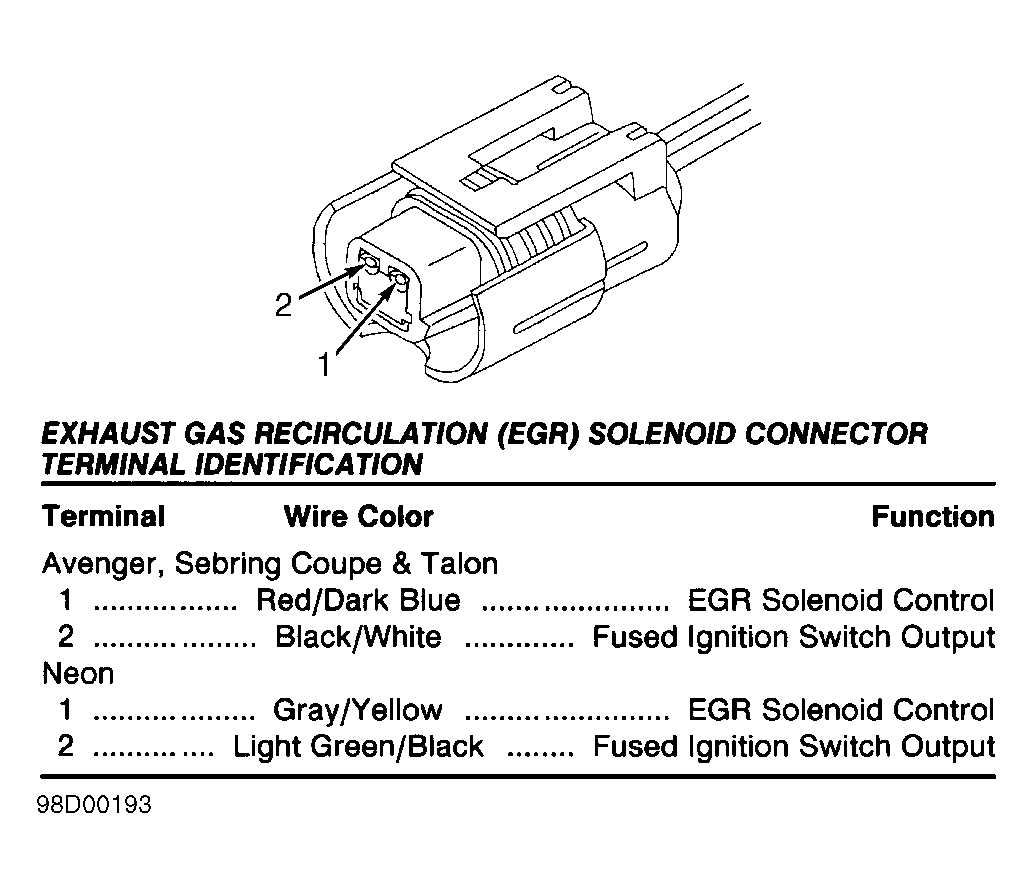

Fig 19: Identifying Exhaust Gas Recirculation (EGR) Solenoid Connector (Avenger, Neon, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

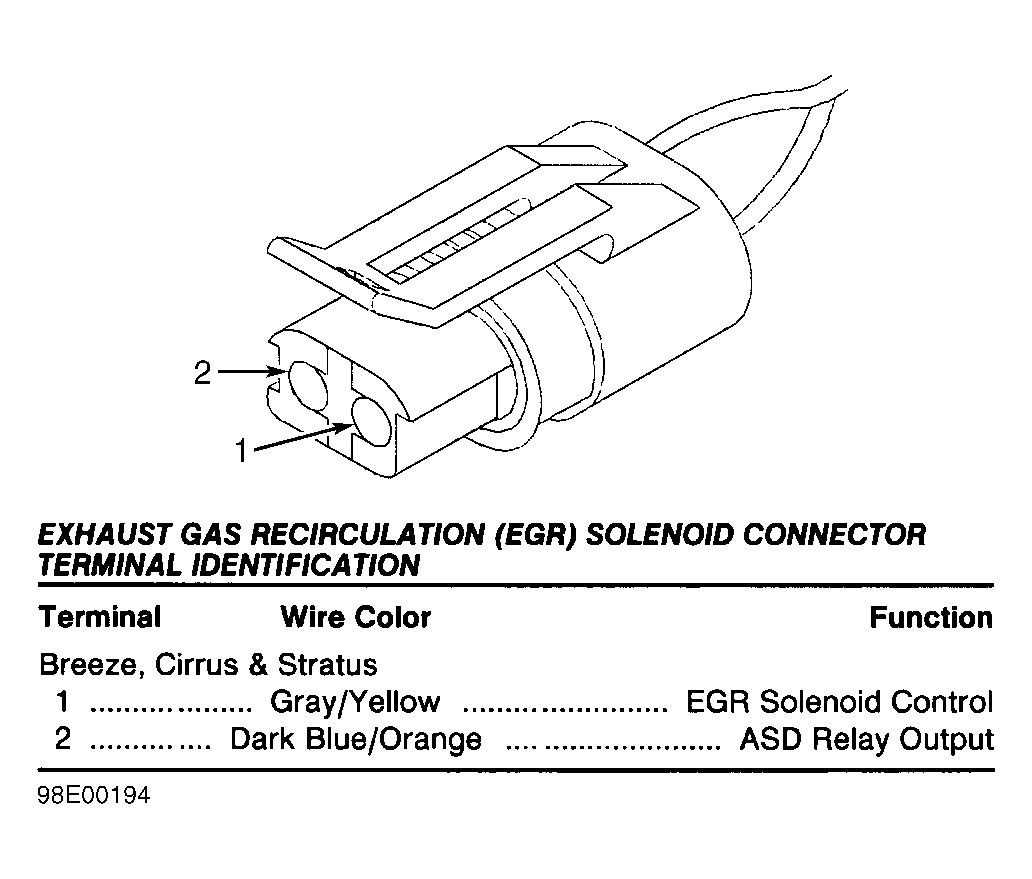

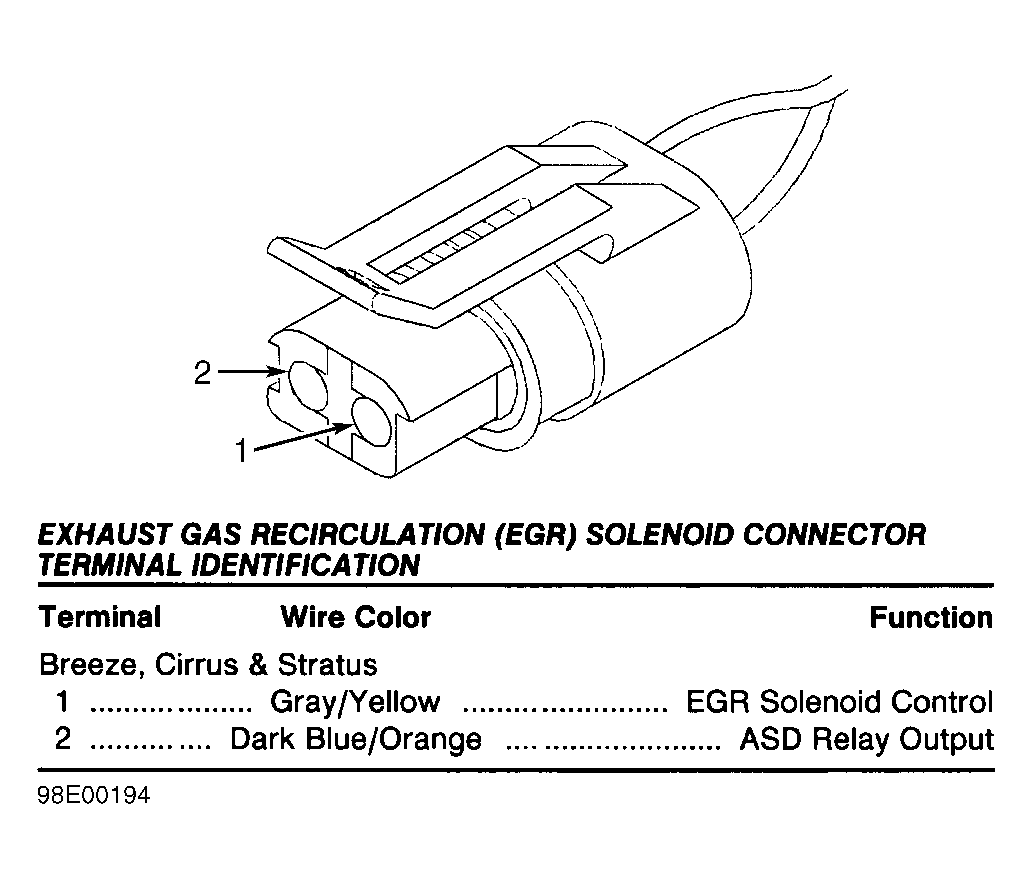

Fig 20: Identifying Exhaust Gas Recirculation (EGR) Solenoid Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

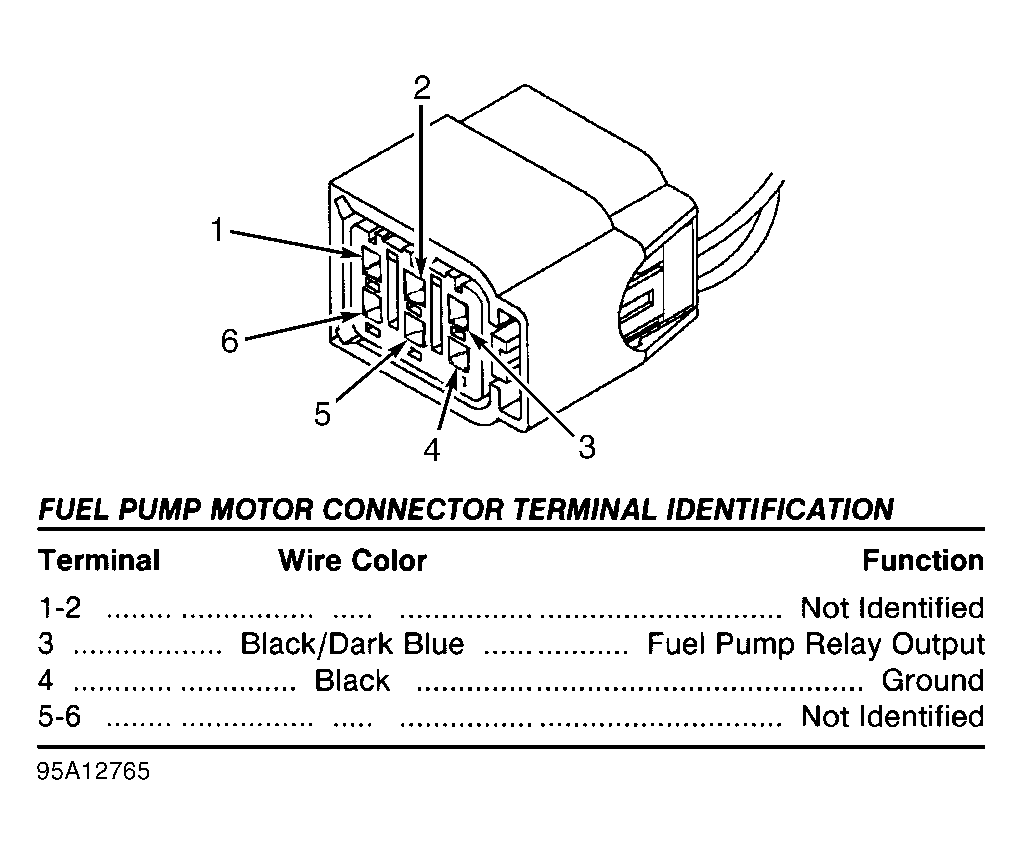

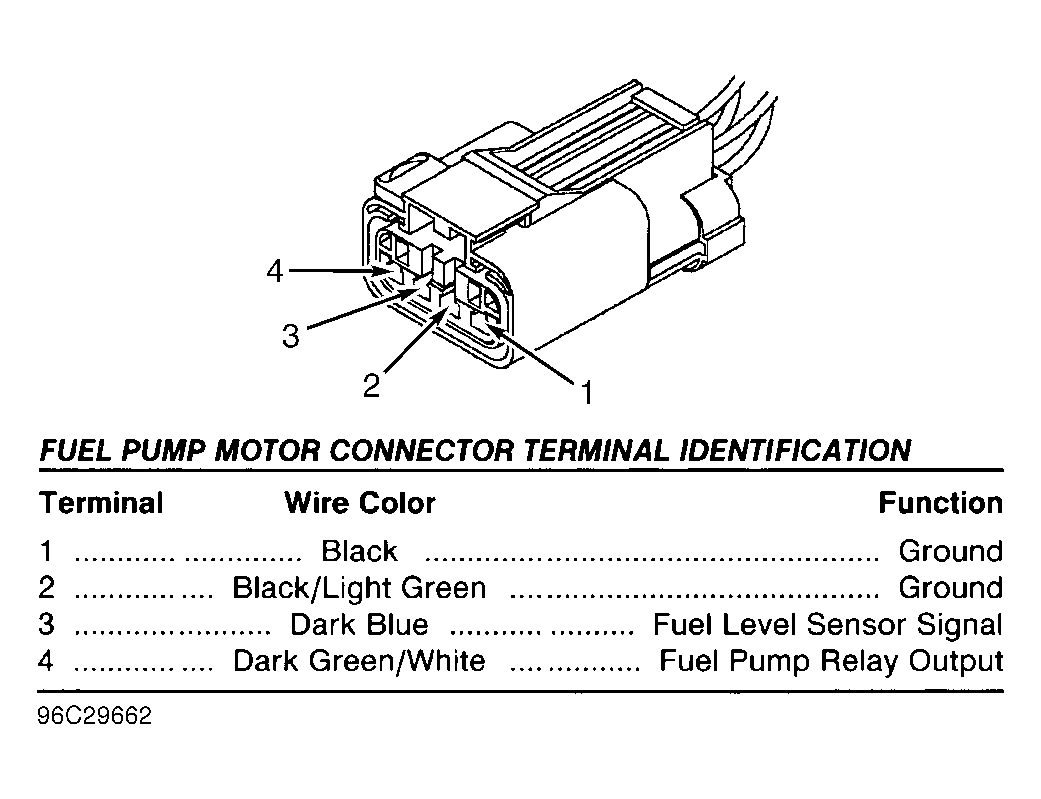

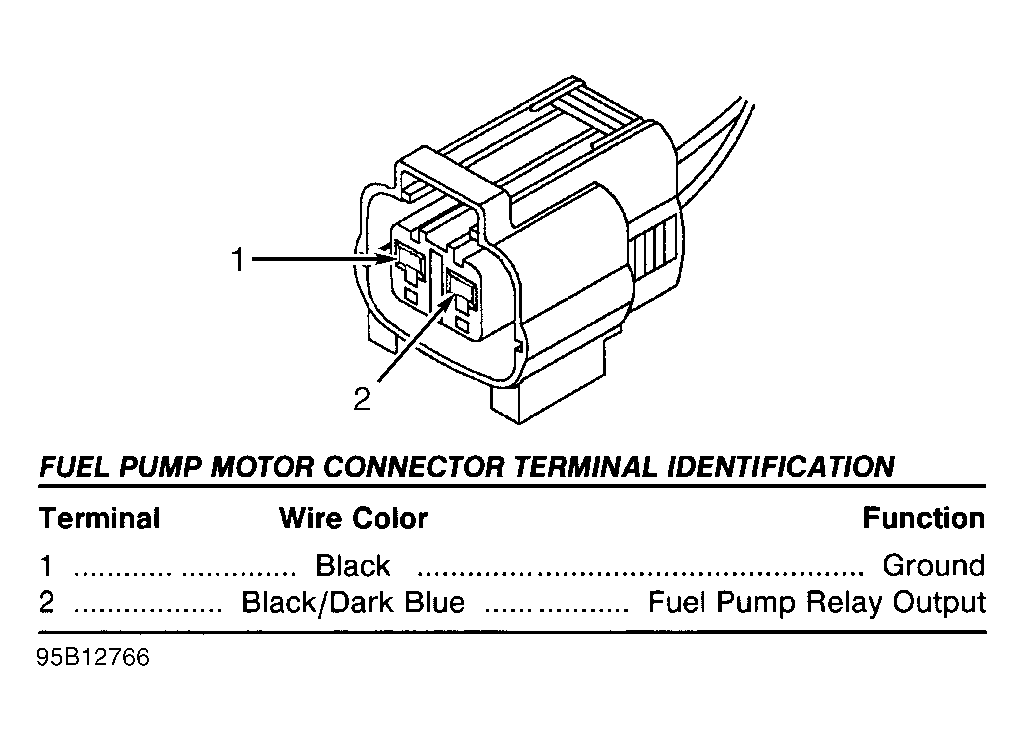

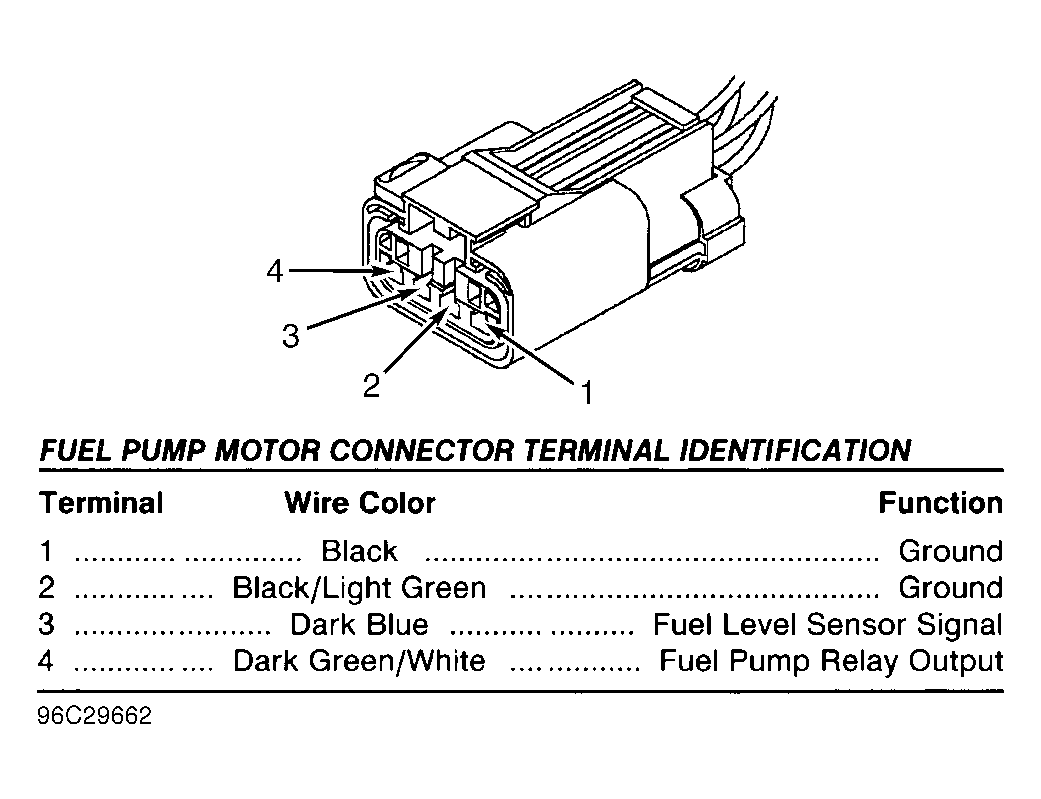

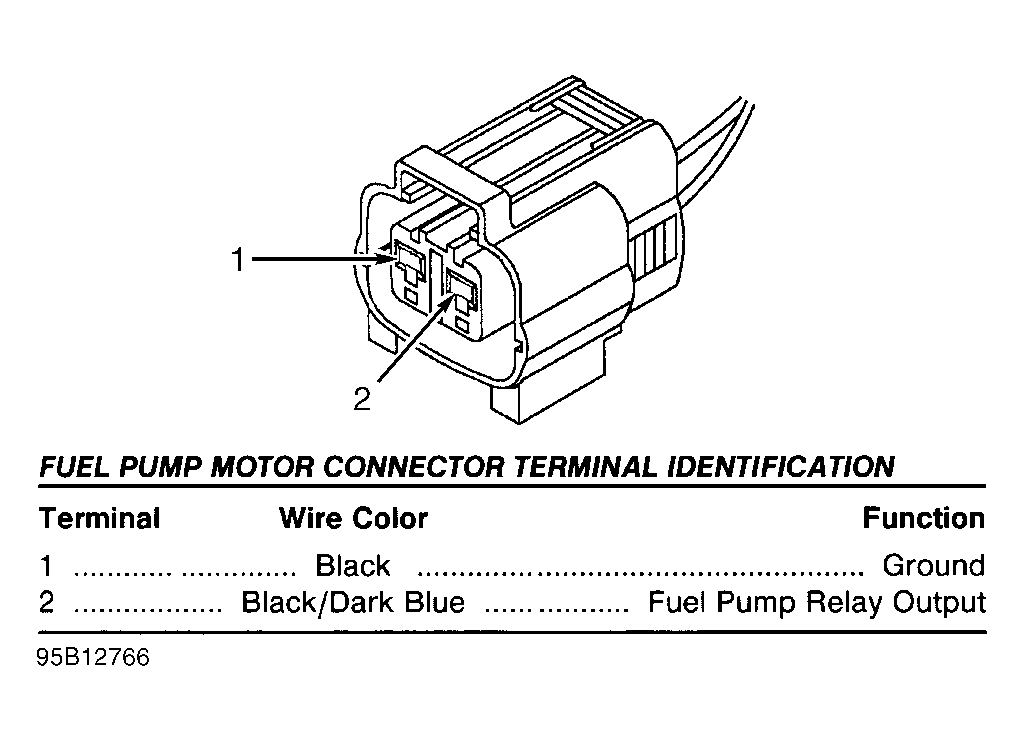

Fig 21: Identifying Fuel Pump Motor Connector (Talon)

Courtesy of CHRYSLER CORP.

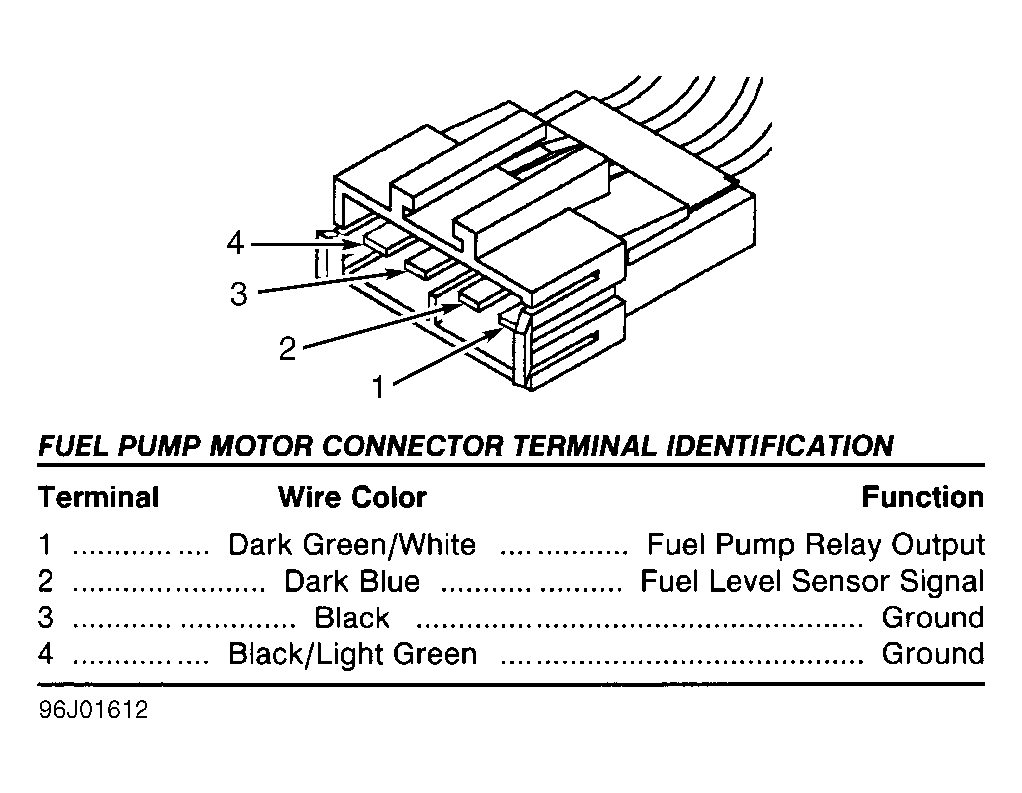

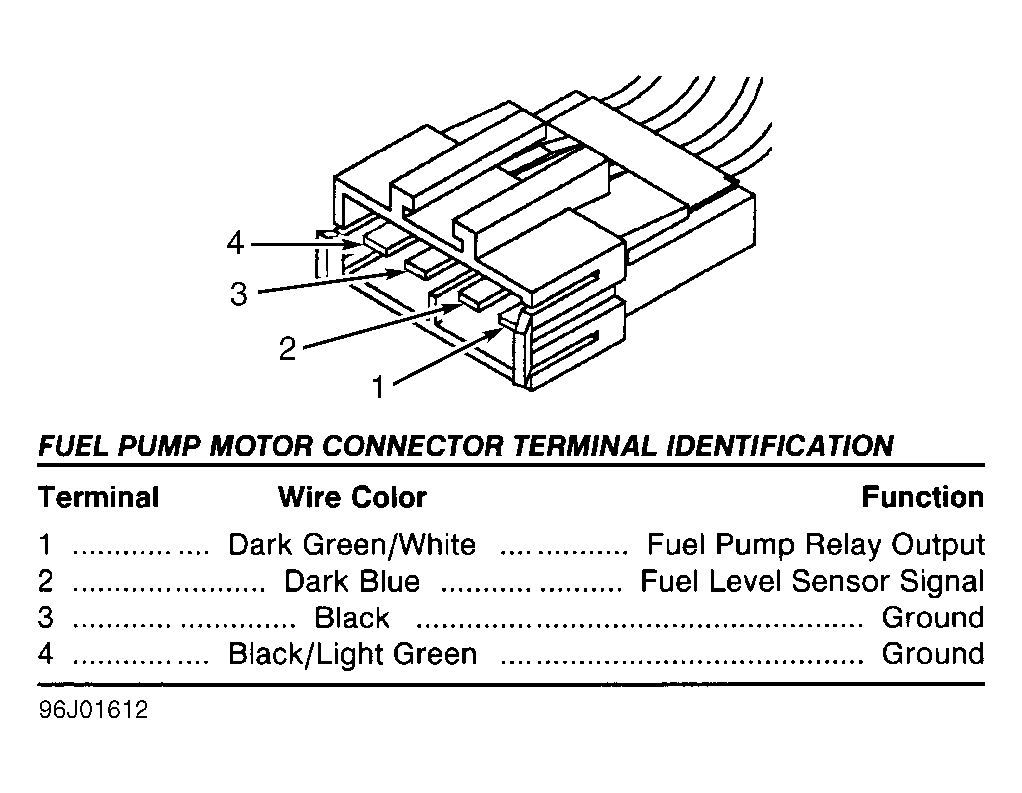

Fig 22: Identifying Fuel Pump Motor Connector (Avenger & Sebring Coupe)

Courtesy of CHRYSLER CORP.

Fig 23: Identifying Fuel Pump Motor Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 24: Identifying Fuel Pump Motor Connector (Neon)

Courtesy of CHRYSLER CORP.

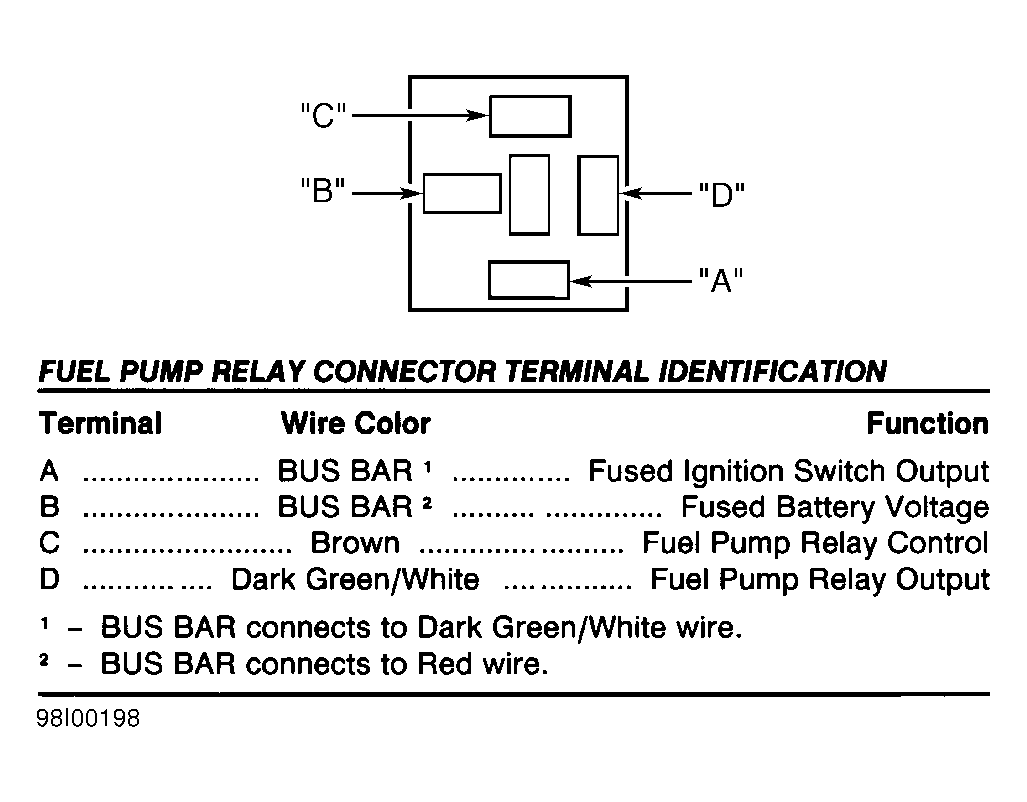

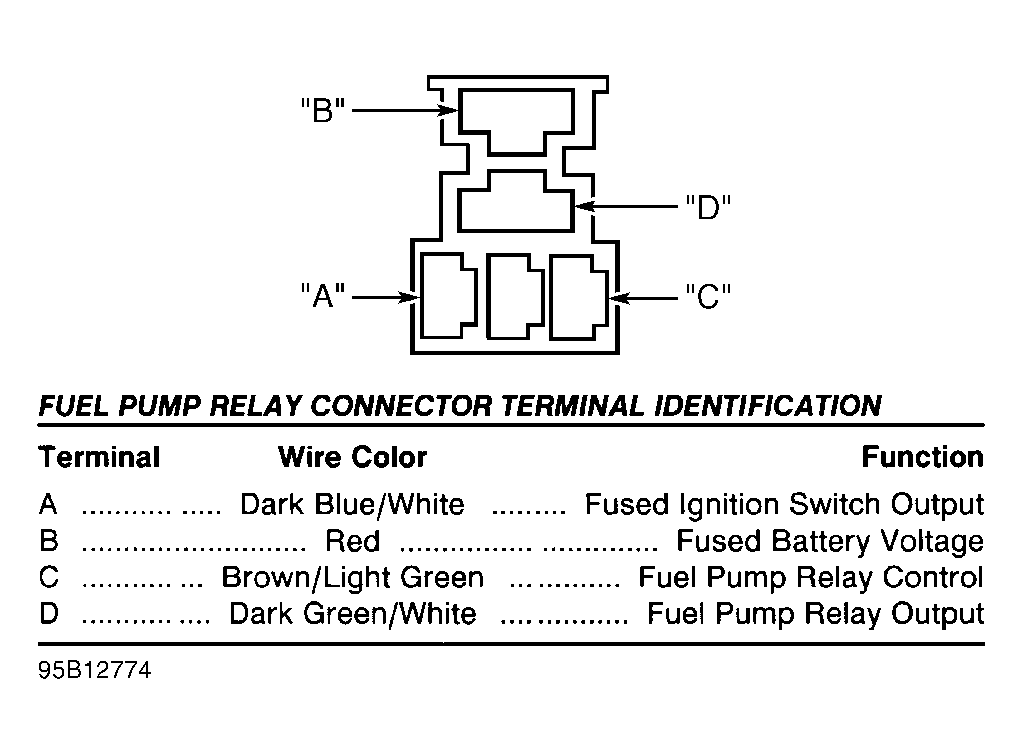

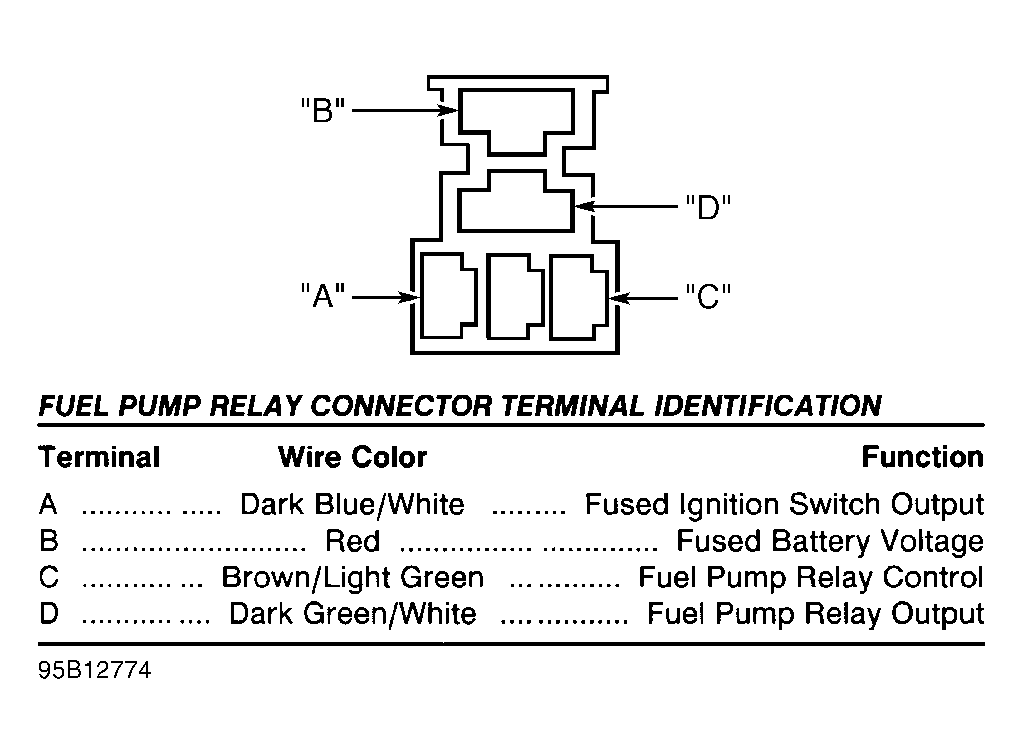

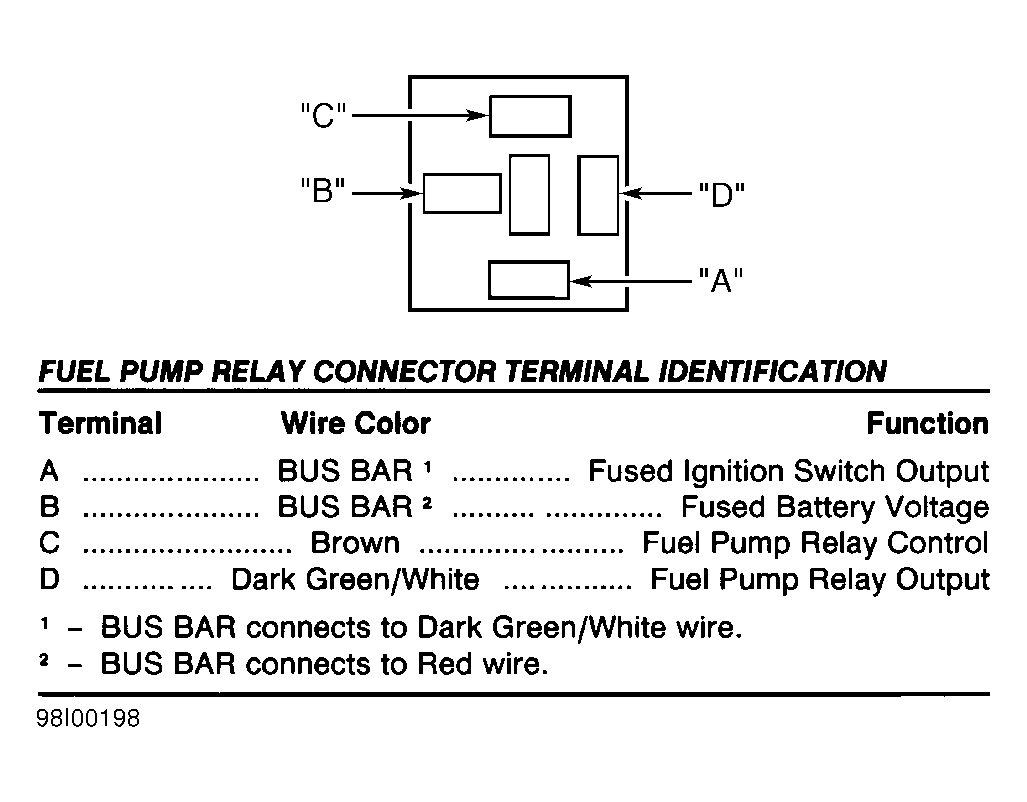

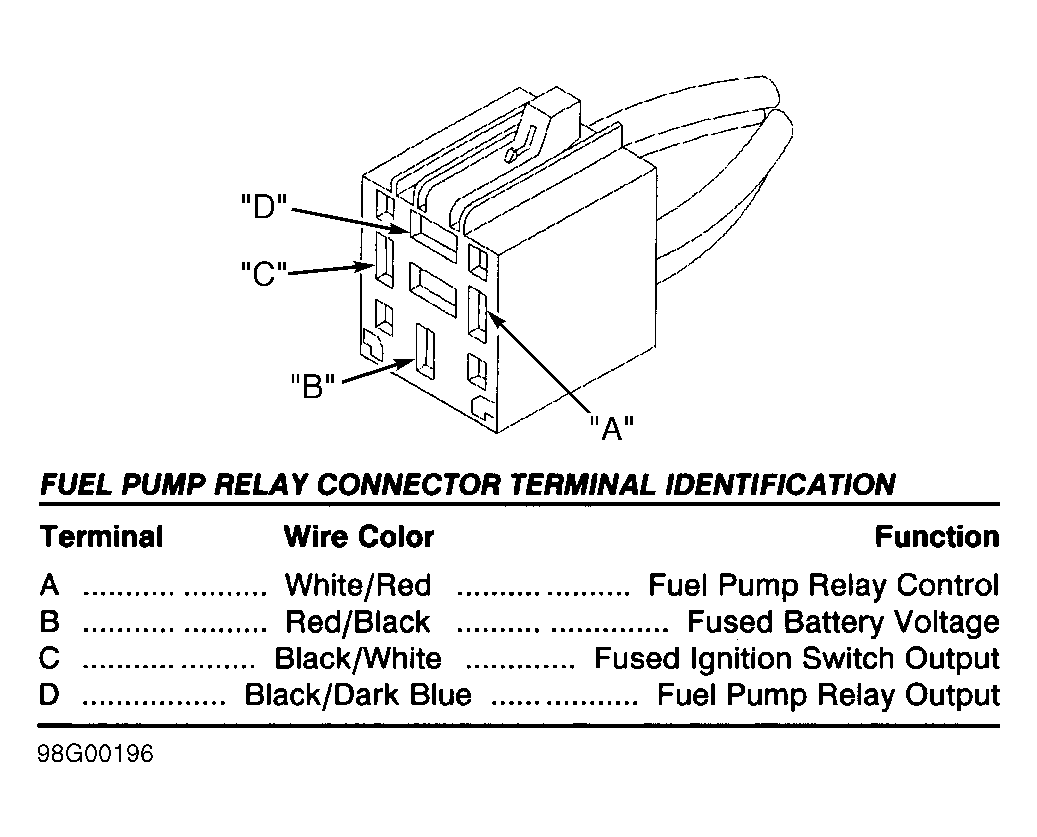

Fig 25: Identifying Fuel Pump Relay Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

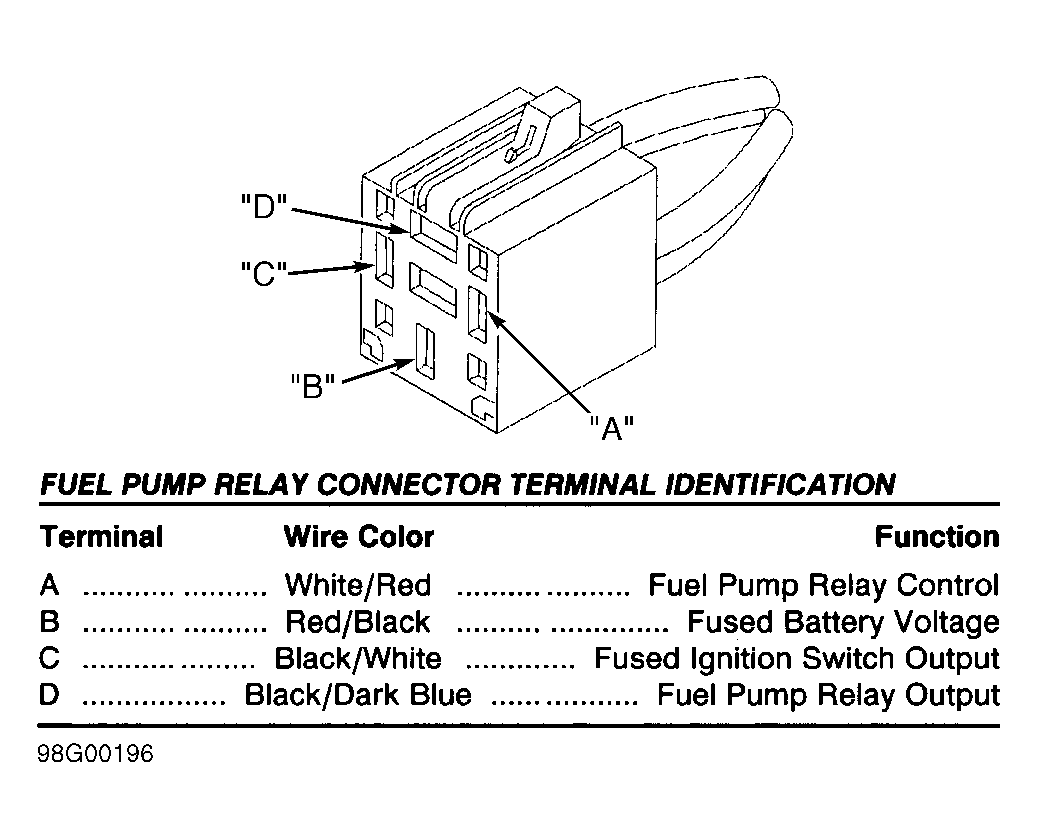

Fig 26: Identifying Fuel Pump Relay Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 27: Identifying Fuel Pump Relay Connector (Neon)

Courtesy of CHRYSLER CORP.

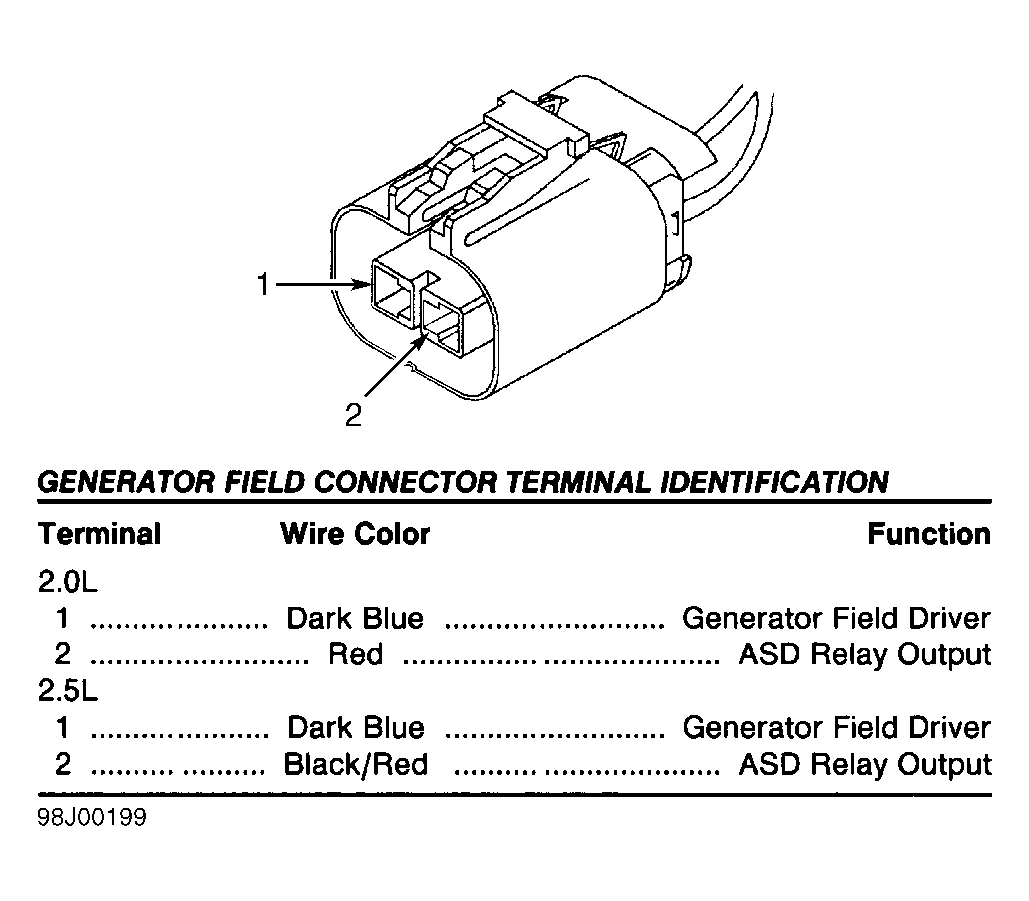

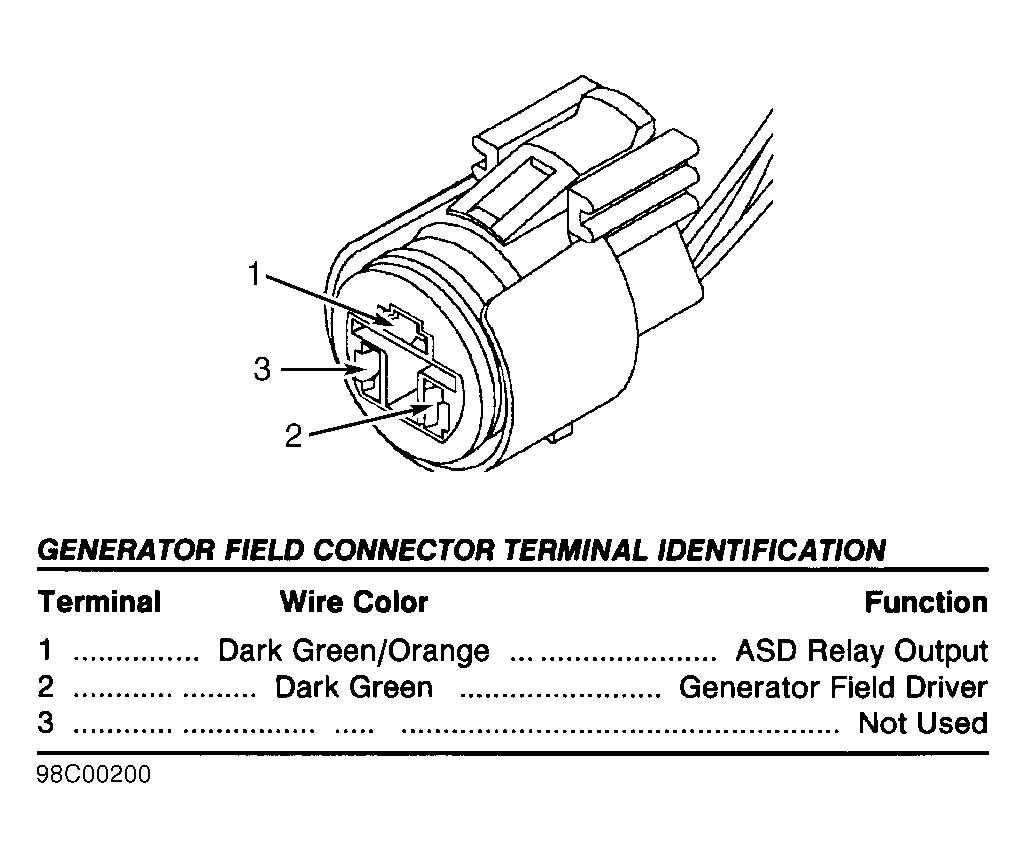

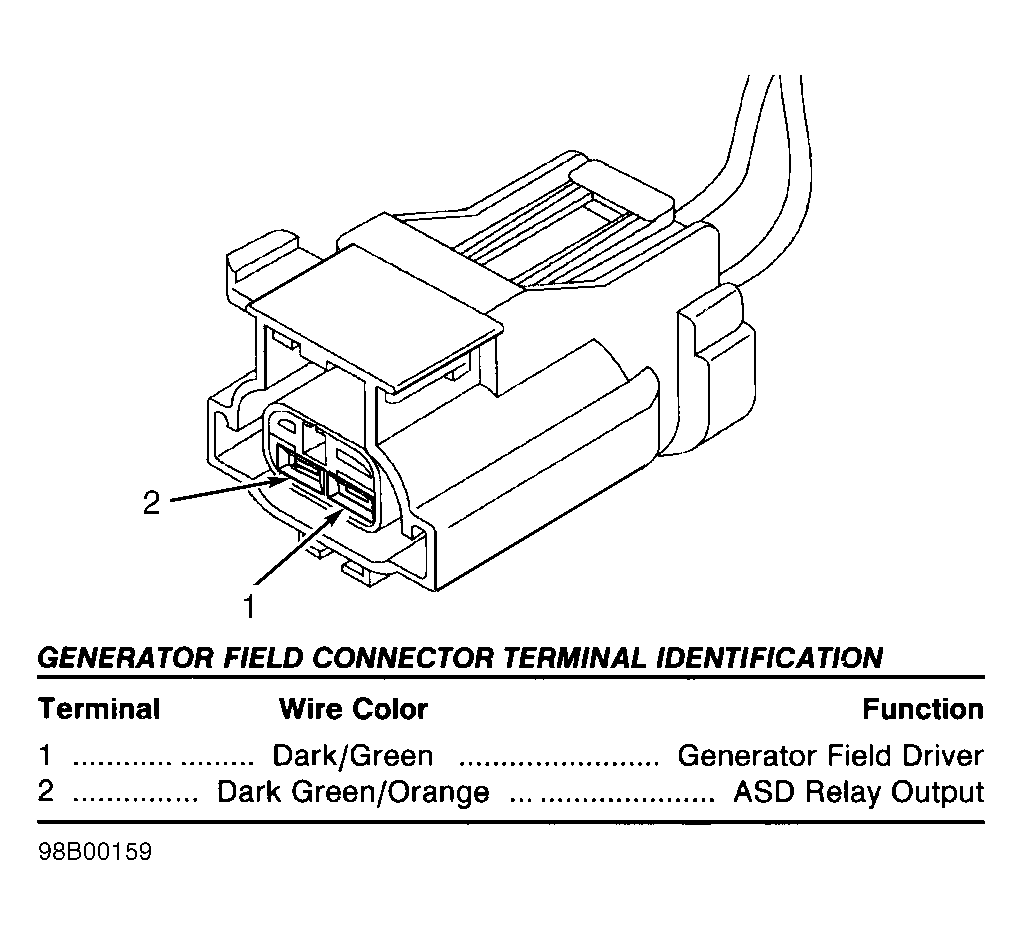

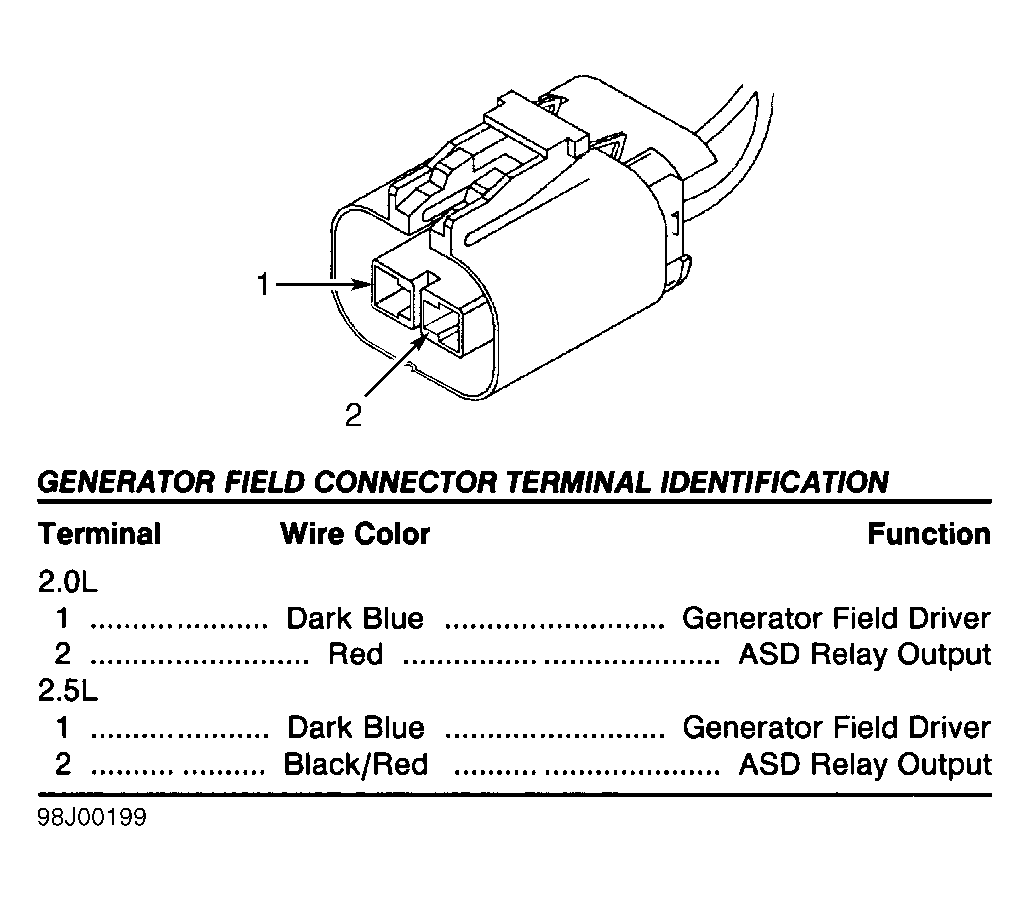

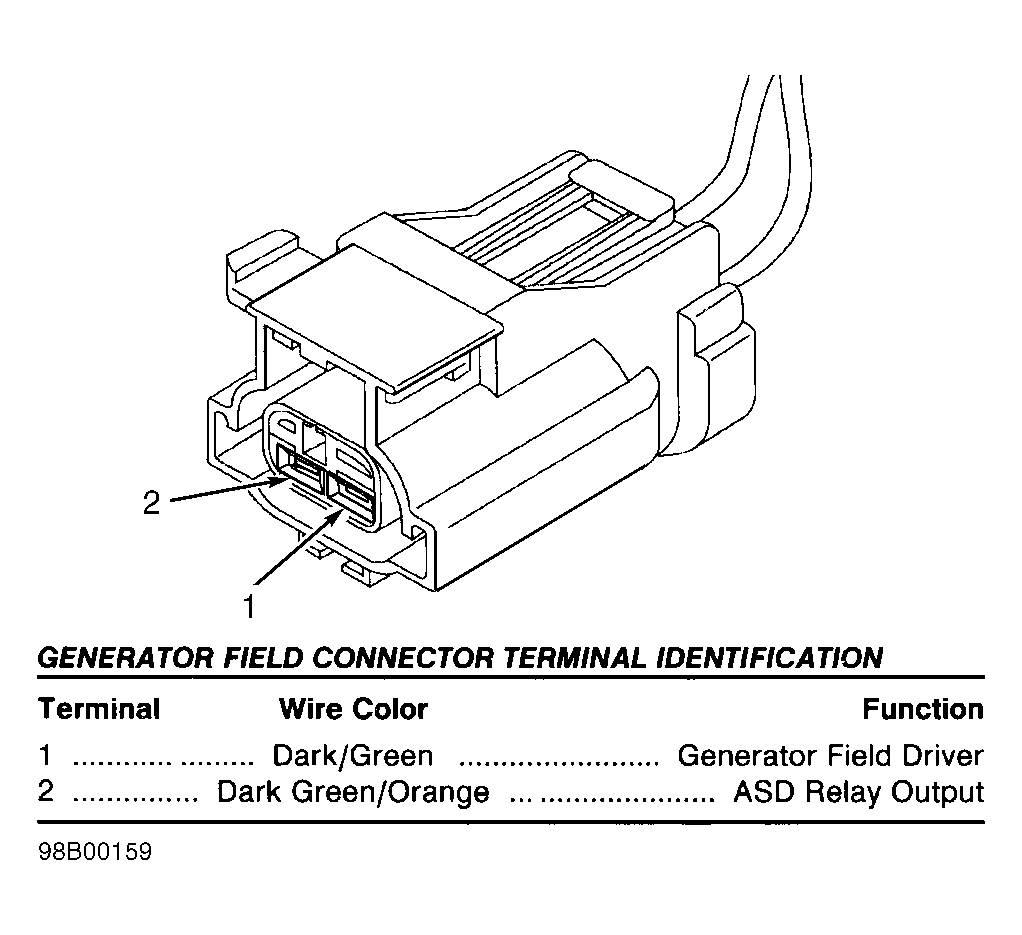

Fig 28: Identifying Generator Field Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

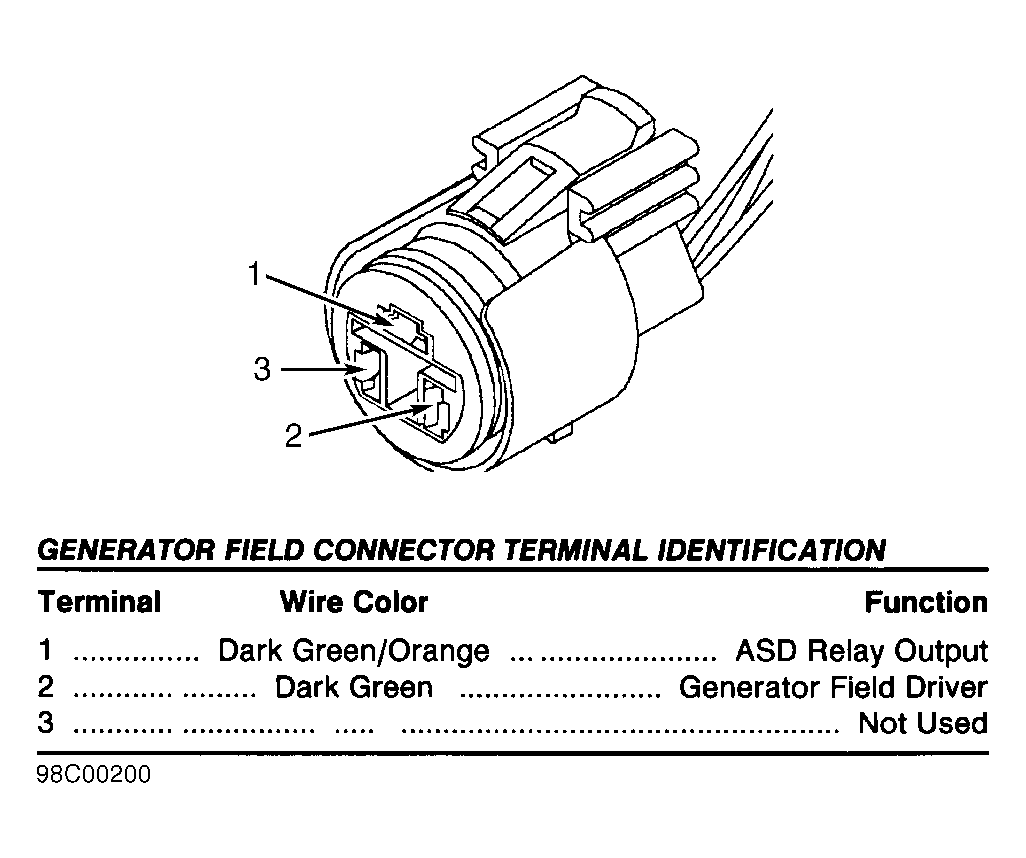

Fig 29: Identifying Generator Field Connector (Breeze, Cirrus, Sebring Conv. & Stratus 2.0L & 2.4L)

Courtesy of CHRYSLER CORP.

Fig 30: Identifying Generator Field Connector (Neon)

Courtesy of CHRYSLER CORP.

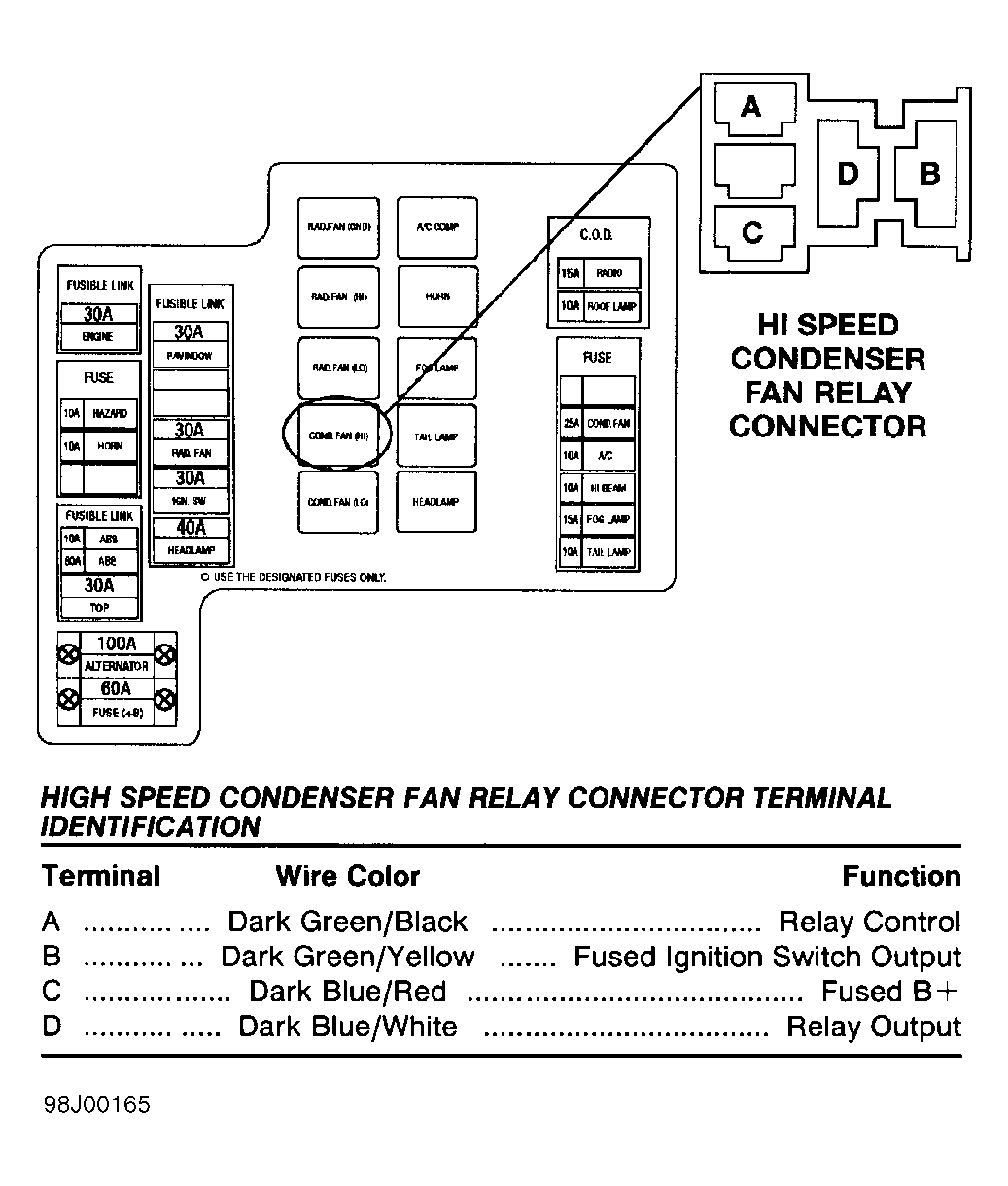

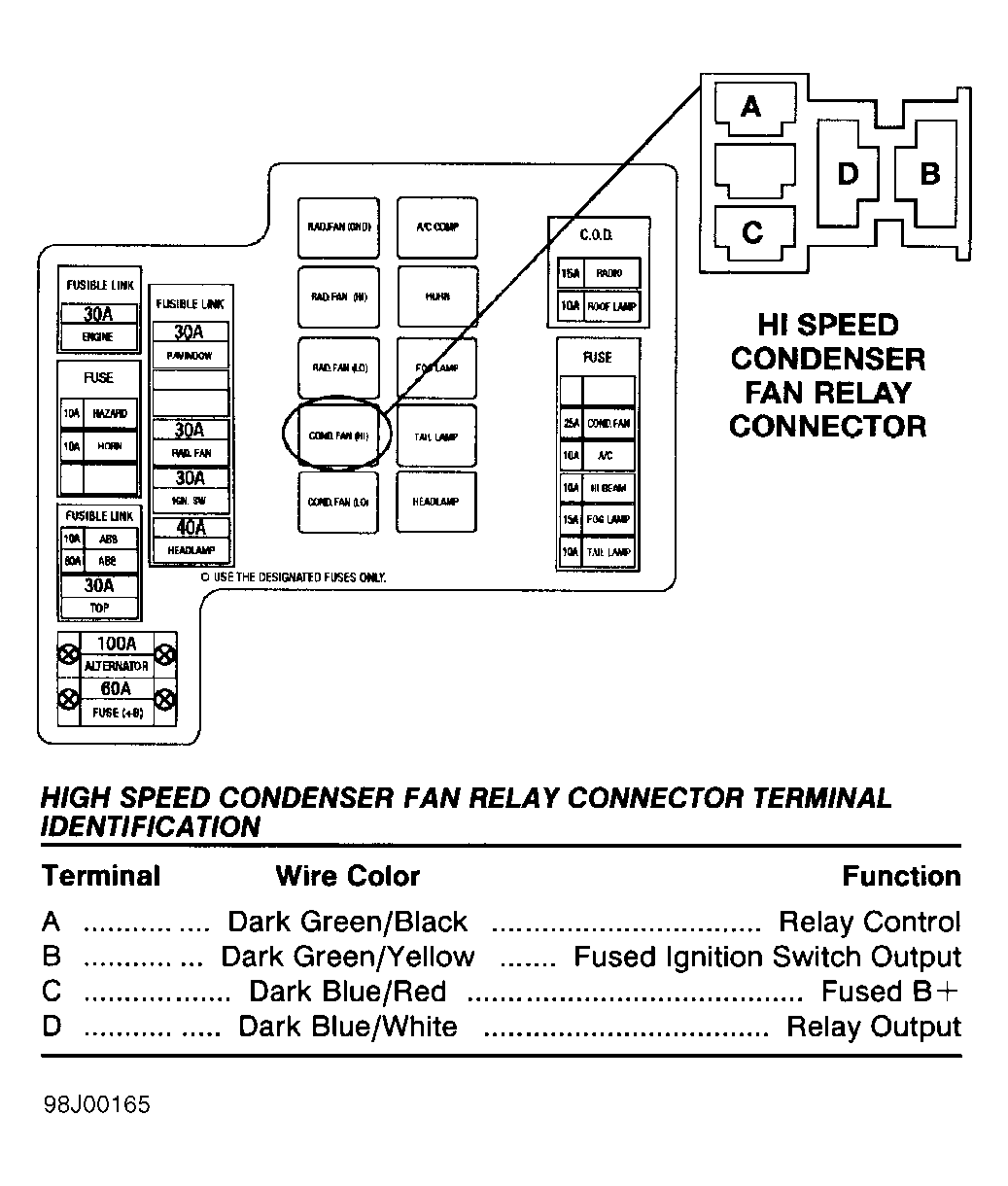

Fig 31: Identifying High Speed Condenser Fan Relay Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

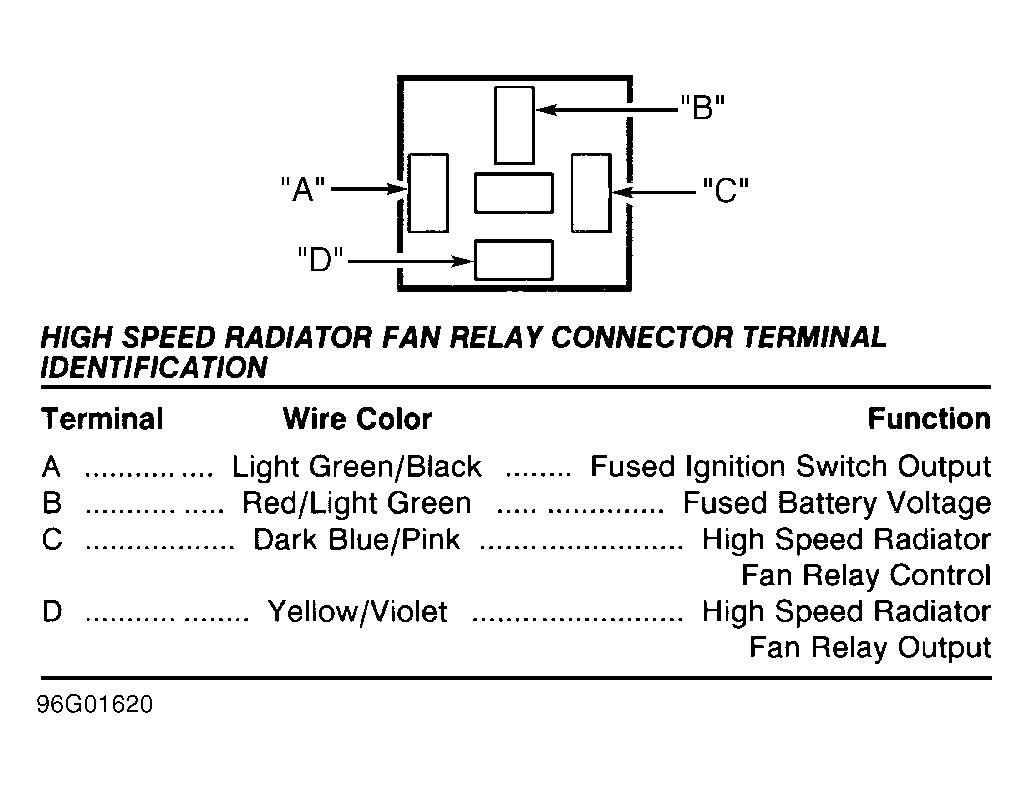

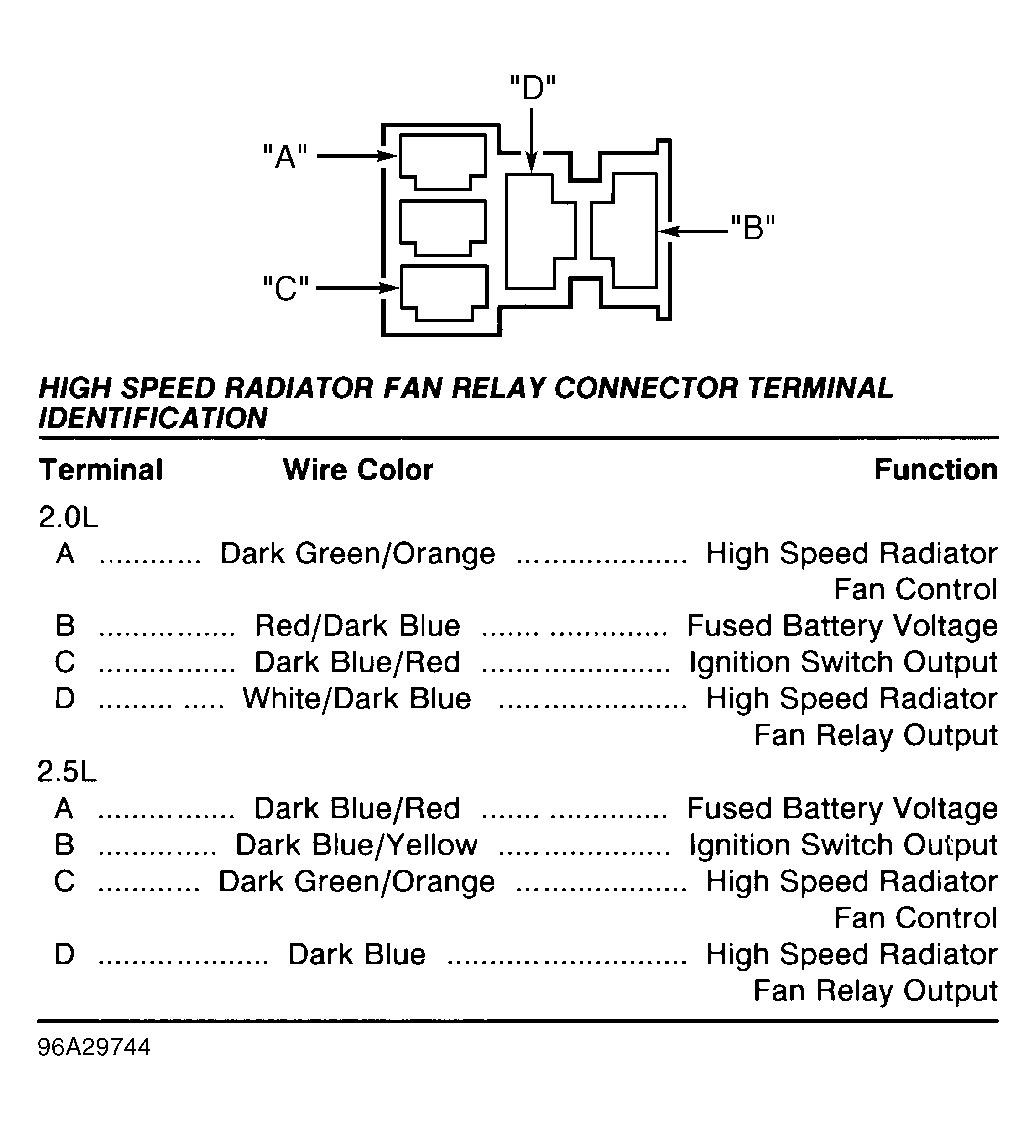

Fig 32: Identifying High Speed Radiator Fan Relay Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

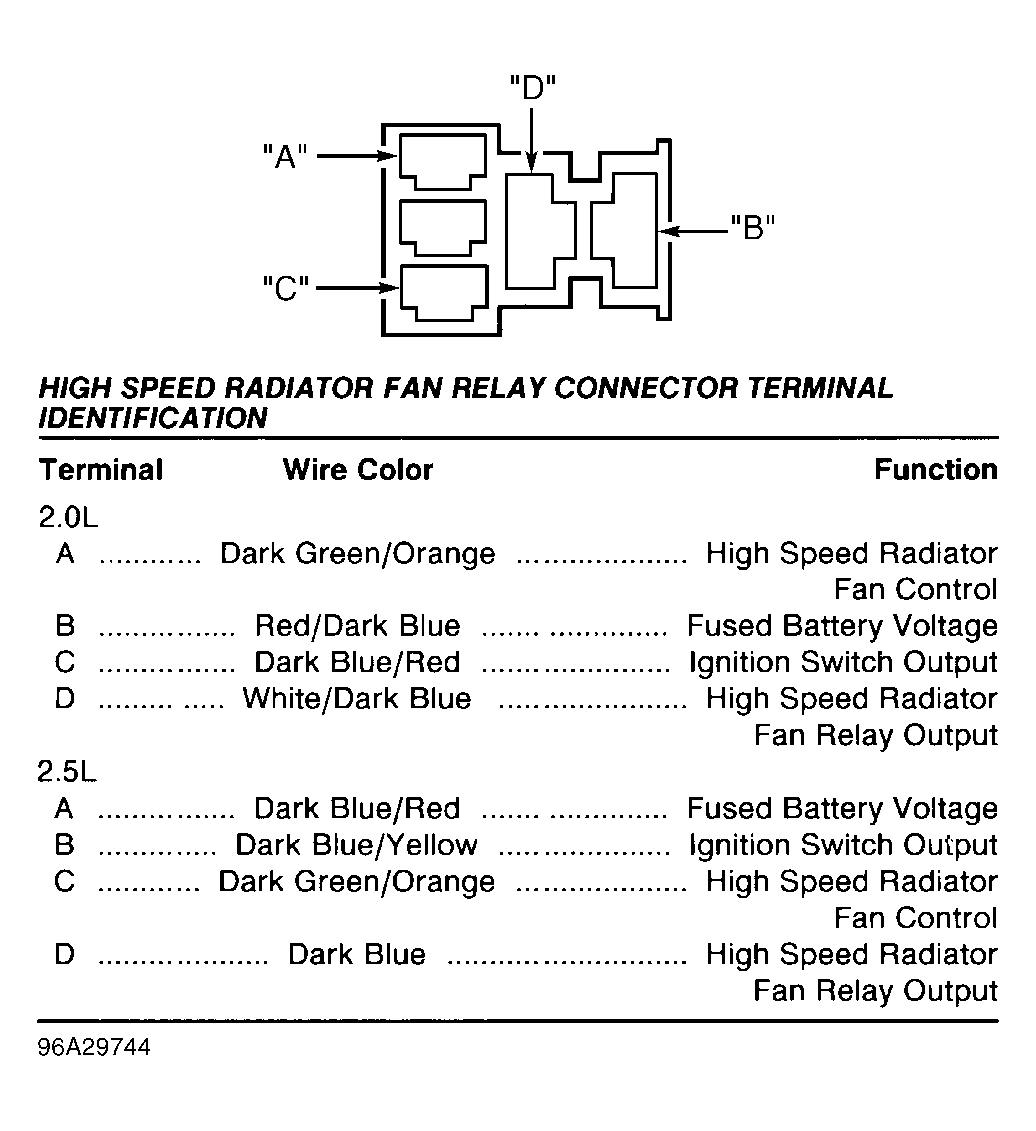

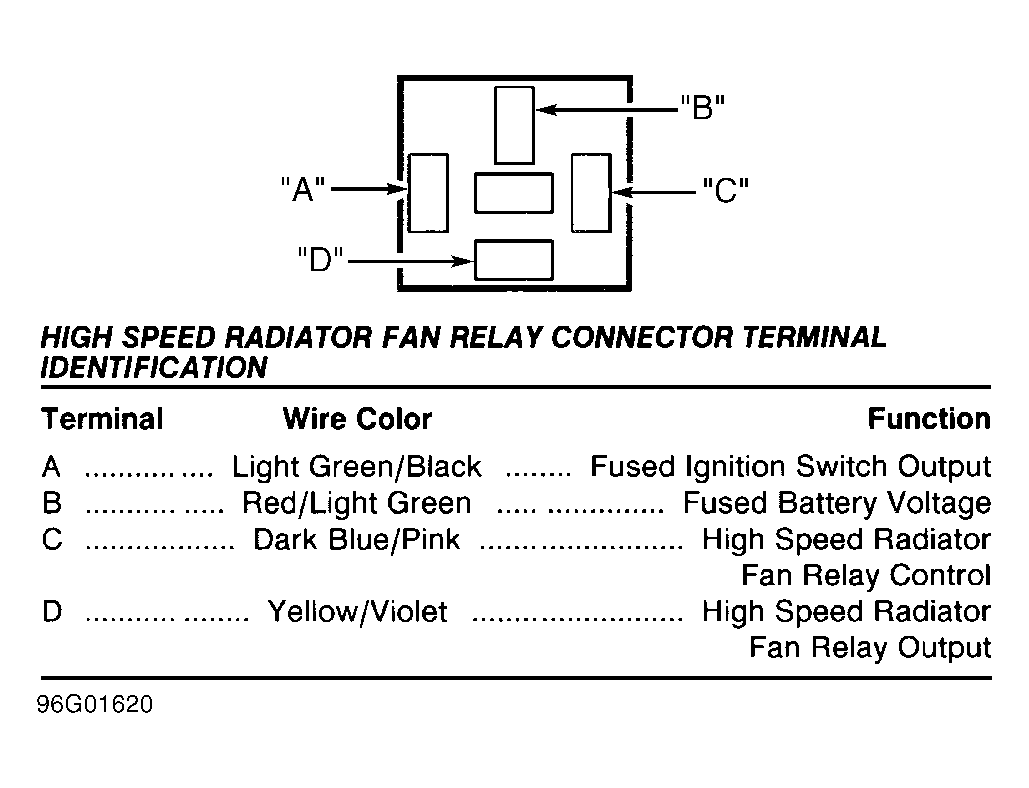

Fig 33: Identifying High Speed Radiator Fan Relay Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

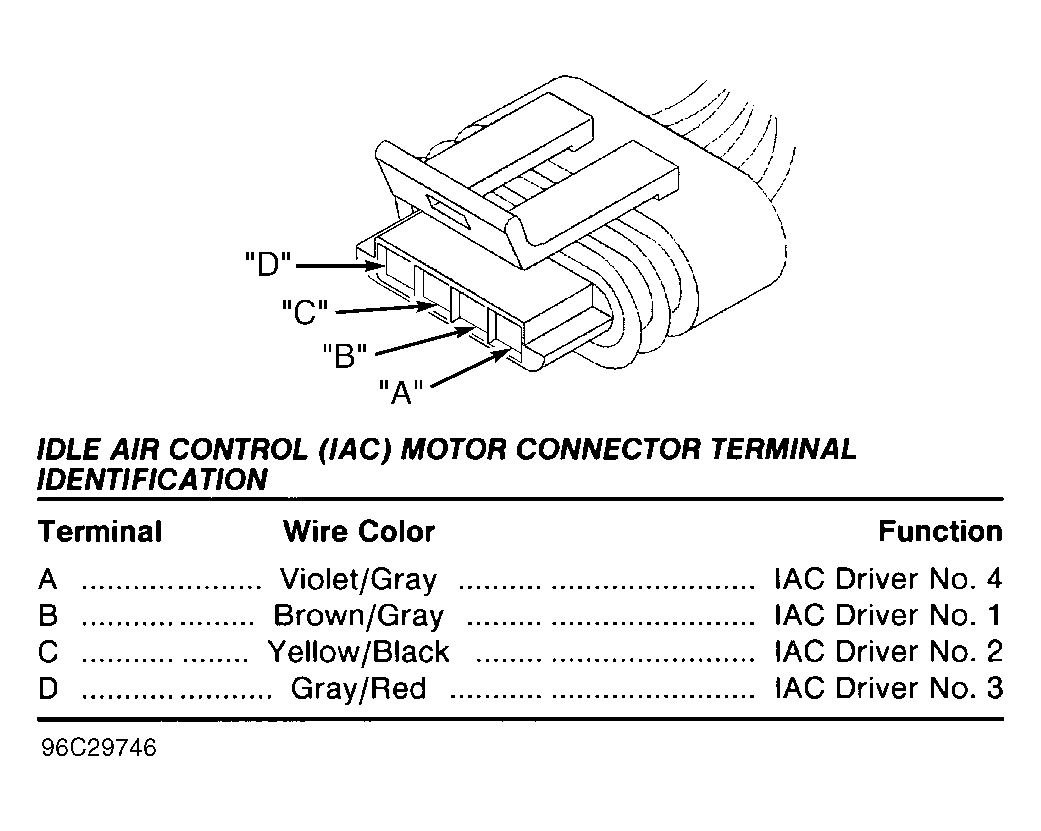

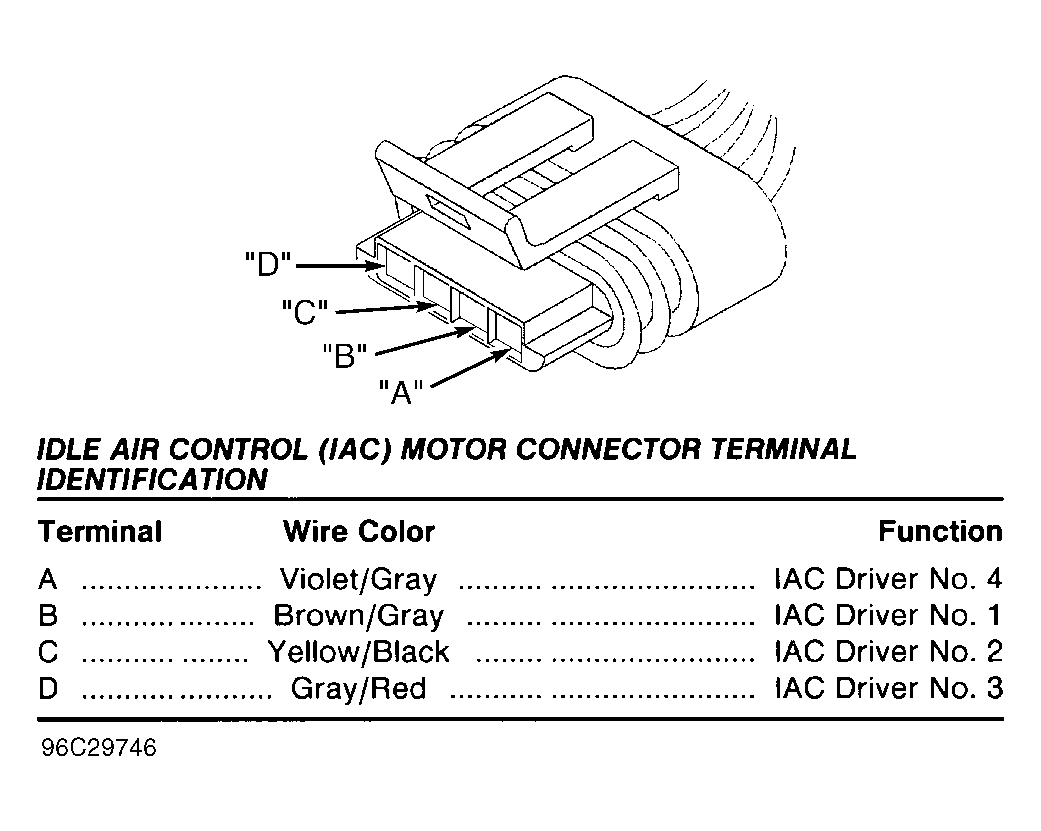

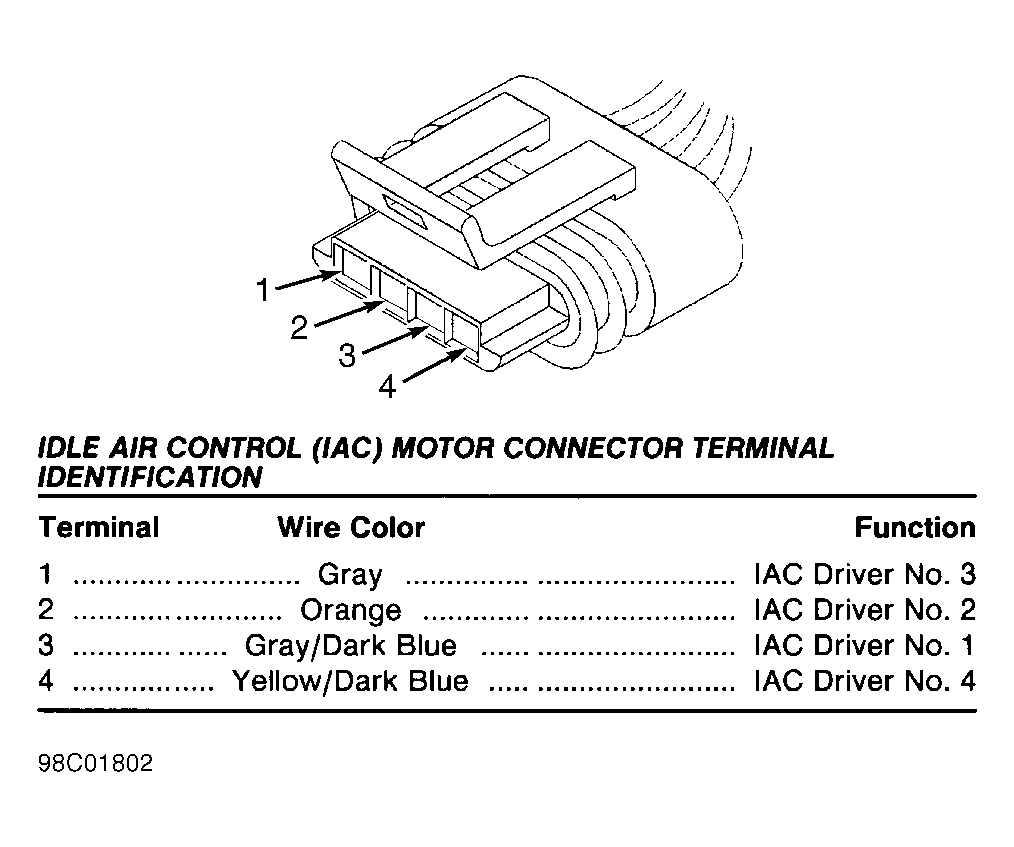

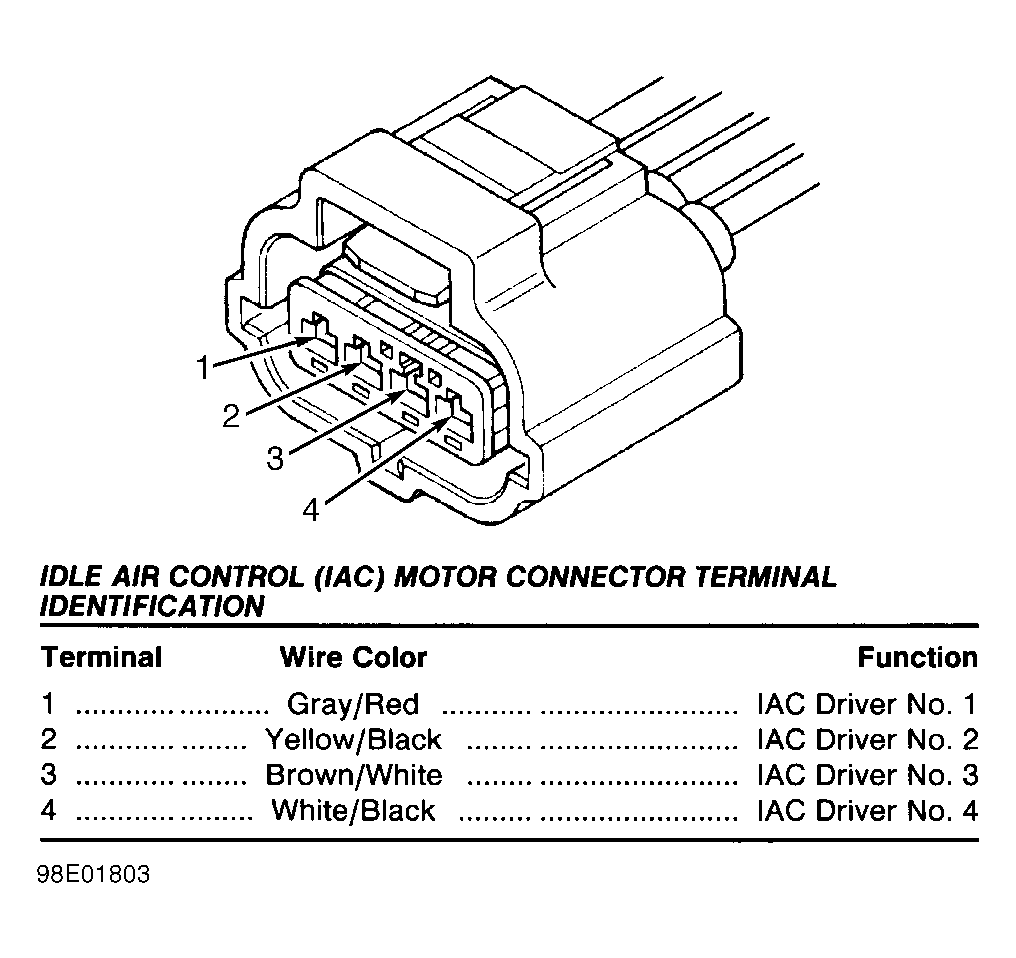

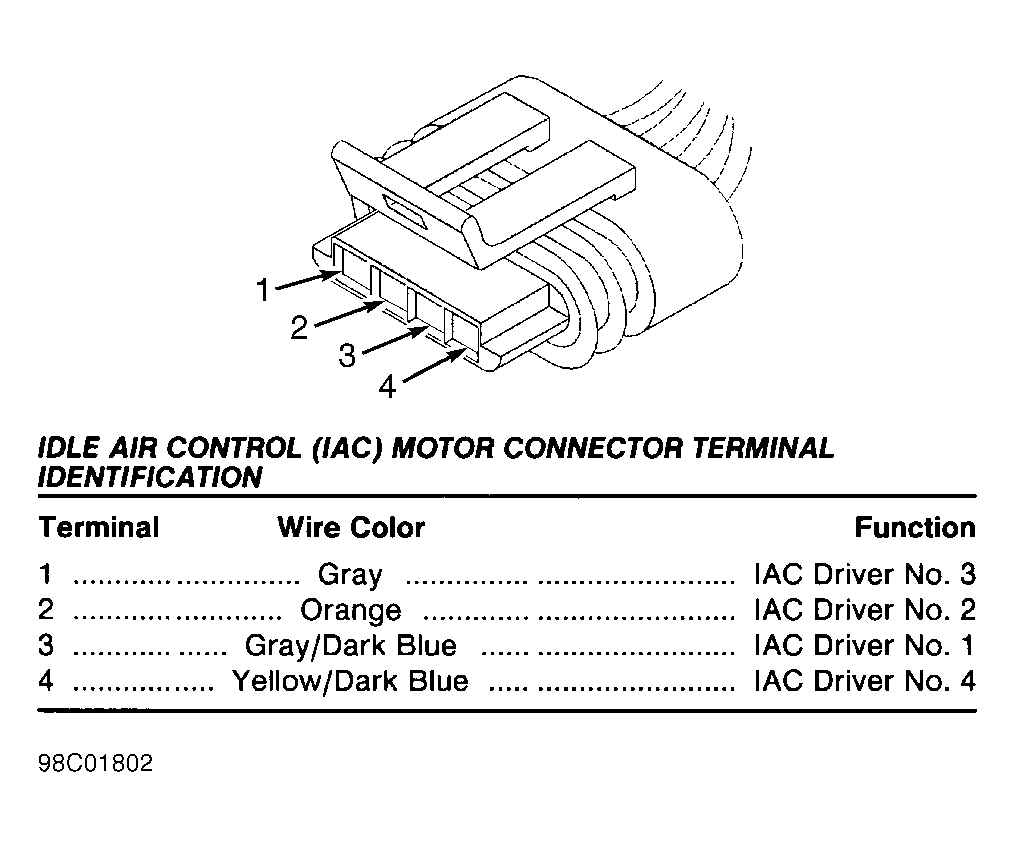

Fig 34: Identifying Idle Air Control (IAC) Motor Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 35: Identifying Idle Air Control (IAC) Motor Connector (Breeze, Sebring Conv. & Stratus 2.4L & 2.5L)

Courtesy of CHRYSLER CORP.

Fig 36: Identifying Idle Air Control (IAC) Motor Connector (Breeze & Stratus (2.0L) & Neon)

Courtesy of CHRYSLER CORP.

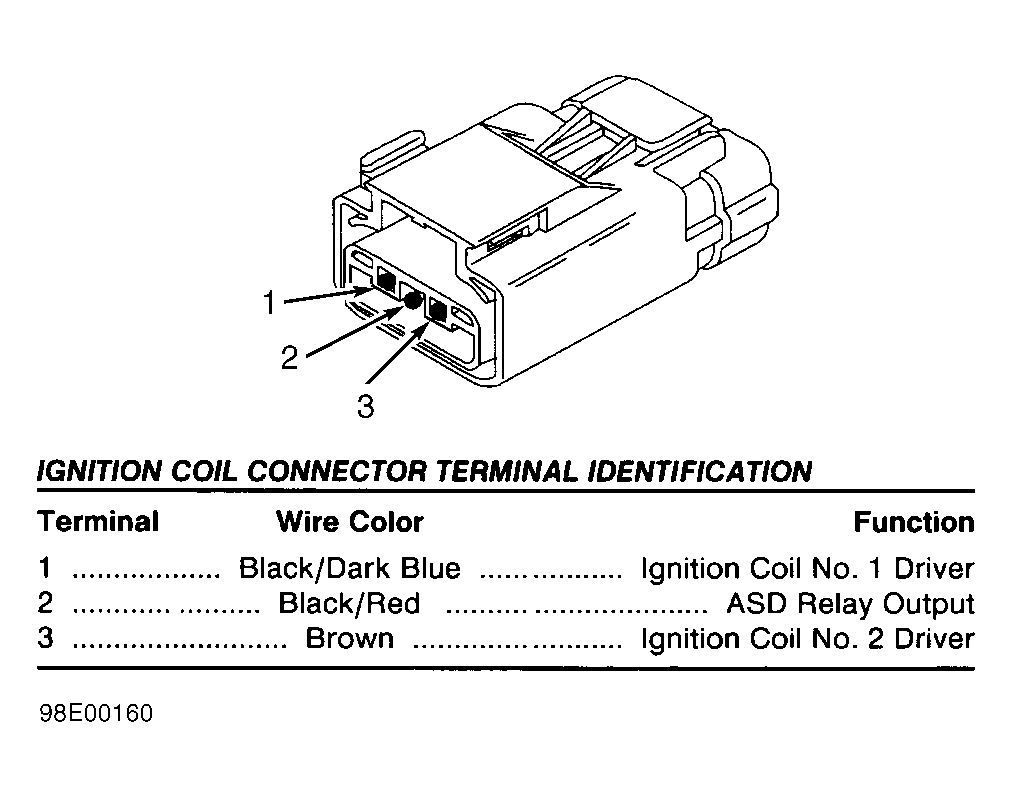

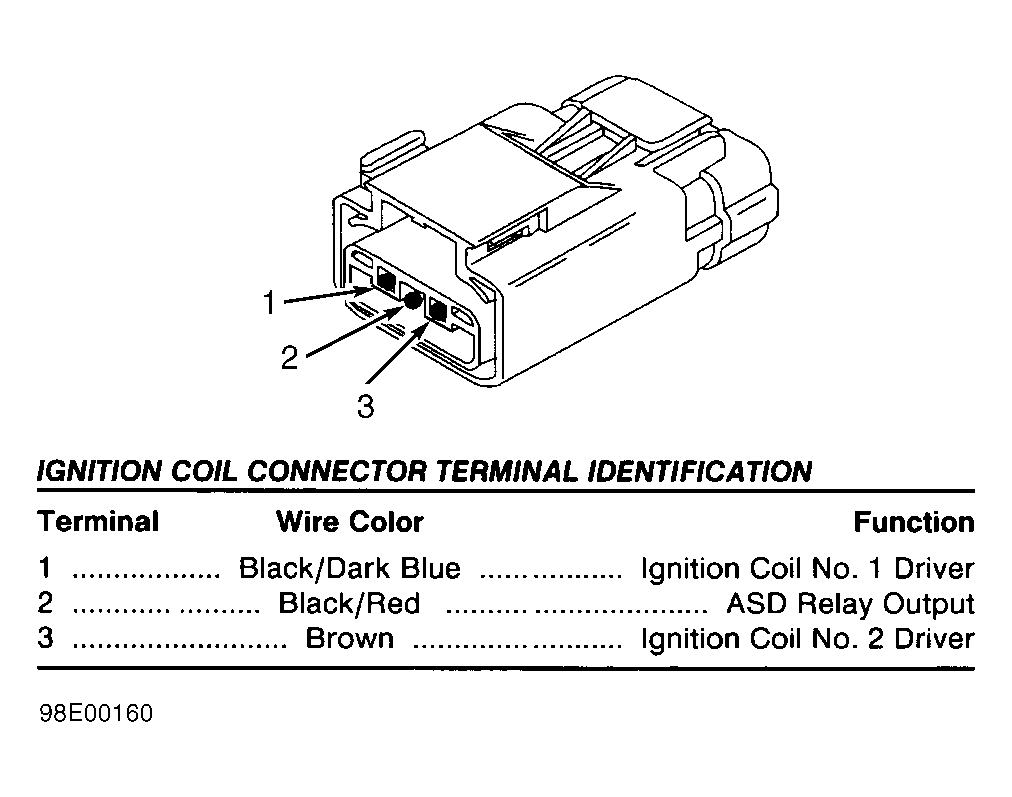

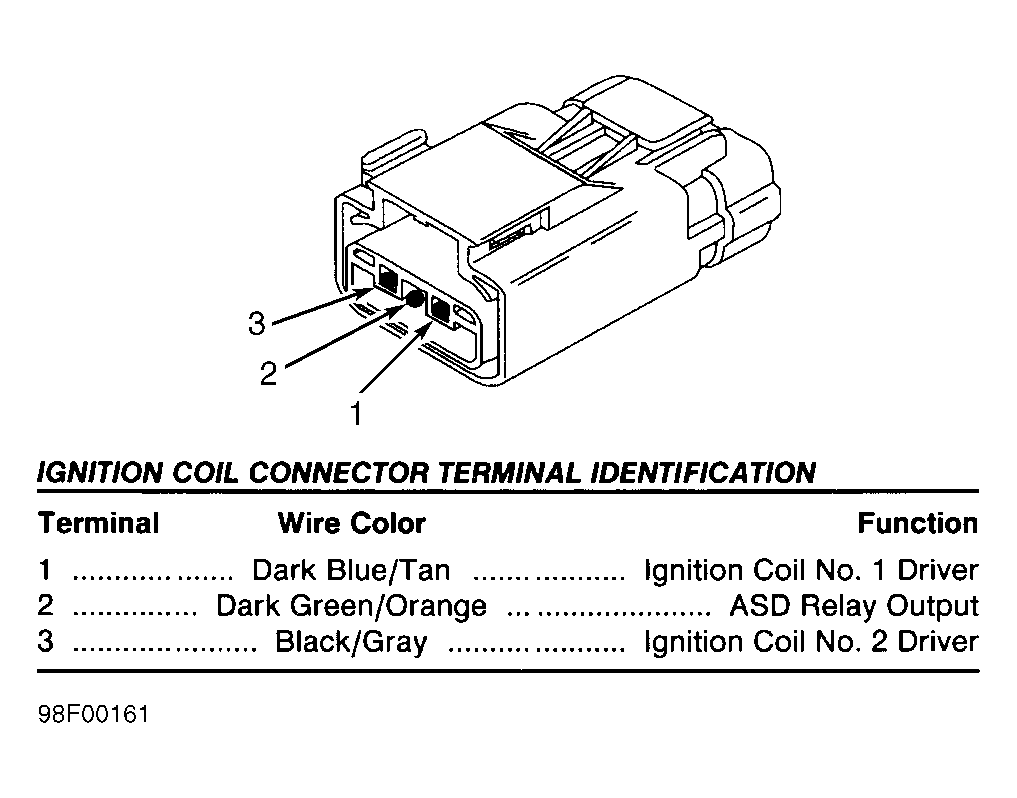

Fig 37: Identifying Ignition Coil Connector (Avenger, Sebring Coupe & Talon 2.0L)

Courtesy of CHRYSLER CORP.

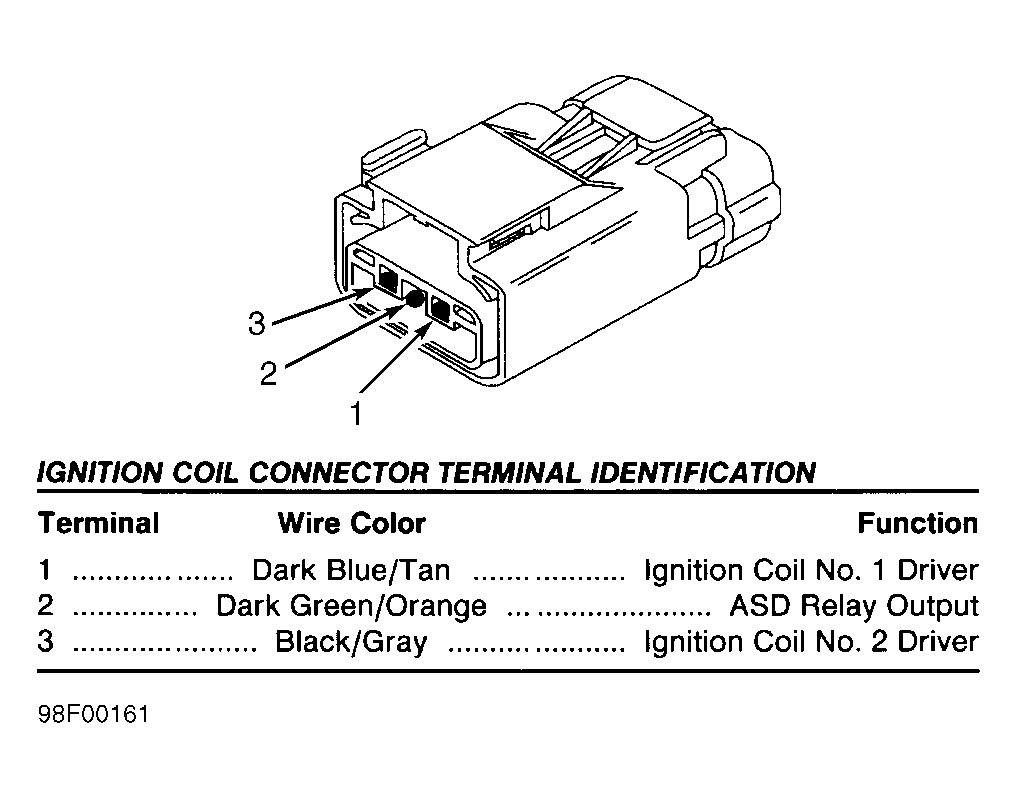

Fig 38: Identifying Ignition Coil Connector (Breeze, Cirrus, Sebring Convertible, Neon & Stratus 2.0L & 2.4L)

Courtesy of CHRYSLER CORP.

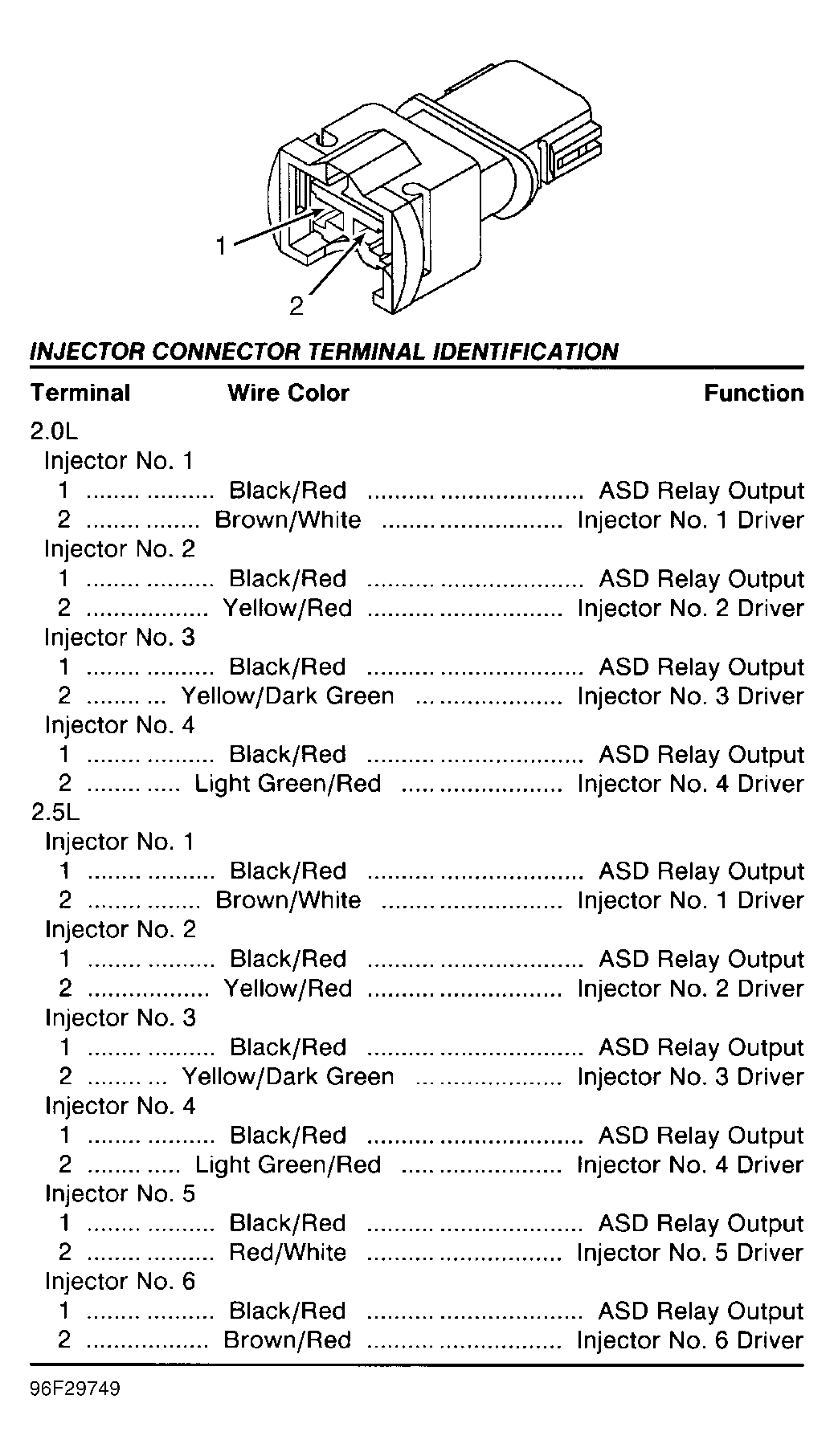

Fig 39: Identifying Injector Connectors (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

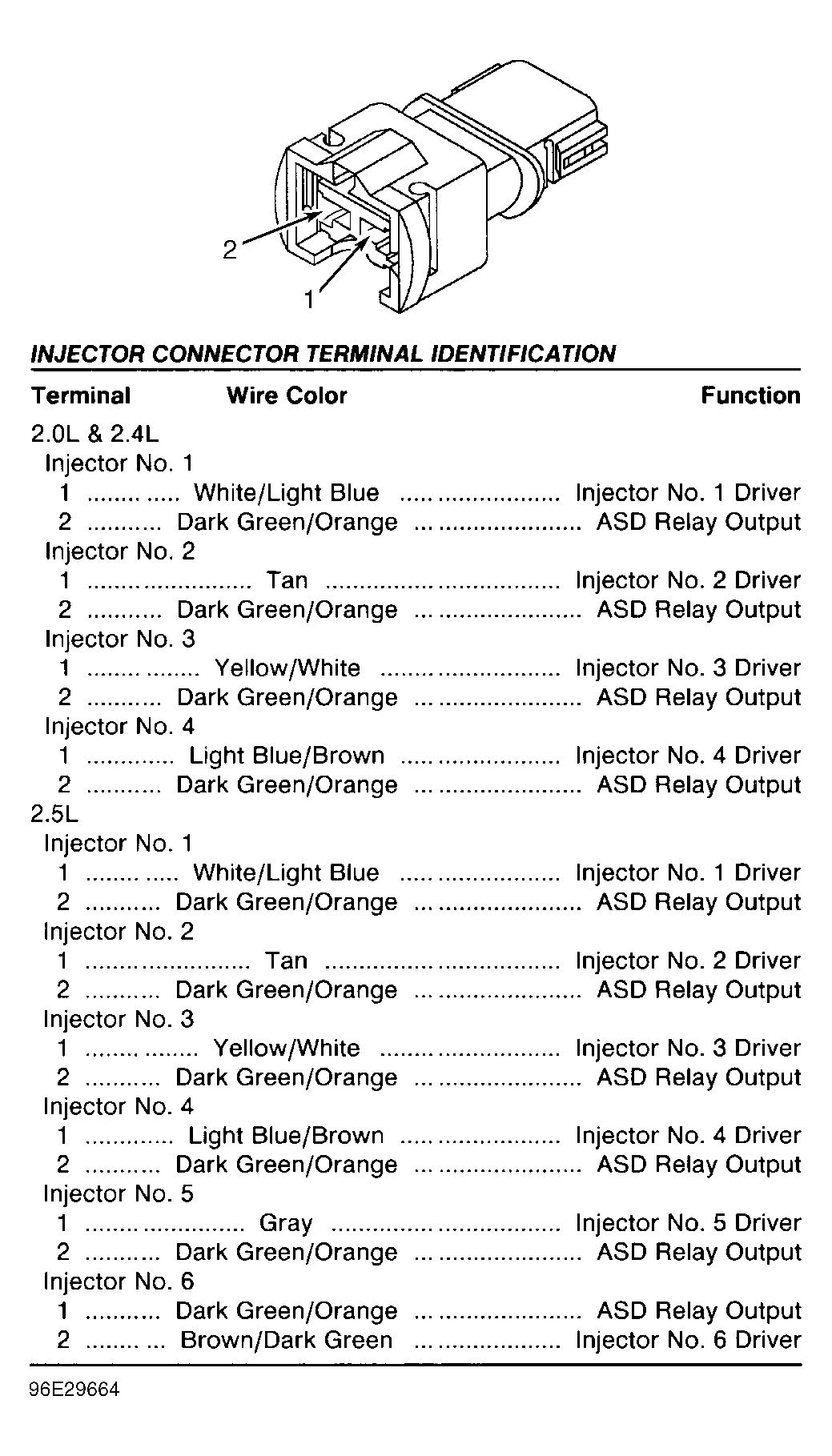

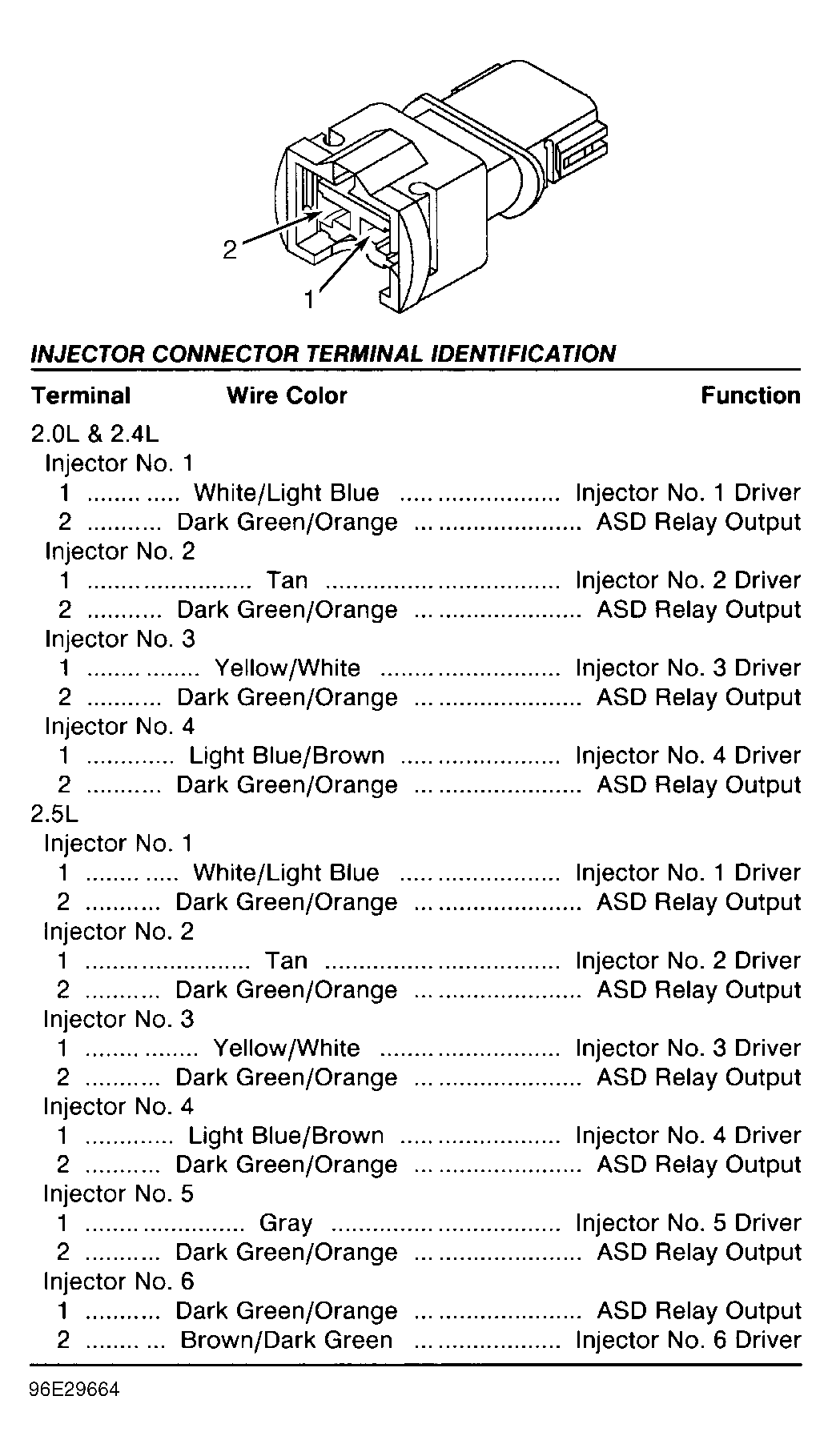

Fig 40: Identifying Injector Connectors (Breeze, Cirrus, Neon, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

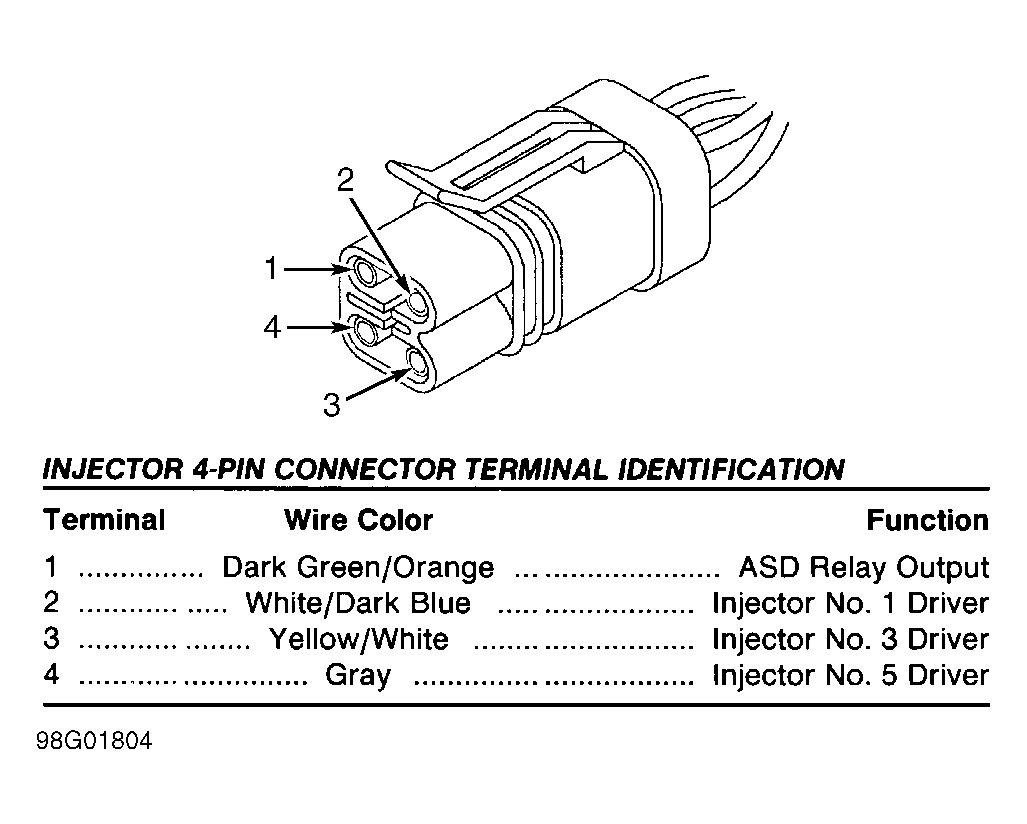

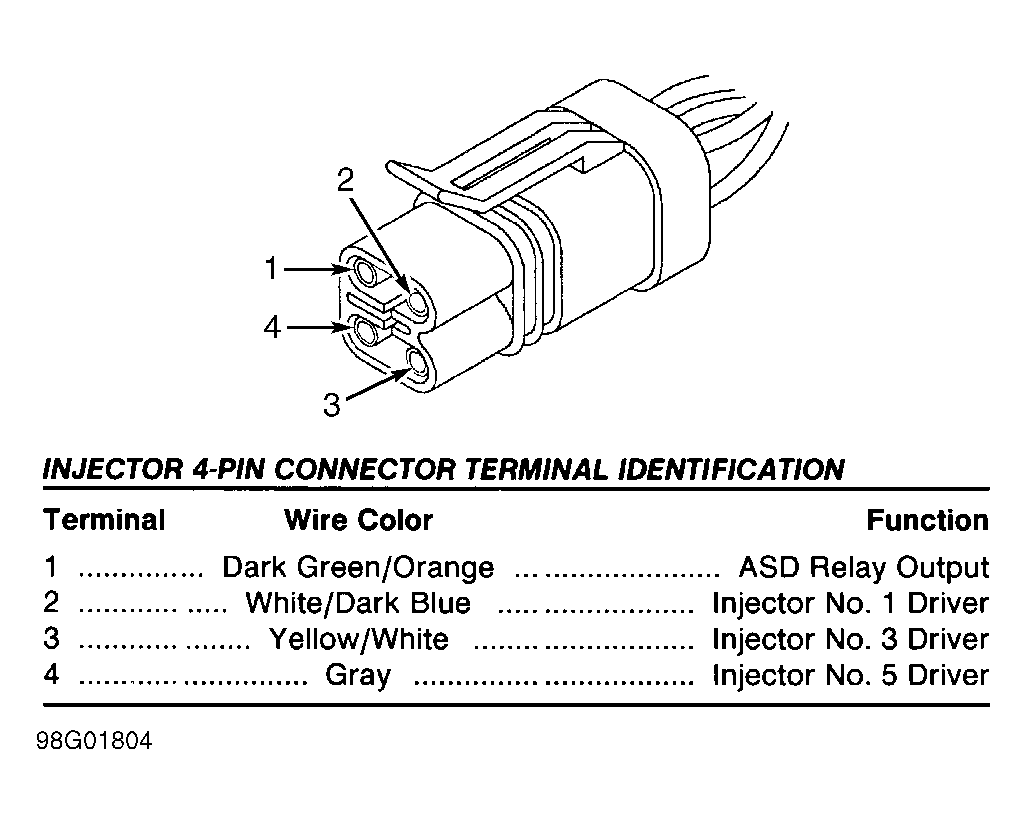

Fig 41: Identifying Injector 4-Pin Connector (PCM Side) (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

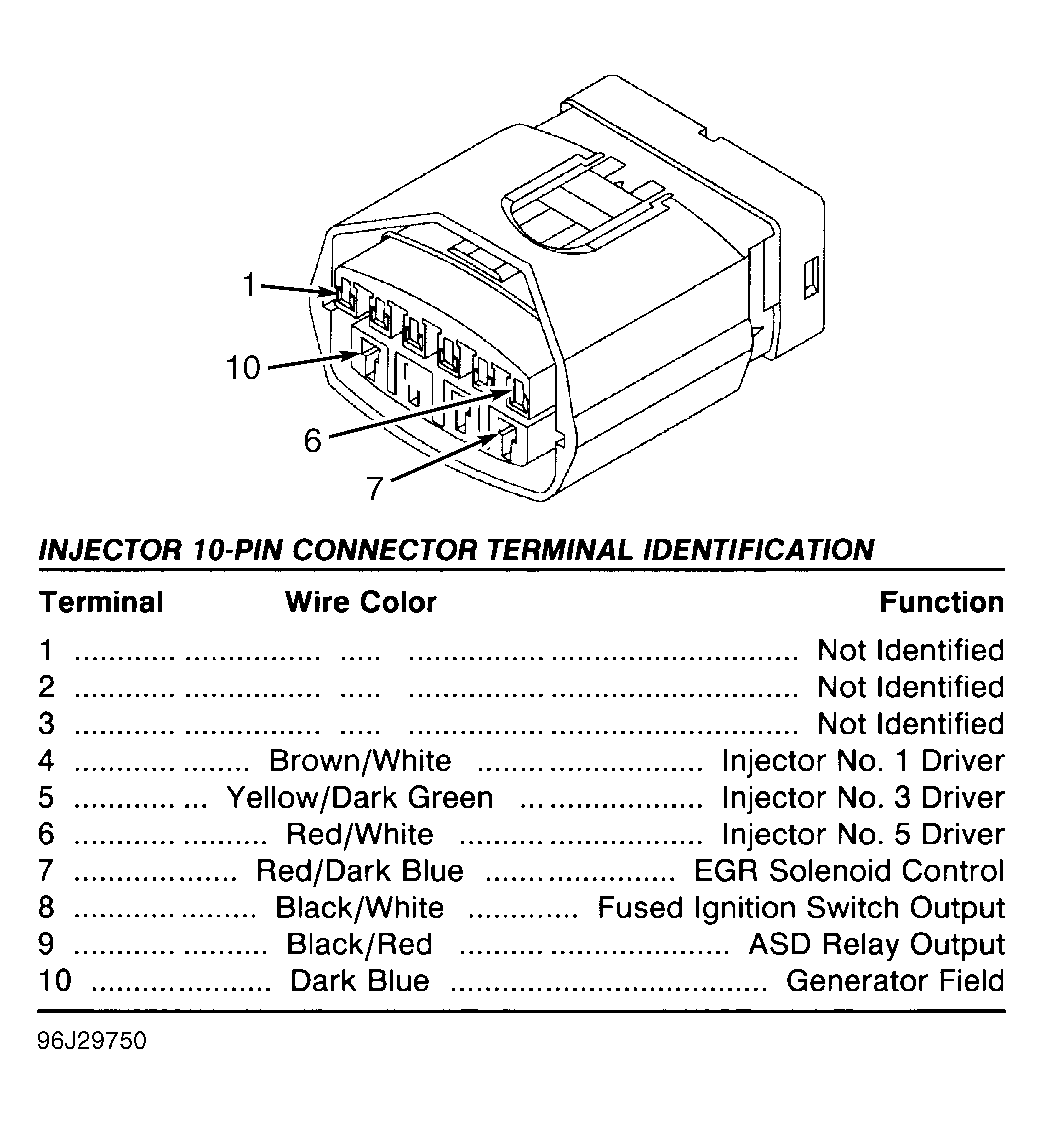

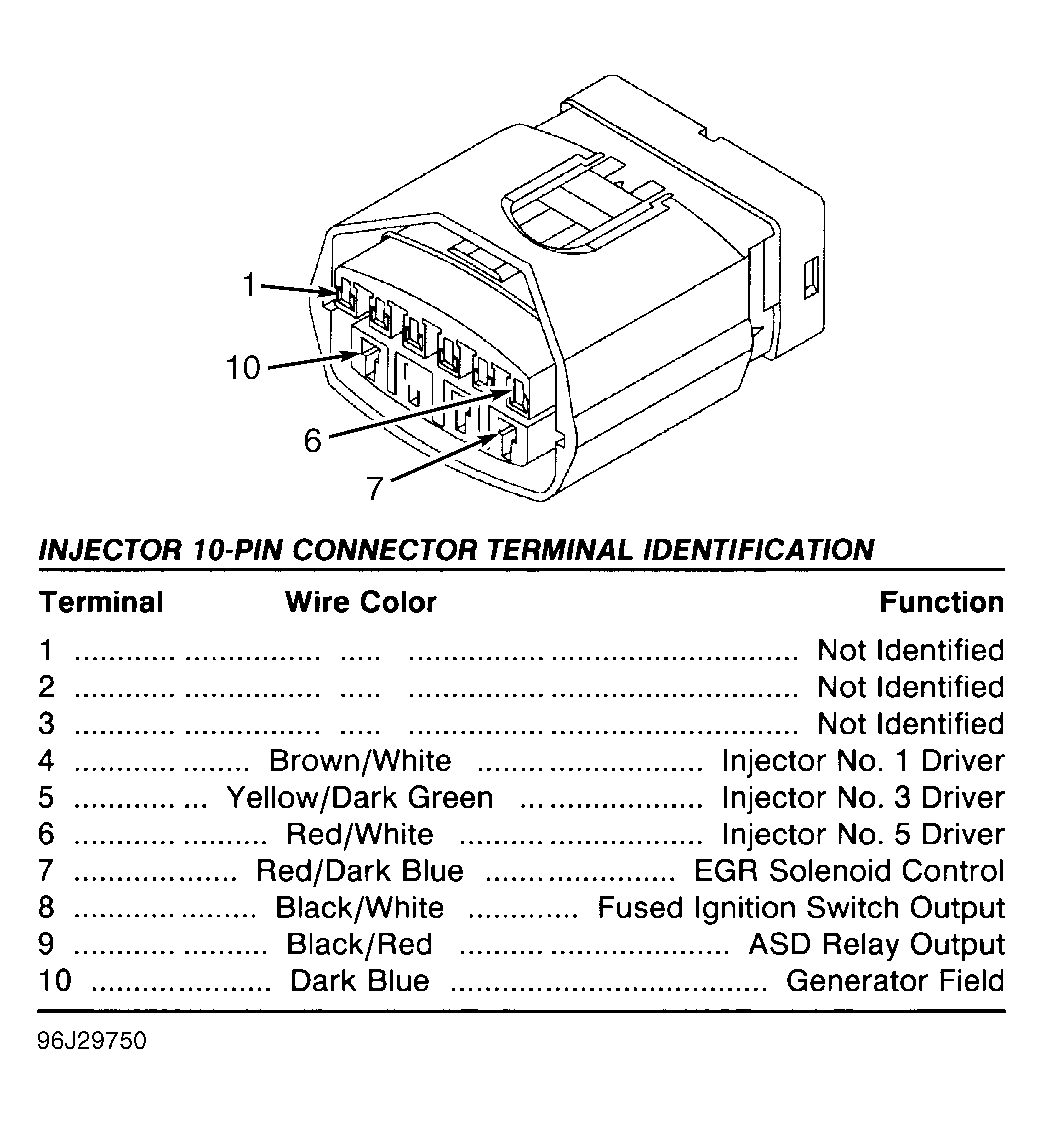

Fig 42: Identifying Injector 10-Pin Connector (PCM Side) (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

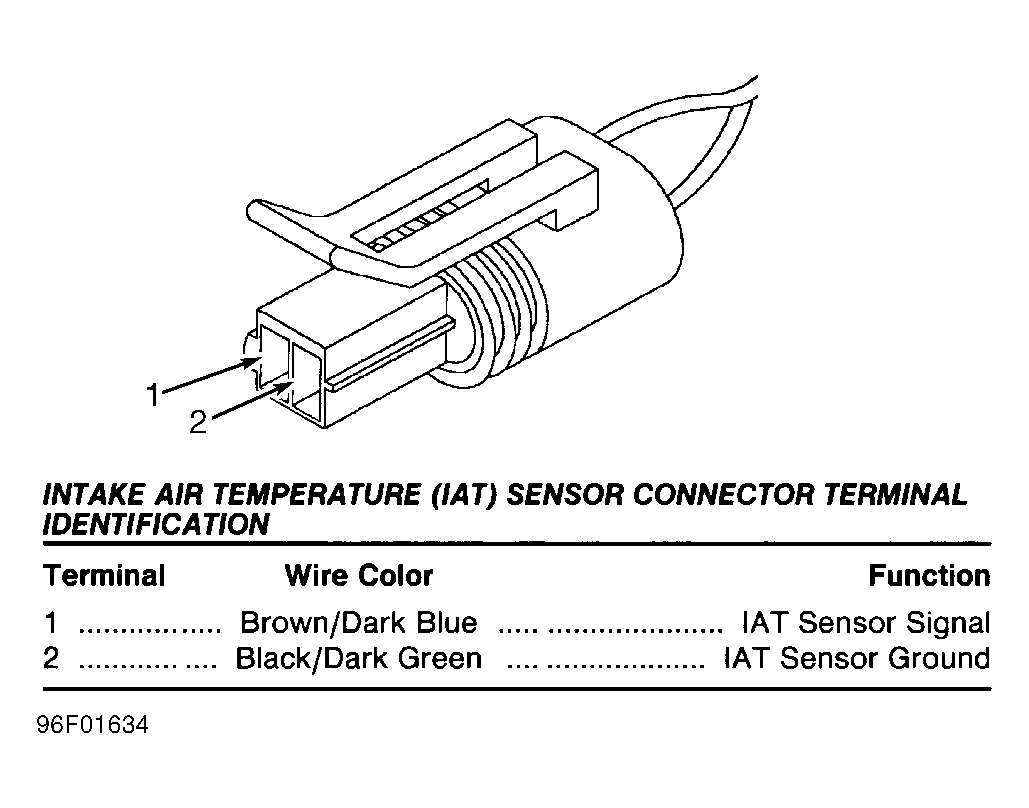

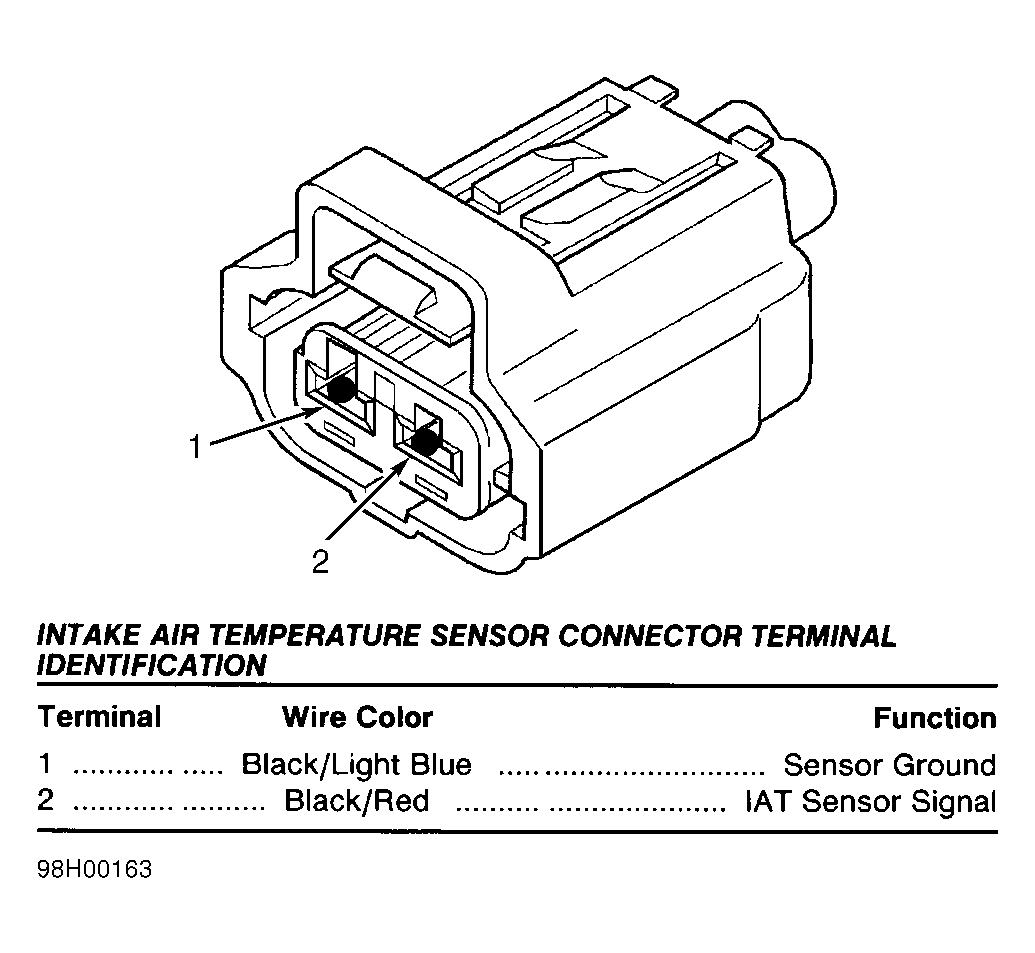

Fig 43: Identifying Intake Air Temperature Sensor Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

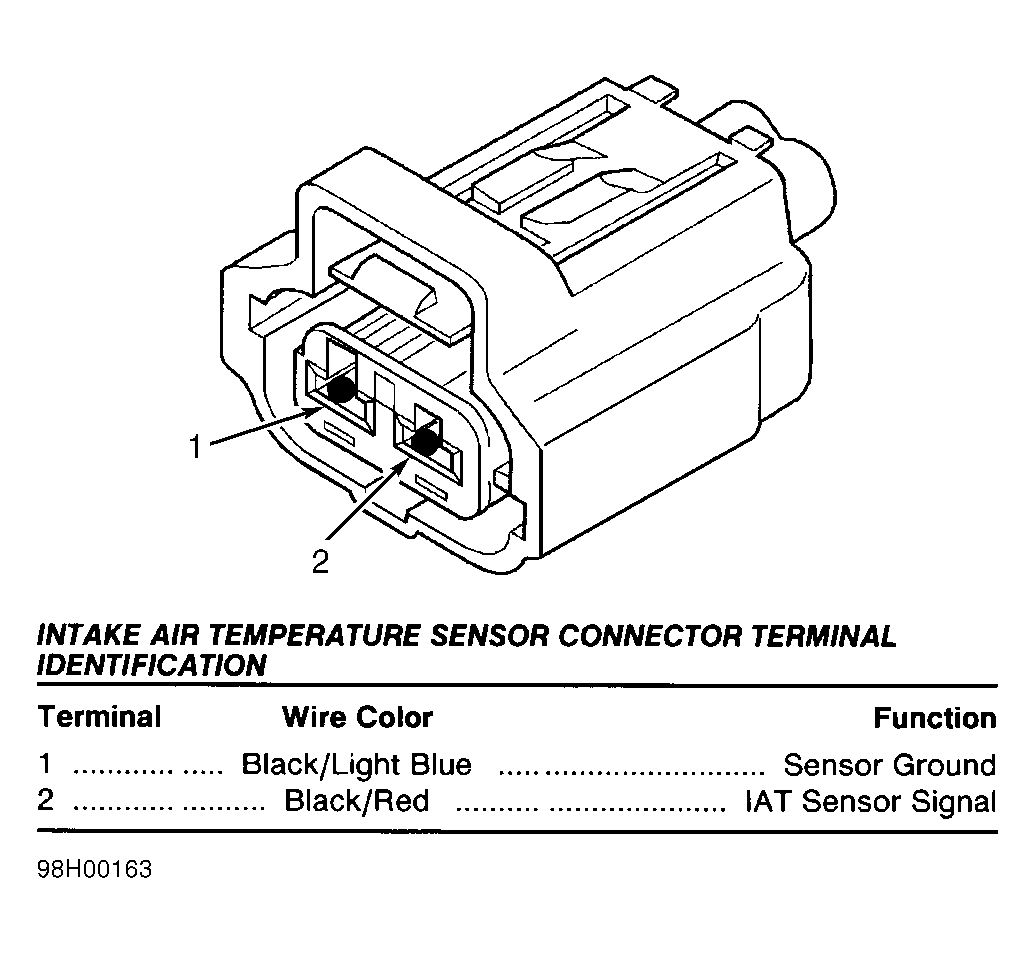

Fig 44: Identifying Intake Air Temperature Sensor Connector (Breeze, Cirrus, Sebring Convertible & Stratus)

Courtesy of CHRYSLER CORP.

Fig 45: Identifying Intake Air Temperature/Manifold Absolute Pressure (IAT/MAP) Sensor Connector (Breeze, Cirrus, Neon & Stratus)

Courtesy of CHRYSLER CORP.

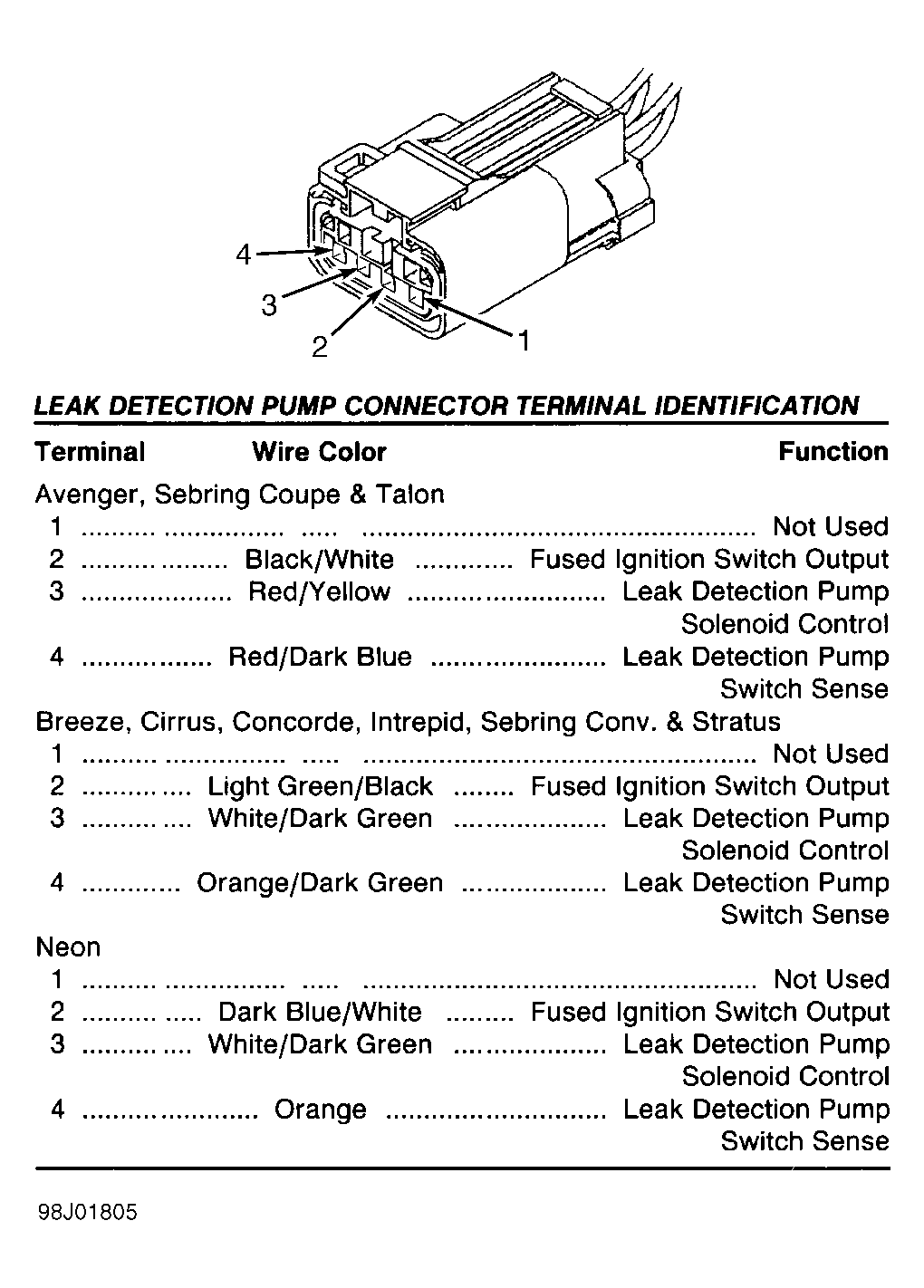

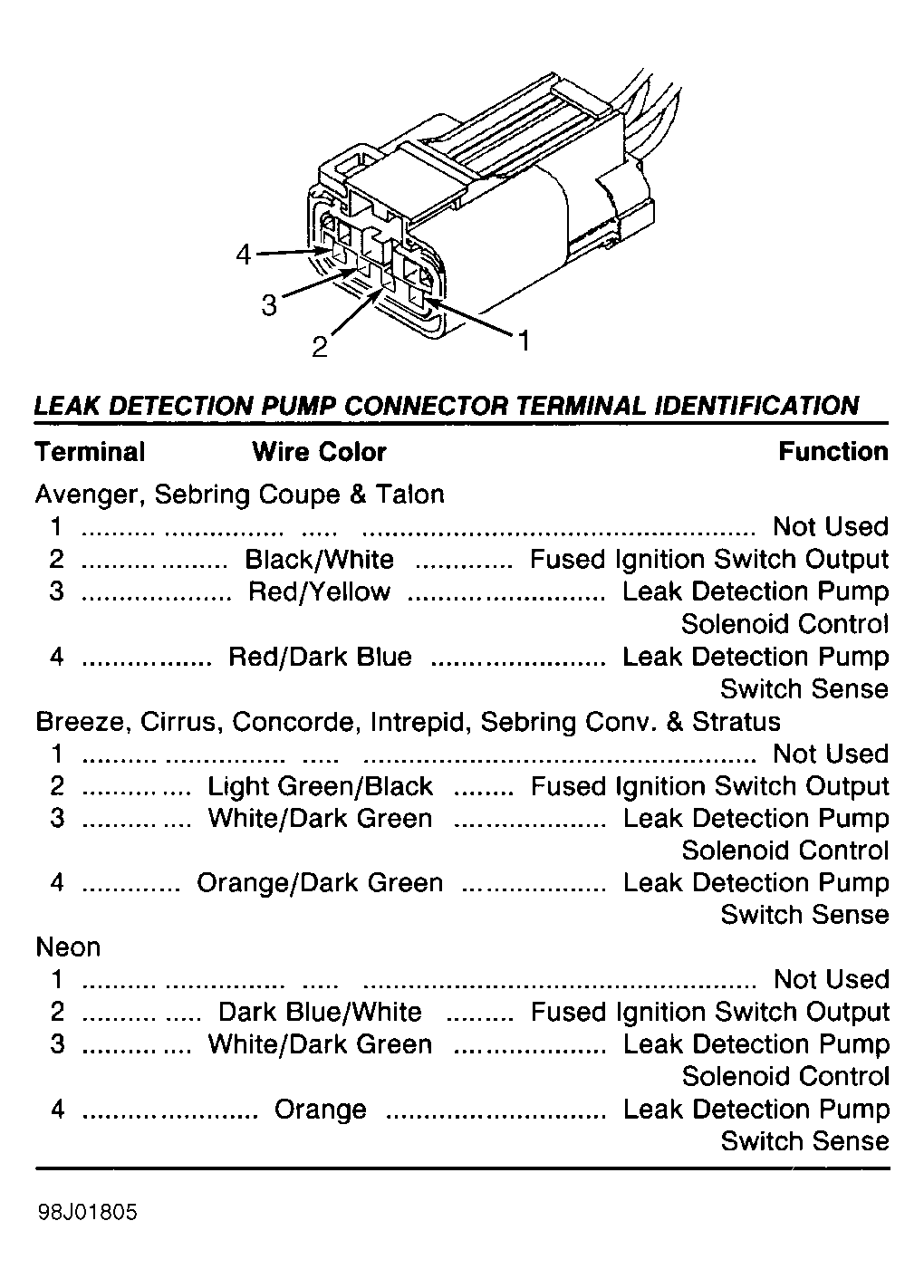

Fig 46: Identifying Leak Detection Pump Connector (Avenger, Breeze, Cirrus, Neon, Sebring Conv., Sebring Coupe, Stratus & Talon)

Courtesy of CHRYSLER CORP.

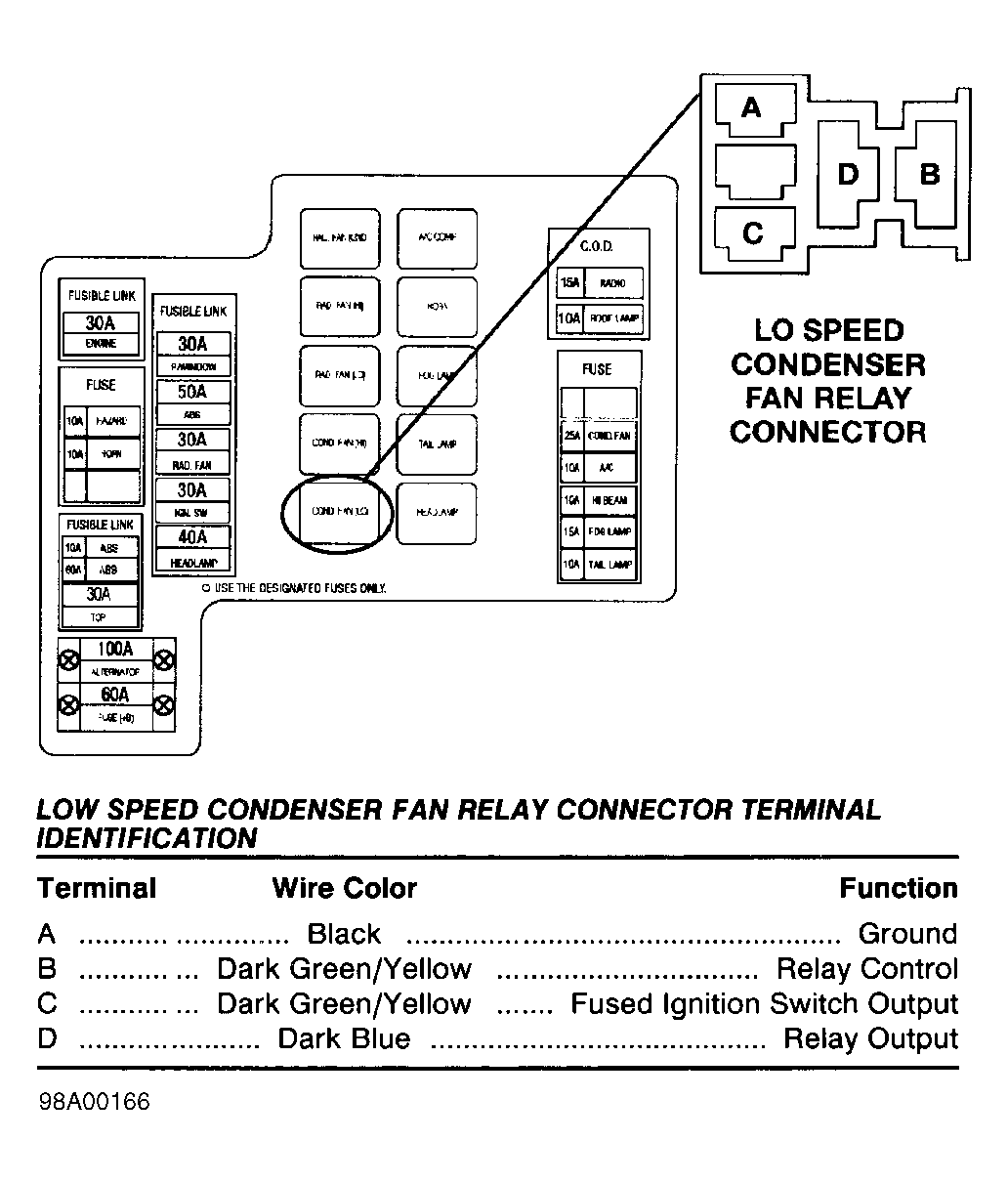

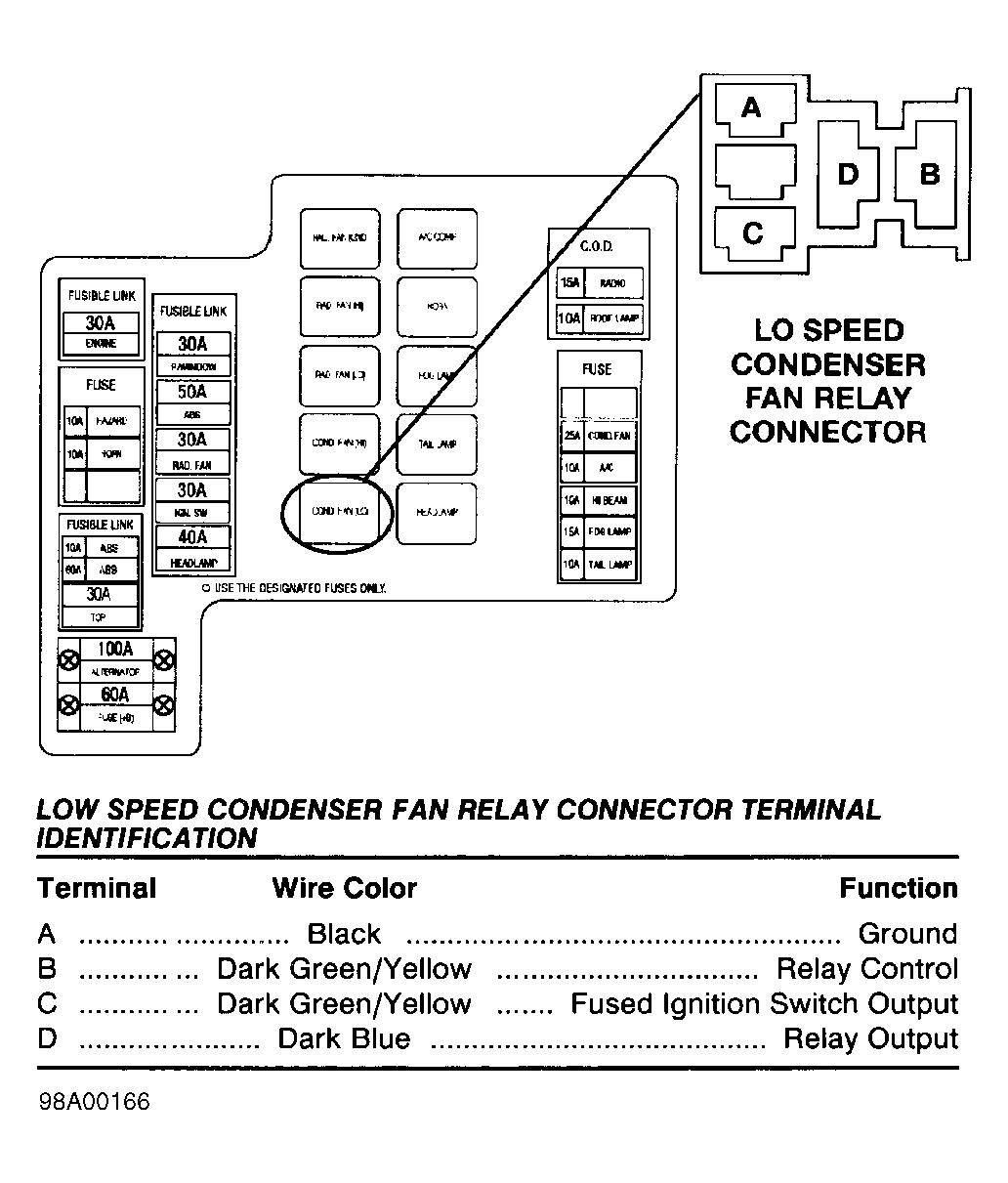

Fig 47: Identifying Low Speed Condenser Fan Relay Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

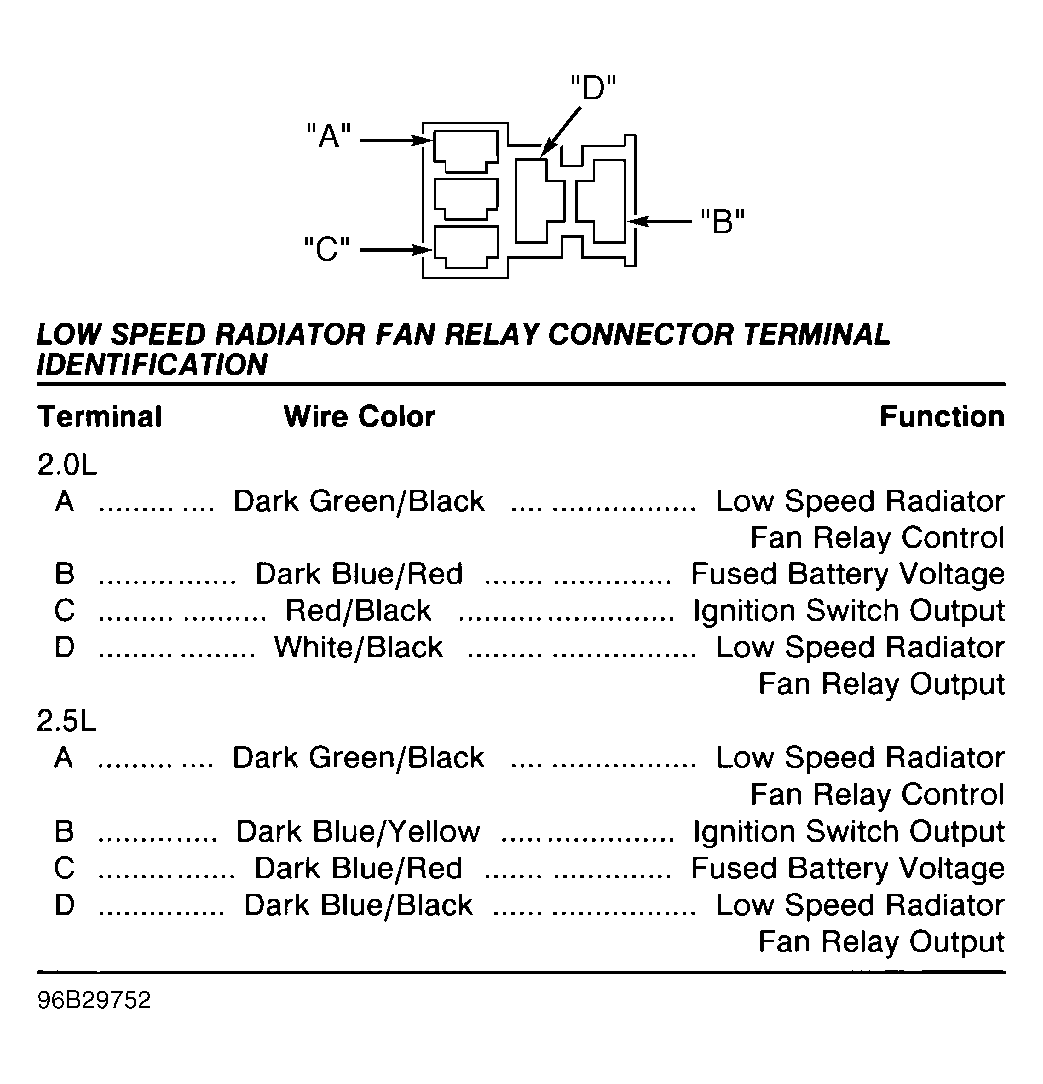

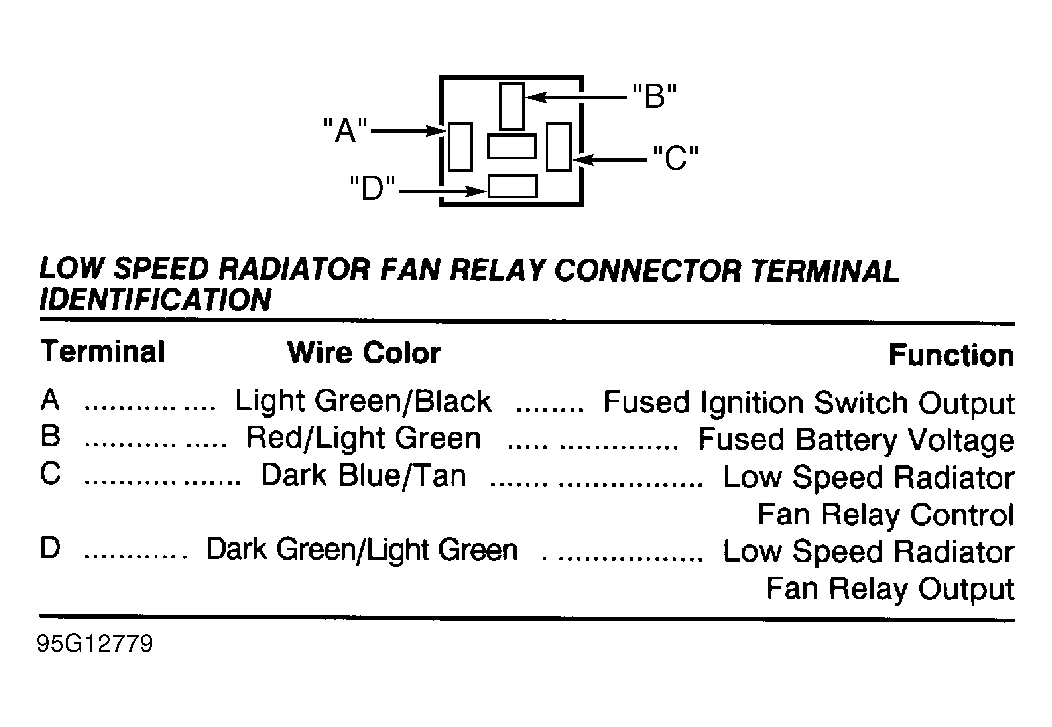

Fig 48: Identifying Low Speed Radiator Fan Relay Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

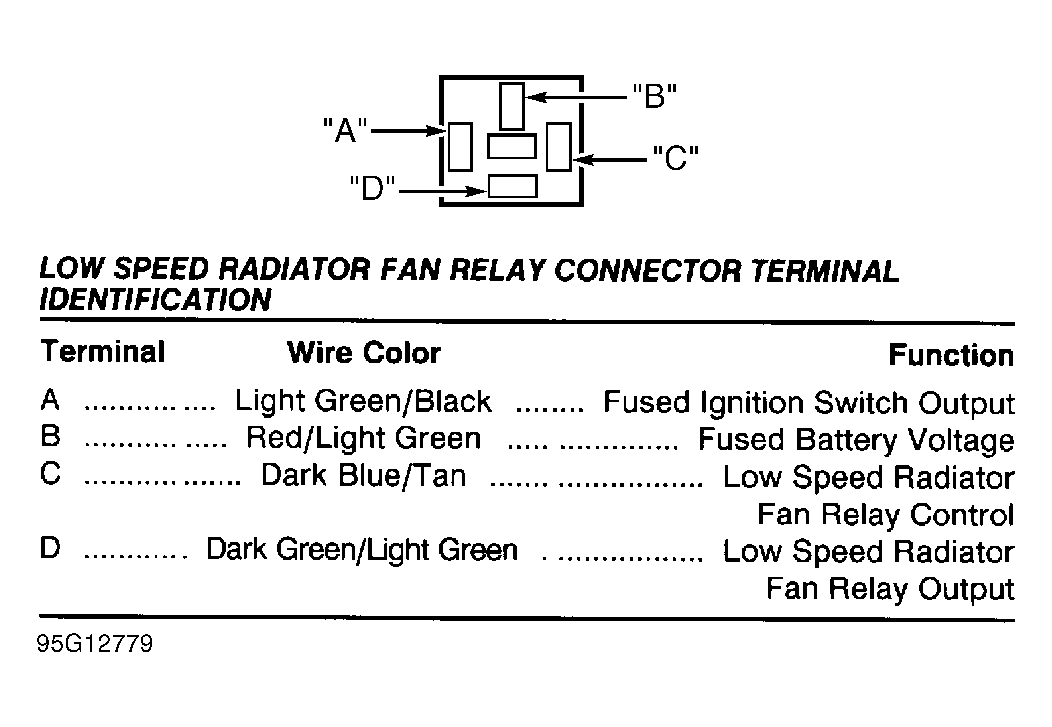

Fig 49: Identifying Low Speed Radiator Fan Relay Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

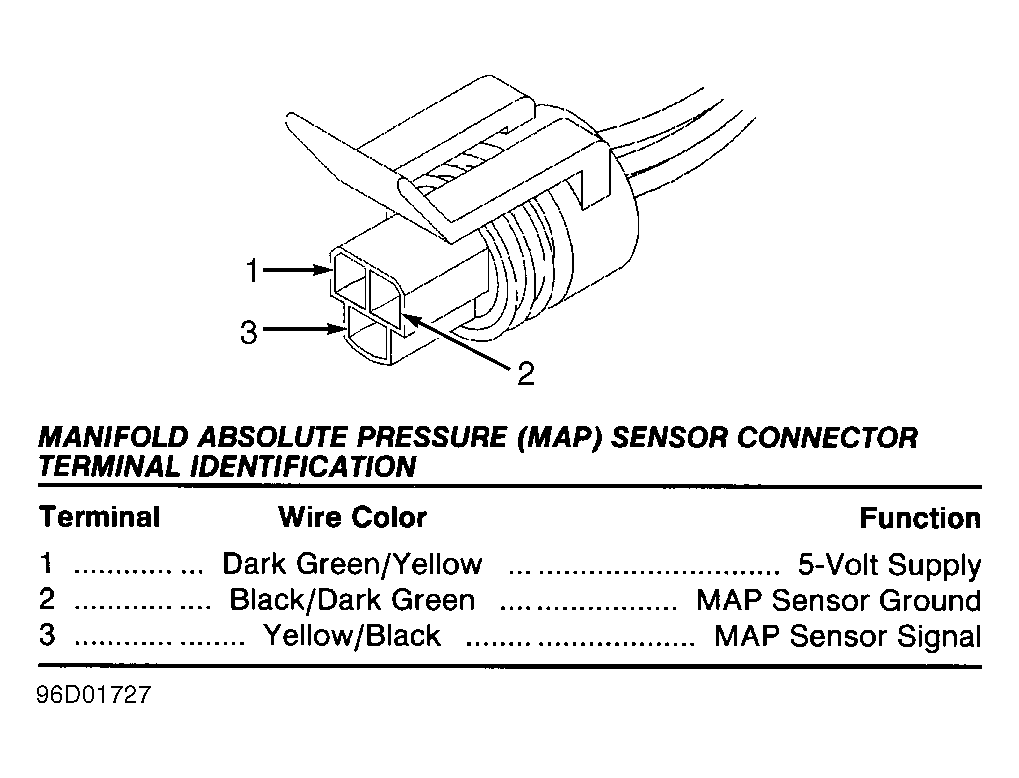

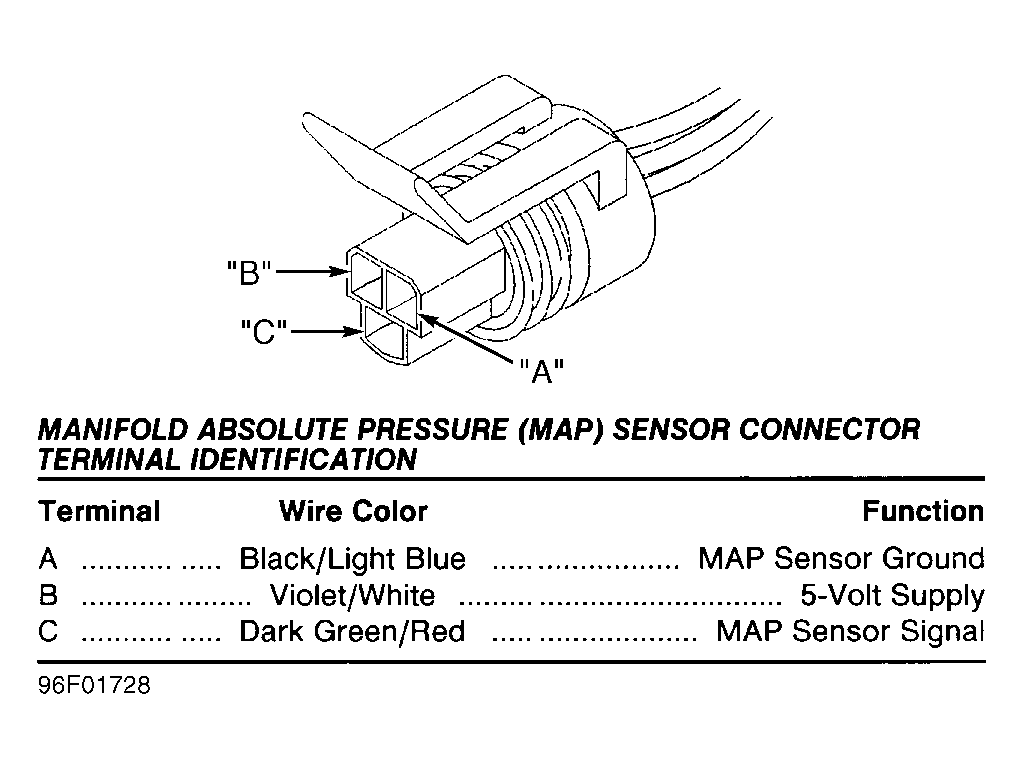

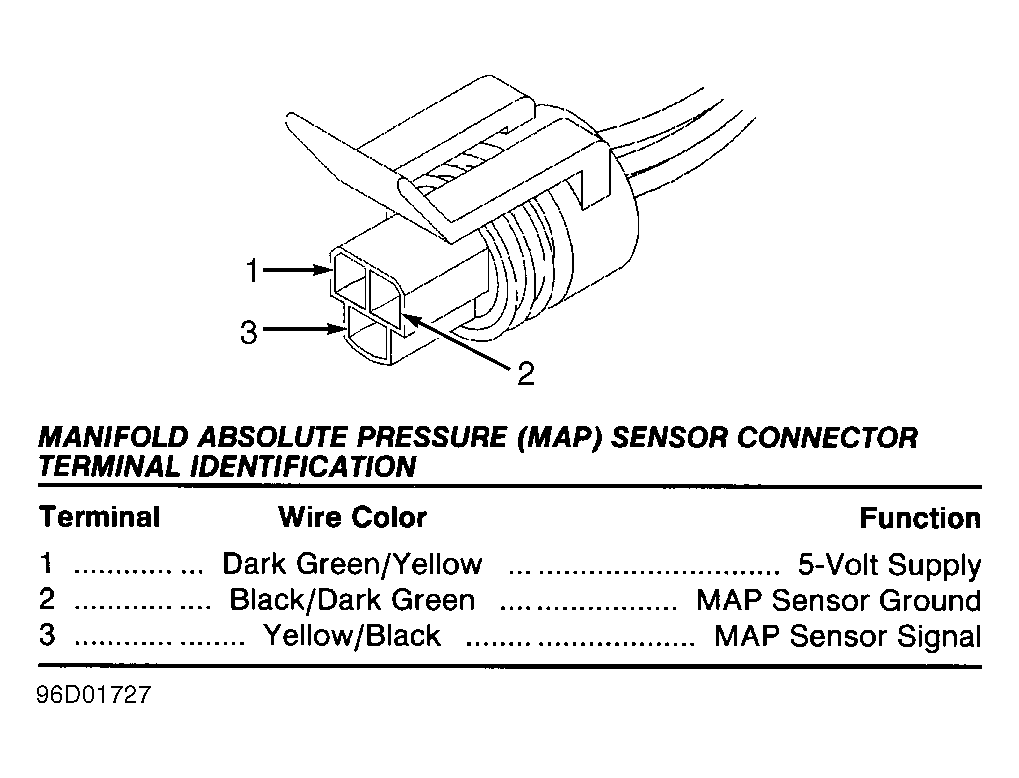

Fig 50: Identifying Manifold Absolute Pressure (MAP) Sensor Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 51: Identifying Manifold Absolute Pressure (MAP) Sensor Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

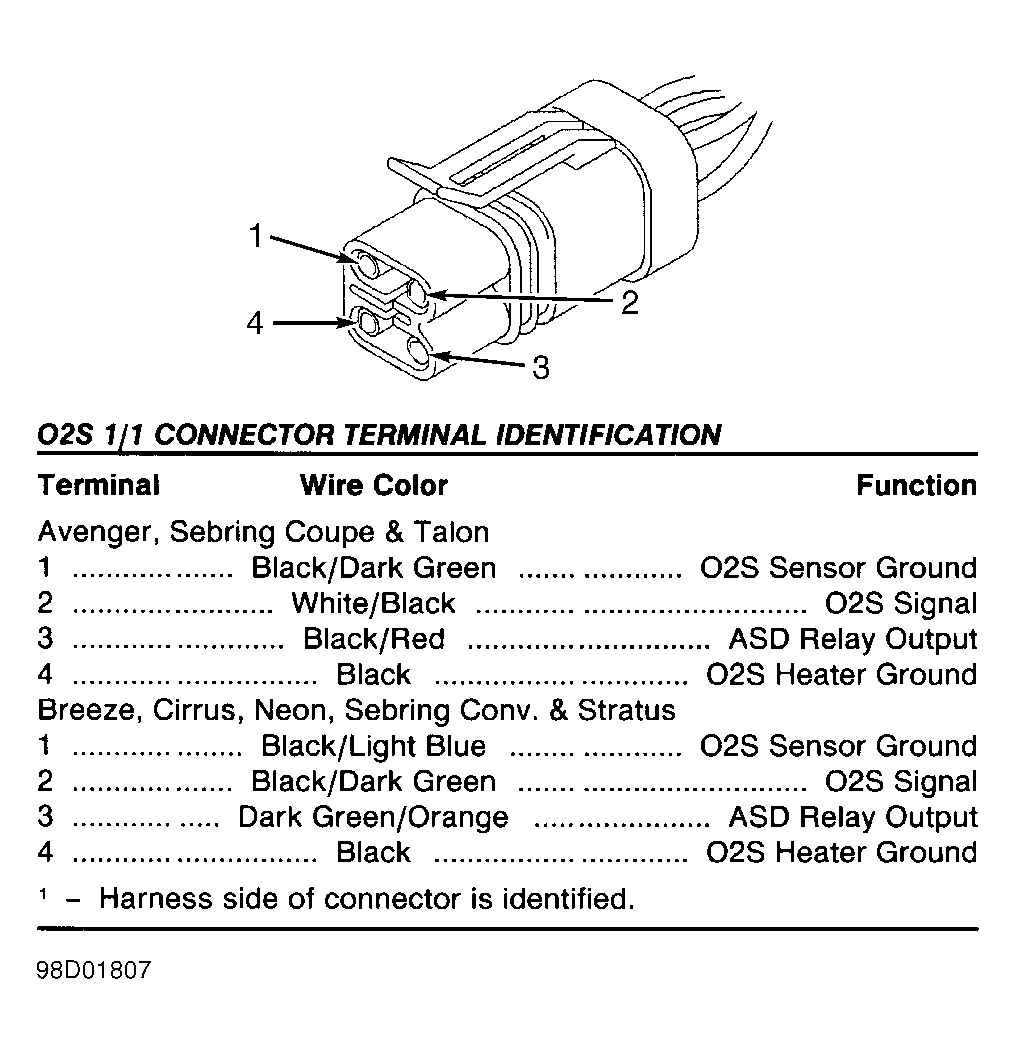

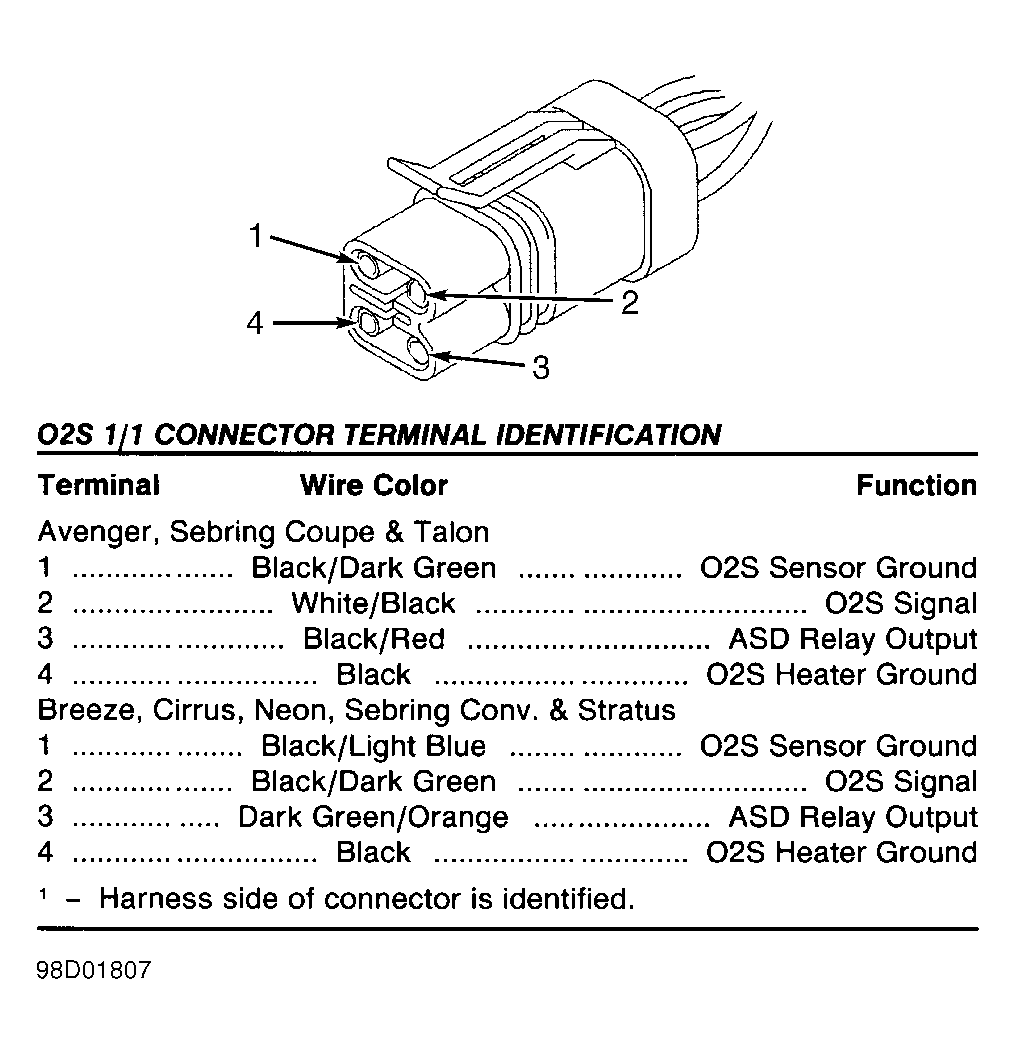

Fig 52: Identifying O2S 1/1 Connector (Harness Side) (Avenger, Breeze, Cirrus, Neon, Sebring Coupe, Sebring Conv., Stratus & Talon)

Courtesy of CHRYSLER CORP.

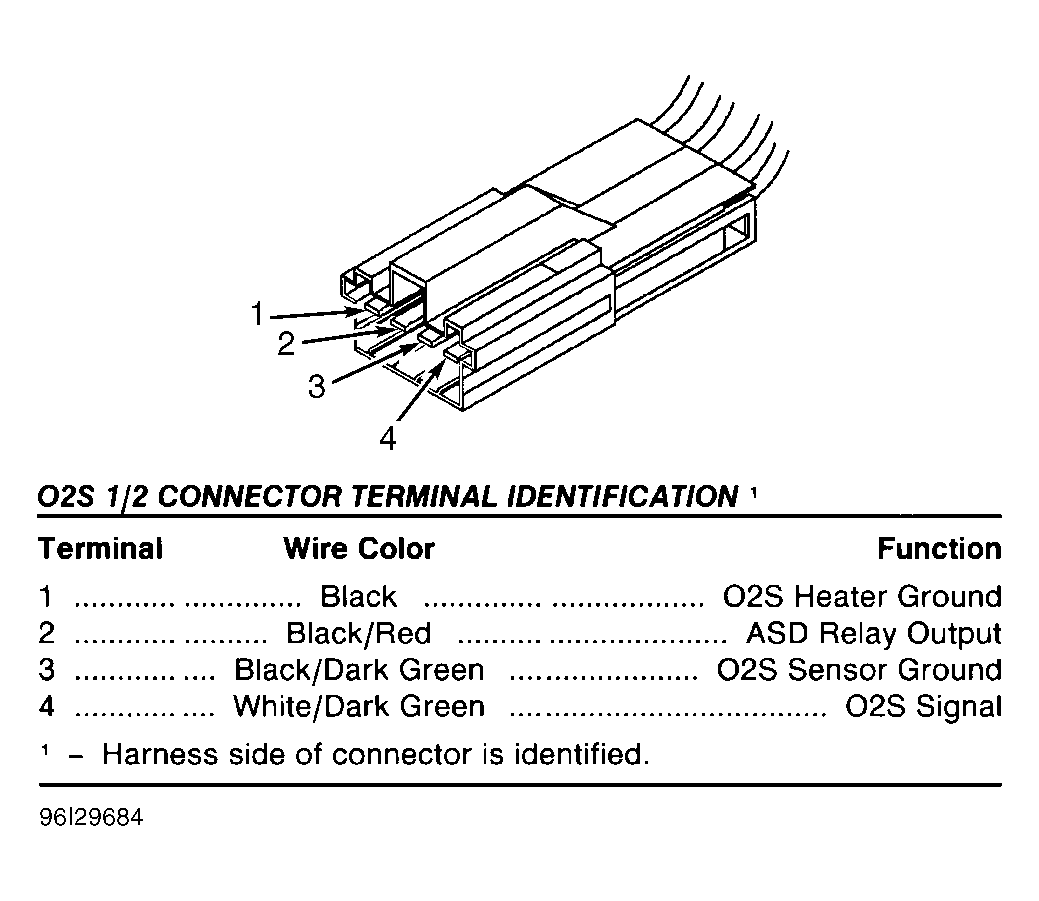

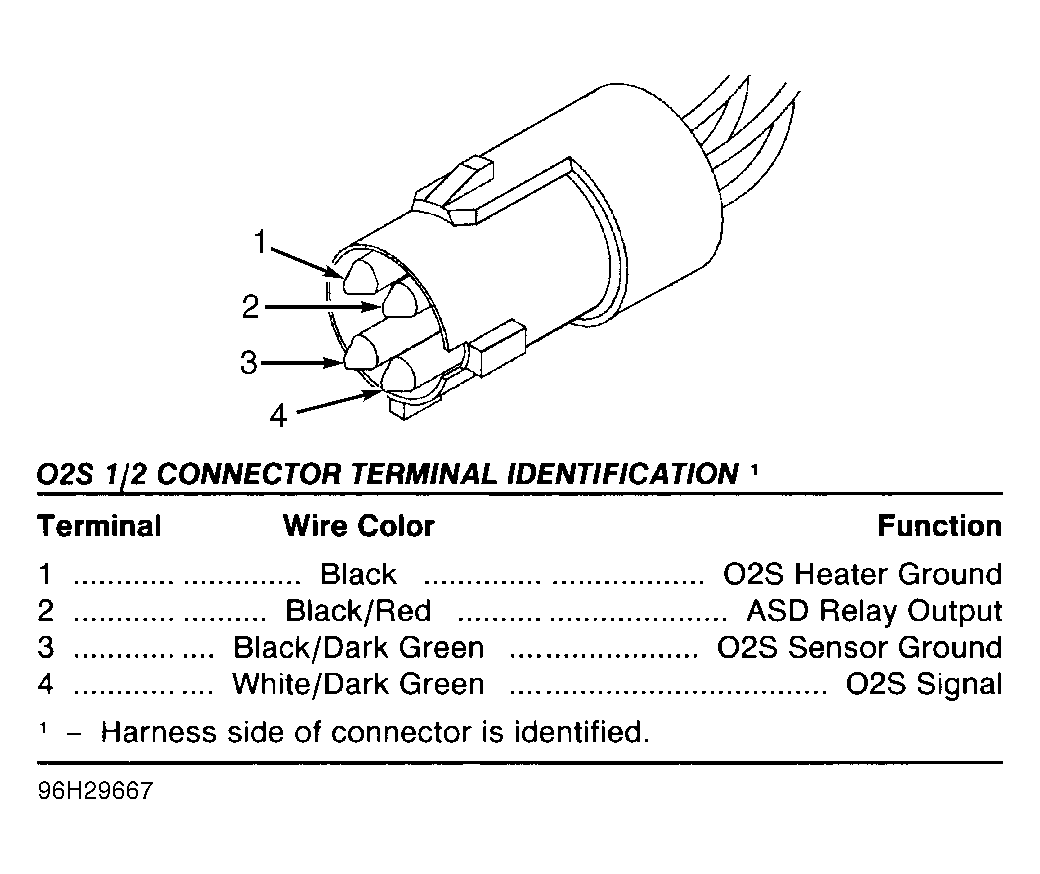

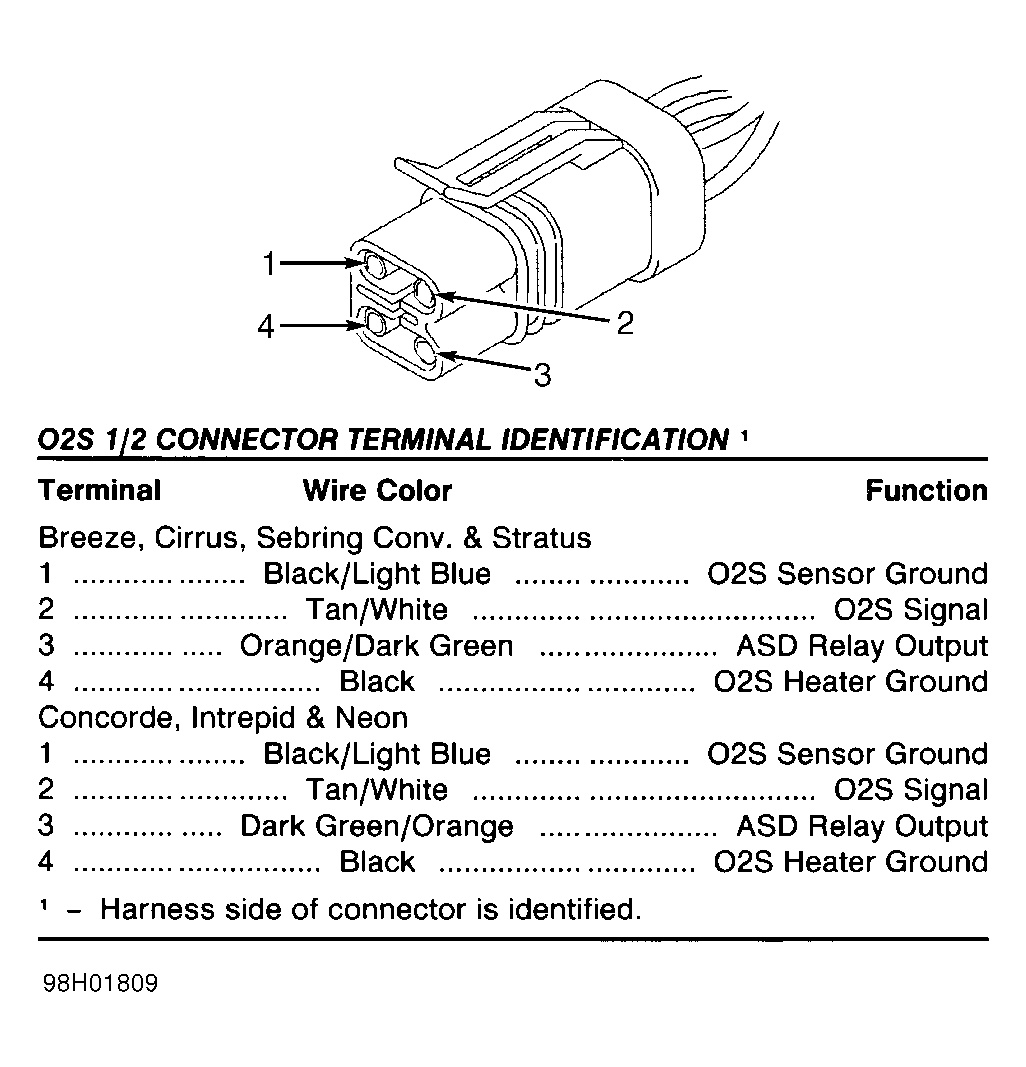

Fig 53: Identifying O2S 1/2 Connector (Harness Side) (Avenger, Sebring Coupe & Talon 2.0L)

Courtesy of CHRYSLER CORP.

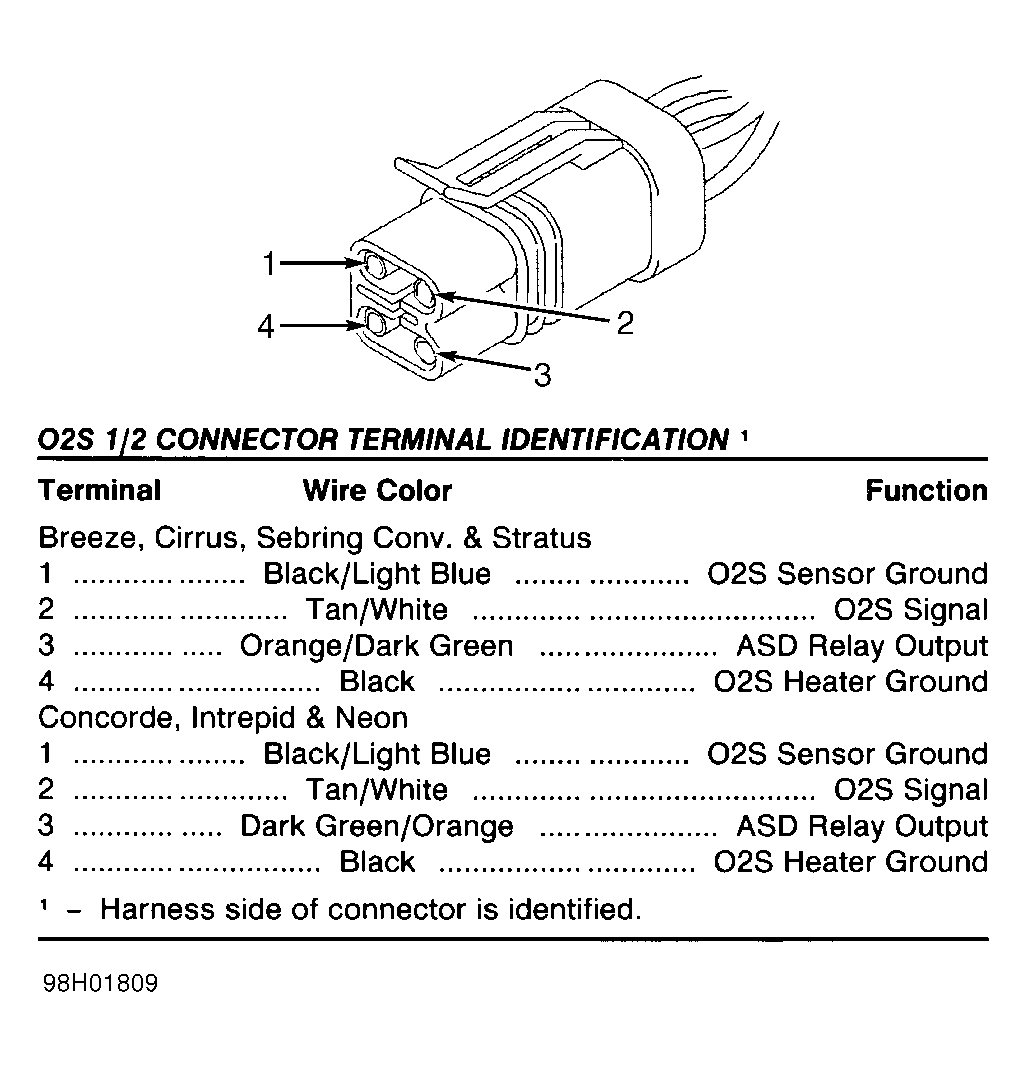

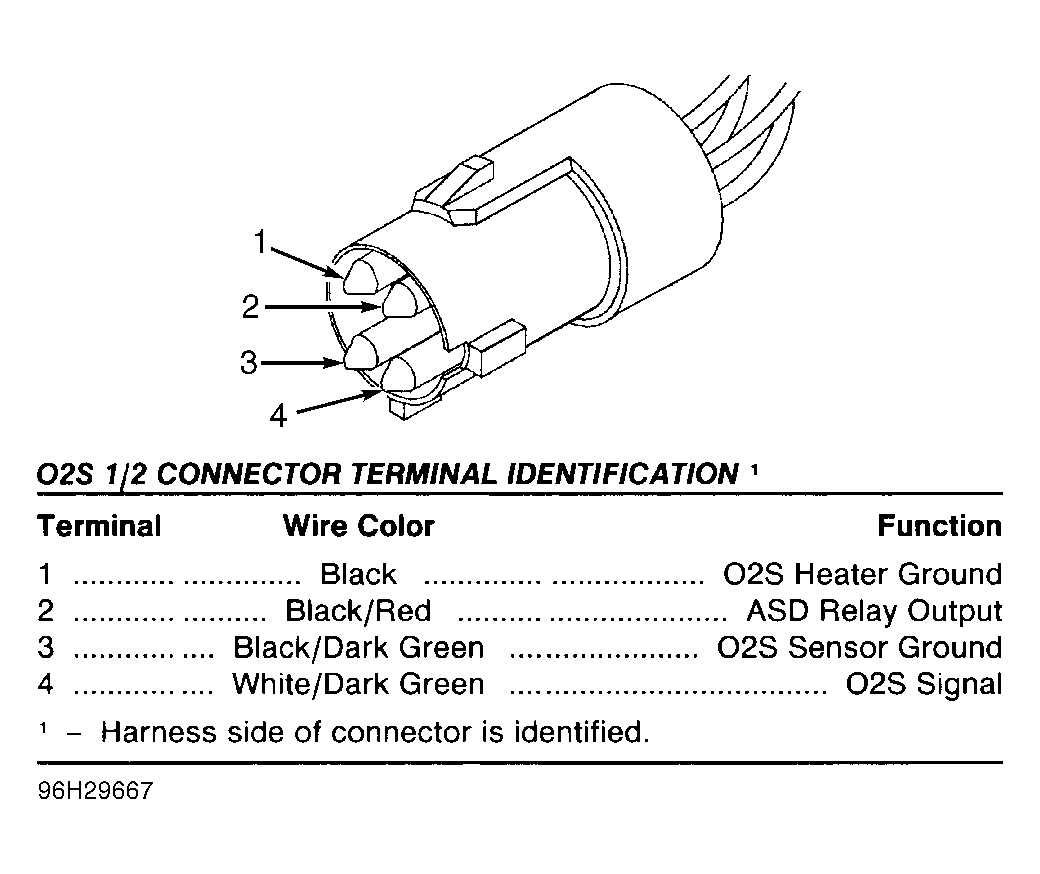

Fig 54: Identifying O2S 1/2 Connector (Harness Side) (Breeze, Cirrus, Neon, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 55: Identifying O2S 1/2 Connector (Harness Side) (Avenger & Sebring Coupe 2.5L)

Courtesy of CHRYSLER CORP.

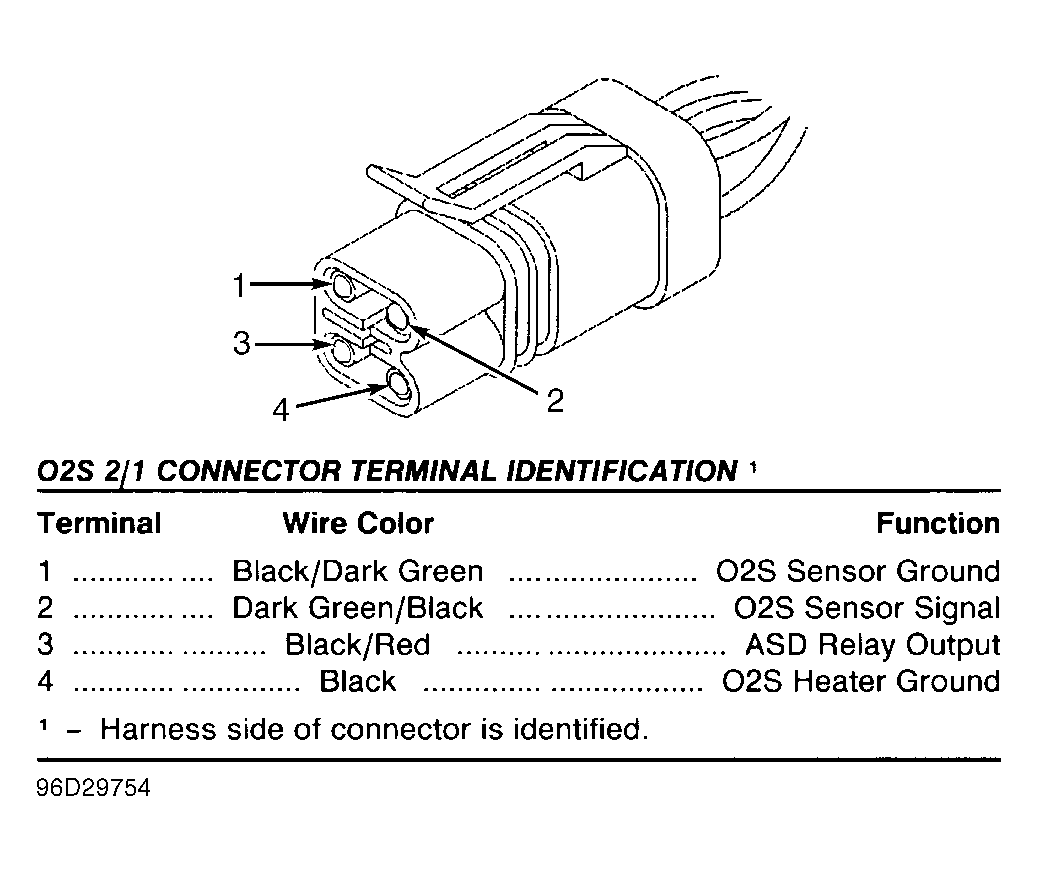

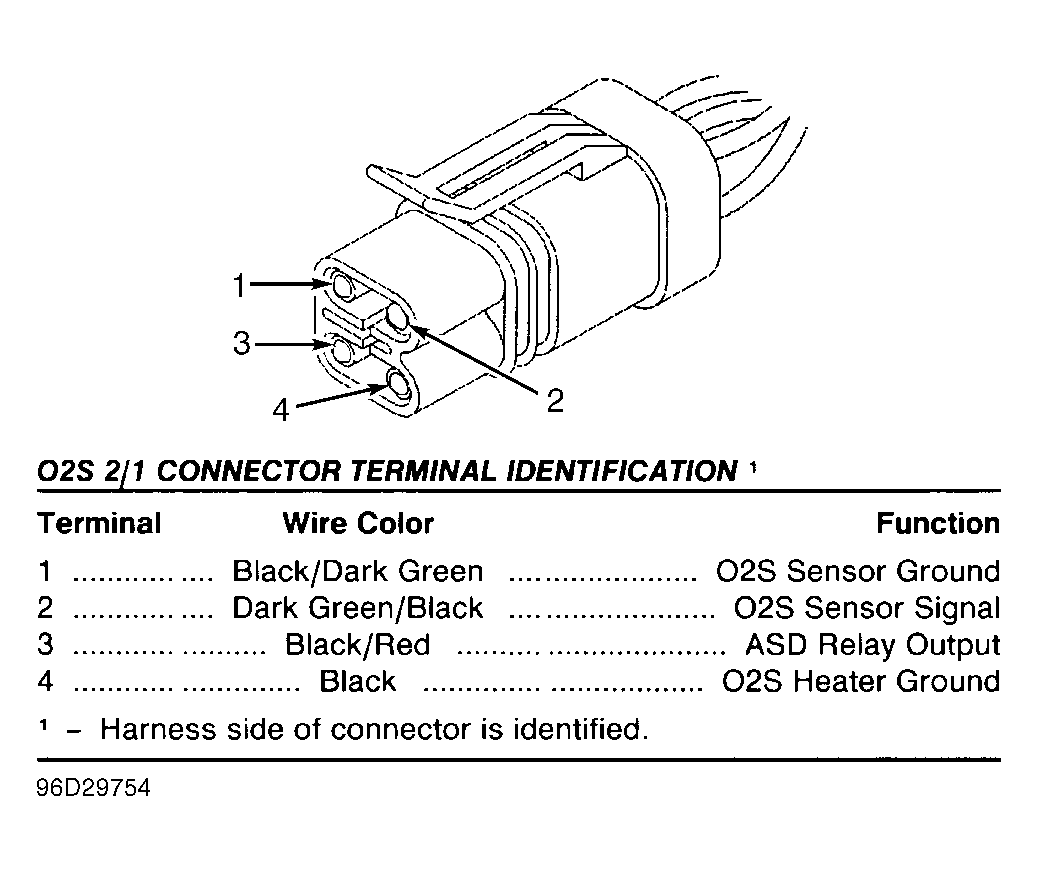

Fig 56: Identifying O2S 2/1 Connector (Harness Side) (Avenger & Sebring Coupe 2.5L)

Courtesy of CHRYSLER CORP.

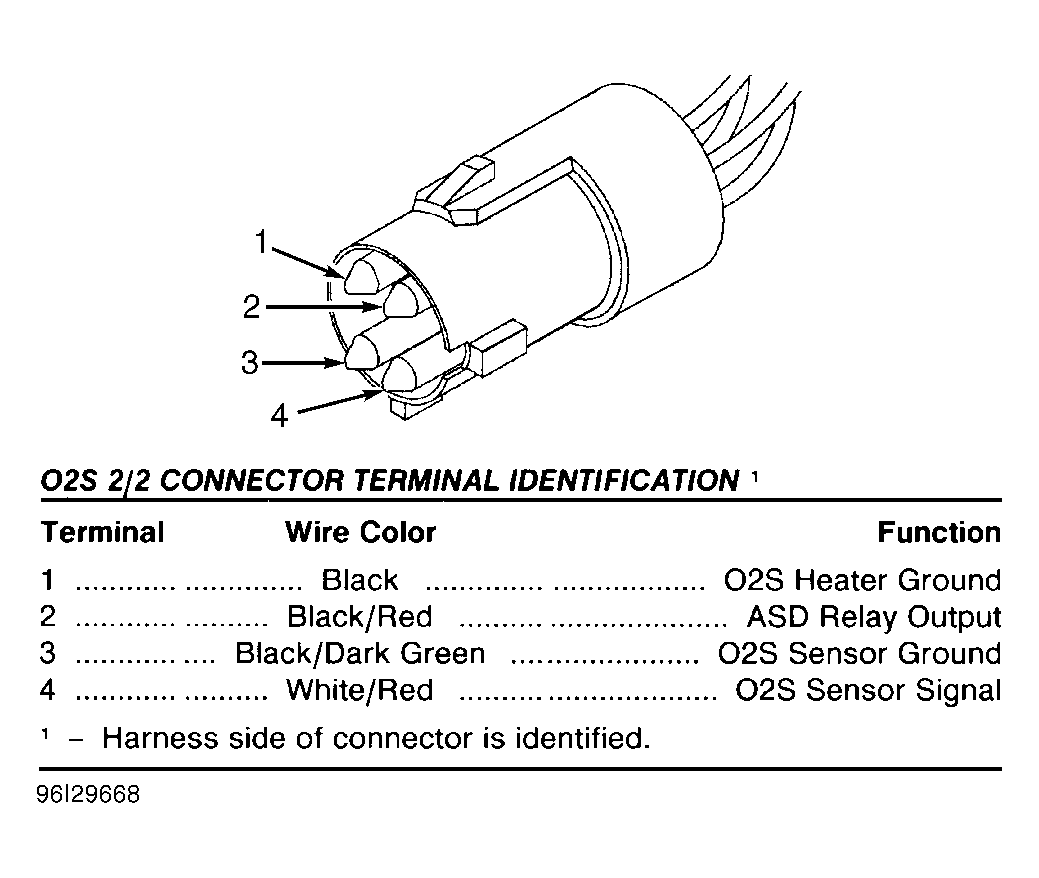

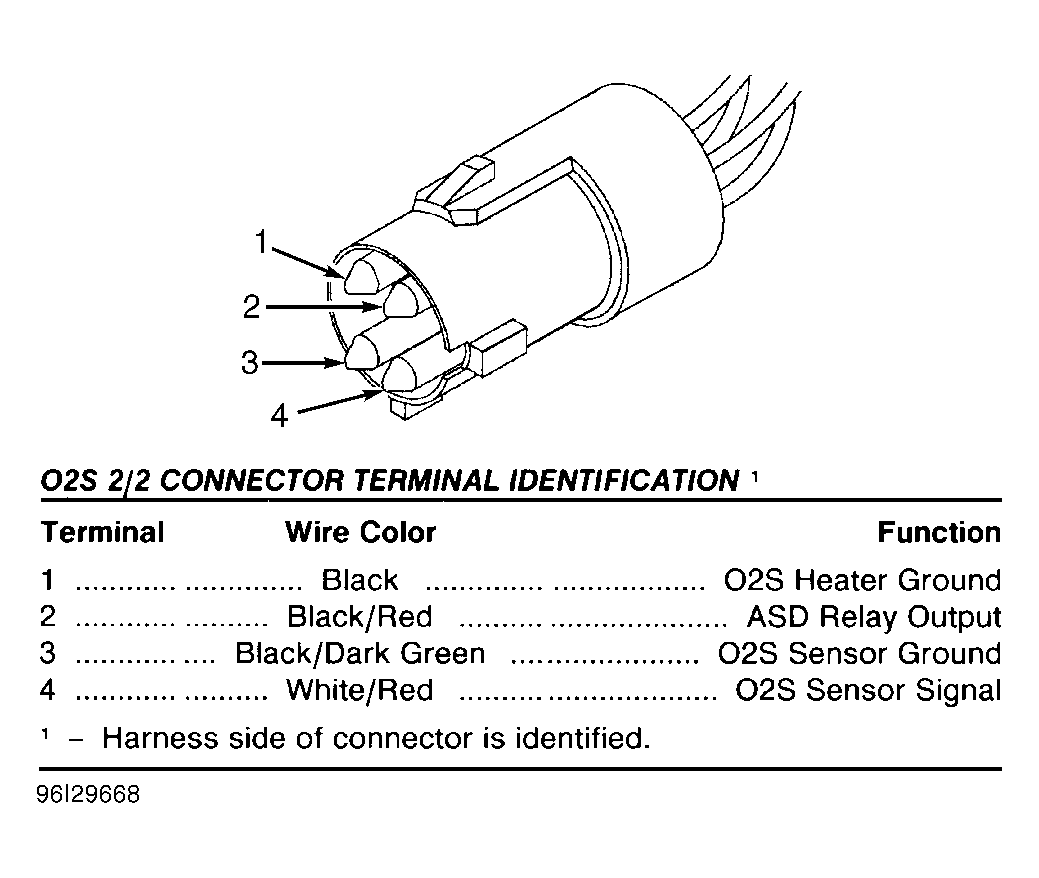

Fig 57: Identifying O2S 2/2 Connector (Harness Side) (Avenger & Sebring Coupe 2.5L)

Courtesy of CHRYSLER CORP.

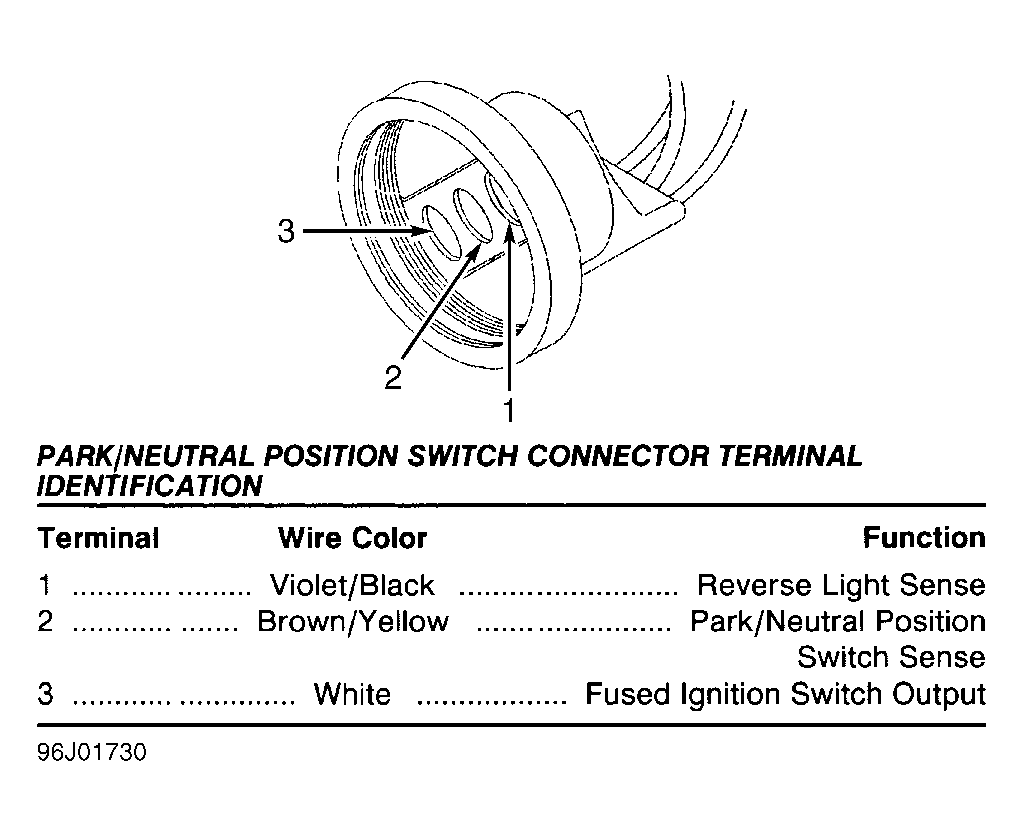

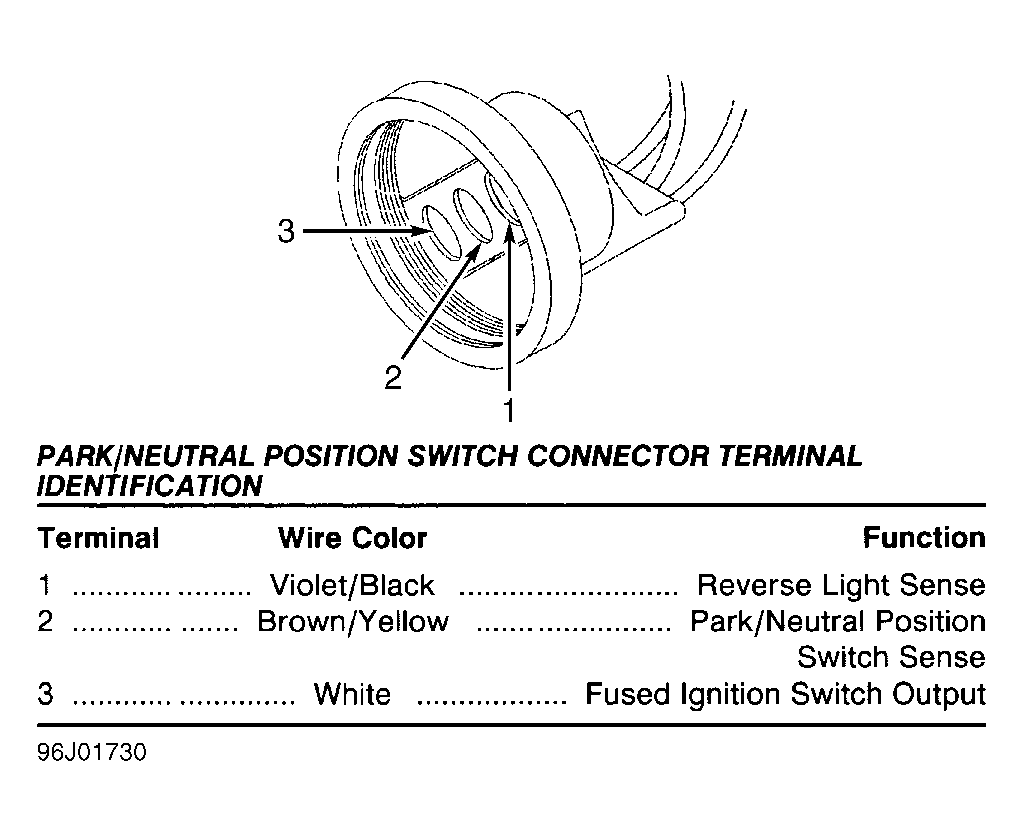

Fig 58: Identifying Park/Neutral Position Switch Connector (Neon)

Courtesy of CHRYSLER CORP.

Fig 59: Identifying Powertrain Control Module (PCM) Connector

Courtesy of CHRYSLER CORP.

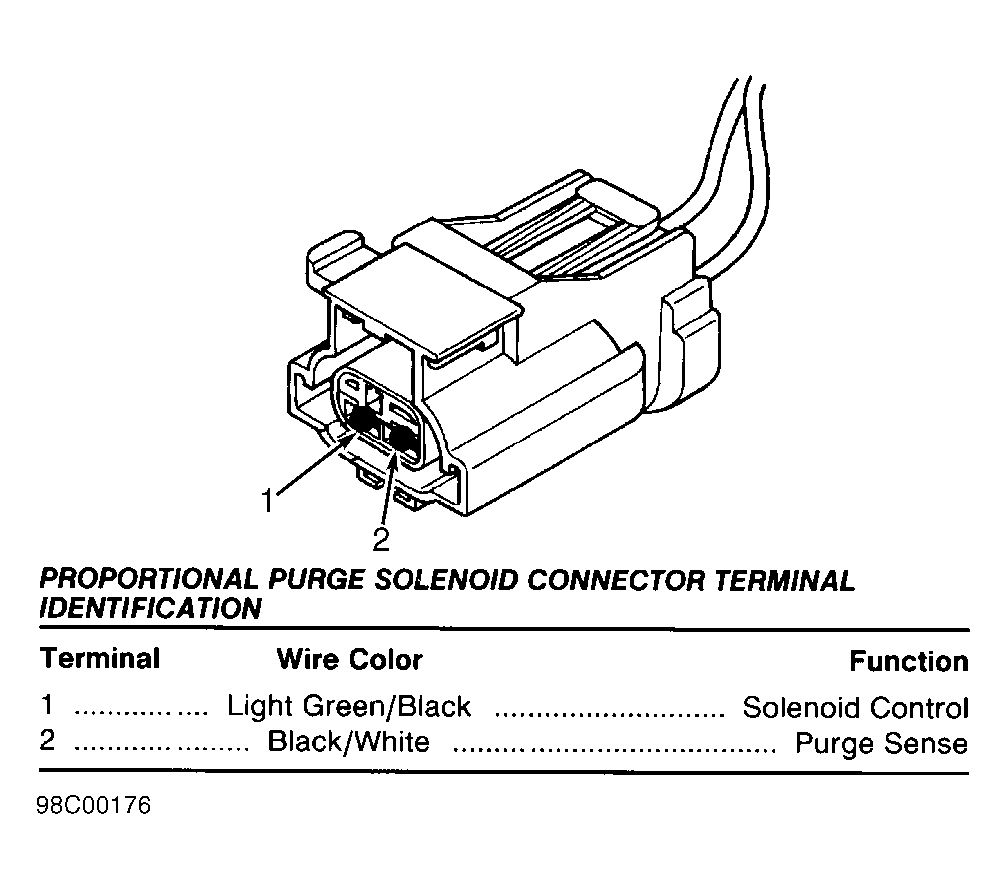

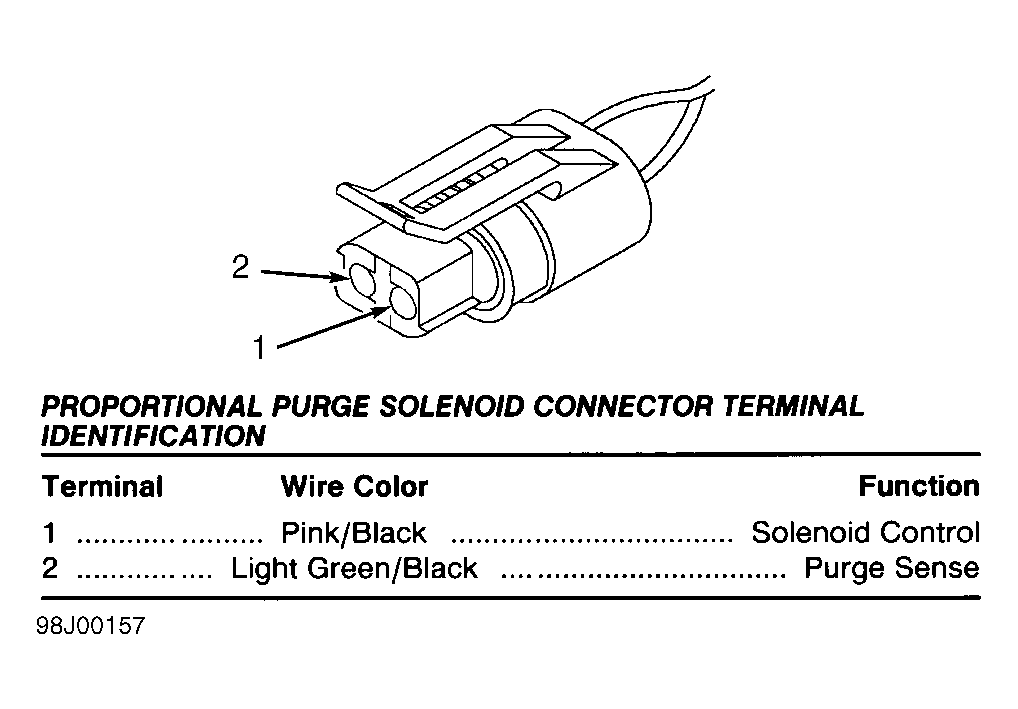

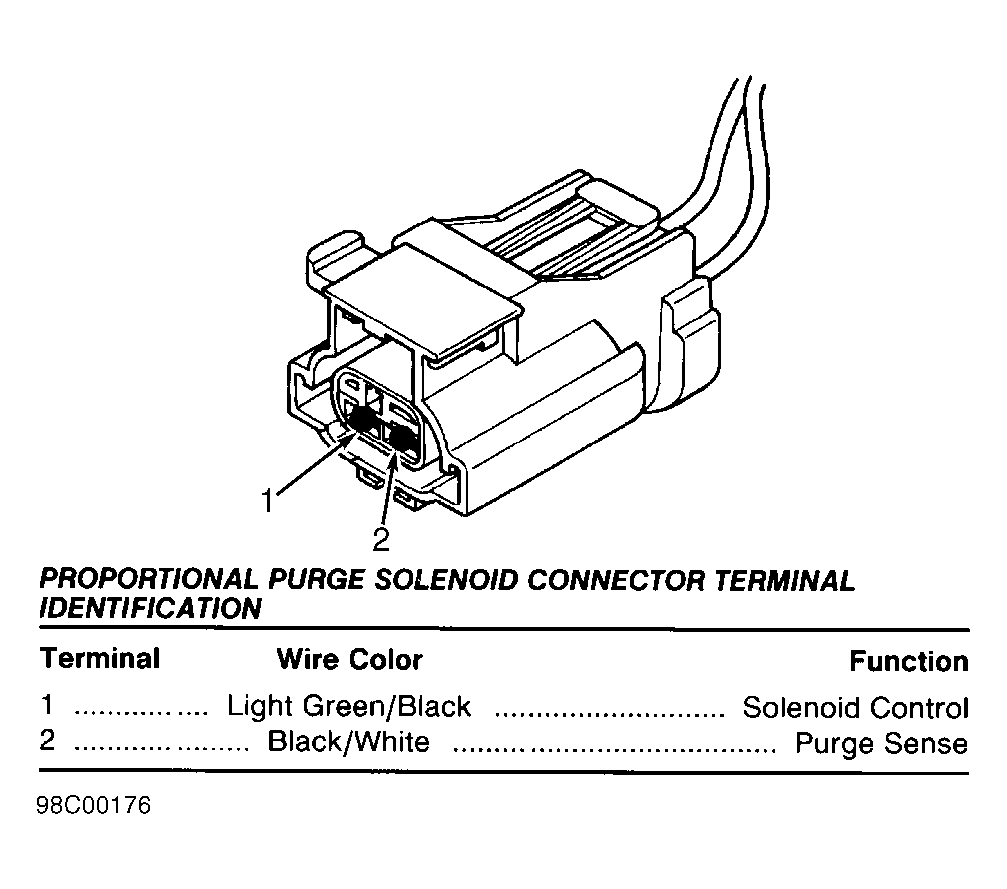

Fig 60: Identifying Proportional Purge Solenoid Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

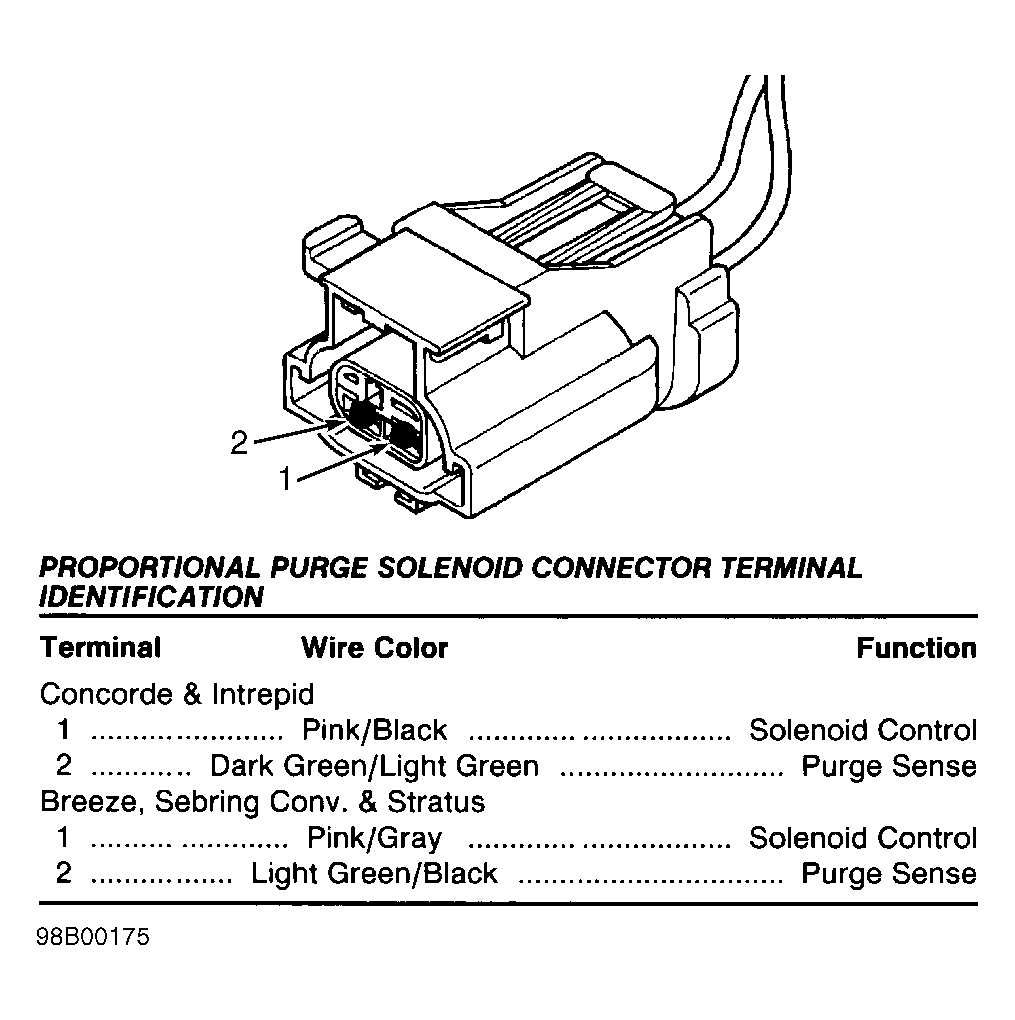

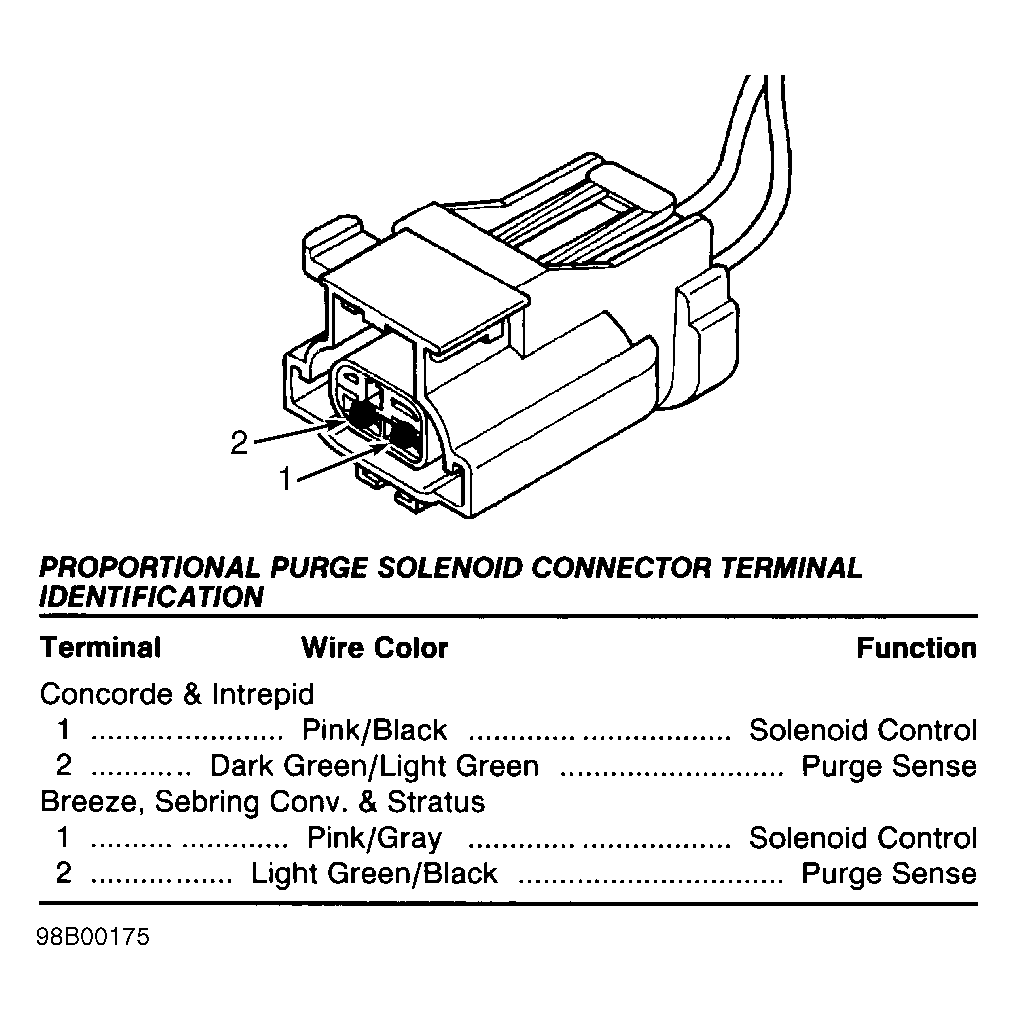

Fig 61: Identifying Proportional Purge Solenoid Connector (Breeze, Sebring Convertible & Stratus 2.0L & 2.4L)

Courtesy of CHRYSLER CORP.

Fig 62: Identifying Proportional Purge Solenoid Connector (Cirrus & Stratus 2.5L)

Courtesy of CHRYSLER CORP.

Fig 63: Identifying Radiator Fan Relay (Neon)

Courtesy of CHRYSLER CORP.

Fig 64: Identifying Speed Control On/Off Switch Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 65: Identifying Speed Control Servo Connector (Avenger, Breeze, Cirrus, Neon, Sebring Conv., Sebring Coupe, Stratus & Talon)

Courtesy of CHRYSLER CORP.

Fig 66: Identifying Speed Control 2-Pin Switch Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 67: Identifying Speed Control 2-Pin Switch Connector (Breeze, Cirrus & Stratus)

Courtesy of CHRYSLER CORP.

Fig 68: Identifying Starter Relay Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 69: Identifying Starter Relay Connector (Breeze, Cirrus, Neon, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 70: Identifying Throttle Position (TP) Sensor Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 71: Identifying Throttle Position (TP) Sensor Connector (Breeze, Stratus & Neon 2.0L)

Courtesy of CHRYSLER CORP.

Fig 72: Identifying Throttle Position Sensor Connector (Breeze 2.4L, Cirrus 2.5L, Sebring Conv., & Stratus 2.4L & 2.5L)

Courtesy of CHRYSLER CORP.

Fig 73: Identifying Torque Converter Clutch (TCC) Connector (Neon)

Courtesy of CHRYSLER CORP.

Fig 74: Identifying Transmission Range Sensor Connector (Avenger, Breeze, Cirrus, Sebring Conv., Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 75: Identifying Vehicle Speed Sensor (VSS) Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

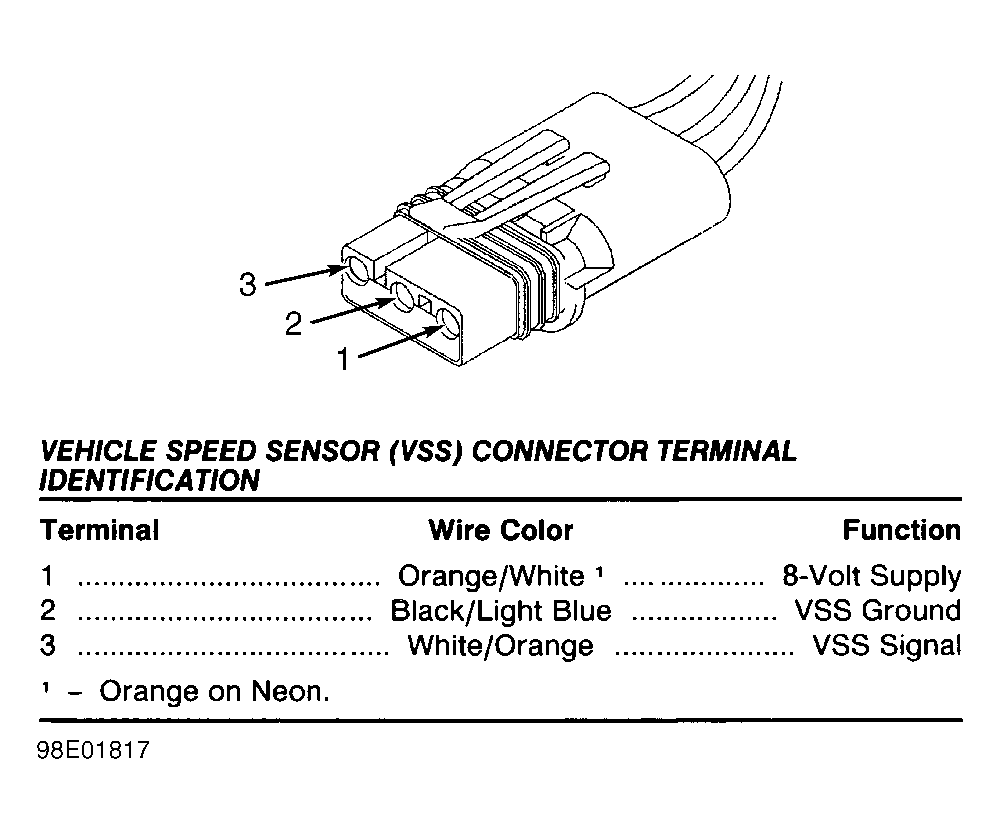

Fig 76: Identifying Vehicle Speed Sensor (VSS) Connector (Breeze, Cirrus, Neon, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 77: Identifying 12-Pin Data Link Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 78: Identifying 16-Pin Data Link Connector (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 79: Identifying 16-Pin Data Link Connector (Breeze, Cirrus, Sebring Conv. & Stratus)

Courtesy of CHRYSLER CORP.

Fig 80: Identifying 16-Pin Data Link Connector (Neon)

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

NOTE: A scan tool must be used to effectively diagnose this system.
