Test TC-101A: Fuel Pump Relay Control Circuit

NOTE: For connector terminal identification, see CONNECTOR IDENTIFICATION . For wiring diagram, see WIRING DIAGRAMS article.

Using scan tool, actuate fuel pump relay. If fuel pump relay is clicking, go to next step. If fuel pump relay is not clicking, go to step 5) .
Condition to set trouble code is not present at this time. FUEL PUMP RELAY CONTROL CIRCUIT DTC sets if an open or shorted condition is detected in fuel pump relay control circuit. Possible causes are: fuel pump relay coil open or shorted, fused ignition switch output circuit open, fuel pump relay control circuit is open or shorted, inoperative circuit driver in Powertrain Control Module (PCM), faulty wiring or connections. Go to next step.
Inspect all related wiring and connectors and repair as necessary. For fuel pump relay location, see Fig 1-Fig 4 . If no problems were found with wiring and connectors, go to next step. If related wiring and connectors were repaired, perform TEST VER-2A .
Start engine. Wiggle wiring harness between fuel pump relay and Powertrain Control Module (PCM). If engine stalls, repair wiring harness as necessary where wiggling caused problem to appear. Perform TEST VER-2A. If engine did not stall, see INACTIVE TROUBLE CODE CONDITION . Test is complete. Perform TEST VER-2A .
Disconnect fuel pump relay. For fuel pump relay location, see Fig 1-Fig 4 . Using a voltmeter, check voltage on fuel pump relay connector fused ignition switch output circuit. See appropriate FUEL PUMP RELAY CONNECTOR WIRE IDENTIFICATION table. See Fig 1-Fig 4 . If voltage is more than 10 volts, go to next step. If voltage is 10 volts or less, repair open fused ignition switch output circuit. Perform TEST VER-2A .
Using an ohmmeter, check resistance between fuel pump relay terminals. See Fig 5 or Fig 6 . If resistance is less than 100 ohms, go to next step. If resistance is 100 ohms or more, replace fuel pump relay. Perform TEST VER-2A .
Turn ignition off. Disconnect Powertrain Control Module (PCM) connector. Using an ohmmeter, check resistance of fuel pump relay control circuit between fuel pump relay connector and ground. See appropriate FUEL PUMP RELAY CONNECTOR WIRE IDENTIFICATION table. See Fig 1-Fig 4 for terminal identification. If resistance is 5 ohms or more, go to next step. If resistance is less than 5 ohms, repair short to ground in fuel pump relay control circuit. Perform TEST VER-2A .
Using an ohmmeter, measure resistance of fuel pump relay control circuit between fuel pump relay connector and PCM connector terminal No. 74. See appropriate FUEL PUMP RELAY CONNECTOR WIRE IDENTIFICATION table and PCM CONNECTOR WIRE IDENTIFICATION table. See Fig 1-Fig 4 for wire identification. If resistance is less than 5 ohms, replace PCM. Perform TEST VER-2A . If resistance is 5 ohms or more, repair open fuel pump relay control circuit. Perform TEST VER-2A .

FUEL PUMP RELAY CONNECTOR WIRE IDENTIFICATION (AVENGER, SEBRING COUPE & TALON)

Terminal	Wire Color	Function
A	Black/Dark Blue	Fuel Pump Relay Control
B	Red/Black	Fused Battery Voltage
C	Black/White	Fused Ignition Switch Output
D	Black/Dark Blue	Fuel Pump Relay Output

FUEL PUMP RELAY CONNECTOR WIRE IDENTIFICATION (BREEZE, CIRRUS, SEBRING CONV. & STRATUS)

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ignition Switch Output
B	Red	Fused Battery Voltage
C	Brown/Light Green	Fuel Pump Relay Control
D	Dark Green/White	Fuel Pump Relay Output

FUEL PUMP RELAY CONNECTOR WIRE IDENTIFICATION (NEON)

Terminal

Wire Color

Function

⁽¹⁾ BUS BAR

Fused Ignition Switch Output

⁽²⁾ BUS BAR

Fused Battery Voltage

Brown

Fuel Pump Relay Control

Dark Green/White

Fuel Pump Relay Output

⁽¹⁾	BUS BAR connects to Dark Green/White wire.

⁽²⁾	BUS BAR connects to Red wire.

PCM CONNECTOR WIRE IDENTIFICATION

Application		Wire Color
PCM Terminal No. 74 (Fuel Pump Relay Control Circuit)
Avenger, Sebring Coupe & Talon		Black/Dark Blue
Breeze, Cirrus, Sebring Conv. & Stratus		Brown/Light Green
Neon		Brown

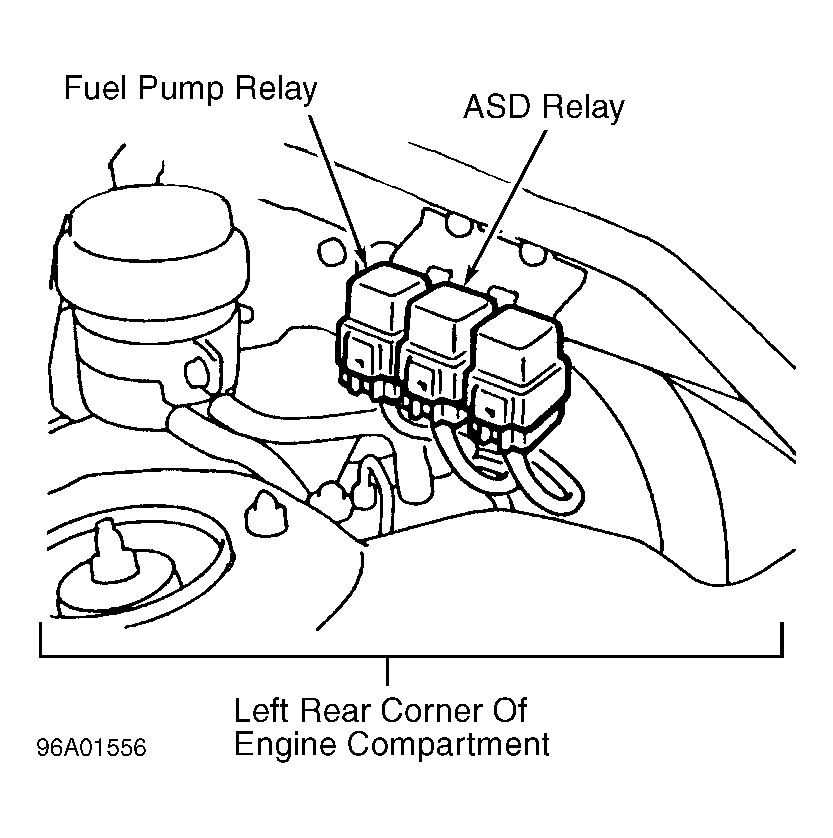

Fig 1: TC-101A-1 Locating Fuel Pump Relay (Avenger, Sebring Coupe & Talon)

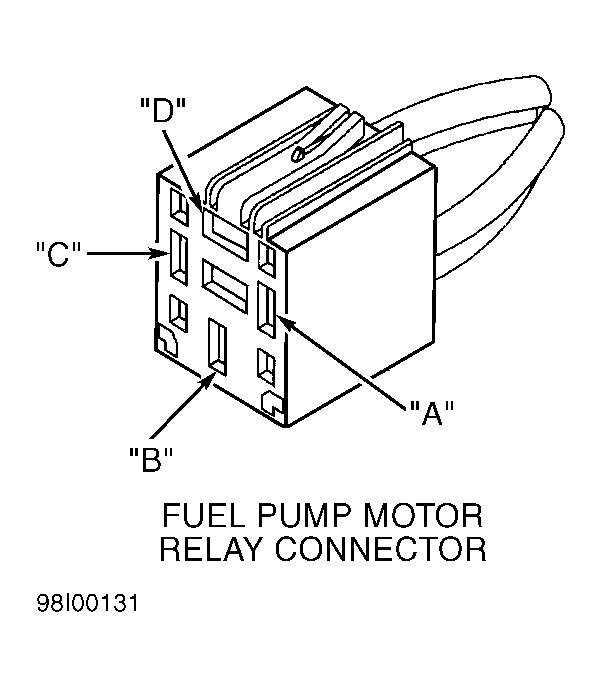

Fig 2: TC-101A-2 Identifying Fuel Pump Relay Connector Terminals (Avenger, Sebring Coupe & Talon)

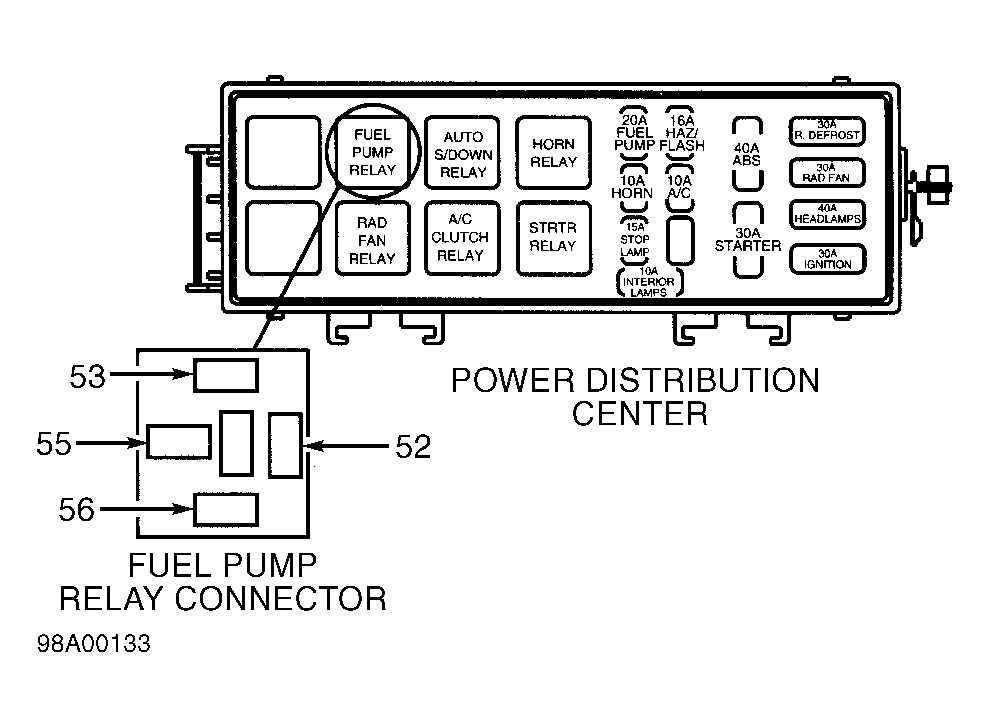

Fig 3: TC-101A-3Identifying Fuel Pump Relay Connector Terminals & Location (Breeze, Cirrus, Sebring Conv. & Stratus)

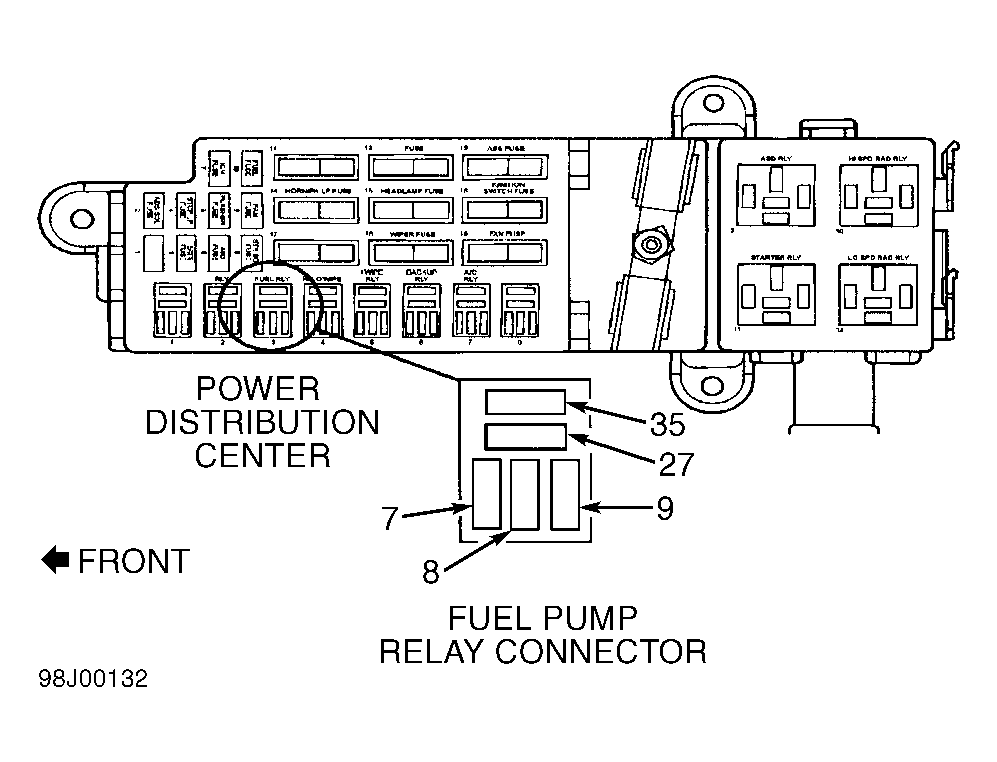

Fig 4: TC-101A-4 Identifying Fuel Pump Relay Connector Terminals & Location (Neon)

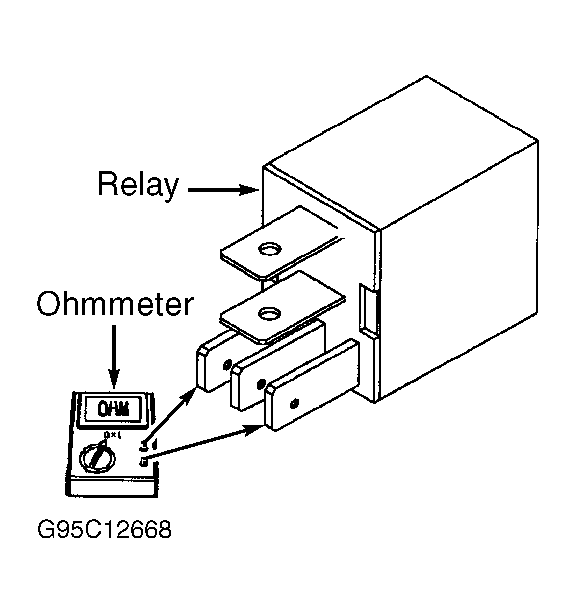

Fig 5: TC-101A-5 Testing Relay (Breeze, Cirrus, Sebring Conv. & Stratus)

Fig 6: TC-101A-6 Testing Relay (Avenger, Neon, Sebring Coupe & Talon)
