Using Scan Tool

Ensure battery is fully charged. Turn ignition off. Connect scan tool to Data Link Connector (DLC). See DATA LINK CONNECTOR (DLC) LOCATION table for connector location and number of connections required. Some models require more than one connection to retrieve diagnostic information. See Fig 1-Fig 3 .

DATA LINK CONNECTOR (DLC) LOCATION

Application

DLC Location

Avenger, Sebring Coupe & Talon⁽¹⁾

Base Of Steering Column

Breeze, Cirrus Sebring Conv. & Stratus⁽²⁾

Above Driver's Kick Panel

Neon²

Lower Left Side Of Dashboard

⁽¹⁾	Requires 2 connections, one at 12-pin DLC and another at 16-pin DLC.

⁽²⁾	Requires one connection at 16-pin DLC.

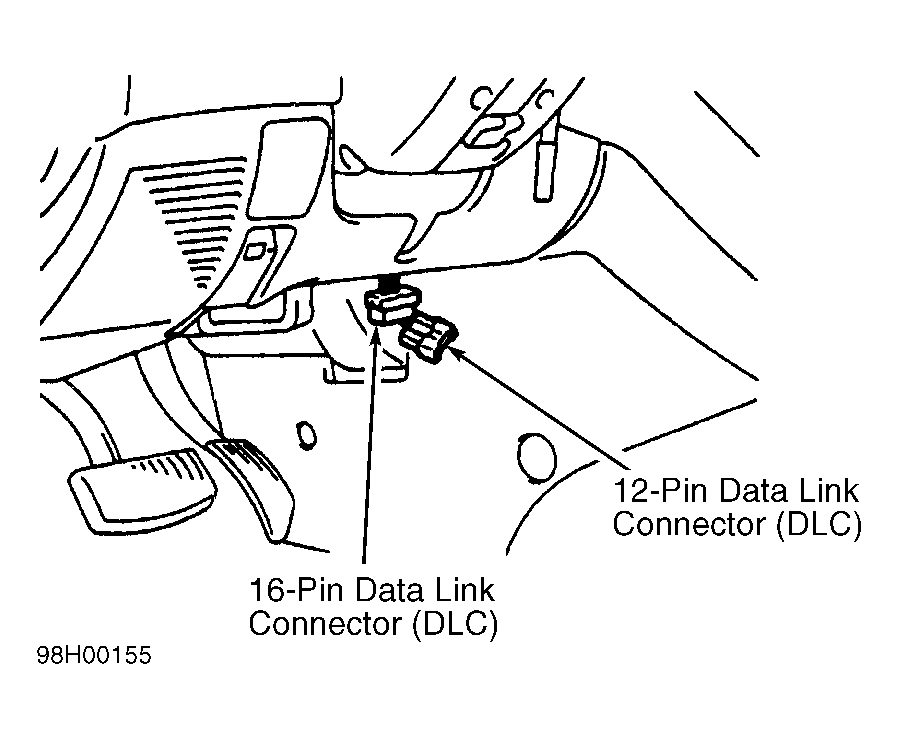

Fig 1: Locating Data Link Connectors (DLCs) (Avenger, Sebring Coupe & Talon)

Courtesy of CHRYSLER CORP.

Fig 2: Locating Engine Data Link Connector (DLC) (Breeze, Cirrus, Sebring Convertible & Stratus)

Courtesy of CHRYSLER CORP.

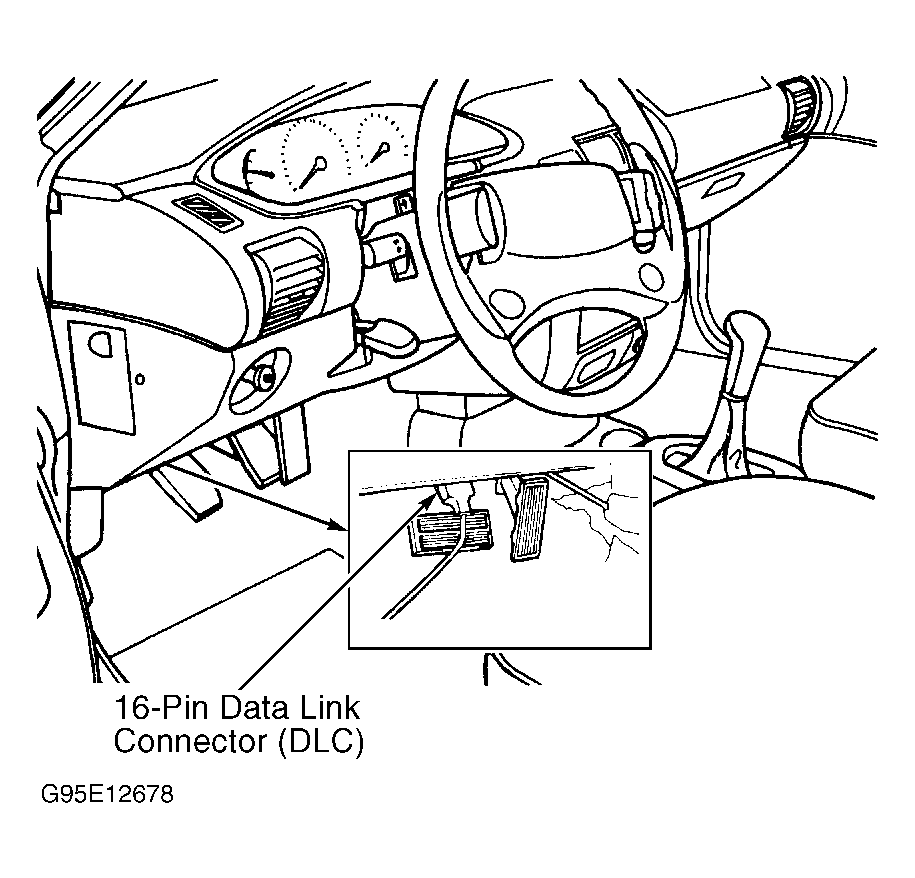

Fig 3: Locating Engine Data Link Connector (DLC) (Neon)

Courtesy of CHRYSLER CORP.

Turn ignition on. Using scan tool manufacturer's instructions, record all DTCs displayed on scan tool. Once all repairs are made, ensure DTCs are cleared from PCM. See CLEARING DIAGNOSTIC TROUBLE CODES .
