Stall (Lock) Test

With starter mounted in test stand and ring gear locked, adjust test stand rheostat to values specified (see specifications ) and observe torque on dial indicator.

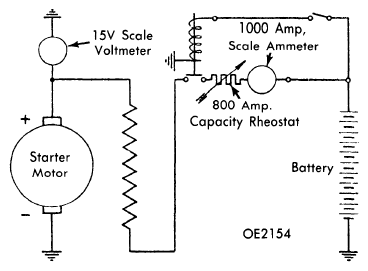

Fig 1: PERFORMANCE TEST WIRING DIAGRAM

G09319110

Courtesy of NOT AVAILABLE

Cranking Amperage Draw

Starter No.

Amps @ RPM⁽¹⁾

Torque (Ft. Lbs.)

E 84-0.8/12

170 @ 1900

2.89±.14

E 100-1.3/12

280 @ 1550±100

6.51±.14

⁽¹⁾	At 9.5 volts.
