Stall (Lock) Test

With starter mounted in test stand and ring gear locked, adjust test stand rheostat to values specified (see specifications) and observe torque on dial indicator.

STARTER PERFORMANCE SPECIFICATIONS

Model

No Load Test⁽¹⁾

Lock Test

Amps.

RPM

Amps.

Volts

Torque (Ft. Lbs.)

E 84-0.8/12

Below 35

7000 ±500

370

8.3±0.3

7.9±.36

E 100-1.3/12

Below 28

5200±500

530

7±0.3

12.58±.7

⁽¹⁾	At 12 volts.

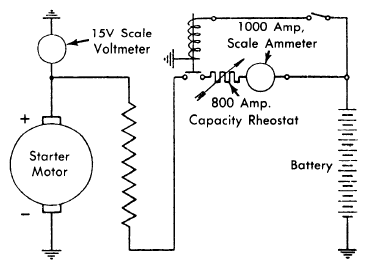

Fig 1: Performance Test Wiring Diagram

Courtesy of NOT AVAILABLE

CRANKING AMPERAGE DRAW

Starter No.

Amps @ RPM

Torque (Ft. Lbs.)

E 84-0.8/12

170@1950±100⁽¹⁾

2.89±.14

E 100-1.3/12

280@1600±100⁽²⁾

5.87±.14

⁽¹⁾	At 10.3 volts.

⁽²⁾	At 9.5 volts.
