Stall (Lock) Test

With starter mounted in test stand and ring gear locked, adjust test stand rheostat to values specified (see specifications ) and observe torque on dial indicator.

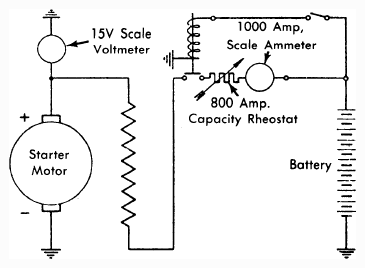

Fig 1: Performance Test Wiring Diagram

Courtesy of NOT AVAILABLE

CRANKING AMPERAGE DRAW

Starter No.

Amps @ RPM

Torque (Ft. Lbs.)

E 84-0.8/12

170@1950±100⁽¹⁾

2.89±.14

E 100-1.3/12

280@1600±100⁽²⁾

5.87±.14

⁽¹⁾	At 10.3 volts.

⁽²⁾	At 9.5 volts.
