EGR System

At 25, 000 mile intervals, a catalyst/EGR system light comes on. After servicing EGR system, reset maintenance reminder light. Locate odometer switch in engine compartment. See Fig 1. Remove lock wire, unscrew cap and turn screw to "50". After 50, 000 miles, turn screw back to "25".

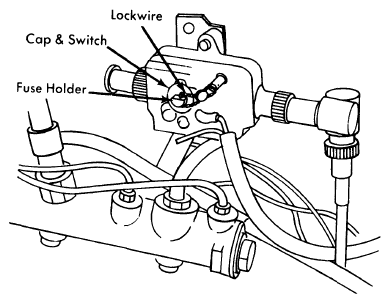

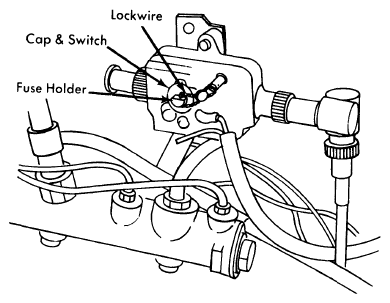

Fig 1: Catalyst/EGR System Odometer Switch
G09313183Courtesy of NOT AVAILABLE
