Stall (Lock) Test

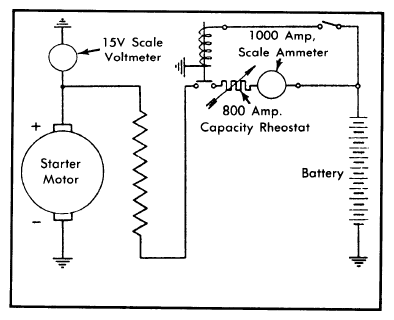

With starter mounted in test stand and ring gear locked, adjust test stand rheostat to values specified (see specifications ) and observe torque on dial indicator.
CRANKING SPECIFICATIONS
| Starter No. | Amps @RPM | Torque (Ft. Lbs.) | ||||
|---|---|---|---|---|---|---|
| E 84-0.8/12 | 170@1950±100 (1) | 2.89±.14 | ||||
| E 100-1.3/12 | 280@1600±100 (2) | 5.78±.14 | ||||
|
||||||
Brush Spring Tension - E 84-0.8/12 - 2.5-2.9 lbs. (1.15-1.3 kg); E 100-1.3/12 - 2.2±.2 lbs. (1±0.1 kg).
Rotation (Pinion End) - Clockwise.
Armature End Play - E 84-0.8/12 -.0039-.0197" (0.1-0.5 mm); E 100-1.3/12 -.003-.027" (0.07-0.70 mm).
STARTER PERFORMANCE SPECIFICATIONS
| Model | No Load Test (1) | Lock Test | |||||
|---|---|---|---|---|---|---|---|
| Amps. | RPM | Amps. | Volts | Torque (Ft. Lbs.) | |||
| E 84-0.8/12 | Below 35 | 7000±500 | 370 | 8.3±0.3 | 7.9±1.36 | ||
| E 100-1.3/12 | Below 28 | 5200±500 | 530 | 7±0.3 | 12.58±.7 | ||
|
|||||||
