Wiper Switch: Installation

To install, reverse removal procedure.

Fig 1: Brava Wiper Wiring Diagram
G09323015Courtesy of NOT AVAILABLE

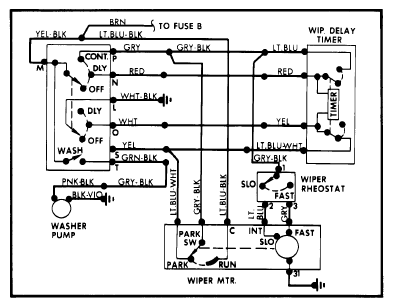

Fig 2: Spider 2000 Wiper Wiring Diagram
G09323016Courtesy of NOT AVAILABLE

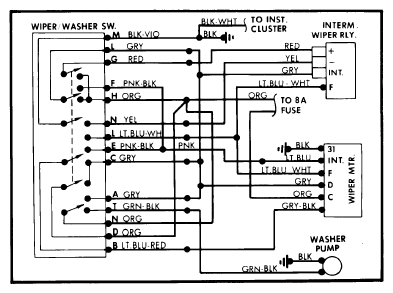

Fig 3: X1/9 Wiper Wiring Diagram
G09323017Courtesy of NOT AVAILABLE
Fig 4: Strada Front Wiper Wiring Diagram
G09323018Courtesy of NOT AVAILABLE
Fig 5: Strada Rear Wiper Wiring Diagram
G09323019Courtesy of NOT AVAILABLE
