Trouble Shooting

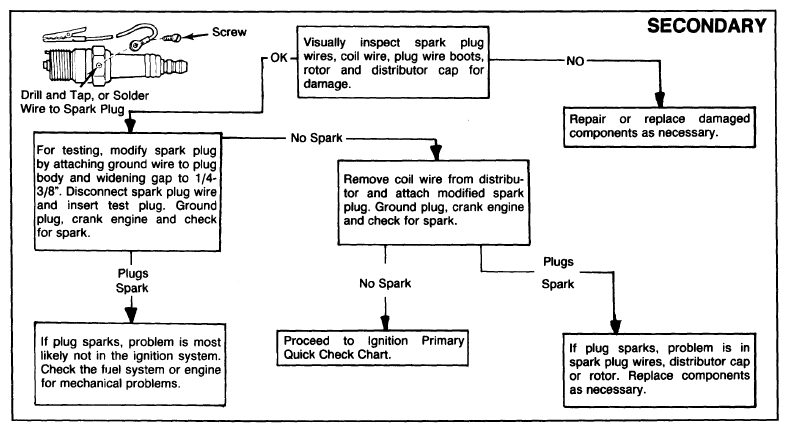

Fig 1: Secondary Ignition Trouble Shooting
G09323410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

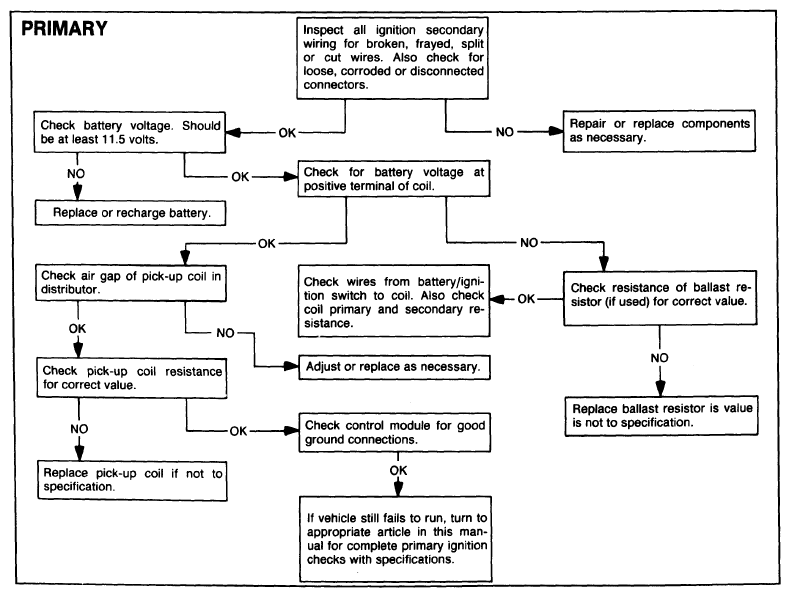

Fig 2: Primary Ignition Trouble Shooting
G09323411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
