Tune-Up - 4 CYL: Distributor

All models are equipped with breakerless, electronic ignition systems. Spider uses a Marelli system, and X1/9 uses a Bosch unit.

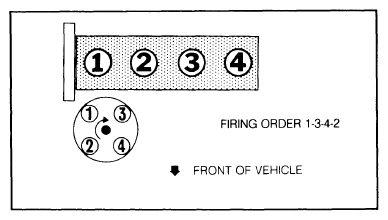

Fig 1: Spider Firing Order and Distributor Rotation

Courtesy of NOT AVAILABLE

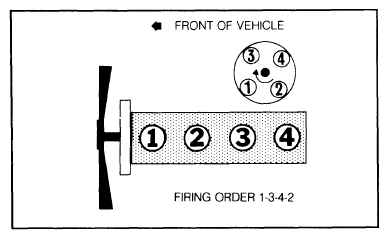

Fig 2: X1/9 Firing Order and Distributor Rotation

Courtesy of NOT AVAILABLE
