Ignition Timing

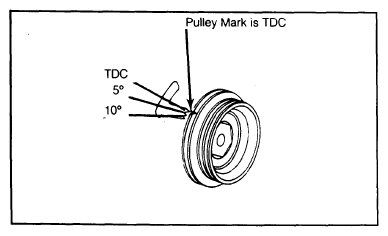

Check or adjust ignition timing with engine warm, Man. Trans. in neutral or Auto. Trans in "D" and idle speed adjusted. To adjust timing, turn distributor and align mark on drive pulley or flywheel with specified pointer.
IGNITION TIMING (Degrees BTDC@RPM)
| Application | Man. Trans | (1) Auto Trans. | ||
|---|---|---|---|---|
| All Models | 10°@825 | 10°@725 | ||
|
||||
