Wiper Switch: Installation

To install, reverse removal procedure.

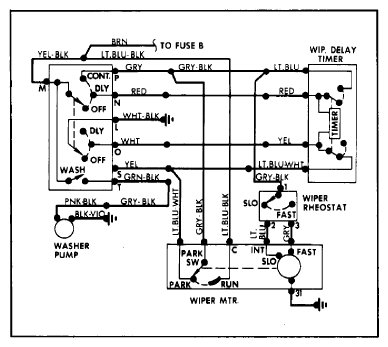

Fig 1: Spider 2000 Wiper Wiring Diagram
G09330345Courtesy of NOT AVAILABLE

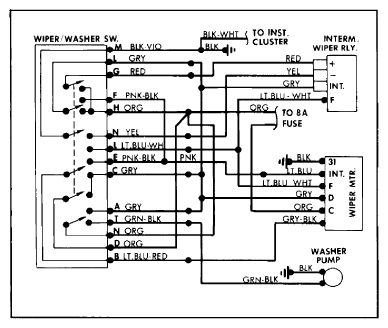

Fig 2: X1/9 Wiper Wiring Diagram
G09330346Courtesy of NOT AVAILABLE
