A/C And Heater Control Module - Description

DESCRIPTION

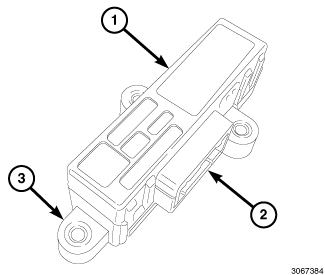

The A/C heater module (1) is a microprocessor designed to operate the heating and A/C system through hardwired circuits. The A/C heater module has a plastic housing with one integral electrical connector receptacle (2) and three mounting tabs (3).

The A/C heater module is located on the right side of the HVAC housing.
