A/C And Heater Control Module - Installation

INSTALLATION

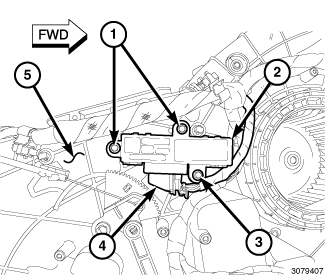

NOTE: Air inlet housing removed from view for clarity.





1. Position the A/C heater module (2) to the right side of the HVAC housing (5).

NOTE: Use a flexible drive socket to remove the lower module retaining screw (3).

2. Install the three retaining screws (1 and 3) that secure the module to the housing. Tighten the screws to 0.8 Nm (7 in. lbs.).
3. Connect the wire harness connector (4) to the A/C heater module.
4. Install the glove box Instrument Panel Glove Box - Installation.
5. Reconnect the negative battery cable.
