Engine Coolant Temperature Sensor - Installation





INSTALLATION





1. Install the engine coolant temperature sensor (4) into the thermostat housing.
2. Connect the wire harness connector.

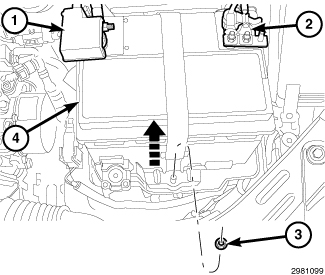

3. Install the battery (4) and the hold down clamp. Tighten the nut to 55 Nm (40 ft. lbs.).
4. Install the air intake assembly.
5. Fill the cooling system Service and Repair.
6. Connect the positive and negative battery cable.
