Auto Shutdown Relay - Installation






INSTALLATION

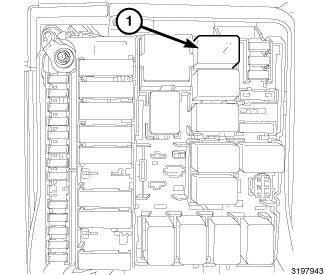

The Automatic Shutdown (ASD) relay (1) is located in the engine compartment within the Power Distribution Center (PDC). Always refer to the label on the power distribution center cover for relay location.

1. Install the relay to the power distribution center.
2. Install the cover to the power distribution center.
