Spark Plug - Installation

INSTALLATION

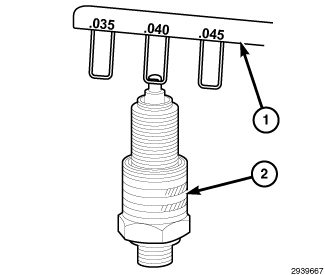

1. Check and adjust the spark plug gap with a gap gauging tool (1) Spark Plug Specifications






CAUTION: Special care should be taken when installing spark plugs into the cylinder head spark plug wells. Be sure the plugs do not drop into the plug wells as electrodes can be damaged.

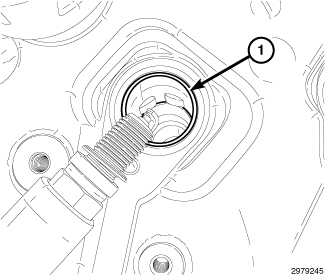

CAUTION: The spark plug tubes (1) are a thin wall design. Avoid damaging the spark plug tubes. Damage to the spark plug tube can result in oil leaks.

2. Start the spark plug into the cylinder head by hand to avoid cross threading.
3. Tighten the spark plugs to 16 Nm (12 ft. lbs.).

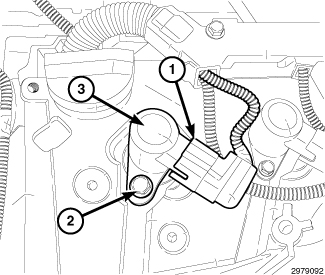

NOTE: Number 1 cylinder ignition coil shown, all others similar.

4. Install the ignition coil (3) Ignition Coil - Installation.
