Intake Manifold

INTAKE MANIFOLD

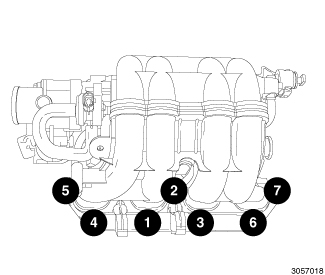

Install the remaining six of the seven intake manifold flange bolts. Tighten all seven intake manifold flange bolts 15 Nm (11 ft. lbs.).

Tighten the previously installed intake manifold support bolt 8 Nm (90 in. lbs.).
